COMP Cams Camshaft 943045

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 94-304-5
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 21
Retail: $544.94
Price: $518.99
You Save: $25.95
Advertised Exhaust Duration (DEG)
268 Degree
Advertised Intake Duration (DEG)
268 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Cadillac V8 425-472-500 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
218 Degree
Exhaust Valve Lift (IN)
0.49 Inch
Grind Number
268H
Intake Centerline Angle (DEG)
106 Degree
Intake Duration At 0.050 Inch Lift (DEG)
218 Degree
Intake Valve Lift (IN)
0.49 Inch
Lobe Separation Angle (DEG)
110 Degree
Share this page

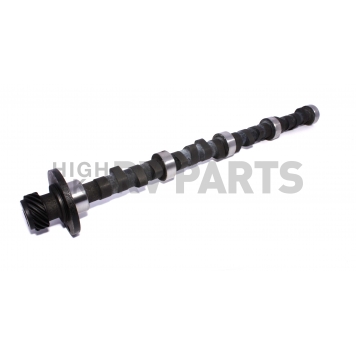

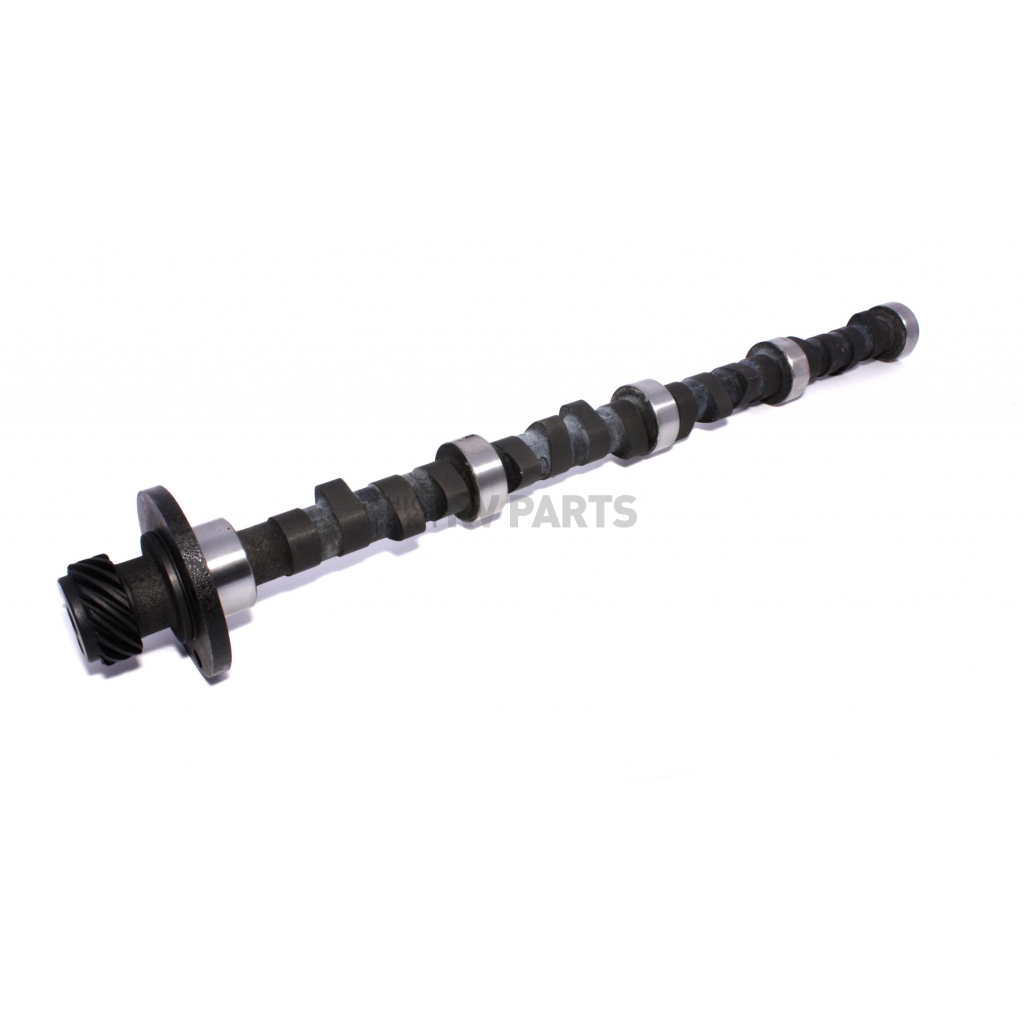

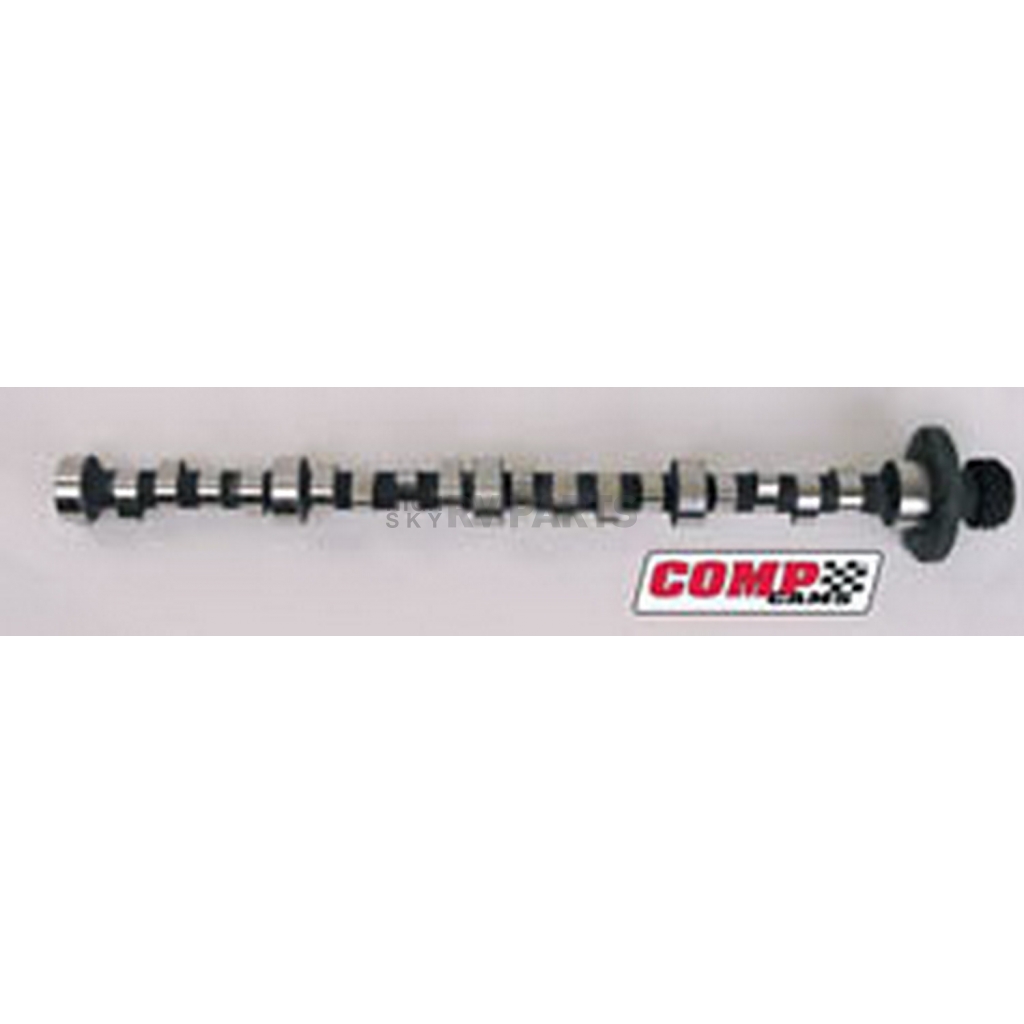

COMP Cams Camshaft

Camshaft; High Energy ™; Cadillac 7.0L-8.2L/425-500 Cubic Inch; Hydraulic Flat Tappet; 1200-5200 RPM Range; 218 Degree Intake Duration @ 0.050 Inch Lift; 218 Degree Exhaust Duration @ 0.050 Inch Lift; 0.490 Inch Intake Valve Lift; 0.490 Inch Exhaust Valve Lift; 110 Degree Lobe Separation

MPN: 943045

These high torque Camshafts are designed for street applications with lower compression ratios. They can be used with most stock components including intake manifolds, exhaust manifolds and carburetors. High Energy Cams™ are designed to improve your engine's efficiency through its unique lobe characteristics. When installed in the correct application, High Energy Cams™ will usually produce better gas mileage and power. COMP Cams(R) has matched Valve springs to go with each of the cams in the High Energy™ series to ensure peak performance.
Engine Compatibility: Cadillac V8 425-472-500 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Flat Tappet
RPM - Low: 1200
RPM - High: 5200
Intake Duration At 0.050 Inch Lift (DEG): 218 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 218 Degree
Advertised Intake Duration (DEG): 268 Degree
Advertised Exhaust Duration (DEG): 268 Degree
Intake Valve Lift (IN): 0.49 Inch
Exhaust Valve Lift (IN): 0.49 Inch
Lobe Separation Angle (DEG): 110 Degree
Intake Centerline Angle (DEG): 106 Degree
Grind Number: 268H
Computer-Controlled Compatible: No

Features

  • Work Well With Mainly Stock Components Like Rockers, Manifolds, Heads, Compression, Converters, Gears, Etc.
  • Good Blend Of Efficiency And Performance
  • Perfect Choice For Performance Rebuilds
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 943045
Advertised Exhaust Duration (DEG) 268 Degree
Advertised Intake Duration (DEG) 268 Degree
Computer-Controlled Compatible No
Engine Compatibility Cadillac V8 425-472-500 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 218 Degree
Exhaust Valve Lift (IN) 0.49 Inch
Grind Number 268H
Intake Centerline Angle (DEG) 106 Degree
Intake Duration At 0.050 Inch Lift (DEG) 218 Degree
Intake Valve Lift (IN) 0.49 Inch
Lobe Separation Angle (DEG) 110 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 5200
RPM - Low 1200
Type Hydraulic Flat Tappet

1965 Cadillac Calais
1966 Cadillac Calais
1967 Cadillac Calais
1968 Cadillac Calais
1969 Cadillac Calais
1970 Cadillac Calais
1971 Cadillac Calais
1972 Cadillac Calais
1973 Cadillac Calais
1974 Cadillac Calais
1975 Cadillac Calais
1976 Cadillac Calais

1964 Cadillac Commercial Chassis
1965 Cadillac Commercial Chassis
1966 Cadillac Commercial Chassis
1967 Cadillac Commercial Chassis
1968 Cadillac Commercial Chassis
1969 Cadillac Commercial Chassis
1970 Cadillac Commercial Chassis
1971 Cadillac Commercial Chassis
1972 Cadillac Commercial Chassis
1973 Cadillac Commercial Chassis
1974 Cadillac Commercial Chassis
1975 Cadillac Commercial Chassis
1976 Cadillac Commercial Chassis

1964 Cadillac DeVille
1965 Cadillac DeVille
1966 Cadillac DeVille
1967 Cadillac DeVille
1968 Cadillac DeVille
1969 Cadillac DeVille
1970 Cadillac DeVille
1971 Cadillac DeVille
1972 Cadillac DeVille
1973 Cadillac DeVille
1974 Cadillac DeVille
1975 Cadillac DeVille
1976 Cadillac DeVille

1964 Cadillac Eldorado
1965 Cadillac Eldorado
1966 Cadillac Eldorado
1967 Cadillac Eldorado
1968 Cadillac Eldorado
1969 Cadillac Eldorado
1970 Cadillac Eldorado
1971 Cadillac Eldorado
1972 Cadillac Eldorado
1973 Cadillac Eldorado
1974 Cadillac Eldorado
1975 Cadillac Eldorado
1976 Cadillac Eldorado

1965 Cadillac Fleetwood
1966 Cadillac Fleetwood
1967 Cadillac Fleetwood
1968 Cadillac Fleetwood
1969 Cadillac Fleetwood
1970 Cadillac Fleetwood
1971 Cadillac Fleetwood
1972 Cadillac Fleetwood
1973 Cadillac Fleetwood
1974 Cadillac Fleetwood
1975 Cadillac Fleetwood
1976 Cadillac Fleetwood

1964 Cadillac Series 60 Fleetwood

1964 Cadillac Series 62

1964 Cadillac Series 75 Fleetwood

1900 Cadillac V8 425-500
