COMP Cams Camshaft 768009

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 76-800-9
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 21
Retail: $685.64
Price: $652.99
You Save: $32.65
Advertised Exhaust Duration (DEG)
256 Degree
Advertised Intake Duration (DEG)
246 Degree
Computer-Controlled Compatible
No
Engine Compatibility
GMC V6 3.8L 231 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
201 Degree
Exhaust Valve Lift (IN)
0.496 Inch
Grind Number
246 HR10
Intake Centerline Angle (DEG)
106 Degree
Intake Duration At 0.050 Inch Lift (DEG)
191 Degree
Intake Valve Lift (IN)
0.48 Inch
Lobe Separation Angle (DEG)
110 Degree
Share this page

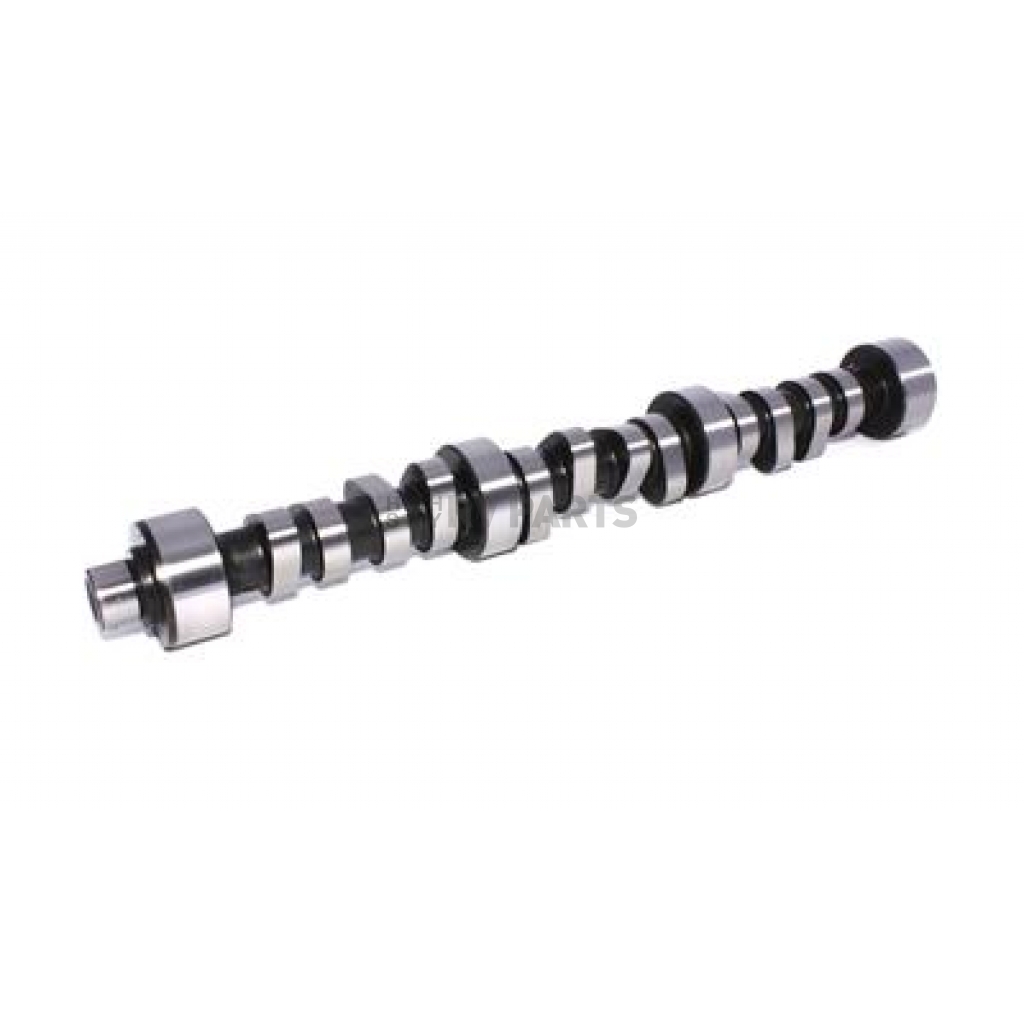

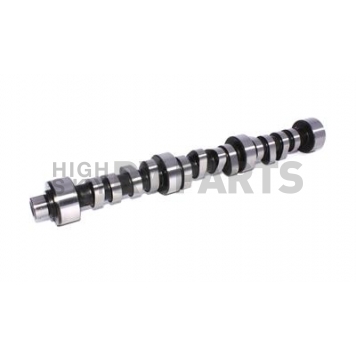

COMP Cams Camshaft

Camshaft; Xtreme Energy ™; GM 3.8L V6; Hydraulic Roller; 800-4800 RPM Range; 191 Degree Intake Duration @ 0.050 Inch Lift; 201 Degree Exhaust Duration @ 0.050 Inch Lift; 0.480 Inch Intake Valve Lift; 0.496 Inch Exhaust Valve Lift; 110 Degree Lobe Separation

MPN: 768009

Xtreme Energy Cams™ are designed to take advantage of the latest improvements in Valve train components and the newest developments in Camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased Engine vacuum. Can be used in any street or street/Strip application where both throttle response and top end Horsepower are desired. Because these Camshafts use aggressive lobe designs, it is imperative that Valve springs, locks, retainers, pushrods, lifters, Rocker Arms and other related components be matched to the camshaft.
Engine Compatibility: GMC V6 3.8L 231 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Roller
RPM - Low: 800
RPM - High: 4800
Intake Duration At 0.050 Inch Lift (DEG): 191 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 201 Degree
Advertised Intake Duration (DEG): 246 Degree
Advertised Exhaust Duration (DEG): 256 Degree
Intake Valve Lift (IN): 0.48 Inch
Exhaust Valve Lift (IN): 0.496 Inch
Lobe Separation Angle (DEG): 110 Degree
Intake Centerline Angle (DEG): 106 Degree
Grind Number: 246 HR10
Computer-Controlled Compatible: No

Features

  • Quicker Opening Lobe Profiles Deliver Increased Responsiveness And More Area Under The Lift Curve
  • More Vacuum Allows A Step Up In Duration For Greater Performance
  • Excellent All Around Performance In Street Carbureted Applications
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 768009
Advertised Exhaust Duration (DEG) 256 Degree
Advertised Intake Duration (DEG) 246 Degree
Computer-Controlled Compatible No
Engine Compatibility GMC V6 3.8L 231 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 201 Degree
Exhaust Valve Lift (IN) 0.496 Inch
Grind Number 246 HR10
Intake Centerline Angle (DEG) 106 Degree
Intake Duration At 0.050 Inch Lift (DEG) 191 Degree
Intake Valve Lift (IN) 0.48 Inch
Lobe Separation Angle (DEG) 110 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 4800
RPM - Low 800
Type Hydraulic Roller

2005 Buick LaCrosse
2006 Buick LaCrosse
2007 Buick LaCrosse
2008 Buick LaCrosse
2009 Buick LaCrosse

1996 Buick LeSabre
1997 Buick LeSabre
1998 Buick LeSabre
1999 Buick LeSabre
2000 Buick LeSabre
2001 Buick LeSabre
2002 Buick LeSabre
2003 Buick LeSabre
2004 Buick LeSabre
2005 Buick LeSabre

2006 Buick Lucerne
2007 Buick Lucerne
2008 Buick Lucerne

1996 Buick Park Avenue
1997 Buick Park Avenue
1998 Buick Park Avenue
1999 Buick Park Avenue
2000 Buick Park Avenue
2001 Buick Park Avenue
2002 Buick Park Avenue
2003 Buick Park Avenue
2004 Buick Park Avenue
2005 Buick Park Avenue

1996 Buick Regal
1997 Buick Regal
1998 Buick Regal
1999 Buick Regal
2000 Buick Regal
2001 Buick Regal
2002 Buick Regal
2003 Buick Regal
2004 Buick Regal

1996 Buick Riviera
1997 Buick Riviera
1998 Buick Riviera
1999 Buick Riviera

1900 Chevrolet Small Block 1955-1986

1998 Oldsmobile Intrigue
1999 Oldsmobile Intrigue

1996 Oldsmobile LSS
1997 Oldsmobile LSS
1998 Oldsmobile LSS
1999 Oldsmobile LSS

1997 Oldsmobile Regency
1998 Oldsmobile Regency

1996 Pontiac Bonneville
1997 Pontiac Bonneville
1998 Pontiac Bonneville
1999 Pontiac Bonneville
2000 Pontiac Bonneville
2001 Pontiac Bonneville
2002 Pontiac Bonneville
2003 Pontiac Bonneville
2004 Pontiac Bonneville
2005 Pontiac Bonneville
