COMP Cams Camshaft 512264

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 51-226-4
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $331.79
Price: $315.99
You Save: $15.80
Advertised Exhaust Duration (DEG)
306 Degree
Advertised Intake Duration (DEG)
294 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Pontiac V8 265-455 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
256 Degree
Exhaust Valve Lift (IN)
0.524 Inch
Grind Number
XE294H
Intake Centerline Angle (DEG)
106 Degree
Intake Duration At 0.050 Inch Lift (DEG)
250 Degree
Intake Valve Lift (IN)
0.519 Inch
Lobe Separation Angle (DEG)
110 Degree
Share this page

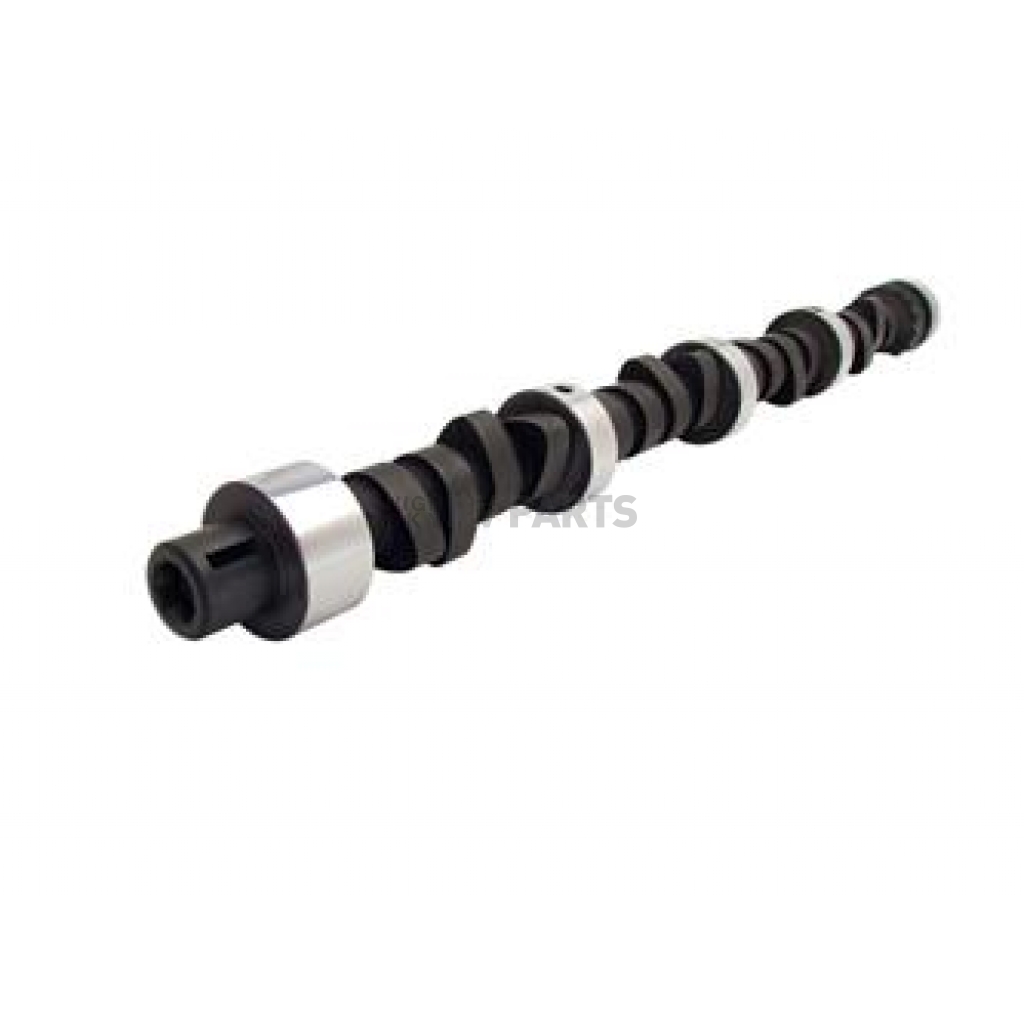

COMP Cams Camshaft

Camshaft; Xtreme Energy ™; Pontiac 4.3L-7.5L/265-455 Cubic Inch; Hydraulic Flat Tappet; 2800-6500 RPM Range; 250 Degree Intake Duration @ 0.050 Inch Lift; 256 Degree Exhaust Duration @ 0.050 Inch Lift; 0.519 Inch Intake Valve Lift; 0.524 Inch Exhaust Valve Lift; 110 Degree Lobe Separation

MPN: 512264

Xtreme Energy Cams™ are designed to take advantage of the latest improvements in Valve train components and the newest developments in Camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased Engine vacuum. Can be used in any street or street/Strip application where both throttle response and top end Horsepower are desired. Because these Camshafts use aggressive lobe designs, it is imperative that Valve springs, locks, retainers, pushrods, lifters, Rocker Arms and other related components be matched to the camshaft.
Engine Compatibility: Pontiac V8 265-455 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Flat Tappet
RPM - Low: 2800
RPM - High: 6500
Intake Duration At 0.050 Inch Lift (DEG): 250 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 256 Degree
Advertised Intake Duration (DEG): 294 Degree
Advertised Exhaust Duration (DEG): 306 Degree
Intake Valve Lift (IN): 0.519 Inch
Exhaust Valve Lift (IN): 0.524 Inch
Lobe Separation Angle (DEG): 110 Degree
Intake Centerline Angle (DEG): 106 Degree
Grind Number: XE294H
Computer-Controlled Compatible: No

Features

  • Quicker Opening Lobe Profiles Deliver Increased Responsiveness And More Area Under The Lift Curve
  • More Vacuum Allows A Step Up In Duration For Greater Performance
  • Excellent All Around Performance In Street Carbureted Applications
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 512264
Advertised Exhaust Duration (DEG) 306 Degree
Advertised Intake Duration (DEG) 294 Degree
Computer-Controlled Compatible No
Engine Compatibility Pontiac V8 265-455 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 256 Degree
Exhaust Valve Lift (IN) 0.524 Inch
Grind Number XE294H
Intake Centerline Angle (DEG) 106 Degree
Intake Duration At 0.050 Inch Lift (DEG) 250 Degree
Intake Valve Lift (IN) 0.519 Inch
Lobe Separation Angle (DEG) 110 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 6500
RPM - Low 2800
Type Hydraulic Flat Tappet

1957 Pontiac Bonneville

1971 Pontiac Bonneville

1977 Pontiac Bonneville
1978 Pontiac Bonneville
1979 Pontiac Bonneville
1980 Pontiac Bonneville
1981 Pontiac Bonneville

1964 Pontiac Grand Prix
1965 Pontiac Grand Prix
1966 Pontiac Grand Prix
1967 Pontiac Grand Prix
1968 Pontiac Grand Prix
1969 Pontiac Grand Prix
1970 Pontiac Grand Prix
1971 Pontiac Grand Prix
1972 Pontiac Grand Prix
1973 Pontiac Grand Prix
1974 Pontiac Grand Prix
1975 Pontiac Grand Prix
1976 Pontiac Grand Prix

1971 Pontiac Grand Safari
1972 Pontiac Grand Safari
1973 Pontiac Grand Safari
1974 Pontiac Grand Safari
1975 Pontiac Grand Safari
1976 Pontiac Grand Safari
1977 Pontiac Grand Safari
1978 Pontiac Grand Safari

1971 Pontiac Grandville
1972 Pontiac Grandville
1973 Pontiac Grandville
1974 Pontiac Grandville
1975 Pontiac Grandville

1964 Pontiac GTO
1965 Pontiac GTO
1966 Pontiac GTO
1967 Pontiac GTO
1968 Pontiac GTO
1969 Pontiac GTO
1970 Pontiac GTO
1971 Pontiac GTO
1972 Pontiac GTO
1973 Pontiac GTO

1963 Pontiac LeMans
1964 Pontiac LeMans
1965 Pontiac LeMans
1966 Pontiac LeMans
1967 Pontiac LeMans
1968 Pontiac LeMans
1969 Pontiac LeMans
1970 Pontiac LeMans
1971 Pontiac LeMans
1972 Pontiac LeMans
1973 Pontiac LeMans
1974 Pontiac LeMans
1975 Pontiac LeMans
1976 Pontiac LeMans
1977 Pontiac LeMans
1978 Pontiac LeMans
1979 Pontiac LeMans
1980 Pontiac LeMans
1981 Pontiac LeMans

1977 Pontiac Phoenix
1978 Pontiac Phoenix
1979 Pontiac Phoenix

1955 Pontiac Star Chief
1956 Pontiac Star Chief
1957 Pontiac Star Chief
1958 Pontiac Star Chief
1959 Pontiac Star Chief
1960 Pontiac Star Chief
1961 Pontiac Star Chief
1962 Pontiac Star Chief
1963 Pontiac Star Chief
1964 Pontiac Star Chief
1965 Pontiac Star Chief
1966 Pontiac Star Chief

1978 Pontiac Sunbird
1979 Pontiac Sunbird

1957 Pontiac Super Chief
1958 Pontiac Super Chief

1961 Pontiac Tempest

1963 Pontiac Tempest
1964 Pontiac Tempest
1965 Pontiac Tempest
1966 Pontiac Tempest
1967 Pontiac Tempest
1968 Pontiac Tempest
1969 Pontiac Tempest
1970 Pontiac Tempest

1900 Pontiac V8 326-455
