COMP Cams Camshaft 465259

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 46-525-9
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 06
Retail: $685.64
Price: $652.99
You Save: $32.65
Advertised Exhaust Duration (DEG)
258 Degree
Advertised Intake Duration (DEG)
246 Degree
Computer-Controlled Compatible
No
Engine Compatibility
GM 8.1L
Exhaust Duration At 0.050 Inch Lift (DEG)
206 Degree
Exhaust Valve Lift (IN)
0.493 Inch
Grind Number
TPX246HR-16
Intake Centerline Angle (DEG)
116 Degree
Intake Duration At 0.050 Inch Lift (DEG)
194 Degree
Intake Valve Lift (IN)
1/2 Inch
Lobe Separation Angle (DEG)
116 Degree
Share this page

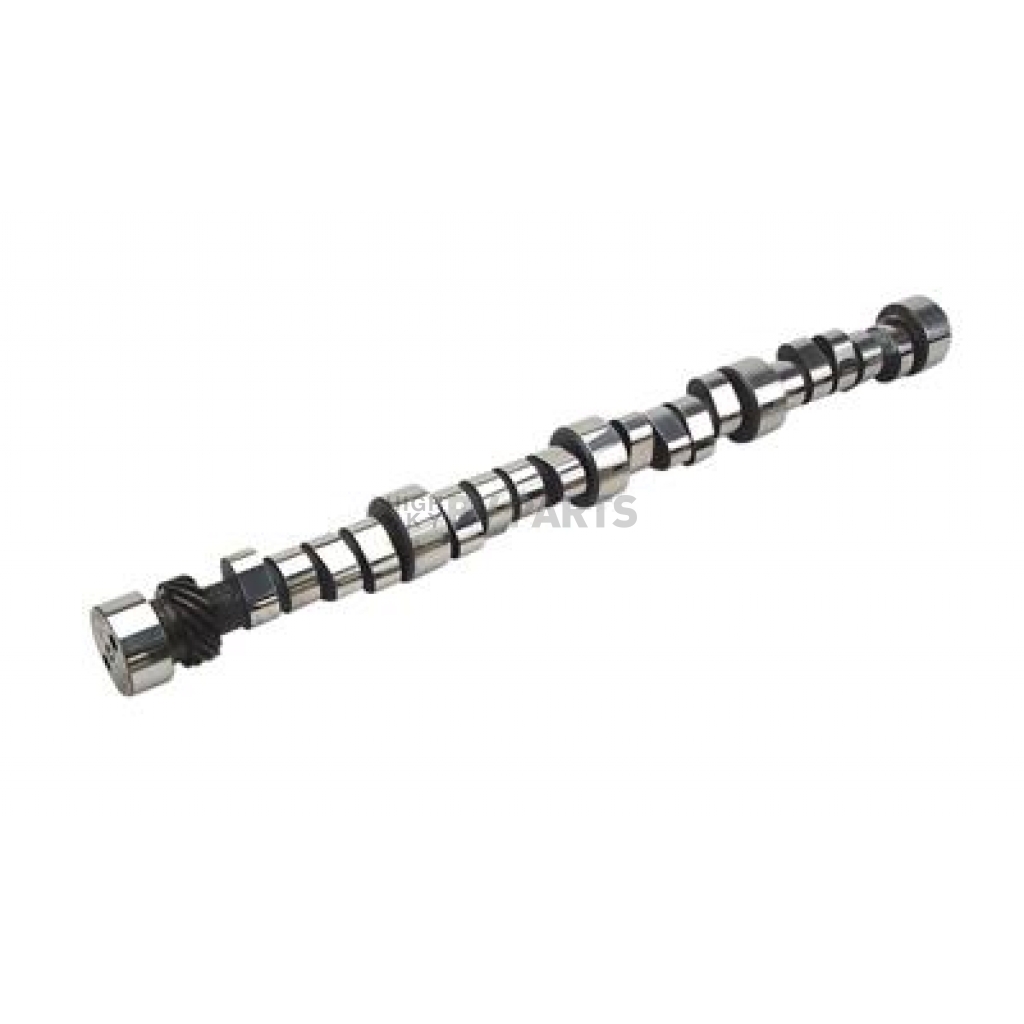

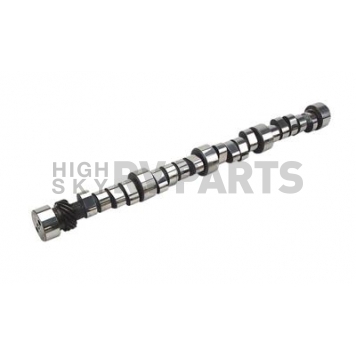

COMP Cams Camshaft

Camshaft; Tri-Power Xtreme ™; GM 8.1L; Hydraulic Roller; 600-4600 RPM Range; 194 Degree Intake Duration @ 0.050 Inch Lift; 206 Degree Exhaust Duration @ 0.050 Inch Lift; 0.500 Inch Intake Valve Lift; 0.493 Inch Exhaust Valve Lift; 116 Degree Lobe Separation

MPN: 465259

Engine Compatibility: GM 8.1L
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Roller
RPM - Low: 600
RPM - High: 4600
Intake Duration At 0.050 Inch Lift (DEG): 194 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 206 Degree
Advertised Intake Duration (DEG): 246 Degree
Advertised Exhaust Duration (DEG): 258 Degree
Intake Valve Lift (IN): 1/2 Inch
Exhaust Valve Lift (IN): 0.493 Inch
Lobe Separation Angle (DEG): 116 Degree
Intake Centerline Angle (DEG): 116 Degree
Grind Number: TPX246HR-16
Computer-Controlled Compatible: No

Features

  • Three Different Camshafts Offered For Each Engine Platform
  • Camshaft Designs Are Targeted To Improve Horsepower, Torque Or Fuel Efficiency
  • By Decreasing Pumping Losses, Efficiency And Performance Are Enhanced, Regardless Of Camshaft Selected
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 465259
Advertised Exhaust Duration (DEG) 258 Degree
Advertised Intake Duration (DEG) 246 Degree
Computer-Controlled Compatible No
Engine Compatibility GM 8.1L
Exhaust Duration At 0.050 Inch Lift (DEG) 206 Degree
Exhaust Valve Lift (IN) 0.493 Inch
Grind Number TPX246HR-16
Intake Centerline Angle (DEG) 116 Degree
Intake Duration At 0.050 Inch Lift (DEG) 194 Degree
Intake Valve Lift (IN) 1/2 Inch
Lobe Separation Angle (DEG) 116 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 4600
RPM - Low 600
Type Hydraulic Roller

2002 Chevrolet Avalanche 2500
2003 Chevrolet Avalanche 2500
2004 Chevrolet Avalanche 2500
2005 Chevrolet Avalanche 2500
2006 Chevrolet Avalanche 2500

1900 Chevrolet Big Block Vortec 8.1L

2001 Chevrolet C3500HD
2002 Chevrolet C3500HD

2001 Chevrolet Express 3500
2002 Chevrolet Express 3500

2001 Chevrolet Silverado 2500 HD
2002 Chevrolet Silverado 2500 HD
2003 Chevrolet Silverado 2500 HD
2004 Chevrolet Silverado 2500 HD
2005 Chevrolet Silverado 2500 HD
2006 Chevrolet Silverado 2500 HD

2007 Chevrolet Silverado 2500 HD Classic

2001 Chevrolet Silverado 3500
2002 Chevrolet Silverado 3500
2003 Chevrolet Silverado 3500
2004 Chevrolet Silverado 3500
2005 Chevrolet Silverado 3500
2006 Chevrolet Silverado 3500

2007 Chevrolet Silverado 3500 Classic

2001 Chevrolet Suburban 2500
2002 Chevrolet Suburban 2500
2003 Chevrolet Suburban 2500
2004 Chevrolet Suburban 2500
2005 Chevrolet Suburban 2500
2006 Chevrolet Suburban 2500

2001 GMC C3500HD
2002 GMC C3500HD
