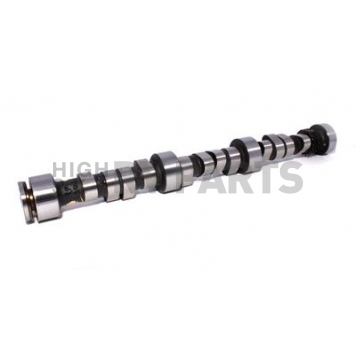

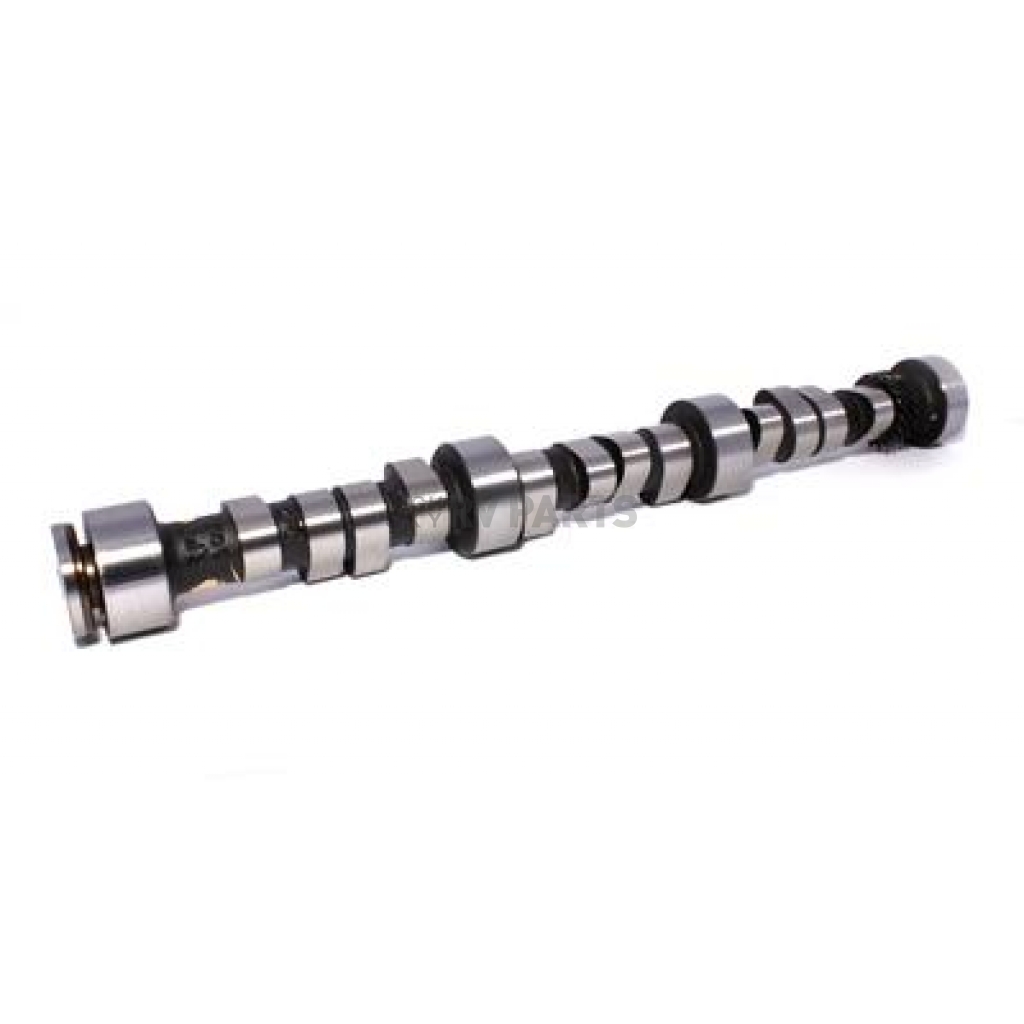

COMP Cams Camshaft 494228

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 49-422-8
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 06
Retail: $708.74
Price: $674.99
You Save: $33.75
Advertised Exhaust Duration (DEG)
284 Degree
Advertised Intake Duration (DEG)
270 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Ford V6 4.0L 245 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
224 Degree
Exhaust Valve Lift (IN)
1/2 Inch
Grind Number
270HR
Intake Centerline Angle (DEG)
108 Degree
Intake Duration At 0.050 Inch Lift (DEG)
215 Degree
Intake Valve Lift (IN)
1/2 Inch
Lobe Separation Angle (DEG)
112 Degree
Share this page

COMP Cams Camshaft

Camshaft; High Energy ™; Ford 4.0L V6; Hydraulic Roller; 1200-5200 RPM Range; 215 Degree Intake Duration @ 0.050 Inch Lift; 224 Degree Exhaust Duration @ 0.050 Inch Lift; 0.500 Inch Intake Valve Lift; 0.500 Inch Exhaust Valve Lift; 112 Degree Lobe Separation

MPN: 494228

Engine Compatibility: Ford V6 4.0L 245 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Roller
RPM - Low: 1200
RPM - High: 5200
Intake Duration At 0.050 Inch Lift (DEG): 215 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 224 Degree
Advertised Intake Duration (DEG): 270 Degree
Advertised Exhaust Duration (DEG): 284 Degree
Intake Valve Lift (IN): 1/2 Inch
Exhaust Valve Lift (IN): 1/2 Inch
Lobe Separation Angle (DEG): 112 Degree
Intake Centerline Angle (DEG): 108 Degree
Grind Number: 270HR
Computer-Controlled Compatible: No

Features

  • High Energy Cams™ Are Designed To Improve Your Engine's Efficiency Through Its Unique Lobe Characteristics
  • When Installed In The Correct Application , High Energy Cams™ Will Usually Produce Better Gas Mileage And Power
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 494228
Advertised Exhaust Duration (DEG) 284 Degree
Advertised Intake Duration (DEG) 270 Degree
Computer-Controlled Compatible No
Engine Compatibility Ford V6 4.0L 245 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 224 Degree
Exhaust Valve Lift (IN) 1/2 Inch
Grind Number 270HR
Intake Centerline Angle (DEG) 108 Degree
Intake Duration At 0.050 Inch Lift (DEG) 215 Degree
Intake Valve Lift (IN) 1/2 Inch
Lobe Separation Angle (DEG) 112 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 5200
RPM - Low 1200
Type Hydraulic Roller

1900 Ford Small Block 221-351W
