COMP Cams Camshaft 355528

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 35-552-8
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 21
Retail: $708.74
Price: $674.99
You Save: $33.75
Advertised Exhaust Duration (DEG)
276 Degree
Advertised Intake Duration (DEG)
264 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Ford Small Block V8 5.0L 302 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
224 Degree
Exhaust Valve Lift (IN)
0.512 Inch
Grind Number
NX264HR
Intake Centerline Angle (DEG)
110 Degree
Intake Duration At 0.050 Inch Lift (DEG)
212 Degree
Intake Valve Lift (IN)
0.512 Inch
Lobe Separation Angle (DEG)
114 Degree
Share this page

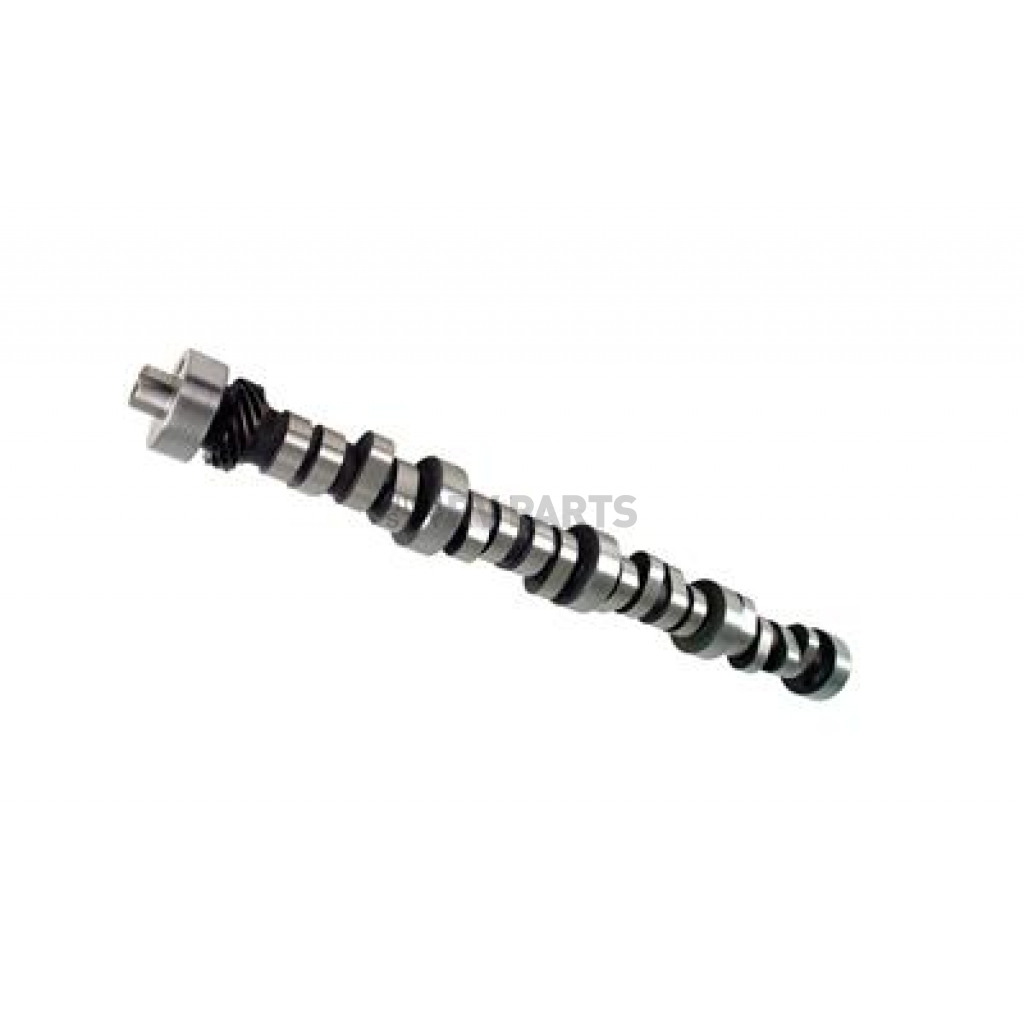

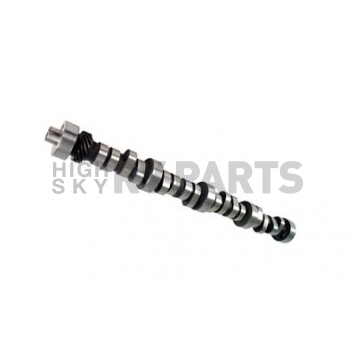

COMP Cams Camshaft

Camshaft; Nitrous HP ™; Ford Windsor Small Block 5.0L/302 Cubic Inch; Hydraulic Roller; 1500-5600 RPM Range; 212 Degree Intake Duration @ 0.050 Inch Lift; 224 Degree Exhaust Duration @ 0.050 Inch Lift; 0.512 Inch Intake Valve Lift; 0.512 Inch Exhaust Valve Lift; 114 Degree Lobe Separation

MPN: 355528

Nitrous Horsepower™ cams are designed to maximize performance in Engines equipped with nitrous oxide or superchargers. Carefully tailored lobe profiles deliver excellent performance without nitrous and incredible gains when nitrous oxide is used. The Valve timing of Nitrous Horsepower™ Camshafts is designed to optimize exhaust scavenging under blown or nitrous assisted conditions. When the exhaust Valve opens several Degrees earlier, the Engine is better able to scavenge larger amounts of exhaust gases which were produced by the induction of nitrous and added fuel. This is the ultimate Camshaft for nitrous and supercharged Engines. An earlier exhaust opening and a longer duration make for a very pronounced performance sound. If you are looking for that Pro Street Camshaft sound, the Nitrous Horsepower™ cam is for you.
Engine Compatibility: Ford Small Block V8 5.0L 302 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Roller
RPM - Low: 1500
RPM - High: 5600
Intake Duration At 0.050 Inch Lift (DEG): 212 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 224 Degree
Advertised Intake Duration (DEG): 264 Degree
Advertised Exhaust Duration (DEG): 276 Degree
Intake Valve Lift (IN): 0.512 Inch
Exhaust Valve Lift (IN): 0.512 Inch
Lobe Separation Angle (DEG): 114 Degree
Intake Centerline Angle (DEG): 110 Degree
Grind Number: NX264HR
Computer-Controlled Compatible: No

Features

  • Designed To Maximize Performance In Engines Equipped With Nitrous Oxide Or Superchargers
  • Also Designed To Optimize Exhaust Scavenging Under Blown Or Nitrous Assisted Conditions
  • Better Time Slips For Nitrous Passes At The Strip
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 355528
Advertised Exhaust Duration (DEG) 276 Degree
Advertised Intake Duration (DEG) 264 Degree
Computer-Controlled Compatible No
Engine Compatibility Ford Small Block V8 5.0L 302 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 224 Degree
Exhaust Valve Lift (IN) 0.512 Inch
Grind Number NX264HR
Intake Centerline Angle (DEG) 110 Degree
Intake Duration At 0.050 Inch Lift (DEG) 212 Degree
Intake Valve Lift (IN) 0.512 Inch
Lobe Separation Angle (DEG) 114 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 5600
RPM - Low 1500
Type Hydraulic Roller
