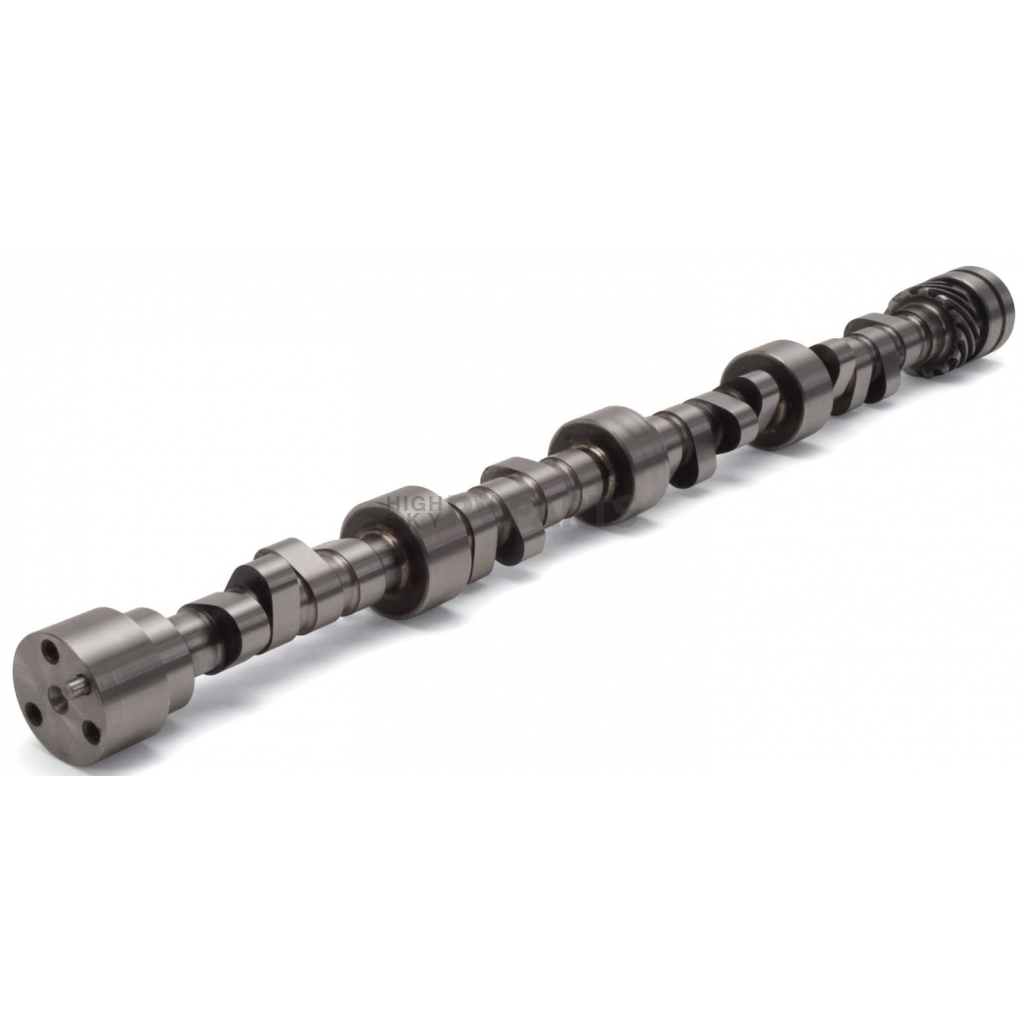

Edelbrock Camshaft 2268

Name: Edelbrock Camshaft 2268
Brand: Edelbrock
SKU: 2268
Price: 855.99 USD
Availability: InStock

Authorized Dealer

Brand:

Edelbrock

0 reviews

Have a product question? Ask us
Part Number: 2268
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 14

Retail: $898.79

Price: $855.99

You Save: $42.80

Advertised Exhaust Duration (DEG)

296 Degree

Advertised Intake Duration (DEG)

292 Degree

Computer-Controlled Compatible

Engine Compatibility

Chevy Big Block V8 5.7L-6.7L 348-409 Cubic Inch

Exhaust Duration At 0.050 Inch Lift (DEG)

234 Degree

Exhaust Valve Lift (IN)

0.628 Inch

Intake Centerline Angle (DEG)

107 Degree

Intake Duration At 0.050 Inch Lift (DEG)

230 Degree

Intake Valve Lift (IN)

0.616 Inch

Lobe Separation Angle (DEG)

112 Degree

Recommended Use

Street

Share this page

Edelbrock Camshaft

Camshaft; Rollin Thunder; Chevy Big Block 5.7L-6.7L/348-409 Cubic Inch; Hydraulic Roller; 1500-6500 RPM Range; 230 Degree Intake/ 234 Degree Exhaust Duration @ 0.050 Inch Lift; 0.616 Inch Intake/ 0.628 Inch Exhaust Valve Lift; 112 Degree Lobe Separation Angle; 107 Degree Intake Centerline

MPN: 2268

Rollin thunder performer RPM cams feature more aggressive profiles than conventional cams without excessive valve overlap and provide power from 1500 to 6500 RPM. They are used in our 435 Horsepower and 440 Horsepower E-Tec crate engines, our 460 Horsepower signature series 383 crate engine and our 650 Horsepower and 675 Horsepower 555 crate engines. Roller tappets reduce friction, virtually eliminate Break-In problems, and permit higher valve velocities for increased performance. Intended for use with OEM or Edelbrock hydraulic roller tappets

Engine Compatibility: Chevy Big Block V8 5.7L-6.7L 348-409 Cubic Inch

Recommended Use: Street

Type: Hydraulic Roller

RPM - Low: 1500

RPM - High: 6500

Intake Duration At 0.050 Inch Lift (DEG): 230 Degree

Exhaust Duration At 0.050 Inch Lift (DEG): 234 Degree

Advertised Intake Duration (DEG): 292 Degree

Advertised Exhaust Duration (DEG): 296 Degree

Intake Valve Lift (IN): 0.616 Inch

Exhaust Valve Lift (IN): 0.628 Inch

Lobe Separation Angle (DEG): 112 Degree

Intake Centerline Angle (DEG): 107 Degree

Computer-Controlled Compatible: No

Features

Rollin Thunder Performer RPM Cams Feature More Aggressive Profiles Than Conventional Cams Without Excessive Valve Overlap And Provide Power From 1500 To 6500 RPM
Roller Tappets Reduce Friction, Virtually Eliminate Break-In Problems And Permit Higher Valve Velocities For Increased Performance
Limited 1 Year Warranty

Specifications of Edelbrock Camshaft 2268
Advertised Exhaust Duration (DEG)	296 Degree
Advertised Intake Duration (DEG)	292 Degree
Computer-Controlled Compatible	No
Engine Compatibility	Chevy Big Block V8 5.7L-6.7L 348-409 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)	234 Degree
Exhaust Valve Lift (IN)	0.628 Inch
Intake Centerline Angle (DEG)	107 Degree
Intake Duration At 0.050 Inch Lift (DEG)	230 Degree
Intake Valve Lift (IN)	0.616 Inch
Lobe Separation Angle (DEG)	112 Degree
Recommended Use	Street
RPM - High	6500
RPM - Low	1500
Type	Hydraulic Roller
