Edelbrock Camshaft 2262

Authorized Dealer
Brand: Edelbrock Edelbrock
0 reviews
  • Have a product question? Ask us
  • Part Number: 2262
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $656.24
Price: $624.99
You Save: $31.25
Advertised Exhaust Duration (DEG)
329 Degree
Advertised Intake Duration (DEG)
335 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Chevy Big Block V8 454-502 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
245 Degree
Exhaust Valve Lift (IN)
0.639 Inch
Intake Centerline Angle (DEG)
109 Degree
Intake Duration At 0.050 Inch Lift (DEG)
236 Degree
Intake Valve Lift (IN)
5/8 Inch
Lobe Separation Angle (DEG)
112 Degree
Recommended Use
Street
Share this page

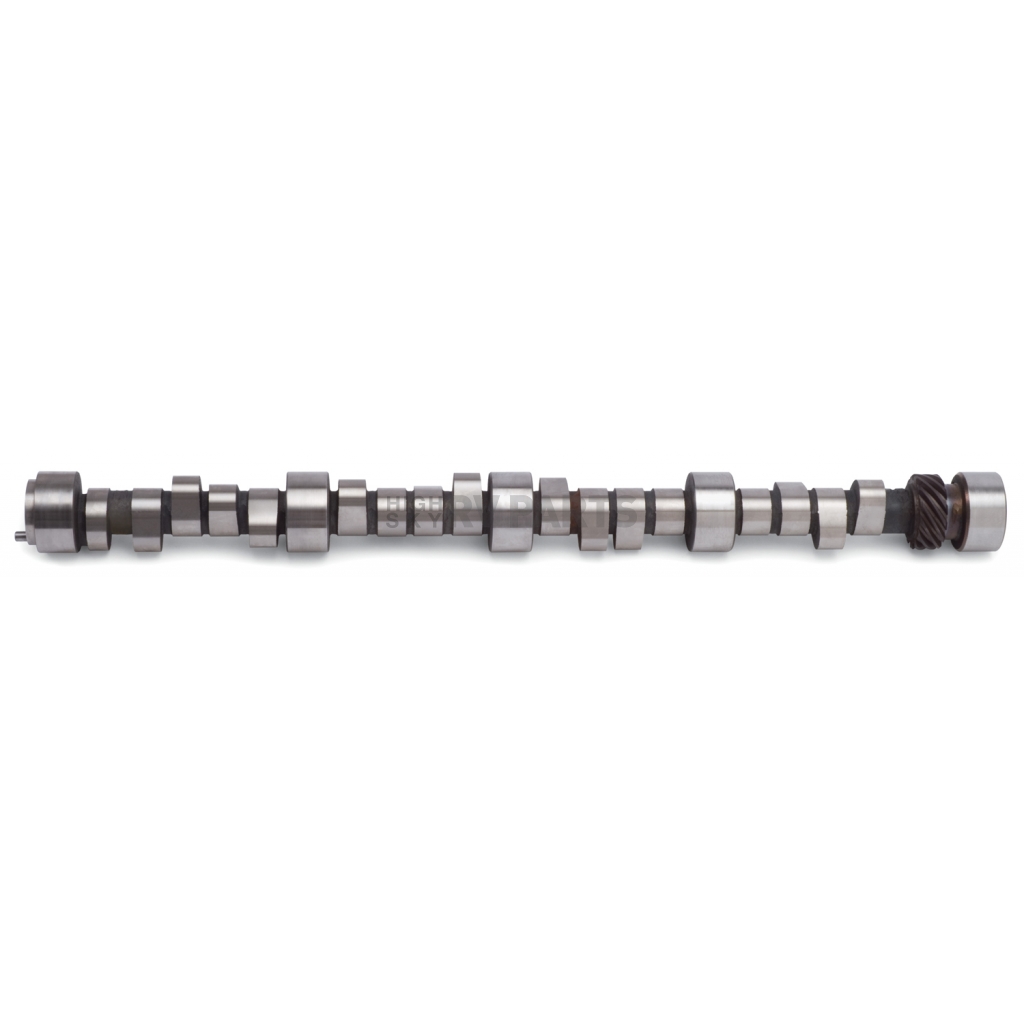

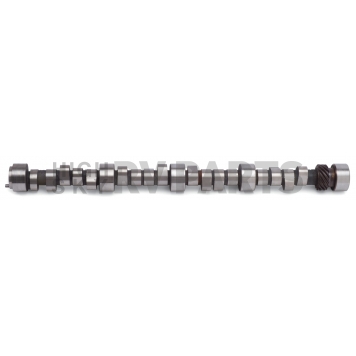

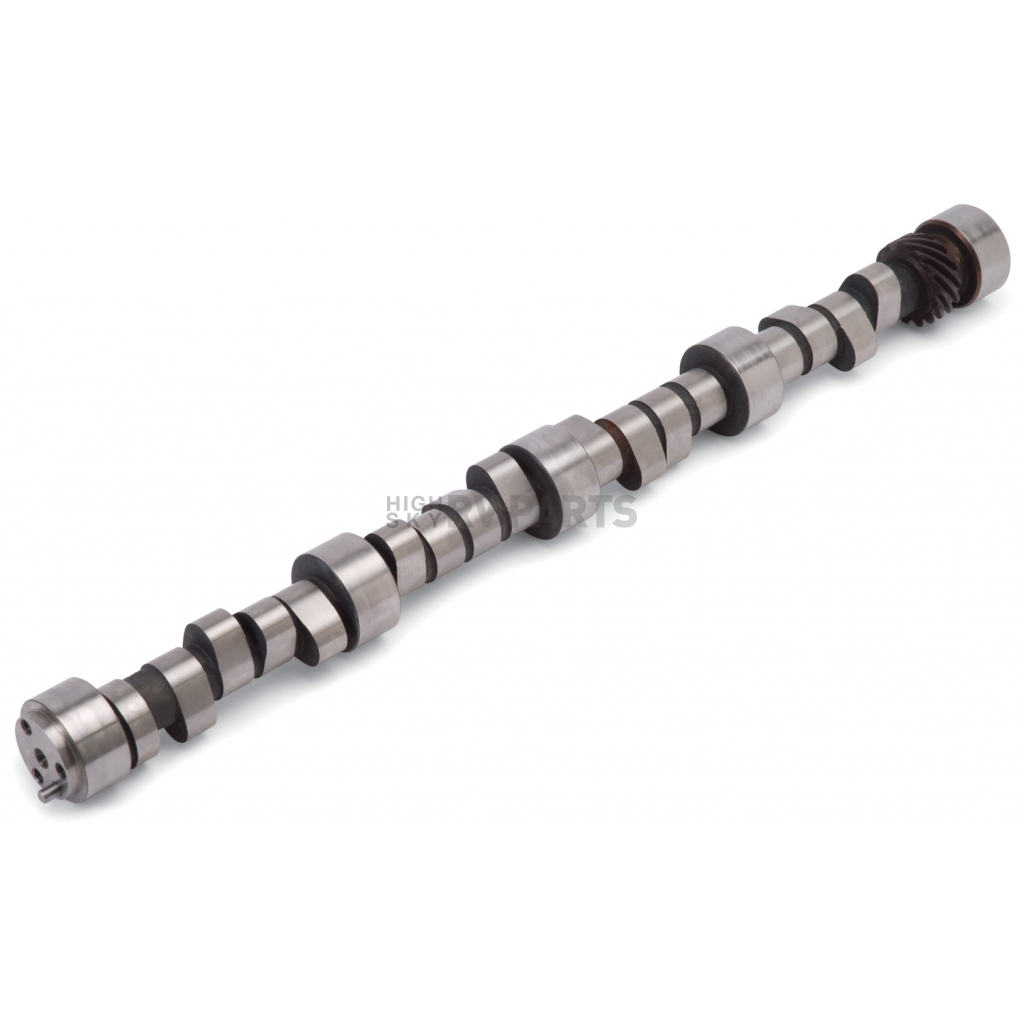

Edelbrock Camshaft

Camshaft; Rollin Thunder; Chevy Big Block 7.4L-8.2L/454-502 Cubic Inch; Hydraulic Roller; 1500-6500 RPM Range; 236 Degree Intake/ 245 Degree Exhaust Duration @ 0.050 Inch Lift; 0.625 Inch Intake/ 0.639 Inch Exhaust Valve Lift; 112 Degree Lobe Separation Angle; 109 Degree Intake Centerline

MPN: 2262

Rollin thunder performer RPM cams feature more aggressive profiles than conventional cams without excessive valve overlap and provide power from 1500 to 6500 RPM. They are used in our 435 Horsepower and 440 Horsepower E-Tec crate engines, our 460 Horsepower signature series 383 crate engine and our 650 Horsepower and 675 Horsepower 555 crate engines. Roller tappets reduce friction, virtually eliminate Break-In problems, and permit higher valve velocities for increased performance. Intended for use with OEM or Edelbrock hydraulic roller tappets
Engine Compatibility: Chevy Big Block V8 454-502 Cubic Inch
Recommended Use: Street
Type: Hydraulic Roller
RPM - Low: 1500
RPM - High: 6500
Intake Duration At 0.050 Inch Lift (DEG): 236 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 245 Degree
Advertised Intake Duration (DEG): 335 Degree
Advertised Exhaust Duration (DEG): 329 Degree
Intake Valve Lift (IN): 5/8 Inch
Exhaust Valve Lift (IN): 0.639 Inch
Lobe Separation Angle (DEG): 112 Degree
Intake Centerline Angle (DEG): 109 Degree
Computer-Controlled Compatible: No

Features

  • Rollin Thunder Performer RPM Cams Feature More Aggressive Profiles Than Conventional Cams Without Excessive Valve Overlap And Provide Power From 1500 To 6500 RPM
  • Roller Tappets Reduce Friction, Virtually Eliminate Break-In Problems And Permit Higher Valve Velocities For Increased Performance
  • Limited 1 Year Warranty
Specifications of Edelbrock Camshaft 2262
Advertised Exhaust Duration (DEG) 329 Degree
Advertised Intake Duration (DEG) 335 Degree
Computer-Controlled Compatible No
Engine Compatibility Chevy Big Block V8 454-502 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 245 Degree
Exhaust Valve Lift (IN) 0.639 Inch
Intake Centerline Angle (DEG) 109 Degree
Intake Duration At 0.050 Inch Lift (DEG) 236 Degree
Intake Valve Lift (IN) 5/8 Inch
Lobe Separation Angle (DEG) 112 Degree
Recommended Use Street
RPM - High 6500
RPM - Low 1500
Type Hydraulic Roller

1900 Chevrolet Big Block 1996-2000 Gen VI

1996 Chevrolet G30

1996 Chevrolet P30
1997 Chevrolet P30

1996 GMC G3500

1996 GMC P3500
1997 GMC P3500
