Edelbrock Camshaft 2216
Advertised Exhaust Duration (DEG)
322 Degree
Advertised Intake Duration (DEG)
314 Degree
Computer-Controlled Compatible
No
Engine Compatibility
GM LS Series 5.7L
Exhaust Duration At 0.050 Inch Lift (DEG)
237 Degree
Exhaust Valve Lift (IN)
0.54 Inch
Intake Centerline Angle (DEG)
106 Degree
Intake Duration At 0.050 Inch Lift (DEG)
230 Degree
Intake Valve Lift (IN)
0.54 Inch
Lobe Separation Angle (DEG)
110 Degree
Recommended Use
Street
Share this page
Edelbrock Camshaft

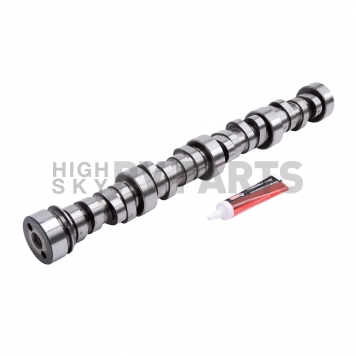

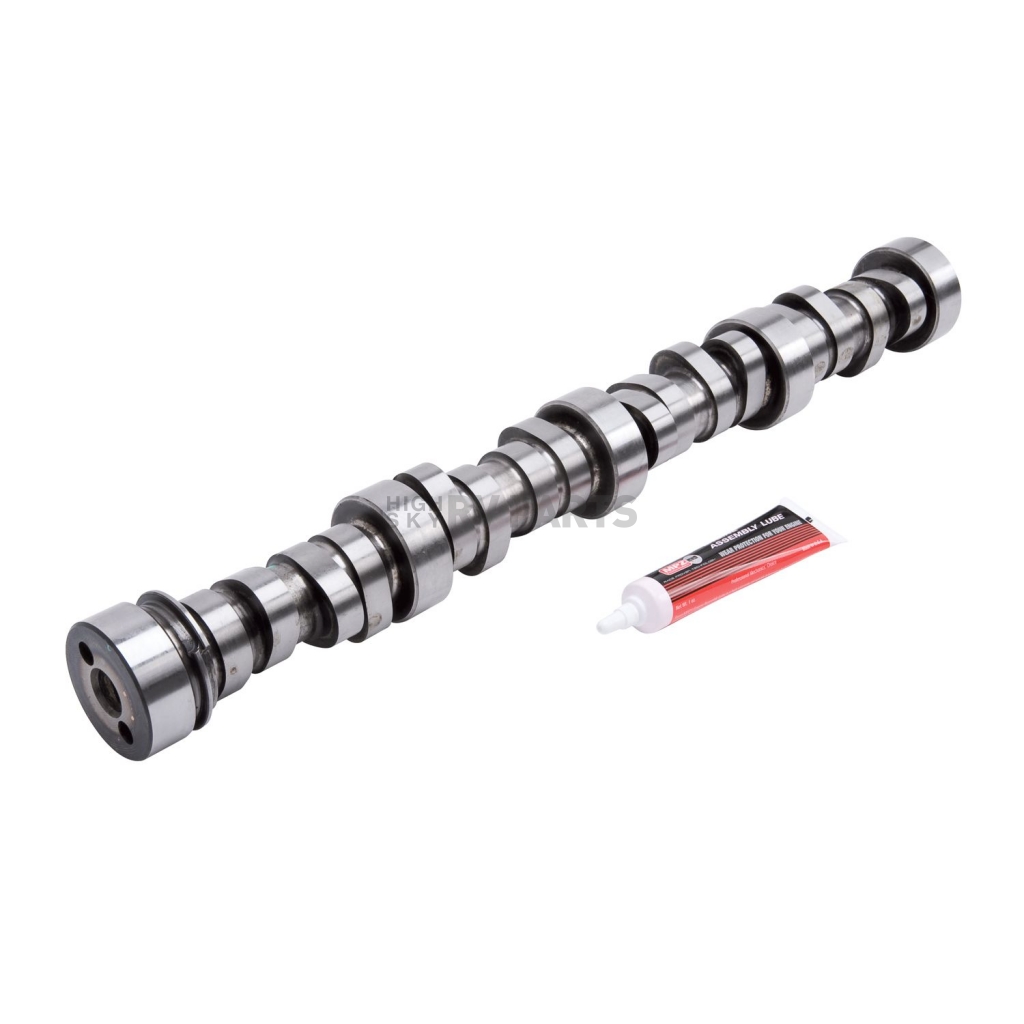

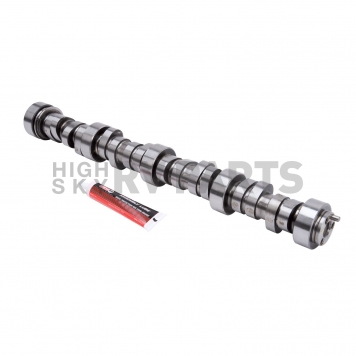

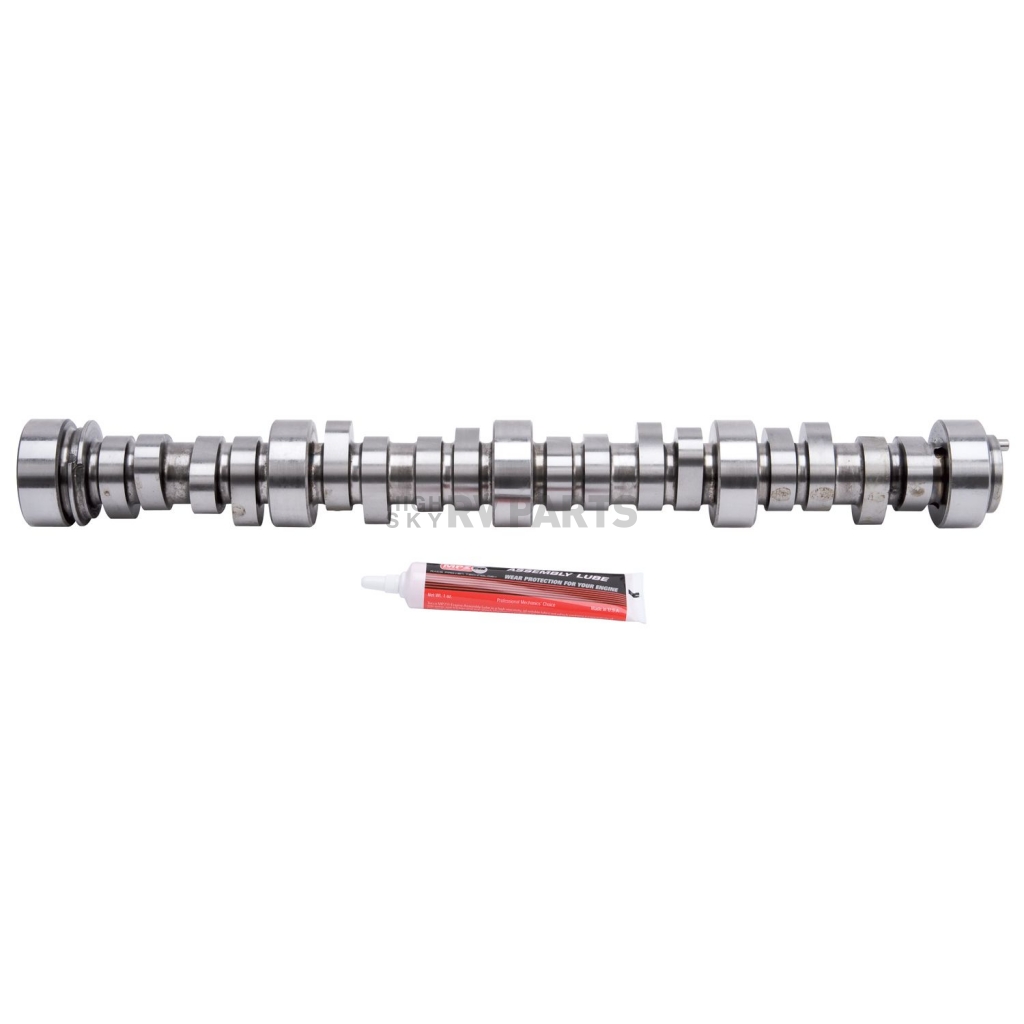

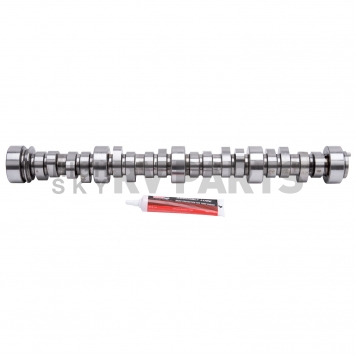

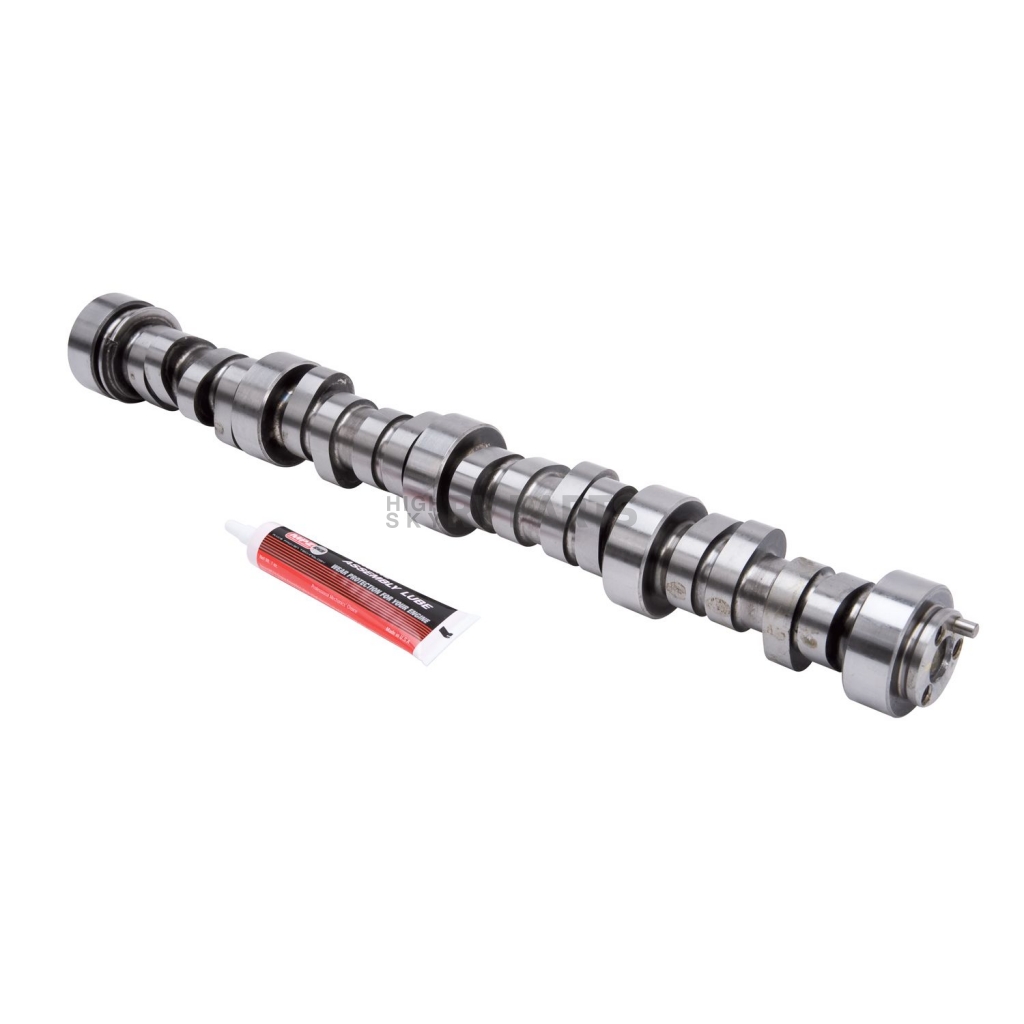

Camshaft; Rollin Thunder; GM LS Series 5.7L/LS1 & LS6; Hydraulic Roller; 1500-6500 RPM Range; 230 Degree Intake/ 237 Degree Exhaust Duration @ 0.050 Inch Lift; 0.540 Inch Intake/ 0.540 Inch Exhaust Valve Lift; 110 Degree Lobe Separation Angle; 106 Degree Intake Centerline
MPN: 2216
Rollin thunder performer RPM cams feature more aggressive profiles than conventional cams without excessive valve overlap and provide power from 1500 to 6500 RPM. They are used in our 435 Horsepower and 440 Horsepower E-Tec crate engines, our 460 Horsepower signature series 383 crate engine and our 650 Horsepower and 675 Horsepower 555 crate engines. Roller tappets reduce friction, virtually eliminate Break-In problems, and permit higher valve velocities for increased performance. Intended for use with OEM or Edelbrock hydraulic roller tappets
Engine Compatibility: GM LS Series 5.7L
Recommended Use: Street
Type: Hydraulic Roller
RPM - Low: 1500
RPM - High: 6500
Intake Duration At 0.050 Inch Lift (DEG): 230 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 237 Degree
Advertised Intake Duration (DEG): 314 Degree
Advertised Exhaust Duration (DEG): 322 Degree
Intake Valve Lift (IN): 0.54 Inch
Exhaust Valve Lift (IN): 0.54 Inch
Lobe Separation Angle (DEG): 110 Degree
Intake Centerline Angle (DEG): 106 Degree
Computer-Controlled Compatible: No
Features
- Rollin Thunder Performer RPM Cams Feature More Aggressive Profiles Than Conventional Cams Without Excessive Valve Overlap And Provide Power From 1500 To 6500 RPM
- Roller Tappets Reduce Friction, Virtually Eliminate Break-In Problems And Permit Higher Valve Velocities For Increased Performance
- Limited 1 Year Warranty
| Specifications of Edelbrock Camshaft 2216 | |
| Advertised Exhaust Duration (DEG) | 322 Degree |
| Advertised Intake Duration (DEG) | 314 Degree |
| Computer-Controlled Compatible | No |
| Engine Compatibility | GM LS Series 5.7L |
| Exhaust Duration At 0.050 Inch Lift (DEG) | 237 Degree |
| Exhaust Valve Lift (IN) | 0.54 Inch |
| Intake Centerline Angle (DEG) | 106 Degree |
| Intake Duration At 0.050 Inch Lift (DEG) | 230 Degree |
| Intake Valve Lift (IN) | 0.54 Inch |
| Lobe Separation Angle (DEG) | 110 Degree |
| Recommended Use | Street |
| RPM - High | 6500 |
| RPM - Low | 1500 |
| Type | Hydraulic Roller |
1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro
1997 Chevrolet Corvette
1998 Chevrolet Corvette
1999 Chevrolet Corvette
2000 Chevrolet Corvette
2001 Chevrolet Corvette
2002 Chevrolet Corvette
2003 Chevrolet Corvette
2004 Chevrolet Corvette
1998 Chevrolet Corvette
1999 Chevrolet Corvette
2000 Chevrolet Corvette
2001 Chevrolet Corvette
2002 Chevrolet Corvette
2003 Chevrolet Corvette
2004 Chevrolet Corvette
1900-1900 Chevrolet LS Small Block Gen 3 1997-2007
1900 Chevrolet LS Small Block Gen 3 1997-2007
1998 Pontiac Firebird
1999 Pontiac Firebird
2000 Pontiac Firebird
2001 Pontiac Firebird
2002 Pontiac Firebird
1999 Pontiac Firebird
2000 Pontiac Firebird
2001 Pontiac Firebird
2002 Pontiac Firebird
2004 Pontiac GTO
