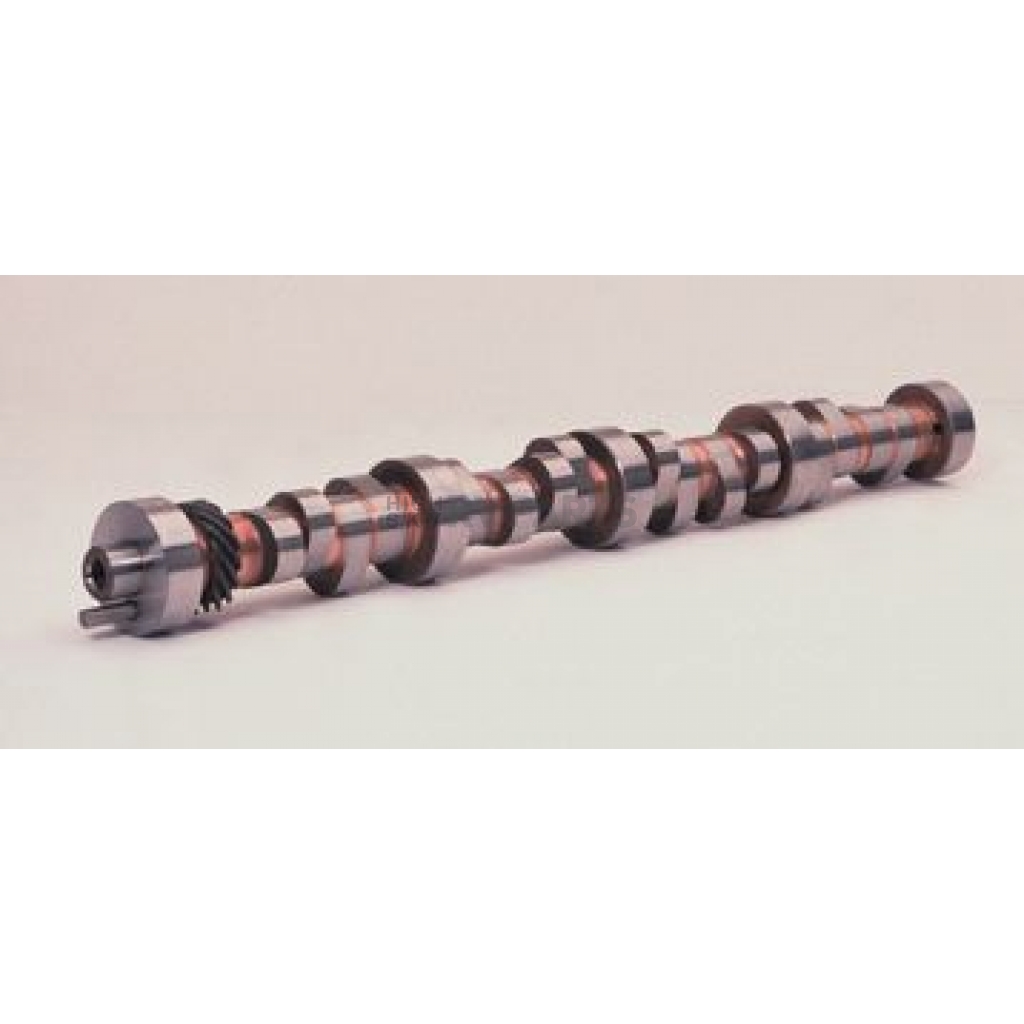

Crane Camshaft 349561

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 349561
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 15
Retail: $620.54
Price: $590.99
You Save: $29.55
Advertised Exhaust Duration (DEG)
302 Degree
Advertised Intake Duration (DEG)
290 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Ford Big Block V8 352-360-390-406-410-427-428
Exhaust Duration At 0.050 Inch Lift (DEG)
236 Degree
Exhaust Valve Lift (IN)
0.581 Inch
Grind Number
3201-2S-12
Intake Duration At 0.050 Inch Lift (DEG)
226 Degree
Intake Valve Lift (IN)
0.563 Inch
Lobe Separation Angle (DEG)
112 Degree
Recommended Use
Performance
Share this page

Crane Camshaft

Camshaft; Retrofit; For Use With 1963-1976 Ford-Mercury 352/ 360/ 390/ 406/ 410/ 427/ 428 Engines; Moderate Performance Usage; Hydraulic Roller; 2000-5800 RPM Range; 226 Intake Duration @ 0.050 Inch Lift/ 236 Exhaust Duration @ 0.050 Inch Lift; 0.563 Inch Intake Valve Lift/ 0.581 Inch Exhaust Valve Lift; 112 Degree Lobe Separation Angle; 10.0:1-11.5:1 Compression Ratio Recommended

MPN: 349561

It is for good reason why virtually all pushrod-style engines manufactured for over two decades are equipped with hydraulic roller cams. The roller’s ability to open and close the valves more quickly facilitates the design of more sophisticated camshaft profiles, while the hydraulic lifter body eliminates the need to constantly set valve lash. They have an exceptionally “Flat” power curve and are a popular retrofit into older engines.
Engine Compatibility: Ford Big Block V8 352-360-390-406-410-427-428
Recommended Use: Performance
Type: Hydraulic Roller
RPM - Low: 2000
RPM - High: 5800
Intake Duration At 0.050 Inch Lift (DEG): 226 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 236 Degree
Advertised Intake Duration (DEG): 290 Degree
Advertised Exhaust Duration (DEG): 302 Degree
Intake Valve Lift (IN): 0.563 Inch
Exhaust Valve Lift (IN): 0.581 Inch
Lobe Separation Angle (DEG): 112 Degree
Grind Number: 3201-2S-12
Computer-Controlled Compatible: No

Features

  • The Roller’s Ability To Open And Close The Valves More Quickly Facilitates The Design Of More Sophisticated Camshaft Profiles
  • Hydraulic Roller Have An Exceptionally “Flat” Power Curve And Are A Popular Retrofit Into Older Engines
  • No Supplier Warranty
Specifications of Crane Camshaft 349561
Advertised Exhaust Duration (DEG) 302 Degree
Advertised Intake Duration (DEG) 290 Degree
Computer-Controlled Compatible No
Engine Compatibility Ford Big Block V8 352-360-390-406-410-427-428
Exhaust Duration At 0.050 Inch Lift (DEG) 236 Degree
Exhaust Valve Lift (IN) 0.581 Inch
Grind Number 3201-2S-12
Intake Duration At 0.050 Inch Lift (DEG) 226 Degree
Intake Valve Lift (IN) 0.563 Inch
Lobe Separation Angle (DEG) 112 Degree
Recommended Use Performance
RPM - High 5800
RPM - Low 2000
Type Hydraulic Roller
