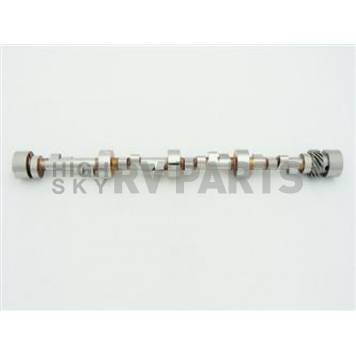

Crane Camshaft 119581

Brand: Crane Engine Parts Manufacturer
0 reviews
  • Have a product question? Ask us
  • Part Number: 119581
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $681.44
Price: $648.99
You Save: $32.45
Advertised Exhaust Duration (DEG)
304 Degree
Advertised Intake Duration (DEG)
300 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Chevy Small Block V8 262-350 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
242 Degree
Exhaust Valve Lift (IN)
0.558 Inch
Grind Number
HR-238/ 372-2S2-10.90 IG
Intake Centerline Angle (DEG)
105 Degree
Intake Duration At 0.050 Inch Lift (DEG)
238 Degree
Intake Valve Lift (IN)
0.558 Inch
Lobe Separation Angle (DEG)
110 Degree
Share this page

Crane Camshaft

Camshaft; Retrofit; For Use With 1957-1987 Small Block Chevy Engines; Performance Usage; Hydraulic Roller; 3000-6800 RPM Range; 238 Intake Duration @ 0.050 Inch Lift/ 242 Exhaust Duration @ 0.050 Inch Lift; 0.558 Inch Intake Valve Lift/ 0.558 Inch Exhaust Valve Lift; 110 Degree Lobe Separation Angle; Fair Idle; 10.5:1-12.0:1 Compression Ratio Recommended

MPN: 119581

Crane Hydraulic Roller cams offer the sizeable power and torque increases that are available only with roller cams, plus the low-maintenance convenience of a hydraulic cam. Hydraulic Roller cams are available for retrofit (converting earlier non-hydraulic roller cam engines), and to increase power output of engines already equipped with hydraulic roller cams. Crane Hydraulic Roller cams are produced using our own industry standard, steel billet cam cores, carburized or induction-hardened for strength and wear Resistance.
Engine Compatibility: Chevy Small Block V8 262-350 Cubic Inch
Recommended Use: Performance Usage
Type: Hydraulic Roller
RPM - Low: 3000
RPM - High: 6800
Intake Duration At 0.050 Inch Lift (DEG): 238 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 242 Degree
Advertised Intake Duration (DEG): 300 Degree
Advertised Exhaust Duration (DEG): 304 Degree
Intake Valve Lift (IN): 0.558 Inch
Exhaust Valve Lift (IN): 0.558 Inch
Lobe Separation Angle (DEG): 110 Degree
Intake Centerline Angle (DEG): 105 Degree
Grind Number: HR-238/ 372-2S2-10.90 IG
Computer-Controlled Compatible: No

Features

  • Hydraulic Roller Cams Offer The Sizeable Power And Torque Increases
  • Hydraulic Roller Cams Are Available For Retrofit To Increase Power Output Of Engines
  • Limited 1 Year Warranty For Street Use And No Warranty For Race Use
Specifications of Crane Camshaft 119581
Advertised Exhaust Duration (DEG) 304 Degree
Advertised Intake Duration (DEG) 300 Degree
Computer-Controlled Compatible No
Engine Compatibility Chevy Small Block V8 262-350 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 242 Degree
Exhaust Valve Lift (IN) 0.558 Inch
Grind Number HR-238/ 372-2S2-10.90 IG
Intake Centerline Angle (DEG) 105 Degree
Intake Duration At 0.050 Inch Lift (DEG) 238 Degree
Intake Valve Lift (IN) 0.558 Inch
Lobe Separation Angle (DEG) 110 Degree
Recommended Use Performance Usage
RPM - High 6800
RPM - Low 3000
Type Hydraulic Roller

1959 Chevrolet 3C

1959 Chevrolet 3D

1959 Chevrolet 3E

1959 Chevrolet 3F

1957 Chevrolet Bel Air

1959 Chevrolet Bel Air
1960 Chevrolet Bel Air
1961 Chevrolet Bel Air
1962 Chevrolet Bel Air
1963 Chevrolet Bel Air
1964 Chevrolet Bel Air
1965 Chevrolet Bel Air
1966 Chevrolet Bel Air
1967 Chevrolet Bel Air
1968 Chevrolet Bel Air
1969 Chevrolet Bel Air
1970 Chevrolet Bel Air
1971 Chevrolet Bel Air
1972 Chevrolet Bel Air
1973 Chevrolet Bel Air
1974 Chevrolet Bel Air
1975 Chevrolet Bel Air

1958 Chevrolet Biscayne
1959 Chevrolet Biscayne
1960 Chevrolet Biscayne
1961 Chevrolet Biscayne
1962 Chevrolet Biscayne
1963 Chevrolet Biscayne
1964 Chevrolet Biscayne
1965 Chevrolet Biscayne
1966 Chevrolet Biscayne
1967 Chevrolet Biscayne
1968 Chevrolet Biscayne
1969 Chevrolet Biscayne
1970 Chevrolet Biscayne
1971 Chevrolet Biscayne
1972 Chevrolet Biscayne

1969 Chevrolet Blazer
1970 Chevrolet Blazer
1971 Chevrolet Blazer
1972 Chevrolet Blazer
1973 Chevrolet Blazer
1974 Chevrolet Blazer

1987 Chevrolet Blazer

1959 Chevrolet Brookwood
1960 Chevrolet Brookwood
1961 Chevrolet Brookwood

1969 Chevrolet Brookwood
1970 Chevrolet Brookwood
1971 Chevrolet Brookwood
1972 Chevrolet Brookwood

1975 Chevrolet C10
1976 Chevrolet C10
1977 Chevrolet C10
1978 Chevrolet C10
1979 Chevrolet C10
1980 Chevrolet C10
1981 Chevrolet C10
1982 Chevrolet C10
1983 Chevrolet C10
1984 Chevrolet C10
1985 Chevrolet C10
1986 Chevrolet C10

1960 Chevrolet C10 Pickup
1961 Chevrolet C10 Pickup
1962 Chevrolet C10 Pickup
1963 Chevrolet C10 Pickup
1964 Chevrolet C10 Pickup
1965 Chevrolet C10 Pickup
1966 Chevrolet C10 Pickup
1967 Chevrolet C10 Pickup
1968 Chevrolet C10 Pickup
1969 Chevrolet C10 Pickup
1970 Chevrolet C10 Pickup
1971 Chevrolet C10 Pickup
1972 Chevrolet C10 Pickup
1973 Chevrolet C10 Pickup
1974 Chevrolet C10 Pickup

1967 Chevrolet C10 Suburban
1968 Chevrolet C10 Suburban
1969 Chevrolet C10 Suburban
1970 Chevrolet C10 Suburban
1971 Chevrolet C10 Suburban
1972 Chevrolet C10 Suburban
1973 Chevrolet C10 Suburban
1974 Chevrolet C10 Suburban
1975 Chevrolet C10 Suburban
1976 Chevrolet C10 Suburban
1977 Chevrolet C10 Suburban
1978 Chevrolet C10 Suburban
1979 Chevrolet C10 Suburban
1980 Chevrolet C10 Suburban
1981 Chevrolet C10 Suburban
1982 Chevrolet C10 Suburban
1983 Chevrolet C10 Suburban
1984 Chevrolet C10 Suburban
1985 Chevrolet C10 Suburban
1986 Chevrolet C10 Suburban

1975 Chevrolet C20
1976 Chevrolet C20
1977 Chevrolet C20
1978 Chevrolet C20
1979 Chevrolet C20
1980 Chevrolet C20
1981 Chevrolet C20
1982 Chevrolet C20
1983 Chevrolet C20
1984 Chevrolet C20
1985 Chevrolet C20
1986 Chevrolet C20

1960 Chevrolet C20 Pickup
1961 Chevrolet C20 Pickup
1962 Chevrolet C20 Pickup
1963 Chevrolet C20 Pickup
1964 Chevrolet C20 Pickup
1965 Chevrolet C20 Pickup
1966 Chevrolet C20 Pickup
1967 Chevrolet C20 Pickup
1968 Chevrolet C20 Pickup
1969 Chevrolet C20 Pickup

1971 Chevrolet C20 Pickup

1973 Chevrolet C20 Pickup

1967 Chevrolet C20 Suburban
1968 Chevrolet C20 Suburban
1969 Chevrolet C20 Suburban
1970 Chevrolet C20 Suburban
1971 Chevrolet C20 Suburban
1972 Chevrolet C20 Suburban
1973 Chevrolet C20 Suburban
1974 Chevrolet C20 Suburban
1975 Chevrolet C20 Suburban
1976 Chevrolet C20 Suburban
1977 Chevrolet C20 Suburban
1978 Chevrolet C20 Suburban
1979 Chevrolet C20 Suburban
1980 Chevrolet C20 Suburban
1981 Chevrolet C20 Suburban
1982 Chevrolet C20 Suburban
1983 Chevrolet C20 Suburban
1984 Chevrolet C20 Suburban
1985 Chevrolet C20 Suburban
1986 Chevrolet C20 Suburban

1975 Chevrolet C30
1976 Chevrolet C30
1977 Chevrolet C30
1978 Chevrolet C30

1985 Chevrolet C30
1986 Chevrolet C30

1960 Chevrolet C30 Pickup
1961 Chevrolet C30 Pickup
1962 Chevrolet C30 Pickup
1963 Chevrolet C30 Pickup

1965 Chevrolet C30 Pickup
1966 Chevrolet C30 Pickup
1967 Chevrolet C30 Pickup
1968 Chevrolet C30 Pickup
1969 Chevrolet C30 Pickup
1970 Chevrolet C30 Pickup
1971 Chevrolet C30 Pickup
1972 Chevrolet C30 Pickup
1973 Chevrolet C30 Pickup
1974 Chevrolet C30 Pickup

1960 Chevrolet C40

1962 Chevrolet C40

1967 Chevrolet Camaro
1968 Chevrolet Camaro
1969 Chevrolet Camaro
1970 Chevrolet Camaro
1971 Chevrolet Camaro
1972 Chevrolet Camaro
1973 Chevrolet Camaro

1976 Chevrolet Camaro
1977 Chevrolet Camaro
1978 Chevrolet Camaro
1979 Chevrolet Camaro
1980 Chevrolet Camaro
1981 Chevrolet Camaro
1982 Chevrolet Camaro
1983 Chevrolet Camaro
1984 Chevrolet Camaro
1985 Chevrolet Camaro
1986 Chevrolet Camaro
1987 Chevrolet Camaro

1966 Chevrolet Caprice
1967 Chevrolet Caprice
1968 Chevrolet Caprice
1969 Chevrolet Caprice
1970 Chevrolet Caprice
1971 Chevrolet Caprice
1972 Chevrolet Caprice
1973 Chevrolet Caprice
1974 Chevrolet Caprice
1975 Chevrolet Caprice
1976 Chevrolet Caprice
1977 Chevrolet Caprice
1978 Chevrolet Caprice
1979 Chevrolet Caprice
1980 Chevrolet Caprice
1981 Chevrolet Caprice
1982 Chevrolet Caprice
1983 Chevrolet Caprice
1984 Chevrolet Caprice
1985 Chevrolet Caprice
1986 Chevrolet Caprice
1987 Chevrolet Caprice

1964 Chevrolet Chevelle
1965 Chevrolet Chevelle
1966 Chevrolet Chevelle
1967 Chevrolet Chevelle
1968 Chevrolet Chevelle
1969 Chevrolet Chevelle
1970 Chevrolet Chevelle
1971 Chevrolet Chevelle
1972 Chevrolet Chevelle
1973 Chevrolet Chevelle

1963 Chevrolet Chevy II
1964 Chevrolet Chevy II
1965 Chevrolet Chevy II
1966 Chevrolet Chevy II
1967 Chevrolet Chevy II
1968 Chevrolet Chevy II

1957 Chevrolet Corvette

1959 Chevrolet Corvette
1960 Chevrolet Corvette
1961 Chevrolet Corvette
1962 Chevrolet Corvette
1963 Chevrolet Corvette
1964 Chevrolet Corvette
1965 Chevrolet Corvette
1966 Chevrolet Corvette
1967 Chevrolet Corvette
1968 Chevrolet Corvette
1969 Chevrolet Corvette
1970 Chevrolet Corvette
1971 Chevrolet Corvette
1972 Chevrolet Corvette
1973 Chevrolet Corvette
1974 Chevrolet Corvette
1975 Chevrolet Corvette
1976 Chevrolet Corvette
1977 Chevrolet Corvette
1978 Chevrolet Corvette
1979 Chevrolet Corvette
1980 Chevrolet Corvette
1981 Chevrolet Corvette

1985 Chevrolet Corvette
1986 Chevrolet Corvette
1987 Chevrolet Corvette

1957 Chevrolet Del Ray
1958 Chevrolet Del Ray

1959 Chevrolet El Camino
1960 Chevrolet El Camino

1964 Chevrolet El Camino
1965 Chevrolet El Camino
1966 Chevrolet El Camino
1967 Chevrolet El Camino
1968 Chevrolet El Camino
1969 Chevrolet El Camino
1970 Chevrolet El Camino
1971 Chevrolet El Camino
1972 Chevrolet El Camino
1973 Chevrolet El Camino
1974 Chevrolet El Camino
1975 Chevrolet El Camino
1976 Chevrolet El Camino
1977 Chevrolet El Camino
1978 Chevrolet El Camino
1979 Chevrolet El Camino
1980 Chevrolet El Camino
1981 Chevrolet El Camino
1982 Chevrolet El Camino
1983 Chevrolet El Camino
1984 Chevrolet El Camino
1985 Chevrolet El Camino
1986 Chevrolet El Camino
1987 Chevrolet El Camino

1969 Chevrolet Estate
1970 Chevrolet Estate

1975 Chevrolet G10
1976 Chevrolet G10
1977 Chevrolet G10
1978 Chevrolet G10
1979 Chevrolet G10
1980 Chevrolet G10
1981 Chevrolet G10
1982 Chevrolet G10
1983 Chevrolet G10
1984 Chevrolet G10
1985 Chevrolet G10
1986 Chevrolet G10
1987 Chevrolet G10

1972 Chevrolet G10 Van

1974 Chevrolet G10 Van

1975 Chevrolet G20
1976 Chevrolet G20
1977 Chevrolet G20
1978 Chevrolet G20
1979 Chevrolet G20
1980 Chevrolet G20
1981 Chevrolet G20
1982 Chevrolet G20
1983 Chevrolet G20
1984 Chevrolet G20
1985 Chevrolet G20
1986 Chevrolet G20
1987 Chevrolet G20

1967 Chevrolet G20 Van
1968 Chevrolet G20 Van
1969 Chevrolet G20 Van
1970 Chevrolet G20 Van
1971 Chevrolet G20 Van

1973 Chevrolet G20 Van

1975 Chevrolet G30
1976 Chevrolet G30
1977 Chevrolet G30
1978 Chevrolet G30
1979 Chevrolet G30
1980 Chevrolet G30
1981 Chevrolet G30

1983 Chevrolet G30
1984 Chevrolet G30
1985 Chevrolet G30
1986 Chevrolet G30
1987 Chevrolet G30

1972 Chevrolet G30 Van

1958 Chevrolet Impala
1959 Chevrolet Impala
1960 Chevrolet Impala
1961 Chevrolet Impala
1962 Chevrolet Impala
1963 Chevrolet Impala
1964 Chevrolet Impala
1965 Chevrolet Impala
1966 Chevrolet Impala
1967 Chevrolet Impala
1968 Chevrolet Impala
1969 Chevrolet Impala
1970 Chevrolet Impala
1971 Chevrolet Impala
1972 Chevrolet Impala
1973 Chevrolet Impala
1974 Chevrolet Impala
1975 Chevrolet Impala
1976 Chevrolet Impala
1977 Chevrolet Impala
1978 Chevrolet Impala
1979 Chevrolet Impala
1980 Chevrolet Impala
1981 Chevrolet Impala
1982 Chevrolet Impala
1983 Chevrolet Impala
1984 Chevrolet Impala
1985 Chevrolet Impala

1975 Chevrolet K10
1976 Chevrolet K10
1977 Chevrolet K10
1978 Chevrolet K10
1979 Chevrolet K10
1980 Chevrolet K10
1981 Chevrolet K10
1982 Chevrolet K10
1983 Chevrolet K10
1984 Chevrolet K10
1985 Chevrolet K10
1986 Chevrolet K10

1960 Chevrolet K10 Pickup
1961 Chevrolet K10 Pickup
1962 Chevrolet K10 Pickup
1963 Chevrolet K10 Pickup
1964 Chevrolet K10 Pickup
1965 Chevrolet K10 Pickup
1966 Chevrolet K10 Pickup
1967 Chevrolet K10 Pickup
1968 Chevrolet K10 Pickup
1969 Chevrolet K10 Pickup
1970 Chevrolet K10 Pickup
1971 Chevrolet K10 Pickup
1972 Chevrolet K10 Pickup
1973 Chevrolet K10 Pickup
1974 Chevrolet K10 Pickup

1967 Chevrolet K10 Suburban
1968 Chevrolet K10 Suburban
1969 Chevrolet K10 Suburban
1970 Chevrolet K10 Suburban
1971 Chevrolet K10 Suburban

1973 Chevrolet K10 Suburban

1975 Chevrolet K10 Suburban
1976 Chevrolet K10 Suburban
1977 Chevrolet K10 Suburban
1978 Chevrolet K10 Suburban
1979 Chevrolet K10 Suburban
1980 Chevrolet K10 Suburban
1981 Chevrolet K10 Suburban

1983 Chevrolet K10 Suburban

1985 Chevrolet K10 Suburban
1986 Chevrolet K10 Suburban

1975 Chevrolet K20
1976 Chevrolet K20
1977 Chevrolet K20
1978 Chevrolet K20
1979 Chevrolet K20
1980 Chevrolet K20
1981 Chevrolet K20
1982 Chevrolet K20
1983 Chevrolet K20
1984 Chevrolet K20
1985 Chevrolet K20
1986 Chevrolet K20

1960 Chevrolet K20 Pickup
1961 Chevrolet K20 Pickup
1962 Chevrolet K20 Pickup
1963 Chevrolet K20 Pickup

1965 Chevrolet K20 Pickup
1966 Chevrolet K20 Pickup
1967 Chevrolet K20 Pickup
1968 Chevrolet K20 Pickup
1969 Chevrolet K20 Pickup
1970 Chevrolet K20 Pickup
1971 Chevrolet K20 Pickup
1972 Chevrolet K20 Pickup
1973 Chevrolet K20 Pickup
1974 Chevrolet K20 Pickup

1967 Chevrolet K20 Suburban
1968 Chevrolet K20 Suburban
1969 Chevrolet K20 Suburban
1970 Chevrolet K20 Suburban
1971 Chevrolet K20 Suburban
1972 Chevrolet K20 Suburban
1973 Chevrolet K20 Suburban

1975 Chevrolet K20 Suburban
1976 Chevrolet K20 Suburban
1977 Chevrolet K20 Suburban
1978 Chevrolet K20 Suburban
1979 Chevrolet K20 Suburban
1980 Chevrolet K20 Suburban
1981 Chevrolet K20 Suburban
1982 Chevrolet K20 Suburban
1983 Chevrolet K20 Suburban

Please login or register to ask, or continue as a Guest

Captcha
Click to refresh

No questions found. Be the first?

Reviews for Crane Camshaft 119581(0)

There are no reviews for this product.

Write a review
Note: HTML is not translated!
