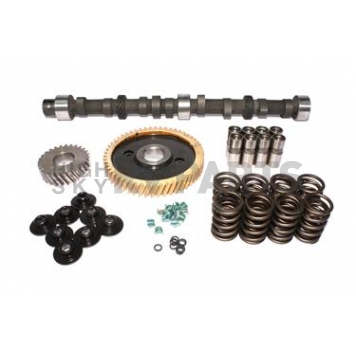

COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit K521234

Name: COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit K521234
Brand: COMP Cams
SKU: K52-123-4
Price: 537.99 USD
Availability: InStock

Authorized Dealer

Brand:

COMP Cams

0 reviews

Have a product question? Ask us
Part Number: K52-123-4
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 24

Retail: $564.89

Price: $537.99

You Save: $26.90

Advertised Exhaust Duration (DEG)

260 Degree

Advertised Intake Duration (DEG)

260 Degree

Camshaft Type

Hydraulic Flat Tappet

Computer Controlled Compatible

Engine Compatibility

Pontiac L4 2.5L 151 Cubic Inch

Exhaust Duration At 0.050 Lift (DEG)

212 Degree

Exhaust Lift (IN)

0.489 Inch

Exhaust Valve Lash (IN)

0 Inch

Grind Number

260H

Idle Characteristics

Noticeable

Includes Assembly Lubricant

Yes

Share this page

COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit

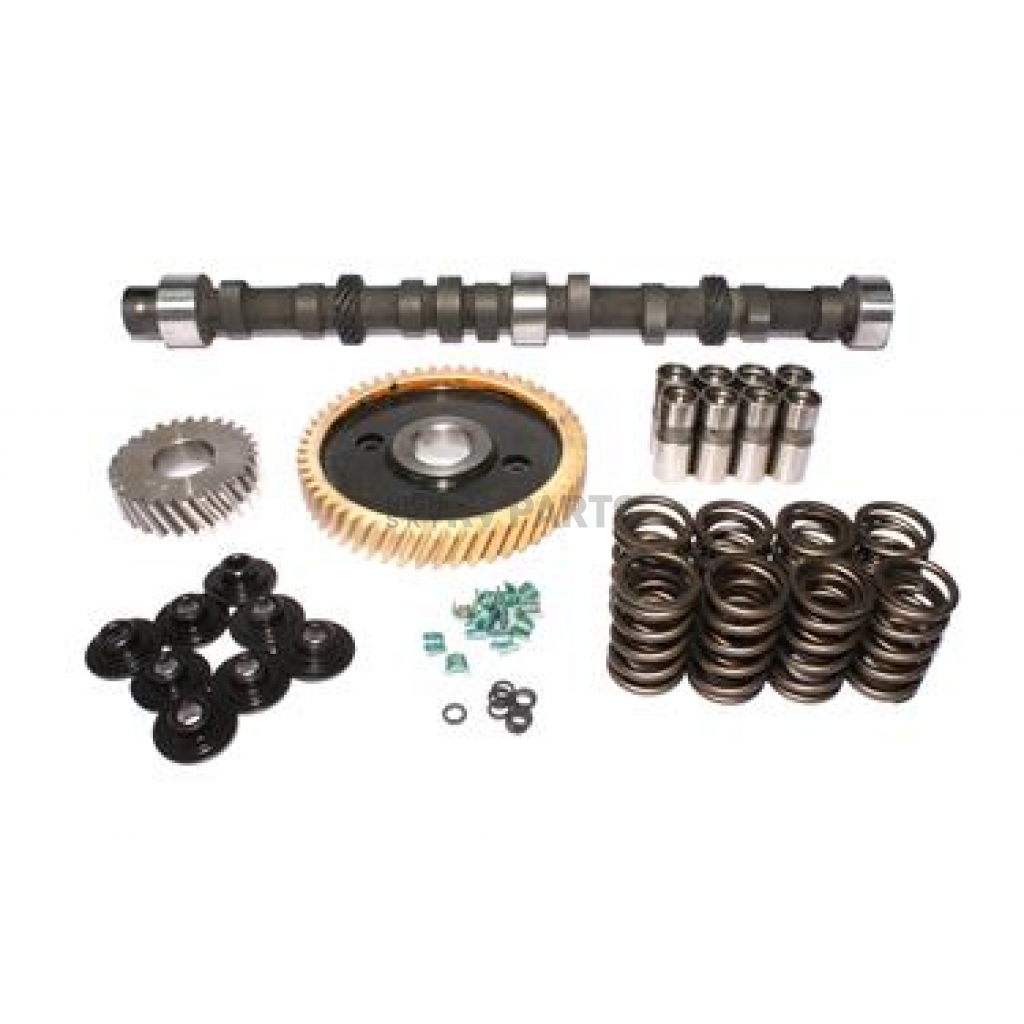

Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit; High Energy ™; For Use With Pontiac Iron Duke 2.5L/151 Cubic Inch; Double Roller Chain Drive; Hydraulic Flat Tappet; 1200-5200 RPM Range; 212 Degree Intake Duration @ 0.050 Inch Lift; 212 Degree Exhaust Duration @ 0.050 Inch Lift; 0.489 Inch Intake Valve Lift; 0.489 Inch Exhaust Valve Lift; 110 Degree Lobe Separation; With Lifters/Valve Springs/Retainers/Locks/Valve Stem Seals/Timing Chain Set/Assembly Lube/Decals/Instructions

MPN: K521234

These high torque Camshafts are designed for street applications with lower compression ratios. They can be used with most stock components including intake manifolds, exhaust manifolds and carburetors. High Energy Cams™ are designed to improve your engine's efficiency through its unique lobe characteristics. When installed in the correct application, High Energy Cams™ will usually produce better gas mileage and power. COMP Cams(R) has matched Valve springs to go with each of the cams in the High Energy™ series to ensure peak performance.

Engine Compatibility: Pontiac L4 2.5L 151 Cubic Inch

Timing Type: Double Roller Chain Drive

Camshaft Type: Hydraulic Flat Tappet

RPM - Low: 1200

RPM - High: 5200

Advertised Exhaust Duration (DEG): 260 Degree

Advertised Intake Duration (DEG): 260 Degree

Exhaust Duration At 0.050 Lift (DEG): 212 Degree

Exhaust Lift (IN): 0.489 Inch

Exhaust Valve Lash (IN): 0 Inch

Idle Characteristics: Noticeable

Intake Duration Lift At 0.050 Lift (DEG): 212 Degree

Intake Lift (IN): 0.489 Inch

Intake Valve Lash (IN): 0 Inch

Lobe Separation Angle (DEG): 110 Degree

Rocker Arm Ratio: 1.75

Lifter Style: Hydraulic Flat Tappet

Outside Diameter Of Outer Spring (IN): 1.384 Inch

Computer Controlled Compatible: No

Includes Retainers: Yes

Includes Locks: Yes

Includes Valve Stem Seals: Yes

Includes Assembly Lubricant: Yes

Includes Pushrods: No

Includes Rocker Arms: No

Includes Gaskets: No

Includes Timing Chain Set: Yes

Includes Decals: Yes

Grind Number: 260H

Features

High Energy Cams™ Are Designed To Improve Your Engine's Efficiency Through Its Unique Lobe Characteristics
When Installed In The Correct Application , High Energy Cams™ Will Usually Produce Better Gas Mileage And Power
Limited 1 Year Warranty

Specifications of COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit K521234
Advertised Exhaust Duration (DEG)	260 Degree
Advertised Intake Duration (DEG)	260 Degree
Camshaft Type	Hydraulic Flat Tappet
Computer Controlled Compatible	No
Engine Compatibility	Pontiac L4 2.5L 151 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG)	212 Degree
Exhaust Lift (IN)	0.489 Inch
Exhaust Valve Lash (IN)	0 Inch
Grind Number	260H
Idle Characteristics	Noticeable
Includes Assembly Lubricant	Yes
Includes Decals	Yes
Includes Gaskets	No
Includes Locks	Yes
Includes Pushrods	No
Includes Retainers	Yes
Includes Rocker Arms	No
Includes Timing Chain Set	Yes
Includes Valve Stem Seals	Yes
Intake Duration Lift At 0.050 Lift (DEG)	212 Degree
Intake Lift (IN)	0.489 Inch
Intake Valve Lash (IN)	0 Inch
Lifter Style	Hydraulic Flat Tappet
Lobe Separation Angle (DEG)	110 Degree
Outside Diameter Of Outer Spring (IN)	1.384 Inch
Rocker Arm Ratio	1.75
RPM - High	5200
RPM - Low	1200
Timing Type	Double Roller Chain Drive
