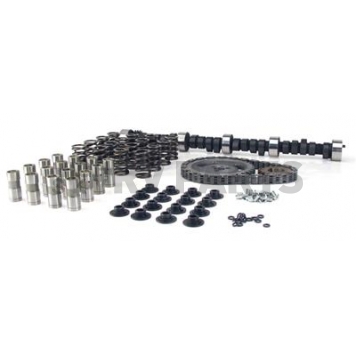

COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit K512334

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: K51-233-4
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $848.39
Price: $807.99
You Save: $40.40
Advertised Exhaust Duration (DEG)
270 Degree
Advertised Intake Duration (DEG)
270 Degree
Camshaft Type
Hydraulic Flat Tappet
Computer Controlled Compatible
No
Engine Compatibility
Pontiac V8 265-455 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG)
224 Degree
Exhaust Lift (IN)
0.476 Inch
Exhaust Valve Lash (IN)
0 Inch
Grind Number
270H
Idle Characteristics
Mild
Includes Assembly Lubricant
Yes
Share this page

COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit

Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit; Magnum; For Use With Pontiac 4.3L-7.5L/265-455 Cubic Inch; Double Roller Chain Drive; Hydraulic Flat Tappet; 1800-5800 RPM Range; 224 Degree Intake Duration @ 0.050 Inch Lift; 224 Degree Exhaust Duration @ 0.050 Inch Lift; 0.476 Inch Intake Valve Lift; 0.476 Inch Exhaust Valve Lift; 110 Degree Lobe Separation; With Lifters/Valve Springs/Retainers/Locks/Valve Stem Seals/Timing Chain Set/Assembly Lube/Decals/Instructions

MPN: K512334

Magnum camshafts are specifically designed for racing or high performance street applications by engine builders looking for more power and that Pro Street sound. In addition, engine idle characteristics will change significantly due to the increased duration and overlap specifications of the camshaft. Magnum cams are high performance components. Using a Magnum 280 camshaft can net as much as 100 additional peak engine Horsepower. Magnum 292 and 305 camshafts can generate even more power but require piston to valve clearance checks and the installation of a higher performing torque converter for automatic transmission equipped vehicles. Magnum camshafts may work with new stock lifters, however, we recommend that you use COMP Cams® high performance lifters due to their higher quality and specifically designed bleed rate.
Engine Compatibility: Pontiac V8 265-455 Cubic Inch
Timing Type: Double Roller Chain Drive
Camshaft Type: Hydraulic Flat Tappet
RPM - Low: 1800
RPM - High: 5800
Advertised Exhaust Duration (DEG): 270 Degree
Advertised Intake Duration (DEG): 270 Degree
Exhaust Duration At 0.050 Lift (DEG): 224 Degree
Exhaust Lift (IN): 0.476 Inch
Exhaust Valve Lash (IN): 0 Inch
Idle Characteristics: Mild
Intake Duration Lift At 0.050 Lift (DEG): 224 Degree
Intake Lift (IN): 0.476 Inch
Intake Valve Lash (IN): 0 Inch
Lobe Separation Angle (DEG): 110 Degree
Rocker Arm Ratio: 1.52
Lifter Style: Hydraulic Flat Tappet
Outside Diameter Of Outer Spring (IN): 1.437 Inch
Computer Controlled Compatible: No
Includes Retainers: Yes
Includes Locks: Yes
Includes Valve Stem Seals: Yes
Includes Assembly Lubricant: Yes
Includes Pushrods: No
Includes Rocker Arms: No
Includes Gaskets: No
Includes Timing Chain Set: Yes
Includes Decals: Yes
Grind Number: 270H

Features

  • Specifically Designed For Racing Or High Performance Street Applications By Engine Builders Looking For More Power And That Pro Street Sound
  • Using A Magnum 280 Camshaft Can Net As Much As 100 Additional Peak Engine Horsepower
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit K512334
Advertised Exhaust Duration (DEG) 270 Degree
Advertised Intake Duration (DEG) 270 Degree
Camshaft Type Hydraulic Flat Tappet
Computer Controlled Compatible No
Engine Compatibility Pontiac V8 265-455 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG) 224 Degree
Exhaust Lift (IN) 0.476 Inch
Exhaust Valve Lash (IN) 0 Inch
Grind Number 270H
Idle Characteristics Mild
Includes Assembly Lubricant Yes
Includes Decals Yes
Includes Gaskets No
Includes Locks Yes
Includes Pushrods No
Includes Retainers Yes
Includes Rocker Arms No
Includes Timing Chain Set Yes
Includes Valve Stem Seals Yes
Intake Duration Lift At 0.050 Lift (DEG) 224 Degree
Intake Lift (IN) 0.476 Inch
Intake Valve Lash (IN) 0 Inch
Lifter Style Hydraulic Flat Tappet
Lobe Separation Angle (DEG) 110 Degree
Outside Diameter Of Outer Spring (IN) 1.437 Inch
Rocker Arm Ratio 1.52
RPM - High 5800
RPM - Low 1800
Timing Type Double Roller Chain Drive
