COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit K184128

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: K18-412-8
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $1,646.39
Price: $1,567.99
You Save: $78.40
Advertised Exhaust Duration (DEG)
266 Degree
Advertised Intake Duration (DEG)
260 Degree
Camshaft Type
Retro-Fit Hydraulic Roller
Computer Controlled Compatible
Yes
Engine Compatibility
Chevy 90 Degree V6 4.3L 262 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG)
210 Degree
Exhaust Lift (IN)
1/2 Inch
Exhaust Valve Lash (IN)
0 Inch
Grind Number
260AHR
Idle Characteristics
Smooth
Includes Assembly Lubricant
Yes
Share this page

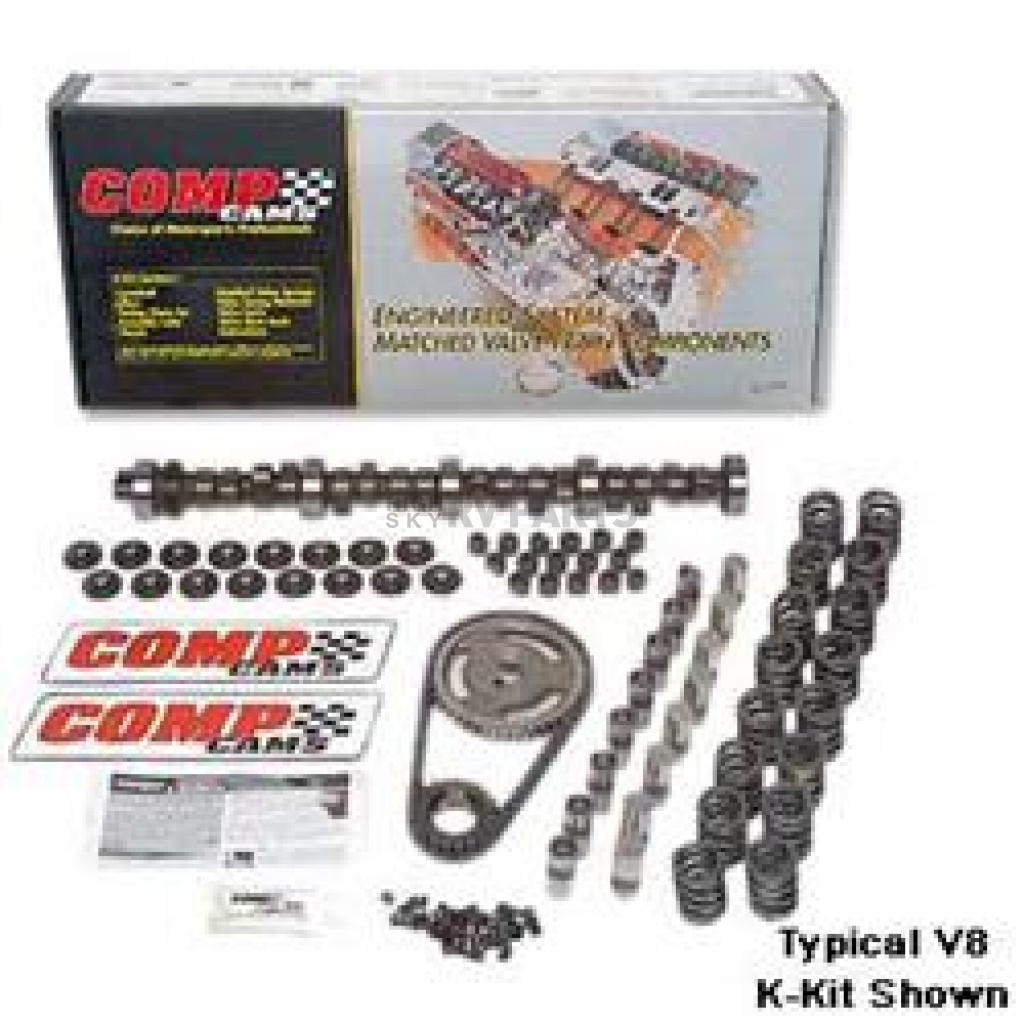

COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit

Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit; Magnum; For Use With Chevy 90 Degree V6 4.3L/262 Cubic Inch; Double Roller Chain Drive; Computer Controlled Hydraulic Flat Tappet; 1200-4500 RPM Range; 206 Degree Intake Duration @ 0.050 Inch Lift; 210 Degree Exhaust Duration @ 0.050 Inch Lift; 0.500 Inch Intake Valve Lift; 0.500 Inch Exhaust Valve Lift; 112 Degree Lobe Separation; With Lifters/Valve Springs/Retainers/Locks/Valve Stem Seals/Timing Chain Set/Assembly Lube/Decals/Instructions

MPN: K184128

Magnum camshafts are specifically designed for racing or high performance street applications by engine builders looking for more power and that Pro Street sound. In addition, engine idle characteristics will change significantly due to the increased duration and overlap specifications of the camshaft. Magnum cams are high performance components. Using a Magnum 280 camshaft can net as much as 100 additional peak engine Horsepower. Magnum 292 and 305 camshafts can generate even more power but require piston to valve clearance checks and the installation of a higher performing torque converter for automatic transmission equipped vehicles. Magnum camshafts may work with new stock lifters, however, we recommend that you use COMP Cams® high performance lifters due to their higher quality and specifically designed bleed rate.
Engine Compatibility: Chevy 90 Degree V6 4.3L 262 Cubic Inch
Timing Type: Double Roller Chain Drive
Camshaft Type: Retro-Fit Hydraulic Roller
RPM - Low: 1200
RPM - High: 4500
Advertised Exhaust Duration (DEG): 266 Degree
Advertised Intake Duration (DEG): 260 Degree
Exhaust Duration At 0.050 Lift (DEG): 210 Degree
Exhaust Lift (IN): 1/2 Inch
Exhaust Valve Lash (IN): 0 Inch
Idle Characteristics: Smooth
Intake Duration Lift At 0.050 Lift (DEG): 206 Degree
Intake Lift (IN): 1/2 Inch
Intake Valve Lash (IN): 0 Inch
Lobe Separation Angle (DEG): 112 Degree
Rocker Arm Ratio: 1.52
Lifter Style: Hydraulic Roller
Outside Diameter Of Outer Spring (IN): 1.8 Inch
Computer Controlled Compatible: Yes
Includes Retainers: Yes
Includes Locks: Yes
Includes Valve Stem Seals: Yes
Includes Assembly Lubricant: Yes
Includes Pushrods: No
Includes Rocker Arms: No
Includes Gaskets: No
Includes Timing Chain Set: Yes
Includes Decals: Yes
Grind Number: 260AHR

Features

  • Specifically Designed For Racing Or High Performance Street Applications By Engine Builders Looking For More Power And That Pro Street Sound
  • Using A Magnum 280 Camshaft Can Net As Much As 100 Additional Peak Engine Horsepower
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit K184128
Advertised Exhaust Duration (DEG) 266 Degree
Advertised Intake Duration (DEG) 260 Degree
Camshaft Type Retro-Fit Hydraulic Roller
Computer Controlled Compatible Yes
Engine Compatibility Chevy 90 Degree V6 4.3L 262 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG) 210 Degree
Exhaust Lift (IN) 1/2 Inch
Exhaust Valve Lash (IN) 0 Inch
Grind Number 260AHR
Idle Characteristics Smooth
Includes Assembly Lubricant Yes
Includes Decals Yes
Includes Gaskets No
Includes Locks Yes
Includes Pushrods No
Includes Retainers Yes
Includes Rocker Arms No
Includes Timing Chain Set Yes
Includes Valve Stem Seals Yes
Intake Duration Lift At 0.050 Lift (DEG) 206 Degree
Intake Lift (IN) 1/2 Inch
Intake Valve Lash (IN) 0 Inch
Lifter Style Hydraulic Roller
Lobe Separation Angle (DEG) 112 Degree
Outside Diameter Of Outer Spring (IN) 1.8 Inch
Rocker Arm Ratio 1.52
RPM - High 4500
RPM - Low 1200
Timing Type Double Roller Chain Drive
