COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit K181234

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: K18-123-4
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $632.09
Price: $601.99
You Save: $30.10
Advertised Exhaust Duration (DEG)
260 Degree
Advertised Intake Duration (DEG)
260 Degree
Camshaft Type
Hydraulic Flat Tappet
Computer Controlled Compatible
No
Engine Compatibility
Chevy 90 Degree V6 4.3L 262 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG)
212 Degree
Exhaust Lift (IN)
0.444 Inch
Exhaust Valve Lash (IN)
0 Inch
Grind Number
260H
Idle Characteristics
Noticeable
Includes Assembly Lubricant
Yes
Share this page

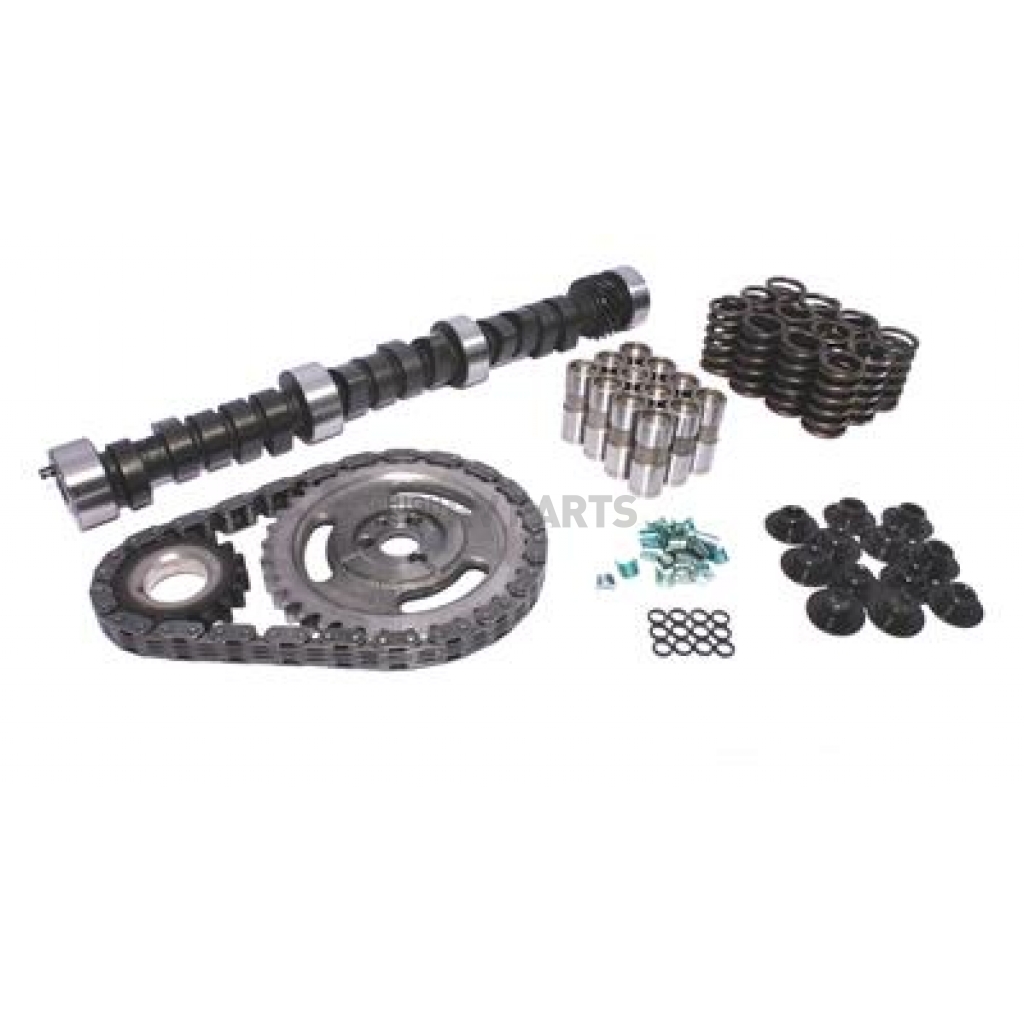

COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit

Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit; Xtreme Energy ™; For Use With Chevy 90 Degree V6 4.3L/262 Cubic Inch; Double Roller Chain Drive; Hydraulic Flat Tappet; 1000-5000 RPM Range; 212 Degree Intake Duration @ 0.050 Inch Lift; 212 Degree Exhaust Duration @ 0.050 Inch Lift; 0.444 Inch Intake Valve Lift; 0.444 Inch Exhaust Valve Lift; 110 Degree Lobe Separation; With Lifters/Valve Springs/Retainers/Locks/Valve Stem Seals/Timing Chain Set/Assembly Lube/Decals/Instructions

MPN: K181234

Xtreme Energy Cams™ are designed to take advantage of the latest improvements in valve train components and the newest developments in camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased engine vacuum. Can be used in any street or street/strip application where both throttle response and top end Horsepower are desired. Because these camshafts use aggressive lobe designs, it is imperative that valve springs, locks, retainers, pushrods, lifters, rocker arms and other related components be matched to the camshaft.
Engine Compatibility: Chevy 90 Degree V6 4.3L 262 Cubic Inch
Timing Type: Double Roller Chain Drive
Camshaft Type: Hydraulic Flat Tappet
RPM - Low: 1000
RPM - High: 5000
Advertised Exhaust Duration (DEG): 260 Degree
Advertised Intake Duration (DEG): 260 Degree
Exhaust Duration At 0.050 Lift (DEG): 212 Degree
Exhaust Lift (IN): 0.444 Inch
Exhaust Valve Lash (IN): 0 Inch
Idle Characteristics: Noticeable
Intake Duration Lift At 0.050 Lift (DEG): 212 Degree
Intake Lift (IN): 0.444 Inch
Intake Valve Lash (IN): 0 Inch
Lobe Separation Angle (DEG): 110 Degree
Rocker Arm Ratio: 1.52
Lifter Style: Hydraulic Flat Tappet
Outside Diameter Of Outer Spring (IN): 1.23 Inch
Computer Controlled Compatible: No
Includes Retainers: Yes
Includes Locks: Yes
Includes Valve Stem Seals: Yes
Includes Assembly Lubricant: Yes
Includes Pushrods: No
Includes Rocker Arms: No
Includes Gaskets: No
Includes Timing Chain Set: Yes
Includes Decals: Yes
Grind Number: 260H

Features

  • Their Aggressive Lobe Design Produces Better Throttle Response And Top End Horsepower Than Other Cams With The Same Duration
  • Also Deliver Increased Engine Vacuum
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit K181234
Advertised Exhaust Duration (DEG) 260 Degree
Advertised Intake Duration (DEG) 260 Degree
Camshaft Type Hydraulic Flat Tappet
Computer Controlled Compatible No
Engine Compatibility Chevy 90 Degree V6 4.3L 262 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG) 212 Degree
Exhaust Lift (IN) 0.444 Inch
Exhaust Valve Lash (IN) 0 Inch
Grind Number 260H
Idle Characteristics Noticeable
Includes Assembly Lubricant Yes
Includes Decals Yes
Includes Gaskets No
Includes Locks Yes
Includes Pushrods No
Includes Retainers Yes
Includes Rocker Arms No
Includes Timing Chain Set Yes
Includes Valve Stem Seals Yes
Intake Duration Lift At 0.050 Lift (DEG) 212 Degree
Intake Lift (IN) 0.444 Inch
Intake Valve Lash (IN) 0 Inch
Lifter Style Hydraulic Flat Tappet
Lobe Separation Angle (DEG) 110 Degree
Outside Diameter Of Outer Spring (IN) 1.23 Inch
Rocker Arm Ratio 1.52
RPM - High 5000
RPM - Low 1000
Timing Type Double Roller Chain Drive
