COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit K151154

Name: COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit K151154
Brand: COMP Cams
SKU: K15-115-4
Price: 574.99 USD
Availability: InStock

Authorized Dealer

Brand:

COMP Cams

0 reviews

Have a product question? Ask us
Part Number: K15-115-4
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 17

Retail: $603.74

Price: $574.99

You Save: $28.75

Advertised Exhaust Duration (DEG)

248 Degree

Advertised Intake Duration (DEG)

240 Degree

Camshaft Type

Hydraulic Flat Tappet

Computer Controlled Compatible

Engine Compatibility

Chevy 90 Degree V6 3.3L-3.8L 200-229 Cubic Inch

Exhaust Duration At 0.050 Lift (DEG)

200 Degree

Exhaust Lift (IN)

0.39 Inch

Exhaust Valve Lash (IN)

0 Inch

Grind Number

240H

Idle Characteristics

Smooth

Includes Assembly Lubricant

Yes

Share this page

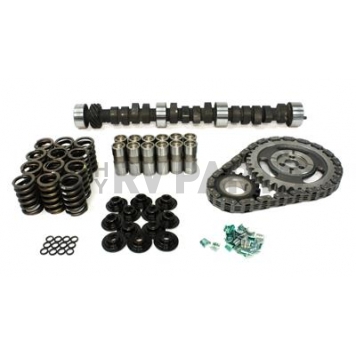

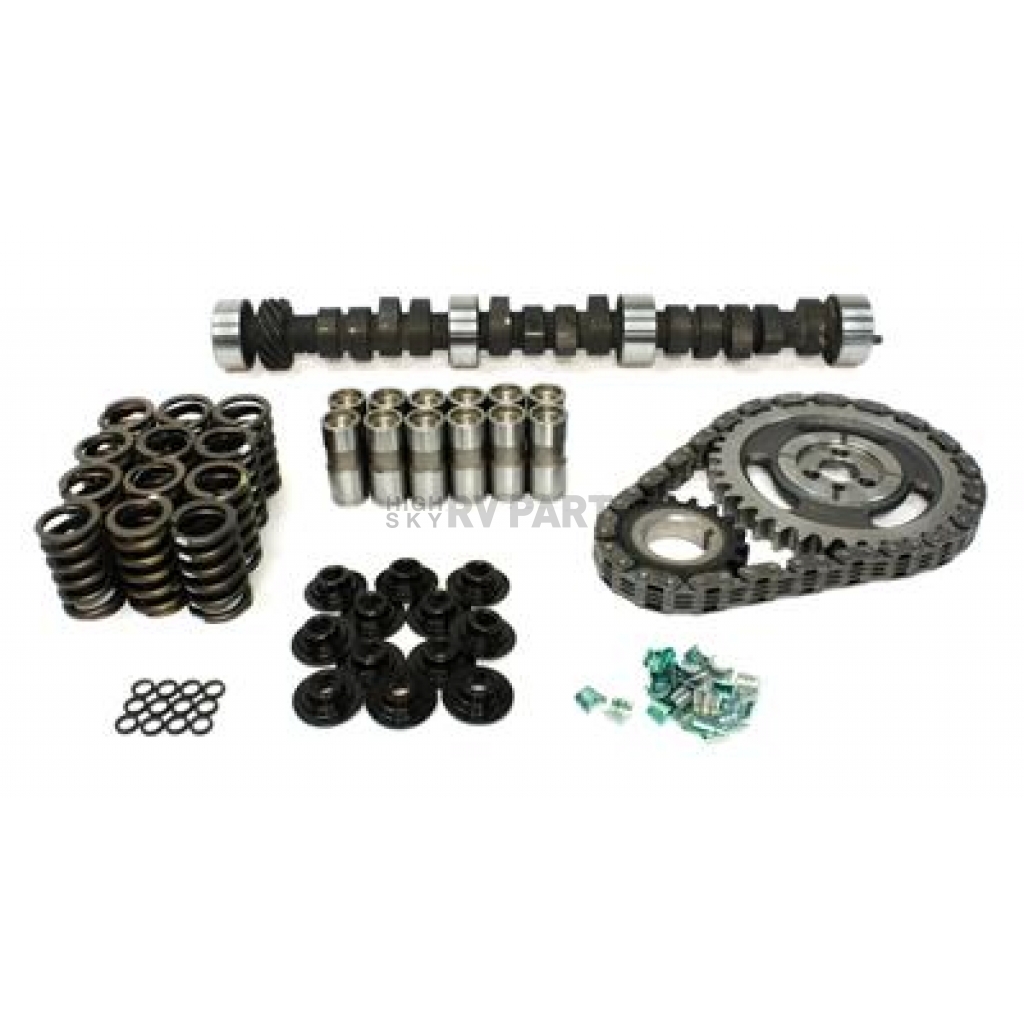

COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit

Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit; High Energy ™; For Use With Chevy 90 Degree V6 3.3L-3.8L/200-229 Cubic Inch; Double Roller Chain Drive; Hydraulic Flat Tappet; 500-4500 RPM Range; 192 Degree Intake Duration @ 0.050 Inch Lift; 200 Degree Exhaust Duration @ 0.050 Inch Lift; 0.390 Inch Intake Valve Lift; 0.390 Inch Exhaust Valve Lift; 108 Degree Lobe Separation; With Lifters/Valve Springs/Retainers/Locks/Valve Stem Seals/Timing Chain Set/Assembly Lube/Decals/Instructions

MPN: K151154

These high torque Camshafts are designed for street applications with lower compression ratios. They can be used with most stock components including intake manifolds, exhaust manifolds and carburetors. High Energy Cams™ are designed to improve your engine's efficiency through its unique lobe characteristics. When installed in the correct application, High Energy Cams™ will usually produce better gas mileage and power. COMP Cams(R) has matched Valve springs to go with each of the cams in the High Energy™ series to ensure peak performance.

Engine Compatibility: Chevy 90 Degree V6 3.3L-3.8L 200-229 Cubic Inch

Timing Type: Double Roller Chain Drive

Camshaft Type: Hydraulic Flat Tappet

RPM - Low: 500

RPM - High: 4500

Advertised Exhaust Duration (DEG): 248 Degree

Advertised Intake Duration (DEG): 240 Degree

Exhaust Duration At 0.050 Lift (DEG): 200 Degree

Exhaust Lift (IN): 0.39 Inch

Exhaust Valve Lash (IN): 0 Inch

Idle Characteristics: Smooth

Intake Duration Lift At 0.050 Lift (DEG): 192 Degree

Intake Lift (IN): 0.39 Inch

Intake Valve Lash (IN): 0 Inch

Lobe Separation Angle (DEG): 108 Degree

Rocker Arm Ratio: 1.52

Lifter Style: Hydraulic Flat Tappet

Outside Diameter Of Outer Spring (IN): 1.23 Inch

Computer Controlled Compatible: No

Includes Retainers: Yes

Includes Locks: Yes

Includes Valve Stem Seals: Yes

Includes Assembly Lubricant: Yes

Includes Pushrods: No

Includes Rocker Arms: No

Includes Gaskets: No

Includes Timing Chain Set: Yes

Includes Decals: Yes

Grind Number: 240H

Features

High Energy Cams™ Are Designed To Improve Your Engine's Efficiency Through Its Unique Lobe Characteristics
When Installed In The Correct Application , High Energy Cams™ Will Usually Produce Better Gas Mileage And Power
Limited 1 Year Warranty

Specifications of COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit K151154
Advertised Exhaust Duration (DEG)	248 Degree
Advertised Intake Duration (DEG)	240 Degree
Camshaft Type	Hydraulic Flat Tappet
Computer Controlled Compatible	No
Engine Compatibility	Chevy 90 Degree V6 3.3L-3.8L 200-229 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG)	200 Degree
Exhaust Lift (IN)	0.39 Inch
Exhaust Valve Lash (IN)	0 Inch
Grind Number	240H
Idle Characteristics	Smooth
Includes Assembly Lubricant	Yes
Includes Decals	Yes
Includes Gaskets	No
Includes Locks	Yes
Includes Pushrods	No
Includes Retainers	Yes
Includes Rocker Arms	No
Includes Timing Chain Set	Yes
Includes Valve Stem Seals	Yes
Intake Duration Lift At 0.050 Lift (DEG)	192 Degree
Intake Lift (IN)	0.39 Inch
Intake Valve Lash (IN)	0 Inch
Lifter Style	Hydraulic Flat Tappet
Lobe Separation Angle (DEG)	108 Degree
Outside Diameter Of Outer Spring (IN)	1.23 Inch
Rocker Arm Ratio	1.52
RPM - High	4500
RPM - Low	500
Timing Type	Double Roller Chain Drive
