COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit K014198

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: K01-419-8
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $1,993.94
Price: $1,898.99
You Save: $94.95
Advertised Exhaust Duration (DEG)
288 Degree
Advertised Intake Duration (DEG)
282 Degree
Camshaft Type
Hydraulic Roller
Computer Controlled Compatible
Yes
Engine Compatibility
Chevy Big Block V8 454-502 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG)
236 Degree
Exhaust Lift (IN)
0.52 Inch
Exhaust Valve Lash (IN)
0 Inch
Grind Number
XR282HR-14
Idle Characteristics
Rough
Includes Assembly Lubricant
Yes
Share this page

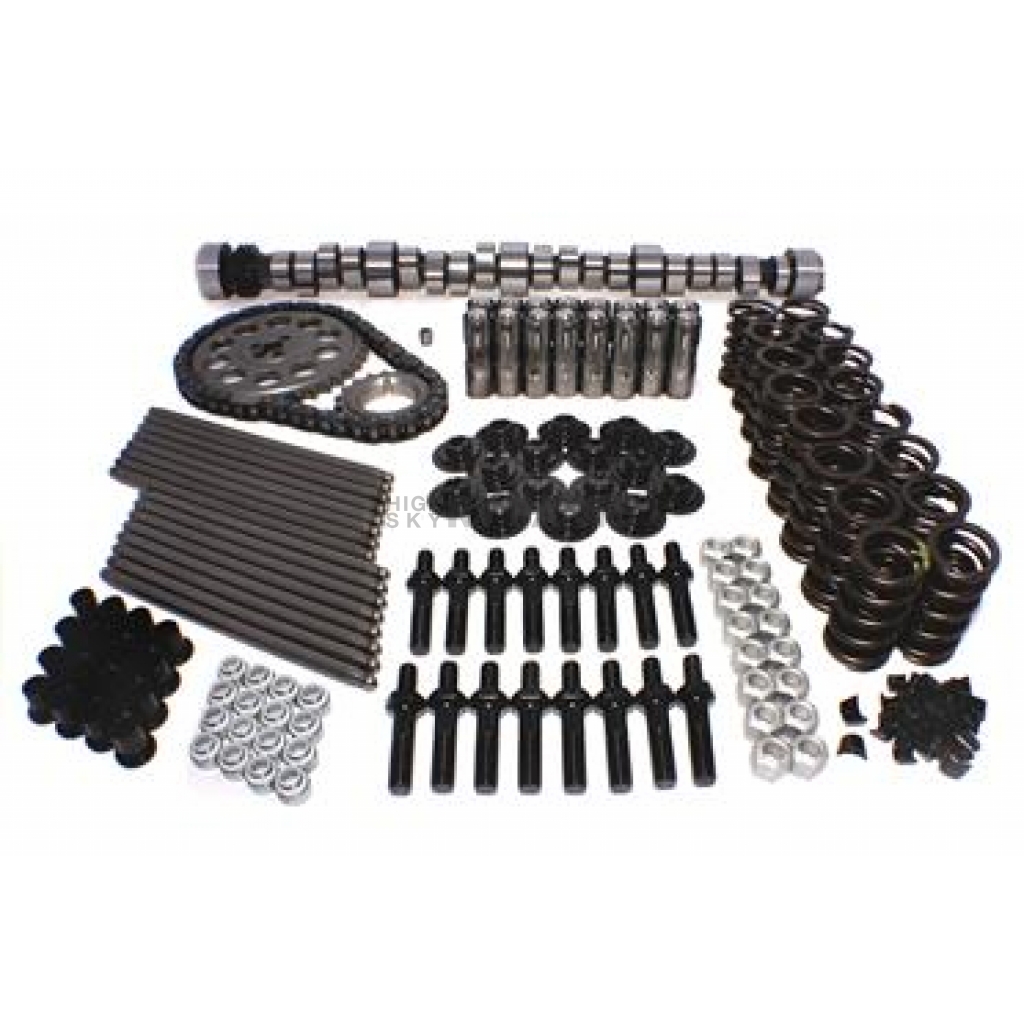

COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit

Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit; Xtreme Energy ™; For Use With Chevy Gen VI Big Block 7.4L-8.2L/454-502 Cubic Inch; Double Roller Chain Drive; Computer Controlled Hydraulic Roller; 2000-6000 RPM Range; 230 Degree Intake Duration @ 0.050 Inch Lift; 236 Degree Exhaust Duration @ 0.050 Inch Lift; 0.510 Inch Intake Valve Lift; 0.520 Inch Exhaust Valve Lift; 114 Degree Lobe Separation; With Lifters/Valve Springs/Retainers/Locks/Valve Stem Seals/Timing Chain Set/Assembly Lube/Decals/Instructions

MPN: K014198

Xtreme Energy Cams™ are designed to take advantage of the latest improvements in valve train components and the newest developments in camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased engine vacuum. Can be used in any street or street/strip application where both throttle response and top end Horsepower are desired. Because these camshafts use aggressive lobe designs, it is imperative that valve springs, locks, retainers, pushrods, lifters, rocker arms and other related components be matched to the camshaft.
Engine Compatibility: Chevy Big Block V8 454-502 Cubic Inch
Timing Type: Double Roller Chain Drive
Camshaft Type: Hydraulic Roller
RPM - Low: 2000
RPM - High: 6000
Advertised Exhaust Duration (DEG): 288 Degree
Advertised Intake Duration (DEG): 282 Degree
Exhaust Duration At 0.050 Lift (DEG): 236 Degree
Exhaust Lift (IN): 0.52 Inch
Exhaust Valve Lash (IN): 0 Inch
Idle Characteristics: Rough
Intake Duration Lift At 0.050 Lift (DEG): 230 Degree
Intake Lift (IN): 0.51 Inch
Intake Valve Lash (IN): 0 Inch
Lobe Separation Angle (DEG): 114 Degree
Rocker Arm Ratio: 1.72
Lifter Style: Hydraulic Roller
Outside Diameter Of Outer Spring (IN): 1.524 Inch
Computer Controlled Compatible: Yes
Includes Retainers: Yes
Includes Locks: Yes
Includes Valve Stem Seals: Yes
Includes Assembly Lubricant: Yes
Includes Pushrods: No
Includes Rocker Arms: No
Includes Gaskets: No
Includes Timing Chain Set: Yes
Includes Decals: Yes
Grind Number: XR282HR-14

Features

  • Their Aggressive Lobe Design Produces Better Throttle Response And Top End Horsepower Than Other Cams With The Same Duration
  • Also Deliver Increased Engine Vacuum
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft/ Lifter/ Timing Gear/ Valve Spring Kit K014198
Advertised Exhaust Duration (DEG) 288 Degree
Advertised Intake Duration (DEG) 282 Degree
Camshaft Type Hydraulic Roller
Computer Controlled Compatible Yes
Engine Compatibility Chevy Big Block V8 454-502 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG) 236 Degree
Exhaust Lift (IN) 0.52 Inch
Exhaust Valve Lash (IN) 0 Inch
Grind Number XR282HR-14
Idle Characteristics Rough
Includes Assembly Lubricant Yes
Includes Decals Yes
Includes Gaskets No
Includes Locks Yes
Includes Pushrods No
Includes Retainers Yes
Includes Rocker Arms No
Includes Timing Chain Set Yes
Includes Valve Stem Seals Yes
Intake Duration Lift At 0.050 Lift (DEG) 230 Degree
Intake Lift (IN) 0.51 Inch
Intake Valve Lash (IN) 0 Inch
Lifter Style Hydraulic Roller
Lobe Separation Angle (DEG) 114 Degree
Outside Diameter Of Outer Spring (IN) 1.524 Inch
Rocker Arm Ratio 1.72
RPM - High 6000
RPM - Low 2000
Timing Type Double Roller Chain Drive

1900 Chevrolet Big Block 1996-2000 Gen VI

1996 Chevrolet C2500
1997 Chevrolet C2500
1998 Chevrolet C2500
1999 Chevrolet C2500

1996 Chevrolet C2500 Suburban
1997 Chevrolet C2500 Suburban
1998 Chevrolet C2500 Suburban
1999 Chevrolet C2500 Suburban

1996 Chevrolet C3500
1997 Chevrolet C3500
1998 Chevrolet C3500
1999 Chevrolet C3500

1996 Chevrolet Express 3500
1997 Chevrolet Express 3500
1998 Chevrolet Express 3500
1999 Chevrolet Express 3500

1996 Chevrolet G30

1996 Chevrolet K2500
1997 Chevrolet K2500
1998 Chevrolet K2500
1999 Chevrolet K2500

1996 Chevrolet K2500 Suburban
1997 Chevrolet K2500 Suburban
1998 Chevrolet K2500 Suburban
1999 Chevrolet K2500 Suburban

1996 Chevrolet K3500
1997 Chevrolet K3500
1998 Chevrolet K3500
1999 Chevrolet K3500

1996 Chevrolet P30
1997 Chevrolet P30
1998 Chevrolet P30
1999 Chevrolet P30

1996 GMC C2500
1997 GMC C2500
1998 GMC C2500
1999 GMC C2500

1996 GMC C2500 Suburban
1997 GMC C2500 Suburban
1998 GMC C2500 Suburban
1999 GMC C2500 Suburban

1996 GMC C3500
1997 GMC C3500
1998 GMC C3500
1999 GMC C3500

1996 GMC G3500

1996 GMC K2500
1997 GMC K2500
1998 GMC K2500
1999 GMC K2500

1996 GMC K2500 Suburban
1997 GMC K2500 Suburban
1998 GMC K2500 Suburban
1999 GMC K2500 Suburban

1996 GMC K3500
1997 GMC K3500
1998 GMC K3500
1999 GMC K3500

1996 GMC P3500
1997 GMC P3500
1998 GMC P3500
1999 GMC P3500

1996 GMC Savana 3500
1997 GMC Savana 3500
1998 GMC Savana 3500
1999 GMC Savana 3500
