COMP Cams Camshaft/ Lifter/ Timing Gear Kit SK512064

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: SK51-206-4
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 25
Retail: $488.24
Price: $464.99
You Save: $23.25
Advertised Exhaust Duration (DEG)
261 Degree
Advertised Intake Duration (DEG)
255 Degree
Camshaft Type
Hydraulic Flat Tappet
Computer Controlled Compatible
No
Engine Compatibility
Pontiac V8 265-455 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG)
212 Degree
Exhaust Lift (IN)
0.45 Inch
Exhaust Valve Lash (IN)
0 Inch
Grind Number
255DEH
Idle Characteristics
Smooth
Includes Assembly Lubricant
Yes
Share this page

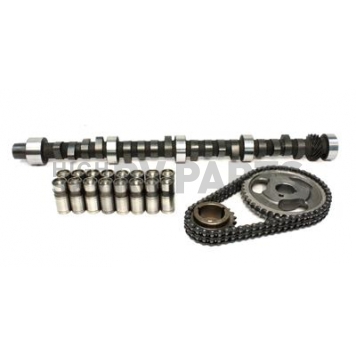

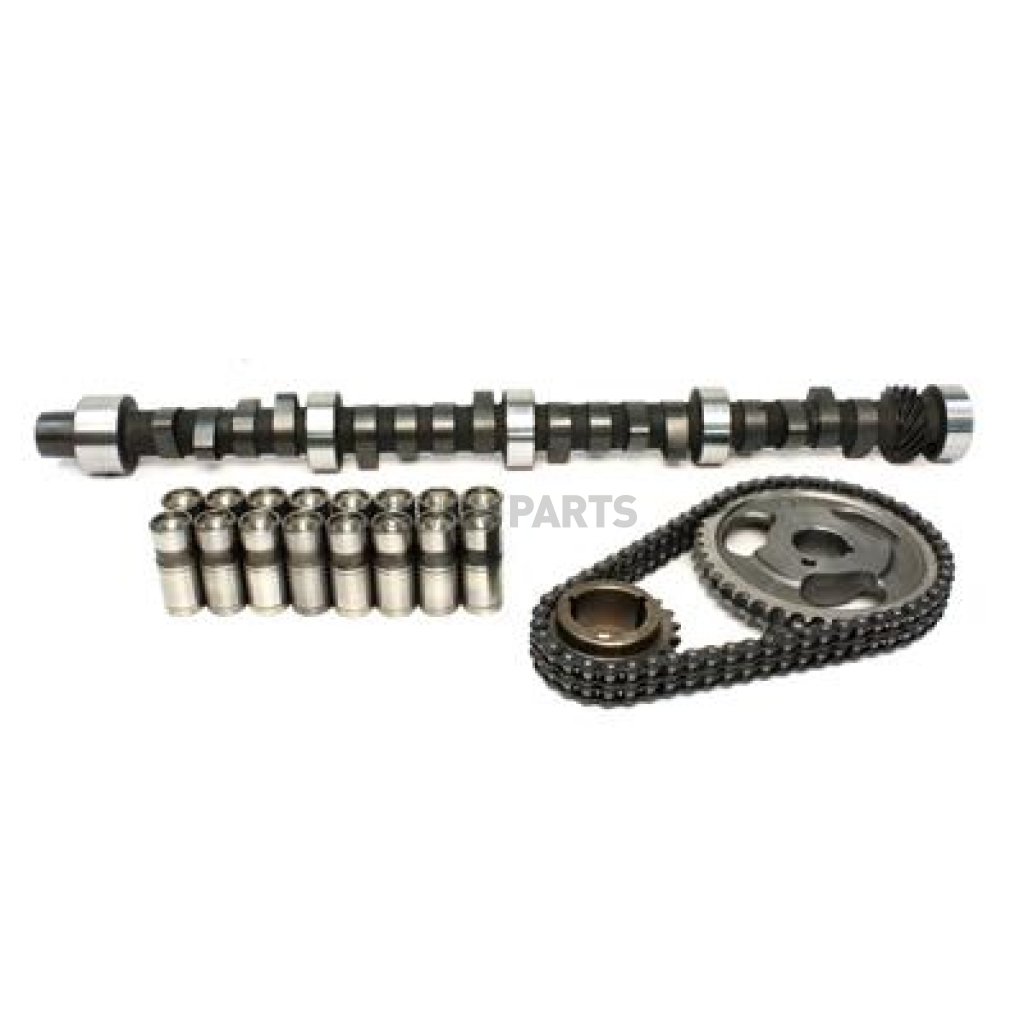

COMP Cams Camshaft/ Lifter/ Timing Gear Kit

Camshaft/ Lifter/ Timing Gear Kit; Dual Energy ™; For Use With Pontiac 4.3L-7.5L/265-455 Cubic Inch; Double Roller Chain Drive; Hydraulic Flat Tappet; 1000-5000 RPM Range; 202 Degree Intake Duration @ 0.050 Inch Lift; 212 Degree Exhaust Duration @ 0.050 Inch Lift; 0.420 Inch Intake Valve Lift; 0.450 Inch Exhaust Valve Lift; 110 Degree Lobe Separation; With Lifters/Timing Gears/Assembly Lube/Instructions/Decal

MPN: SK512064

These camshafts feature more exhaust duration and lift than the intake and are designed for applications where a slight sacrifice in low end power is acceptable in exchange for increased mid and upper RPM power. Dual Energy Cams™ are designed for applications where a dual, pattern camshaft (cams that have different lift and duration specs for intake and exhaust valves) is desired. They may be used with an exhaust system that is much more restrictive than the intake. Although the smallest of the Dual Energy Cams™ is compatible with stock valve springs in most applications, we strongly recommend that a new set of COMP Cams(R) valve springs be installed to match the higher output camshaft. It is absolutely required that upgraded valve springs be installed when the 275DEH camshafts are used.
Idle Characteristics: Smooth
Engine Compatibility: Pontiac V8 265-455 Cubic Inch
Timing Type: Double Roller Chain Drive
Camshaft Type: Hydraulic Flat Tappet
RPM - Low: 1000
RPM - High: 5000
Advertised Exhaust Duration (DEG): 261 Degree
Advertised Intake Duration (DEG): 255 Degree
Exhaust Duration At 0.050 Lift (DEG): 212 Degree
Exhaust Lift (IN): 0.45 Inch
Exhaust Valve Lash (IN): 0 Inch
Intake Duration Lift At 0.050 Lift (DEG): 202 Degree
Intake Lift (IN): 0.42 Inch
Intake Valve Lash (IN): 0 Inch
Lobe Separation Angle (DEG): 110 Degree
Rocker Arm Ratio: 1.52
Lifter Style: Hydraulic Flat Tappet
Computer Controlled Compatible: No
Includes Valve Springs: No
Includes Retainers: No
Includes Locks: No
Includes Valve Stem Seals: No
Includes Assembly Lubricant: Yes
Includes Pushrods: No
Includes Rocker Arms: No
Includes Gaskets: No
Includes Timing Chain Set: Yes
Includes Decals: Yes
Grind Number: 255DEH

Features

  • Work Great With Most Stock Components
  • Very Flat Torque Curve For Great Streetability
  • Feature More Exhaust Duration And Lift Than The Intake
  • Designed For Applications Where A Slight Sacrifice In Low End Power Is Acceptable In Exchange For Increased Mid And Upper RPM Power
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft/ Lifter/ Timing Gear Kit SK512064
Advertised Exhaust Duration (DEG) 261 Degree
Advertised Intake Duration (DEG) 255 Degree
Camshaft Type Hydraulic Flat Tappet
Computer Controlled Compatible No
Engine Compatibility Pontiac V8 265-455 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG) 212 Degree
Exhaust Lift (IN) 0.45 Inch
Exhaust Valve Lash (IN) 0 Inch
Grind Number 255DEH
Idle Characteristics Smooth
Includes Assembly Lubricant Yes
Includes Decals Yes
Includes Gaskets No
Includes Locks No
Includes Pushrods No
Includes Retainers No
Includes Rocker Arms No
Includes Timing Chain Set Yes
Includes Valve Springs No
Includes Valve Stem Seals No
Intake Duration Lift At 0.050 Lift (DEG) 202 Degree
Intake Lift (IN) 0.42 Inch
Intake Valve Lash (IN) 0 Inch
Lifter Style Hydraulic Flat Tappet
Lobe Separation Angle (DEG) 110 Degree
Rocker Arm Ratio 1.52
RPM - High 5000
RPM - Low 1000
Timing Type Double Roller Chain Drive
