COMP Cams Camshaft/ Lifter/ Timing Gear Kit SK332504

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: SK33-250-4
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 25
Retail: $572.24
Price: $544.99
You Save: $27.25
Advertised Exhaust Duration (DEG)
296 Degree
Advertised Intake Duration (DEG)
284 Degree
Camshaft Type
Hydraulic Flat Tappet
Computer Controlled Compatible
No
Engine Compatibility
Ford Big Block V8 352-428 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG)
246 Degree
Exhaust Lift (IN)
0.588 Inch
Exhaust Valve Lash (IN)
0 Inch
Grind Number
XE284H
Idle Characteristics
Rough
Includes Assembly Lubricant
Yes
Share this page

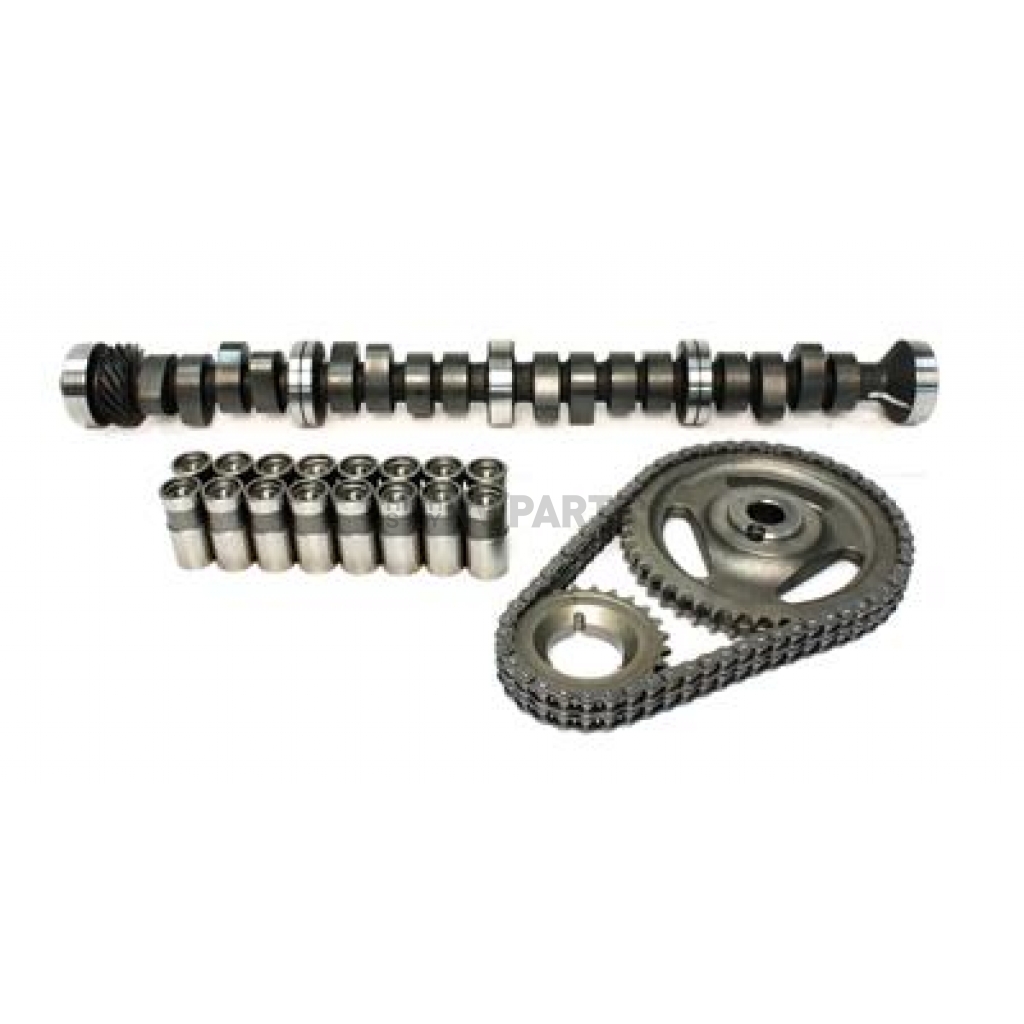

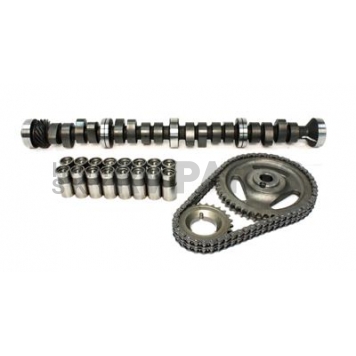

COMP Cams Camshaft/ Lifter/ Timing Gear Kit

Camshaft/ Lifter/ Timing Gear Kit; Xtreme Energy ™; For Use With Ford FE Big Block 5.8L-7.0L/352-428 Cubic Inch; Double Roller Chain Drive; Hydraulic Flat Tappet; 2300-6500 RPM Range; 240 Degree Intake Duration @ 0.050 Inch Lift; 246 Degree Exhaust Duration @ 0.050 Inch Lift; 0.584 Inch Intake Valve Lift; 0.588 Inch Exhaust Valve Lift; 110 Degree Lobe Separation; With Lifters/Timing Gears/Assembly Lube/Instructions/Decal

MPN: SK332504

Xtreme Energy Cams™ are designed to take advantage of the latest improvements in valve train components and the newest developments in camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased engine vacuum. Can be used in any street or street/strip application where both throttle response and top end Horsepower are desired. Because these camshafts use aggressive lobe designs, it is imperative that valve springs, locks, retainers, pushrods, lifters, rocker arms and other related components be matched to the camshaft.
Idle Characteristics: Rough
Engine Compatibility: Ford Big Block V8 352-428 Cubic Inch
Timing Type: Double Roller Chain Drive
Camshaft Type: Hydraulic Flat Tappet
RPM - Low: 2300
RPM - High: 6500
Advertised Exhaust Duration (DEG): 296 Degree
Advertised Intake Duration (DEG): 284 Degree
Exhaust Duration At 0.050 Lift (DEG): 246 Degree
Exhaust Lift (IN): 0.588 Inch
Exhaust Valve Lash (IN): 0 Inch
Intake Duration Lift At 0.050 Lift (DEG): 240 Degree
Intake Lift (IN): 0.584 Inch
Intake Valve Lash (IN): 0 Inch
Lobe Separation Angle (DEG): 110 Degree
Rocker Arm Ratio: 1.76
Lifter Style: Hydraulic Flat Tappet
Computer Controlled Compatible: No
Includes Valve Springs: No
Includes Retainers: No
Includes Locks: No
Includes Valve Stem Seals: No
Includes Assembly Lubricant: Yes
Includes Pushrods: No
Includes Rocker Arms: No
Includes Gaskets: No
Includes Timing Chain Set: Yes
Includes Decals: Yes
Grind Number: XE284H

Features

  • Their Aggressive Lobe Design Produces Better Throttle Response And Top End Horsepower Than Other Cams With The Same Duration
  • Also Deliver Increased Engine Vacuum
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft/ Lifter/ Timing Gear Kit SK332504
Advertised Exhaust Duration (DEG) 296 Degree
Advertised Intake Duration (DEG) 284 Degree
Camshaft Type Hydraulic Flat Tappet
Computer Controlled Compatible No
Engine Compatibility Ford Big Block V8 352-428 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG) 246 Degree
Exhaust Lift (IN) 0.588 Inch
Exhaust Valve Lash (IN) 0 Inch
Grind Number XE284H
Idle Characteristics Rough
Includes Assembly Lubricant Yes
Includes Decals Yes
Includes Gaskets No
Includes Locks No
Includes Pushrods No
Includes Retainers No
Includes Rocker Arms No
Includes Timing Chain Set Yes
Includes Valve Springs No
Includes Valve Stem Seals No
Intake Duration Lift At 0.050 Lift (DEG) 240 Degree
Intake Lift (IN) 0.584 Inch
Intake Valve Lash (IN) 0 Inch
Lifter Style Hydraulic Flat Tappet
Lobe Separation Angle (DEG) 110 Degree
Rocker Arm Ratio 1.76
RPM - High 6500
RPM - Low 2300
Timing Type Double Roller Chain Drive

1963 Ford 300

1900 Ford 352-428 FE

1900 Ford 429-460

1963 Ford Country Sedan
1964 Ford Country Sedan
1965 Ford Country Sedan
1966 Ford Country Sedan
1967 Ford Country Sedan
1968 Ford Country Sedan
1969 Ford Country Sedan
1970 Ford Country Sedan
1971 Ford Country Sedan
1972 Ford Country Sedan
1973 Ford Country Sedan
1974 Ford Country Sedan

1963 Ford Country Squire
1964 Ford Country Squire
1965 Ford Country Squire
1966 Ford Country Squire
1967 Ford Country Squire
1968 Ford Country Squire
1969 Ford Country Squire
1970 Ford Country Squire
1971 Ford Country Squire
1972 Ford Country Squire
1973 Ford Country Squire
1974 Ford Country Squire

1964 Ford Custom
1965 Ford Custom
1966 Ford Custom
1967 Ford Custom
1968 Ford Custom
1969 Ford Custom
1970 Ford Custom
1971 Ford Custom
1972 Ford Custom

1964 Ford Custom 500
1965 Ford Custom 500
1966 Ford Custom 500
1967 Ford Custom 500
1968 Ford Custom 500
1969 Ford Custom 500
1970 Ford Custom 500
1971 Ford Custom 500
1972 Ford Custom 500
1973 Ford Custom 500
1974 Ford Custom 500
1975 Ford Custom 500
1976 Ford Custom 500
1977 Ford Custom 500

1975 Ford Elite
1976 Ford Elite

1975 Ford F-100
1976 Ford F-100
1977 Ford F-100
