COMP Cams Camshaft/ Lifter/ Timing Gear Kit SK212234

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: SK21-223-4
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 23
Retail: $554.39
Price: $527.99
You Save: $26.40
Advertised Exhaust Duration (DEG)
280 Degree
Advertised Intake Duration (DEG)
268 Degree
Camshaft Type
Hydraulic Flat Tappet
Computer Controlled Compatible
No
Engine Compatibility
Chrysler Big Block V8 383-440 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG)
230 Degree
Exhaust Lift (IN)
0.48 Inch
Exhaust Valve Lash (IN)
0 Inch
Grind Number
XE268H
Idle Characteristics
Mild
Includes Assembly Lubricant
Yes
Share this page

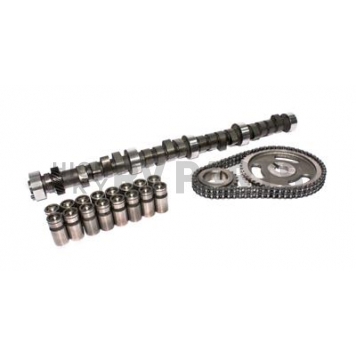

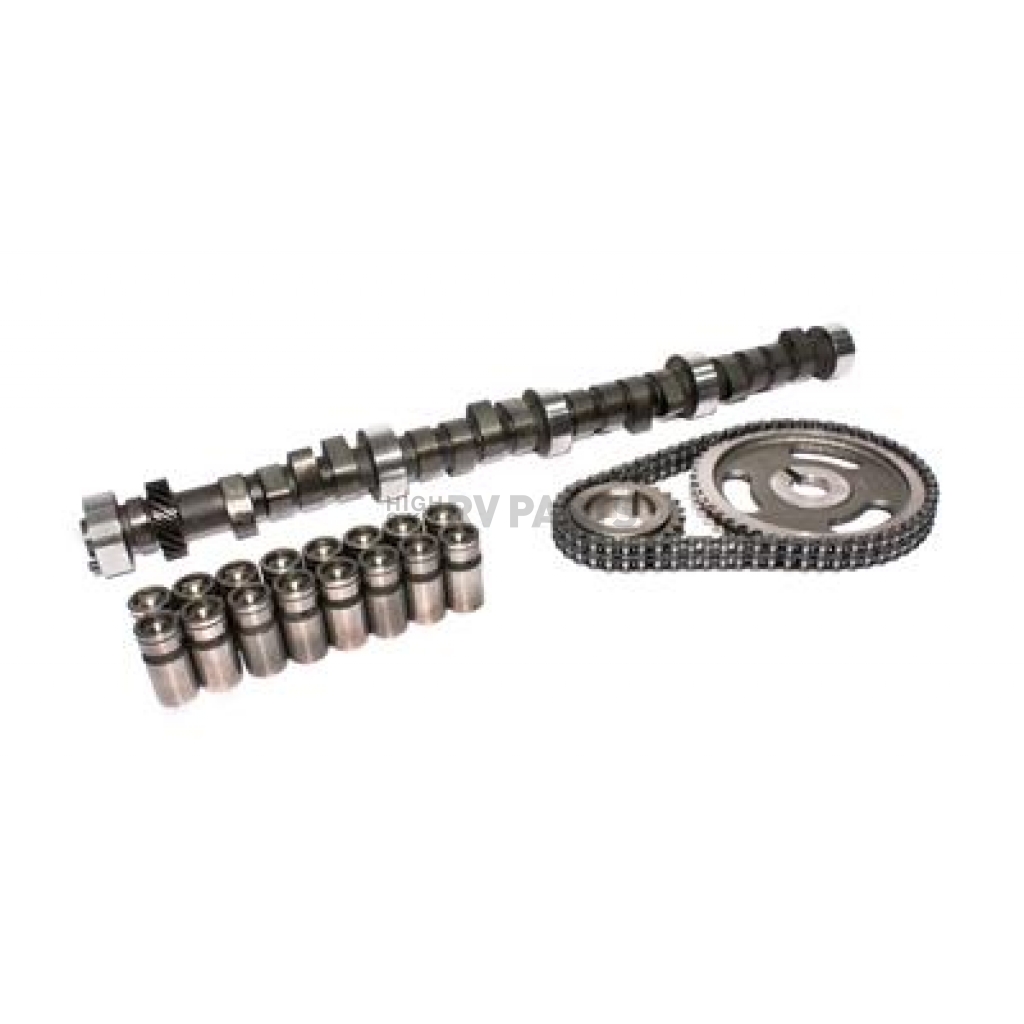

COMP Cams Camshaft/ Lifter/ Timing Gear Kit

Camshaft/ Lifter/ Timing Gear Kit; Xtreme Energy ™; For Use With Chrysler Big Block 6.3L-7.2L/383-440 Cubic Inch; Double Roller Chain Drive; Hydraulic Flat Tappet; 1600-5800 RPM Range; 224 Degree Intake Duration @ 0.050 Inch Lift; 230 Degree Exhaust Duration @ 0.050 Inch Lift; 0.477 Inch Intake Valve Lift; 0.480 Inch Exhaust Valve Lift; 110 Degree Lobe Separation; With Lifters/Timing Gears/Assembly Lube/Instructions/Decal

MPN: SK212234

Xtreme Energy Cams™ are designed to take advantage of the latest improvements in valve train components and the newest developments in camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased engine vacuum. Can be used in any street or street/strip application where both throttle response and top end Horsepower are desired. Because these camshafts use aggressive lobe designs, it is imperative that valve springs, locks, retainers, pushrods, lifters, rocker arms and other related components be matched to the camshaft.
Idle Characteristics: Mild
Engine Compatibility: Chrysler Big Block V8 383-440 Cubic Inch
Timing Type: Double Roller Chain Drive
Camshaft Type: Hydraulic Flat Tappet
RPM - Low: 1600
RPM - High: 5800
Advertised Exhaust Duration (DEG): 280 Degree
Advertised Intake Duration (DEG): 268 Degree
Exhaust Duration At 0.050 Lift (DEG): 230 Degree
Exhaust Lift (IN): 0.48 Inch
Exhaust Valve Lash (IN): 0 Inch
Intake Duration Lift At 0.050 Lift (DEG): 224 Degree
Intake Lift (IN): 0.477 Inch
Intake Valve Lash (IN): 0 Inch
Lobe Separation Angle (DEG): 110 Degree
Rocker Arm Ratio: 1.5
Lifter Style: Hydraulic Flat Tappet
Computer Controlled Compatible: No
Includes Valve Springs: No
Includes Retainers: No
Includes Locks: No
Includes Valve Stem Seals: No
Includes Assembly Lubricant: Yes
Includes Pushrods: No
Includes Rocker Arms: No
Includes Gaskets: No
Includes Timing Chain Set: Yes
Includes Decals: Yes
Grind Number: XE268H

Features

  • Their Aggressive Lobe Design Produces Better Throttle Response And Top End Horsepower Than Other Cams With The Same Duration
  • Also Deliver Increased Engine Vacuum
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft/ Lifter/ Timing Gear Kit SK212234
Advertised Exhaust Duration (DEG) 280 Degree
Advertised Intake Duration (DEG) 268 Degree
Camshaft Type Hydraulic Flat Tappet
Computer Controlled Compatible No
Engine Compatibility Chrysler Big Block V8 383-440 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG) 230 Degree
Exhaust Lift (IN) 0.48 Inch
Exhaust Valve Lash (IN) 0 Inch
Grind Number XE268H
Idle Characteristics Mild
Includes Assembly Lubricant Yes
Includes Decals Yes
Includes Gaskets No
Includes Locks No
Includes Pushrods No
Includes Retainers No
Includes Rocker Arms No
Includes Timing Chain Set Yes
Includes Valve Springs No
Includes Valve Stem Seals No
Intake Duration Lift At 0.050 Lift (DEG) 224 Degree
Intake Lift (IN) 0.477 Inch
Intake Valve Lash (IN) 0 Inch
Lifter Style Hydraulic Flat Tappet
Lobe Separation Angle (DEG) 110 Degree
Rocker Arm Ratio 1.5
RPM - High 5800
RPM - Low 1600
Timing Type Double Roller Chain Drive
