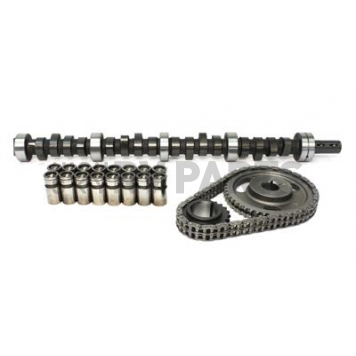

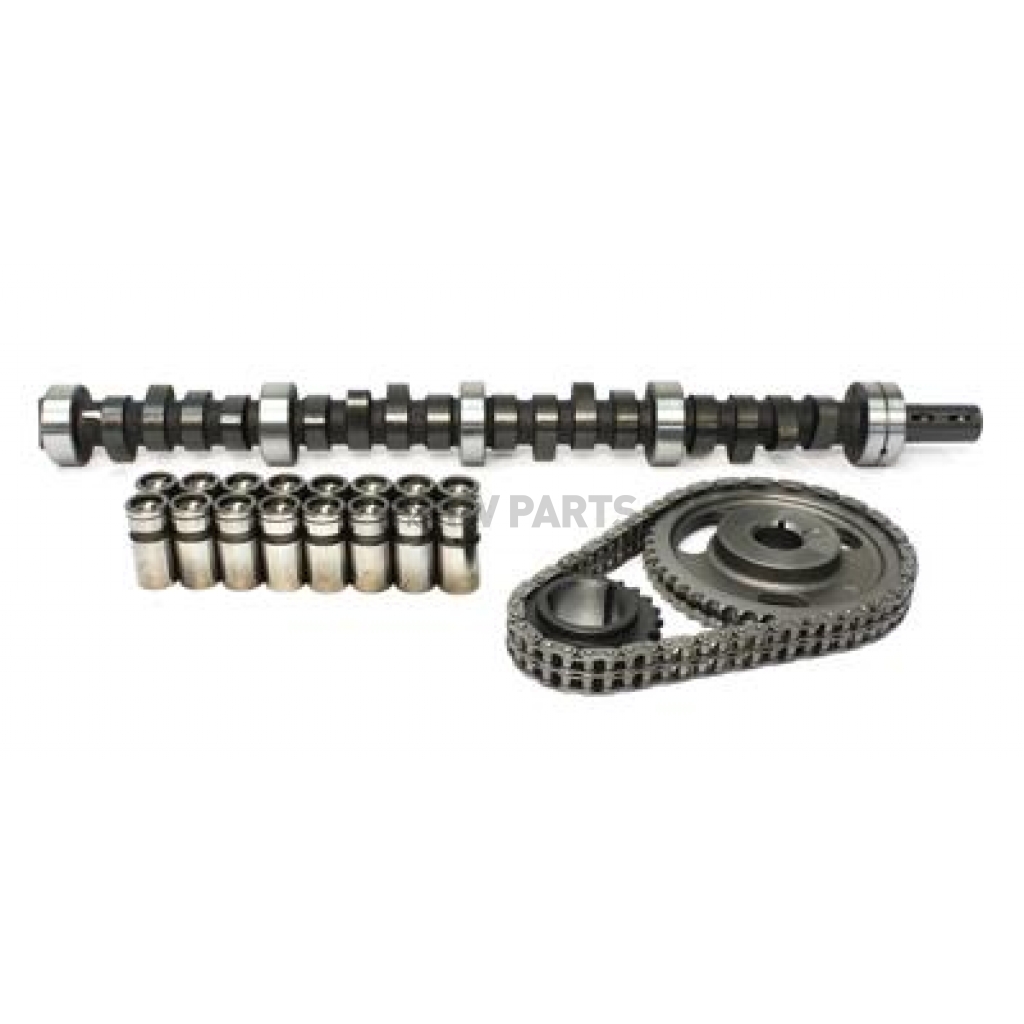

COMP Cams Camshaft/ Lifter/ Timing Gear Kit SK102165

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: SK10-216-5
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 21
Retail: $690.89
Price: $657.99
You Save: $32.90
Advertised Exhaust Duration (DEG)
286 Degree
Advertised Intake Duration (DEG)
274 Degree
Camshaft Type
Hydraulic Flat Tappet
Computer Controlled Compatible
No
Engine Compatibility
AMC 4.7L-6.6L 290-401 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG)
236 Degree
Exhaust Lift (IN)
0.523 Inch
Exhaust Valve Lash (IN)
0 Inch
Grind Number
XE274H
Idle Characteristics
Mild
Includes Assembly Lubricant
Yes
Share this page

COMP Cams Camshaft/ Lifter/ Timing Gear Kit

Camshaft/ Lifter/ Timing Gear Kit; Xtreme Energy ™; For Use With AMC 4.8L-6.6L/290-401 Cubic Inch; Double Roller Chain Drive; Hydraulic Flat Tappet; 2000-6000 RPM Range; 230 Degree Intake Duration @ 0.050 Inch Lift; 236 Degree Exhaust Duration @ 0.050 Inch Lift; 0.520 Inch Intake Valve Lift; 0.523 Inch Exhaust Valve Lift; 110 Degree Lobe Separation; With Lifters/Timing Gears/Assembly Lube/Instructions/Decal

MPN: SK102165

Xtreme Energy Cams™ are designed to take advantage of the latest improvements in valve train components and the newest developments in camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased engine vacuum. Can be used in any street or street/strip application where both throttle response and top end Horsepower are desired. Because these camshafts use aggressive lobe designs, it is imperative that valve springs, locks, retainers, pushrods, lifters, rocker arms and other related components be matched to the camshaft.
Idle Characteristics: Mild
Engine Compatibility: AMC 4.7L-6.6L 290-401 Cubic Inch
Timing Type: Double Roller Chain Drive
Camshaft Type: Hydraulic Flat Tappet
RPM - Low: 2000
RPM - High: 6000
Advertised Exhaust Duration (DEG): 286 Degree
Advertised Intake Duration (DEG): 274 Degree
Exhaust Duration At 0.050 Lift (DEG): 236 Degree
Exhaust Lift (IN): 0.523 Inch
Exhaust Valve Lash (IN): 0 Inch
Intake Duration Lift At 0.050 Lift (DEG): 230 Degree
Intake Lift (IN): 0.52 Inch
Intake Valve Lash (IN): 0 Inch
Lobe Separation Angle (DEG): 110 Degree
Rocker Arm Ratio: 1.6
Lifter Style: Hydraulic Flat Tappet
Computer Controlled Compatible: No
Includes Valve Springs: No
Includes Retainers: No
Includes Locks: No
Includes Valve Stem Seals: No
Includes Assembly Lubricant: Yes
Includes Pushrods: No
Includes Rocker Arms: No
Includes Gaskets: No
Includes Timing Chain Set: Yes
Includes Decals: Yes
Grind Number: XE274H

Features

  • Their Aggressive Lobe Design Produces Better Throttle Response And Top End Horsepower Than Other Cams With The Same Duration
  • Also Deliver Increased Engine Vacuum
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft/ Lifter/ Timing Gear Kit SK102165
Advertised Exhaust Duration (DEG) 286 Degree
Advertised Intake Duration (DEG) 274 Degree
Camshaft Type Hydraulic Flat Tappet
Computer Controlled Compatible No
Engine Compatibility AMC 4.7L-6.6L 290-401 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG) 236 Degree
Exhaust Lift (IN) 0.523 Inch
Exhaust Valve Lash (IN) 0 Inch
Grind Number XE274H
Idle Characteristics Mild
Includes Assembly Lubricant Yes
Includes Decals Yes
Includes Gaskets No
Includes Locks No
Includes Pushrods No
Includes Retainers No
Includes Rocker Arms No
Includes Timing Chain Set Yes
Includes Valve Springs No
Includes Valve Stem Seals No
Intake Duration Lift At 0.050 Lift (DEG) 230 Degree
Intake Lift (IN) 0.52 Inch
Intake Valve Lash (IN) 0 Inch
Lifter Style Hydraulic Flat Tappet
Lobe Separation Angle (DEG) 110 Degree
Rocker Arm Ratio 1.6
RPM - High 6000
RPM - Low 2000
Timing Type Double Roller Chain Drive

1900 American Motors 290-401

1966 American Motors Ambassador
1967 American Motors Ambassador
1968 American Motors Ambassador
1969 American Motors Ambassador
1970 American Motors Ambassador
1971 American Motors Ambassador
1972 American Motors Ambassador
1973 American Motors Ambassador
1974 American Motors Ambassador

1966 American Motors American
1967 American Motors American
1968 American Motors American

1968 American Motors AMX
1969 American Motors AMX
1970 American Motors AMX

1978 American Motors AMX
1979 American Motors AMX

1966 American Motors Classic

1978 American Motors Concord
1979 American Motors Concord

1972 American Motors Gremlin
1973 American Motors Gremlin
1974 American Motors Gremlin
1975 American Motors Gremlin
1976 American Motors Gremlin

1970 American Motors Hornet
1971 American Motors Hornet
1972 American Motors Hornet
1973 American Motors Hornet
1974 American Motors Hornet
1975 American Motors Hornet
1976 American Motors Hornet
1977 American Motors Hornet

1968 American Motors Javelin
1969 American Motors Javelin
1970 American Motors Javelin
1971 American Motors Javelin
1972 American Motors Javelin
1973 American Motors Javelin
1974 American Motors Javelin

1966 American Motors Marlin
1967 American Motors Marlin

1971 American Motors Matador
1972 American Motors Matador
1973 American Motors Matador
1974 American Motors Matador
1975 American Motors Matador
1976 American Motors Matador
1977 American Motors Matador
1978 American Motors Matador

1978 American Motors Pacer
1979 American Motors Pacer

1969 American Motors Rambler

1966 American Motors Rebel
1967 American Motors Rebel
1968 American Motors Rebel
1969 American Motors Rebel
1970 American Motors Rebel

1966 American Motors Rogue

1979 American Motors Spirit
