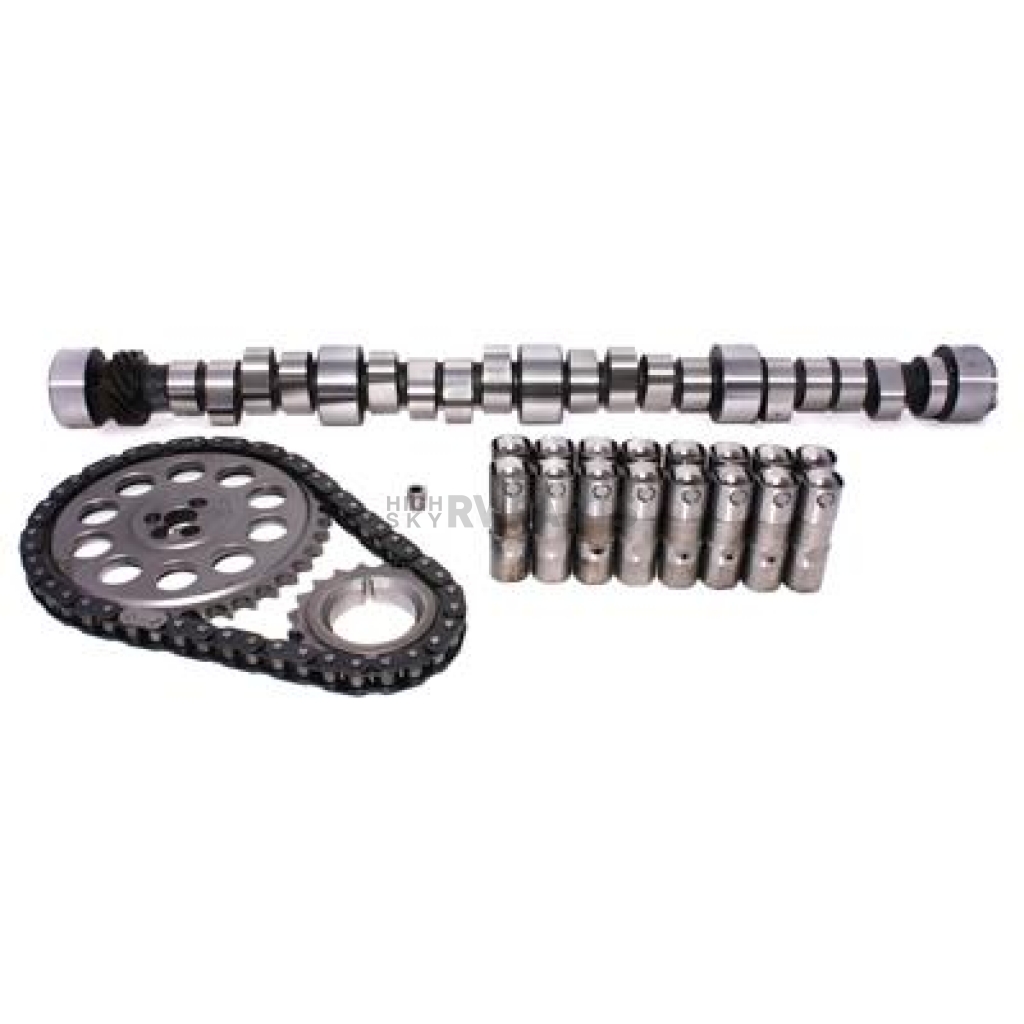

COMP Cams Camshaft/ Lifter/ Timing Gear Kit SK014168

Name: COMP Cams Camshaft/ Lifter/ Timing Gear Kit SK014168
Brand: COMP Cams
SKU: SK01-416-8
Price: 1322.99 USD
Availability: InStock

Authorized Dealer

Brand:

COMP Cams

0 reviews

Have a product question? Ask us
Part Number: SK01-416-8
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 17

Retail: $1,389.14

Price: $1,322.99

You Save: $66.15

Advertised Exhaust Duration (DEG)

282 Degree

Advertised Intake Duration (DEG)

276 Degree

Camshaft Type

Hydraulic Roller

Computer Controlled Compatible

Engine Compatibility

Chevy Big Block V8 454-502 Cubic Inch

Exhaust Duration At 0.050 Lift (DEG)

230 Degree

Exhaust Lift (IN)

0.51 Inch

Exhaust Valve Lash (IN)

0 Inch

Grind Number

XR276HR

Idle Characteristics

Noticeable

Includes Assembly Lubricant

Yes

Share this page

COMP Cams Camshaft/ Lifter/ Timing Gear Kit

Camshaft/ Lifter/ Timing Gear Kit; Xtreme Energy ™; For Use With Chevy Gen VI Big Block 7.4L-8.2L/454-502 Cubic Inch; Double Roller Chain Drive; Hydraulic Roller; 1900-5600 RPM Range; 224 Degree Intake Duration @ 0.050 Inch Lift; 230 Degree Exhaust Duration @ 0.050 Inch Lift; 0.510 Inch Intake Valve Lift; 0.510 Inch Exhaust Valve Lift; 110 Degree Lobe Separation; With Lifters/Timing Gears/Assembly Lube/Instructions/Decal

MPN: SK014168

Xtreme Energy Cams™ are designed to take advantage of the latest improvements in valve train components and the newest developments in camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased engine vacuum. Can be used in any street or street/strip application where both throttle response and top end Horsepower are desired. Because these camshafts use aggressive lobe designs, it is imperative that valve springs, locks, retainers, pushrods, lifters, rocker arms and other related components be matched to the camshaft.

Idle Characteristics: Noticeable

Engine Compatibility: Chevy Big Block V8 454-502 Cubic Inch

Timing Type: Double Roller Chain Drive

Camshaft Type: Hydraulic Roller

RPM - Low: 1900

RPM - High: 5600

Advertised Exhaust Duration (DEG): 282 Degree

Advertised Intake Duration (DEG): 276 Degree

Exhaust Duration At 0.050 Lift (DEG): 230 Degree

Exhaust Lift (IN): 0.51 Inch

Exhaust Valve Lash (IN): 0 Inch

Intake Duration Lift At 0.050 Lift (DEG): 224 Degree

Intake Lift (IN): 0.51 Inch

Intake Valve Lash (IN): 0 Inch

Lobe Separation Angle (DEG): 110 Degree

Rocker Arm Ratio: 1.72

Lifter Style: Hydraulic Roller

Computer Controlled Compatible: No

Includes Valve Springs: No

Includes Retainers: No

Includes Locks: No

Includes Valve Stem Seals: No

Includes Assembly Lubricant: Yes

Includes Pushrods: No

Includes Rocker Arms: No

Includes Gaskets: No

Includes Timing Chain Set: Yes

Includes Decals: Yes

Grind Number: XR276HR

Features

Their Aggressive Lobe Design Produces Better Throttle Response And Top End Horsepower Than Other Cams With The Same Duration
Also Deliver Increased Engine Vacuum
Limited 1 Year Warranty

Specifications of COMP Cams Camshaft/ Lifter/ Timing Gear Kit SK014168
Advertised Exhaust Duration (DEG)	282 Degree
Advertised Intake Duration (DEG)	276 Degree
Camshaft Type	Hydraulic Roller
Computer Controlled Compatible	No
Engine Compatibility	Chevy Big Block V8 454-502 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG)	230 Degree
Exhaust Lift (IN)	0.51 Inch
Exhaust Valve Lash (IN)	0 Inch
Grind Number	XR276HR
Idle Characteristics	Noticeable
Includes Assembly Lubricant	Yes
Includes Decals	Yes
Includes Gaskets	No
Includes Locks	No
Includes Pushrods	No
Includes Retainers	No
Includes Rocker Arms	No
Includes Timing Chain Set	Yes
Includes Valve Springs	No
Includes Valve Stem Seals	No
Intake Duration Lift At 0.050 Lift (DEG)	224 Degree
Intake Lift (IN)	0.51 Inch
Intake Valve Lash (IN)	0 Inch
Lifter Style	Hydraulic Roller
Lobe Separation Angle (DEG)	110 Degree
Rocker Arm Ratio	1.72
RPM - High	5600
RPM - Low	1900
Timing Type	Double Roller Chain Drive
