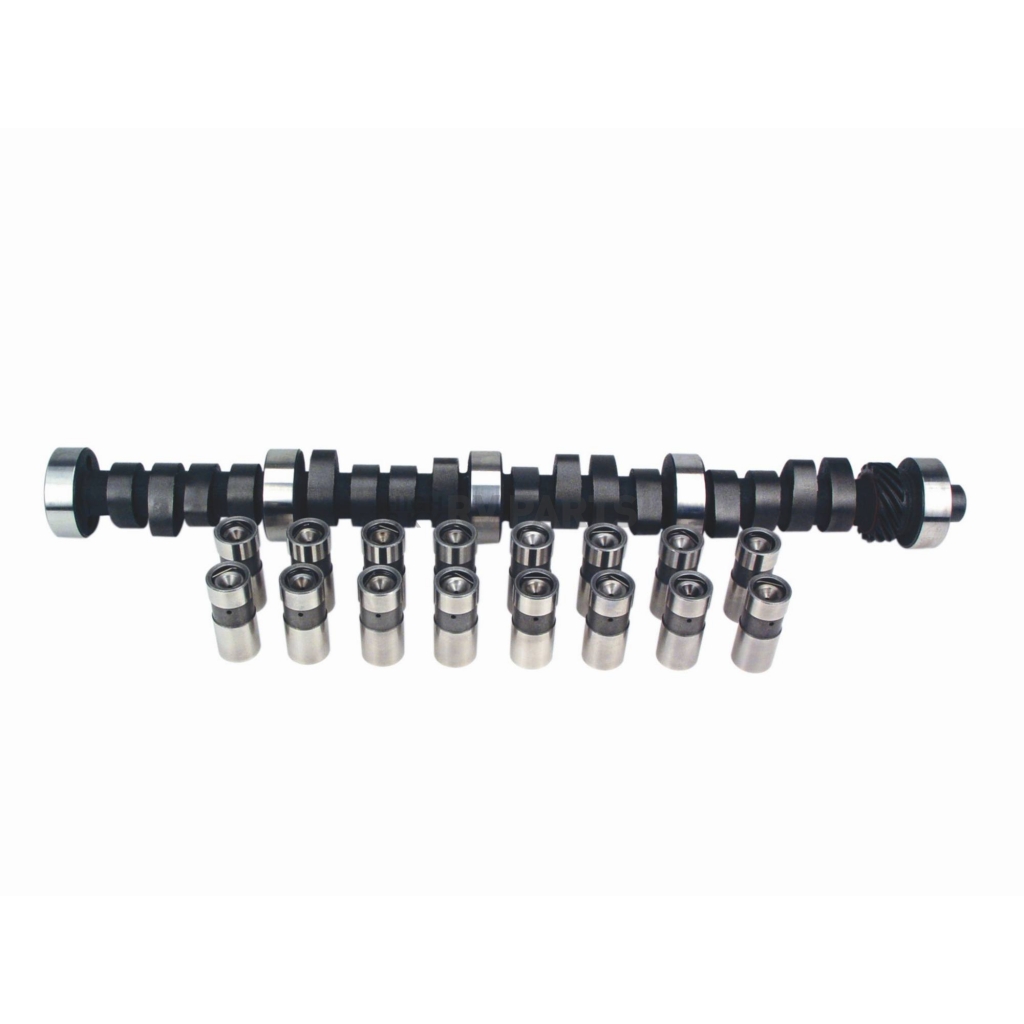

COMP Cams Camshaft and Lifter Kit CL122684

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: CL12-268-4
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 22
Retail: $505.04
Price: $480.99
You Save: $24.05
Advertised Exhaust Duration (DEG)
280 Degree
Advertised Intake Duration (DEG)
268 Degree
Camshaft Type
Hydraulic Flat Tappet
Computer Controlled Compatible
No
Engine Compatibility
Chevy Small Block 5.0L-5.7L 305-350 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG)
230 Degree
Exhaust Lift (IN)
0.48 Inch
Exhaust Valve Lash (IN)
0 Inch
Grind Number
XE268H
Idle Characteristics
Mild
Includes Assembly Lubricant
Yes
Share this page

COMP Cams Camshaft and Lifter Kit

Camshaft and Lifter Kit; Xtreme Energy ™; Chevy Small Block 5.0L-5.7L/305-350 Cubic Inch; Hydraulic Flat Tappet; 1800-5800 RPM Range; 224 Degree Intake Duration @ 0.050 Inch Lift; 230 Degree Exhaust Duration @ 0.050 Inch Lift; 0.477 Inch Intake Valve Lift; 0.480 Inch Exhaust Valve Lift; 114 Degree Lobe Separation; With Camshaft/ Lifters/ Assembly Lube/ Instructions/ Decals

MPN: CL122684

COMP Cams® offers four levels of complete component matched cam kits that deliver unbeatable performance, durability and ease of installation. All cam kits are fully tested and manufactured to the strictest standards. Beyond the performance benefits of these “Power Engineered Systems”, they instill confidence in knowing that you are installing components that were designed specifically for your new performance camshaft. Ordering is easy. Upon selecting the proper Camshaft for your application, simply add the kit prefix (“K”, “SK”, “GK” or “CL”) in front of your cam part number.
Recommended Use: Mild Street Performance To Mild Race
Engine Compatibility: Chevy Small Block 5.0L-5.7L 305-350 Cubic Inch
Camshaft Type: Hydraulic Flat Tappet
RPM - Low: 1800
RPM - High: 5800
Advertised Exhaust Duration (DEG): 280 Degree
Advertised Intake Duration (DEG): 268 Degree
Exhaust Duration At 0.050 Lift (DEG): 230 Degree
Exhaust Lift (IN): 0.48 Inch
Exhaust Valve Lash (IN): 0 Inch
Idle Characteristics: Mild
Intake Duration Lift At 0.050 Lift (DEG): 224 Degree
Intake Lift (IN): 0.477 Inch
Intake Valve Lash (IN): 0 Inch
Lobe Separation Angle (DEG): 114 Degree
Rocker Arm Ratio: 1.52
Includes Lifters: Yes
Lifter Style: Hydraulic Flat Tappet
Computer Controlled Compatible: No
Includes Valve Springs: No
Includes Retainers: No
Includes Locks: No
Includes Valve Stem Seals: No
Includes Timing Chain And Gears: No
Includes Assembly Lubricant: Yes
Includes Pushrods: No
Includes Rocker Arms: No
Includes Gaskets: No
Grind Number: XE268H

Features

  • Unbeatable Performance
  • Durability
  • Tested And Manufactured To The Strictest Standards
  • Kit Includes Camshaft, Assembly Lube, Instructions, Lifters, Decals
  • Ease Of Installation
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft and Lifter Kit CL122684
Advertised Exhaust Duration (DEG) 280 Degree
Advertised Intake Duration (DEG) 268 Degree
Camshaft Type Hydraulic Flat Tappet
Computer Controlled Compatible No
Engine Compatibility Chevy Small Block 5.0L-5.7L 305-350 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG) 230 Degree
Exhaust Lift (IN) 0.48 Inch
Exhaust Valve Lash (IN) 0 Inch
Grind Number XE268H
Idle Characteristics Mild
Includes Assembly Lubricant Yes
Includes Gaskets No
Includes Lifters Yes
Includes Locks No
Includes Pushrods No
Includes Retainers No
Includes Rocker Arms No
Includes Timing Chain And Gears No
Includes Valve Springs No
Includes Valve Stem Seals No
Intake Duration Lift At 0.050 Lift (DEG) 224 Degree
Intake Lift (IN) 0.477 Inch
Intake Valve Lash (IN) 0 Inch
Lifter Style Hydraulic Flat Tappet
Lobe Separation Angle (DEG) 114 Degree
Recommended Use Mild Street Performance To Mild Race
Rocker Arm Ratio 1.52
RPM - High 5800
RPM - Low 1800
