COMP Cams Camshaft and Lifter Kit CL122494

Name: COMP Cams Camshaft and Lifter Kit CL122494
Brand: COMP Cams
SKU: CL12-249-4
Price: 480.99 USD
Availability: InStock

Authorized Dealer

Brand:

COMP Cams

0 reviews

Have a product question? Ask us
Part Number: CL12-249-4
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 22

Retail: $505.04

Price: $480.99

You Save: $24.05

Advertised Exhaust Duration (DEG)

260 Degree

Advertised Intake Duration (DEG)

249 Degree

Camshaft Type

Hydraulic Flat Tappet

Computer Controlled Compatible

Engine Compatibility

Chevy Small Block 5.0L-5.7L 305-350 Cubic Inch

Exhaust Duration At 0.050 Lift (DEG)

212 Degree

Exhaust Lift (IN)

0.444 Inch

Exhaust Valve Lash (IN)

0 Inch

Grind Number

XE249H

Idle Characteristics

Smooth

Includes Assembly Lubricant

Yes

Share this page

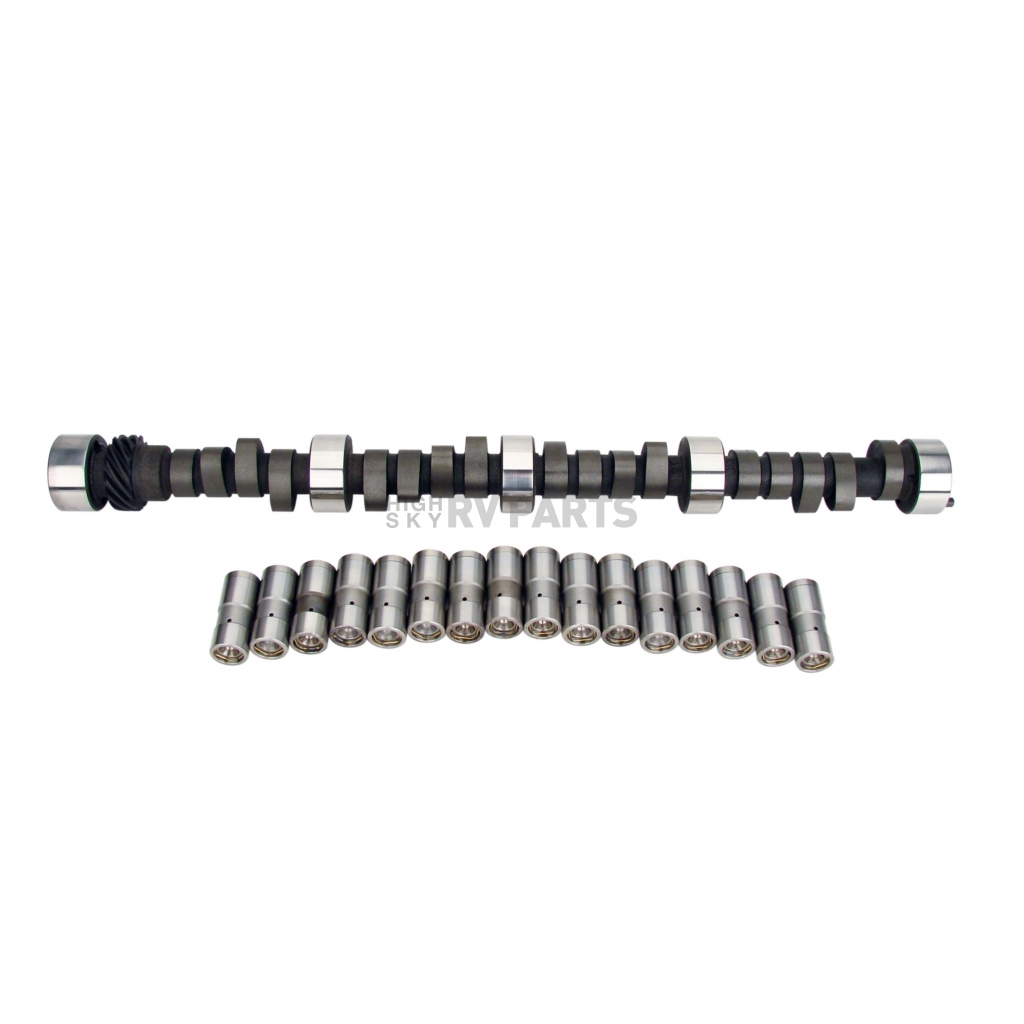

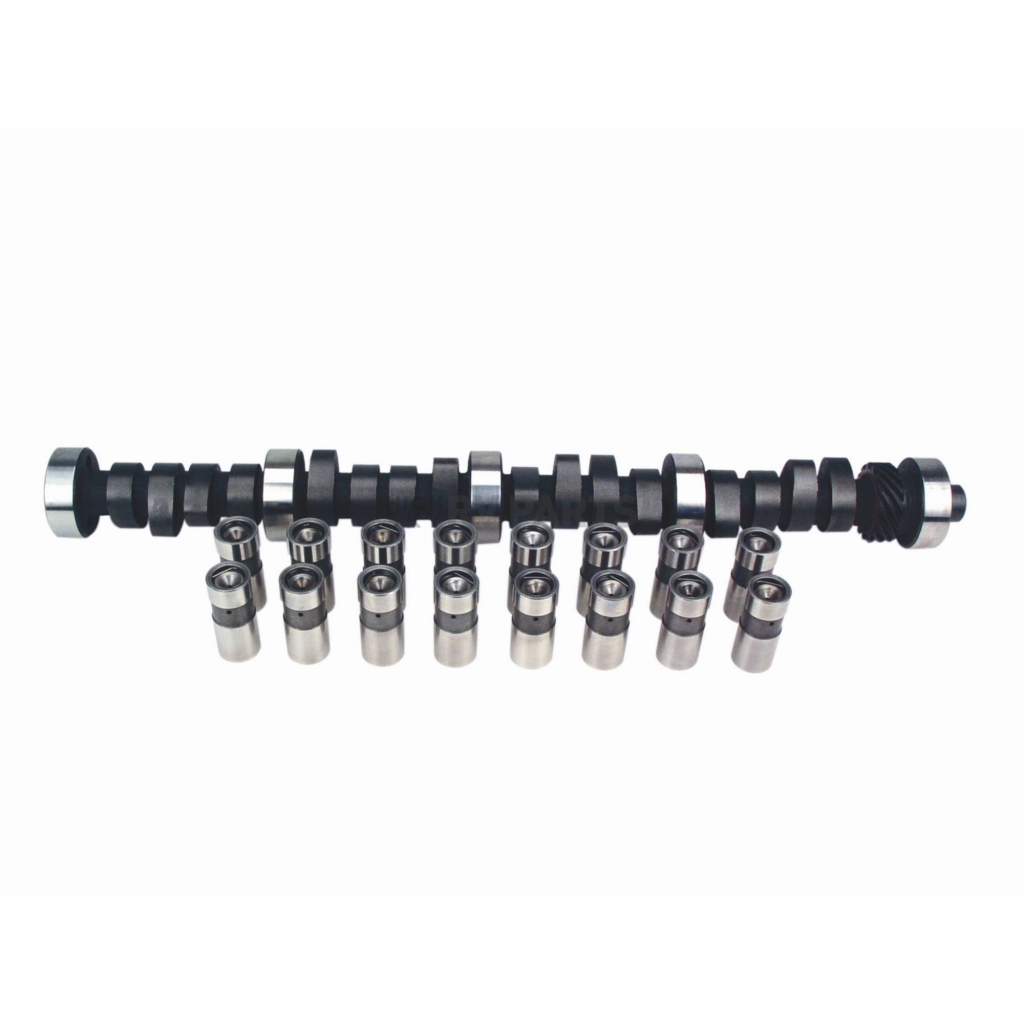

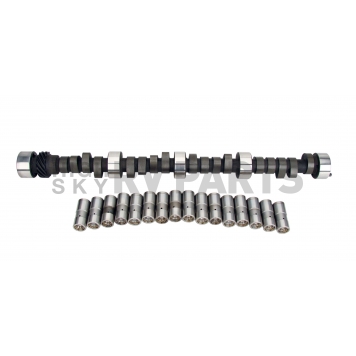

COMP Cams Camshaft and Lifter Kit

Camshaft and Lifter Kit; Xtreme Energy ™; Chevy Small Block 5.0L-5.7L/305-350 Cubic Inch; Hydraulic Flat Tappet; 1000-5000 RPM Range; 206 Degree Intake Duration @ 0.050 Inch Lift; 212 Degree Exhaust Duration @ 0.050 Inch Lift; 0.434 Inch Intake Valve Lift; 0.444 Inch Exhaust Valve Lift; 112 Degree Lobe Separation; With Camshaft/ Lifters/ Assembly Lube/ Instructions/ Decals

MPN: CL122494

COMP Cams® offers four levels of complete component matched cam kits that deliver unbeatable performance, durability and ease of installation. All cam kits are fully tested and manufactured to the strictest standards. Beyond the performance benefits of these “Power Engineered Systems”, they instill confidence in knowing that you are installing components that were designed specifically for your new performance camshaft. Ordering is easy. Upon selecting the proper Camshaft for your application, simply add the kit prefix (“K”, “SK”, “GK” or “CL”) in front of your cam part number.

Recommended Use: Mild Street Performance To Mild Race

Engine Compatibility: Chevy Small Block 5.0L-5.7L 305-350 Cubic Inch

Camshaft Type: Hydraulic Flat Tappet

RPM - Low: 1000

RPM - High: 5000

Advertised Exhaust Duration (DEG): 260 Degree

Advertised Intake Duration (DEG): 249 Degree

Exhaust Duration At 0.050 Lift (DEG): 212 Degree

Exhaust Lift (IN): 0.444 Inch

Exhaust Valve Lash (IN): 0 Inch

Idle Characteristics: Smooth

Intake Duration Lift At 0.050 Lift (DEG): 206 Degree

Intake Lift (IN): 0.434 Inch

Intake Valve Lash (IN): 0 Inch

Lobe Separation Angle (DEG): 112 Degree

Rocker Arm Ratio: 1.52

Includes Lifters: Yes

Lifter Style: Hydraulic Flat Tappet

Computer Controlled Compatible: No

Includes Valve Springs: No

Includes Retainers: No

Includes Locks: No

Includes Valve Stem Seals: No

Includes Timing Chain And Gears: No

Includes Assembly Lubricant: Yes

Includes Pushrods: No

Includes Rocker Arms: No

Includes Gaskets: No

Grind Number: XE249H

Features

Unbeatable Performance
Durability
Tested And Manufactured To The Strictest Standards
Kit Includes Camshaft, Assembly Lube, Instructions, Lifters, Decals
Ease Of Installation
Limited 1 Year Warranty

Specifications of COMP Cams Camshaft and Lifter Kit CL122494
Advertised Exhaust Duration (DEG)	260 Degree
Advertised Intake Duration (DEG)	249 Degree
Camshaft Type	Hydraulic Flat Tappet
Computer Controlled Compatible	No
Engine Compatibility	Chevy Small Block 5.0L-5.7L 305-350 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG)	212 Degree
Exhaust Lift (IN)	0.444 Inch
Exhaust Valve Lash (IN)	0 Inch
Grind Number	XE249H
Idle Characteristics	Smooth
Includes Assembly Lubricant	Yes
Includes Gaskets	No
Includes Lifters	Yes
Includes Locks	No
Includes Pushrods	No
Includes Retainers	No
Includes Rocker Arms	No
Includes Timing Chain And Gears	No
Includes Valve Springs	No
Includes Valve Stem Seals	No
Intake Duration Lift At 0.050 Lift (DEG)	206 Degree
Intake Lift (IN)	0.434 Inch
Intake Valve Lash (IN)	0 Inch
Lifter Style	Hydraulic Flat Tappet
Lobe Separation Angle (DEG)	112 Degree
Recommended Use	Mild Street Performance To Mild Race
Rocker Arm Ratio	1.52
RPM - High	5000
RPM - Low	1000

1991-1993 Buick Commercial Chassis

1991 Buick Commercial Chassis
1992 Buick Commercial Chassis
1993 Buick Commercial Chassis

1991-1993 Buick Roadmaster

1991 Buick Roadmaster
1992 Buick Roadmaster
1993 Buick Roadmaster

1990-1992 Cadillac Brougham

1990 Cadillac Brougham
1991 Cadillac Brougham
1992 Cadillac Brougham

1992-1993 Cadillac Commercial Chassis

1992 Cadillac Commercial Chassis
1993 Cadillac Commercial Chassis

1993-1993 Cadillac Fleetwood

1993 Cadillac Fleetwood

1988-1998 GMC C1500

1988 GMC C1500
1989 GMC C1500
1990 GMC C1500
1991 GMC C1500
1992 GMC C1500
1993 GMC C1500
1994 GMC C1500
1995 GMC C1500
1996 GMC C1500
1997 GMC C1500
1998 GMC C1500

1992-1998 GMC C1500 Suburban

1992 GMC C1500 Suburban
1993 GMC C1500 Suburban
1994 GMC C1500 Suburban
1995 GMC C1500 Suburban
1996 GMC C1500 Suburban
1997 GMC C1500 Suburban
1998 GMC C1500 Suburban

1988-1998 GMC C2500

1988 GMC C2500
1989 GMC C2500
1990 GMC C2500
1991 GMC C2500
1992 GMC C2500
1993 GMC C2500
1994 GMC C2500
1995 GMC C2500
1996 GMC C2500
1997 GMC C2500
1998 GMC C2500

1992-1998 GMC C2500 Suburban

1992 GMC C2500 Suburban
1993 GMC C2500 Suburban
1994 GMC C2500 Suburban
1995 GMC C2500 Suburban
1996 GMC C2500 Suburban
1997 GMC C2500 Suburban
1998 GMC C2500 Suburban

1988-1998 GMC C3500

1988 GMC C3500
1989 GMC C3500
1990 GMC C3500
1991 GMC C3500
1992 GMC C3500
1993 GMC C3500
1994 GMC C3500
1995 GMC C3500
1996 GMC C3500
1997 GMC C3500
1998 GMC C3500

1987-1987 GMC Caballero

1987 GMC Caballero

1987-1995 GMC G1500

1987 GMC G1500
1988 GMC G1500
1989 GMC G1500
1990 GMC G1500
1991 GMC G1500
1992 GMC G1500
1993 GMC G1500
1994 GMC G1500
1995 GMC G1500

1987-1995 GMC G2500

1987 GMC G2500
1988 GMC G2500
1989 GMC G2500
1990 GMC G2500
1991 GMC G2500
1992 GMC G2500
1993 GMC G2500
1994 GMC G2500
1995 GMC G2500

1987-1996 GMC G3500

1987 GMC G3500
1988 GMC G3500
1989 GMC G3500
1990 GMC G3500
1991 GMC G3500
1992 GMC G3500
1993 GMC G3500
1994 GMC G3500
1995 GMC G3500
1996 GMC G3500

1987-1991 GMC Jimmy

1987 GMC Jimmy
1988 GMC Jimmy
1989 GMC Jimmy
1990 GMC Jimmy
1991 GMC Jimmy

1988-1998 GMC K1500

1988 GMC K1500
1989 GMC K1500
1990 GMC K1500
1991 GMC K1500
1992 GMC K1500
1993 GMC K1500
1994 GMC K1500
1995 GMC K1500
1996 GMC K1500
1997 GMC K1500
1998 GMC K1500

1992-1998 GMC K1500 Suburban

1992 GMC K1500 Suburban
1993 GMC K1500 Suburban
1994 GMC K1500 Suburban
1995 GMC K1500 Suburban
1996 GMC K1500 Suburban
1997 GMC K1500 Suburban
1998 GMC K1500 Suburban

1988-1998 GMC K2500

1988 GMC K2500
1989 GMC K2500
1990 GMC K2500
1991 GMC K2500
1992 GMC K2500
1993 GMC K2500
1994 GMC K2500
1995 GMC K2500
1996 GMC K2500
1997 GMC K2500
1998 GMC K2500

1992-1998 GMC K2500 Suburban

1992 GMC K2500 Suburban
1993 GMC K2500 Suburban
1994 GMC K2500 Suburban
1995 GMC K2500 Suburban
1996 GMC K2500 Suburban
1997 GMC K2500 Suburban
1998 GMC K2500 Suburban

1988-1998 GMC K3500

1988 GMC K3500
1989 GMC K3500
1990 GMC K3500
1991 GMC K3500
1992 GMC K3500
1993 GMC K3500
1994 GMC K3500
1995 GMC K3500
1996 GMC K3500
1997 GMC K3500
1998 GMC K3500

1987-1989 GMC P2500

1987 GMC P2500
1988 GMC P2500
1989 GMC P2500

1987-1998 GMC P3500

1987 GMC P3500
1988 GMC P3500
1989 GMC P3500
1990 GMC P3500
1991 GMC P3500
1992 GMC P3500
1993 GMC P3500
1994 GMC P3500
1995 GMC P3500
1996 GMC P3500
1997 GMC P3500
1998 GMC P3500

1987-1987 GMC R1500

1987 GMC R1500

1987-1991 GMC R1500 Suburban

1987 GMC R1500 Suburban
1988 GMC R1500 Suburban
1989 GMC R1500 Suburban
1990 GMC R1500 Suburban
1991 GMC R1500 Suburban

1987-1989 GMC R2500

1987 GMC R2500
1988 GMC R2500
1989 GMC R2500

1987-1991 GMC R2500 Suburban

1987 GMC R2500 Suburban
1988 GMC R2500 Suburban
1989 GMC R2500 Suburban
1990 GMC R2500 Suburban
1991 GMC R2500 Suburban

1987-1991 GMC R3500

1987 GMC R3500
1988 GMC R3500
1989 GMC R3500
1990 GMC R3500
1991 GMC R3500

1996-1998 GMC Savana 1500

1996 GMC Savana 1500
1997 GMC Savana 1500
1998 GMC Savana 1500
