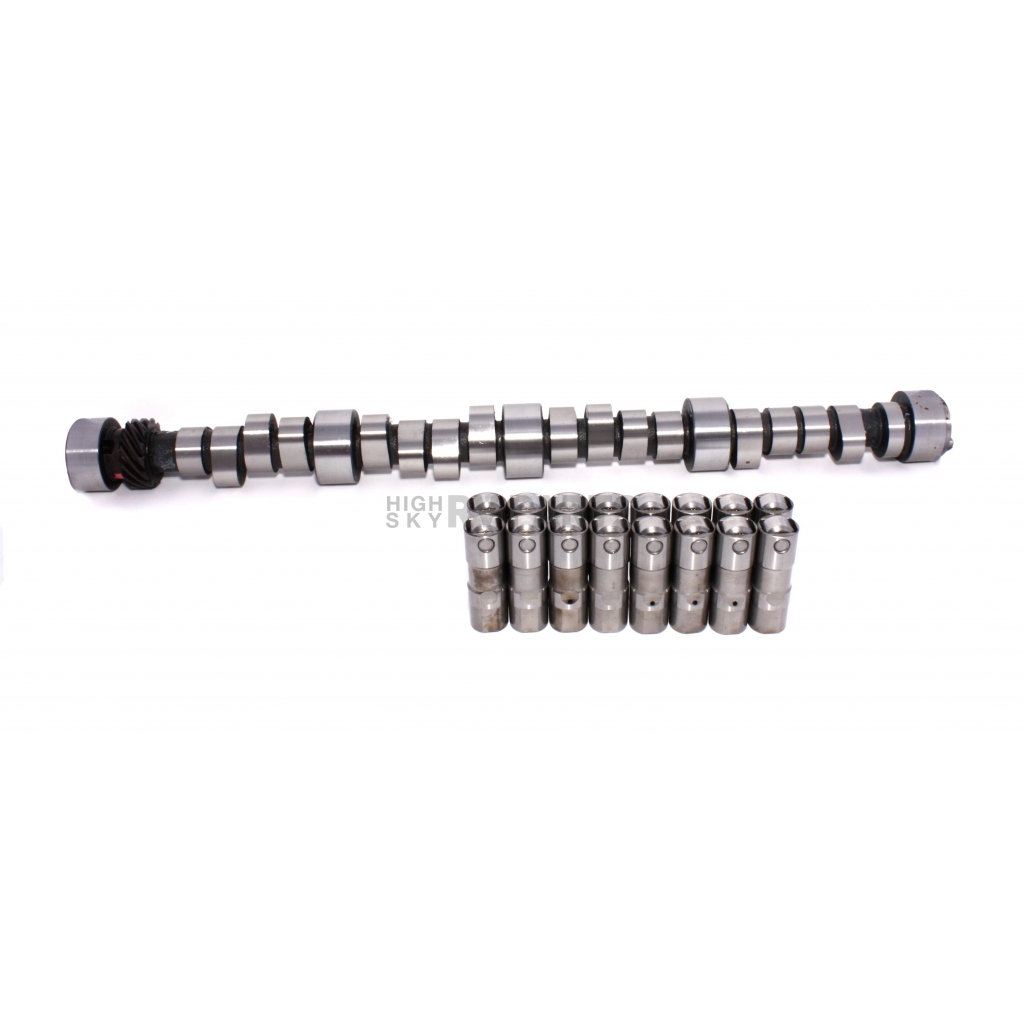

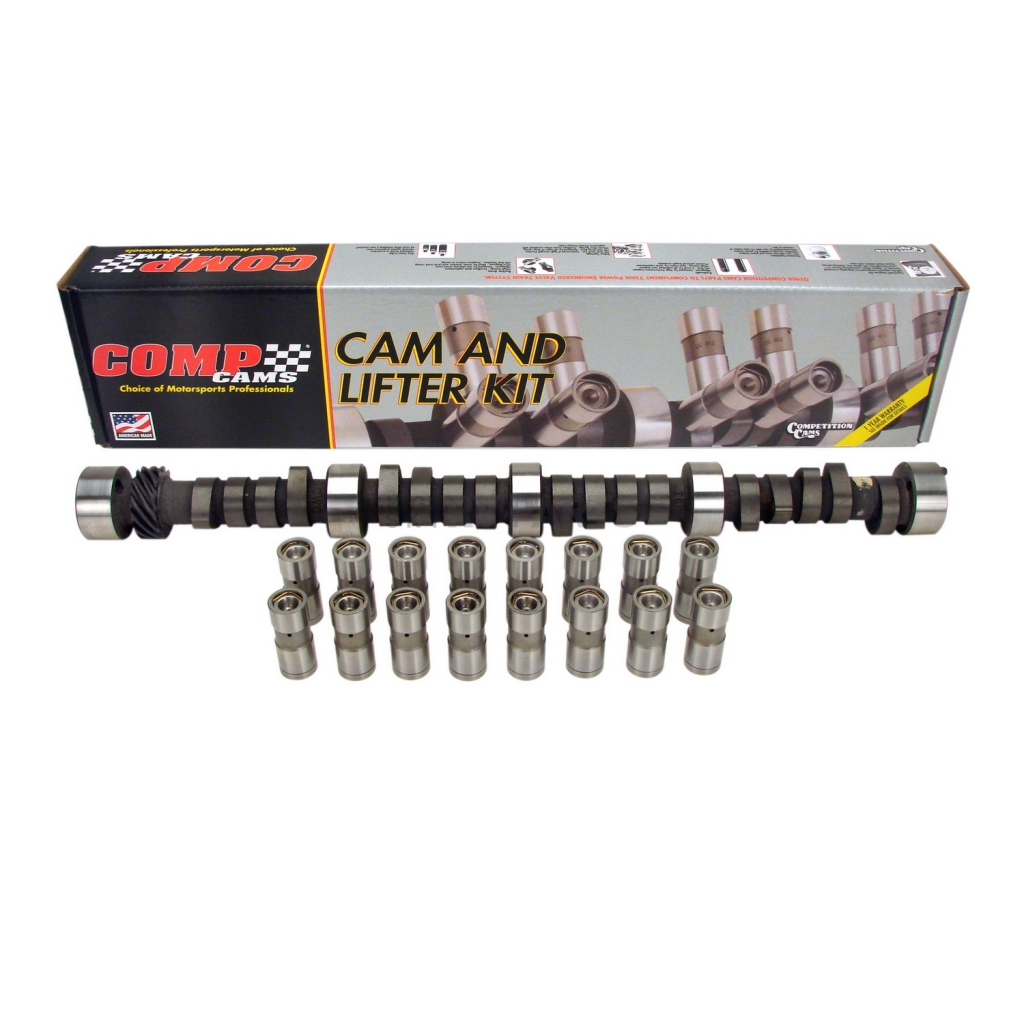

COMP Cams Camshaft And Lifter Kit CL014568

Name: COMP Cams Camshaft And Lifter Kit CL014568
Brand: COMP Cams
SKU: CL01-456-8
Price: 1002.99 USD
Availability: InStock

Authorized Dealer

Brand:

COMP Cams

0 reviews

Have a product question? Ask us
Part Number: CL01-456-8
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 08

Retail: $1,053.14

Price: $1,002.99

You Save: $50.15

Advertised Exhaust Duration (DEG)

302 Degree

Advertised Intake Duration (DEG)

296 Degree

Camshaft Type

Hydraulic Roller

Computer Controlled Compatible

Engine Compatibility

Chevy Big Block V8 454-502 Cubic Inch

Exhaust Duration At 0.050 Lift (DEG)

248 Degree

Exhaust Lift (IN)

0.566 Inch

Exhaust Valve Lash (IN)

0 Inch

Grind Number

XM296HR

Idle Characteristics

Rough

Includes Assembly Lubricant

Yes

Share this page

COMP Cams Camshaft And Lifter Kit

Camshaft And Lifter Kit; Xtreme Marine ™; Chevy Big Block 7.4L-8.2L/454-502 Cubic Inch; Hydraulic Roller; 2800-6200 RPM Range; 242 Degree Intake Duration @ 0.050 Inch Lift; 248 Degree Exhaust Duration @ 0.050 Inch Lift; 0.566 Inch Intake Valve Lift; 0.566 Inch Exhaust Valve Lift; 112 Degree Lobe Separation; With Camshaft/ Lifters/ Assembly Lube/ Instructions/ Decals

MPN: CL014568

COMP Cams® offers four levels of complete component matched cam kits that deliver unbeatable performance, durability and ease of installation. All cam kits are fully tested and manufactured to the strictest standards. Beyond the performance benefits of these “Power Engineered Systems”, they instill confidence in knowing that you are installing components that were designed specifically for your new performance camshaft. Ordering is easy. Upon selecting the proper Camshaft for your application, simply add the kit prefix (“K”, “SK”, “GK” or “CL”) in front of your cam part number.

Recommended Use: Mild Street Performance To Mild Race

Engine Compatibility: Chevy Big Block V8 454-502 Cubic Inch

Camshaft Type: Hydraulic Roller

RPM - Low: 2800

RPM - High: 6200

Advertised Exhaust Duration (DEG): 302 Degree

Advertised Intake Duration (DEG): 296 Degree

Exhaust Duration At 0.050 Lift (DEG): 248 Degree

Exhaust Lift (IN): 0.566 Inch

Exhaust Valve Lash (IN): 0 Inch

Idle Characteristics: Rough

Intake Duration Lift At 0.050 Lift (DEG): 242 Degree

Intake Lift (IN): 0.566 Inch

Intake Valve Lash (IN): 0 Inch

Lobe Separation Angle (DEG): 112 Degree

Rocker Arm Ratio: 1.72

Includes Lifters: Yes

Lifter Style: Hydraulic Roller

Computer Controlled Compatible: No

Includes Valve Springs: No

Includes Retainers: No

Includes Locks: No

Includes Valve Stem Seals: No

Includes Timing Chain And Gears: No

Includes Assembly Lubricant: Yes

Includes Pushrods: No

Includes Rocker Arms: No

Includes Gaskets: No

Grind Number: XM296HR

Features

Unbeatable Performance
Durability
Tested And Manufactured To The Strictest Standards
Kit Includes Camshaft, Assembly Lube, Instructions, Lifters, Decals
Ease Of Installation
Limited 1 Year Warranty

Specifications of COMP Cams Camshaft And Lifter Kit CL014568
Advertised Exhaust Duration (DEG)	302 Degree
Advertised Intake Duration (DEG)	296 Degree
Camshaft Type	Hydraulic Roller
Computer Controlled Compatible	No
Engine Compatibility	Chevy Big Block V8 454-502 Cubic Inch
Exhaust Duration At 0.050 Lift (DEG)	248 Degree
Exhaust Lift (IN)	0.566 Inch
Exhaust Valve Lash (IN)	0 Inch
Grind Number	XM296HR
Idle Characteristics	Rough
Includes Assembly Lubricant	Yes
Includes Gaskets	No
Includes Lifters	Yes
Includes Locks	No
Includes Pushrods	No
Includes Retainers	No
Includes Rocker Arms	No
Includes Timing Chain And Gears	No
Includes Valve Springs	No
Includes Valve Stem Seals	No
Intake Duration Lift At 0.050 Lift (DEG)	242 Degree
Intake Lift (IN)	0.566 Inch
Intake Valve Lash (IN)	0 Inch
Lifter Style	Hydraulic Roller
Lobe Separation Angle (DEG)	112 Degree
Recommended Use	Mild Street Performance To Mild Race
Rocker Arm Ratio	1.72
RPM - High	6200
RPM - Low	2800
