COMP Cams Camshaft And Lifter Kit CL014268

Name: COMP Cams Camshaft And Lifter Kit CL014268
Brand: COMP Cams
SKU: CL01-426-8
Price: 1002.99 USD
Availability: InStock

Authorized Dealer

Brand:

COMP Cams

0 reviews

Have a product question? Ask us
Part Number: CL01-426-8
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 08

Retail: $1,053.14

Price: $1,002.99

You Save: $50.15

Advertised Exhaust Duration (DEG)

300 Degree

Advertised Intake Duration (DEG)

294 Degree

Camshaft Type

Hydraulic Roller

Computer Controlled Compatible

Engine Compatibility

Chevy Gen IV LS Engines

Exhaust Duration At 0.050 Lift (DEG)

248 Degree

Exhaust Lift (IN)

0.56 Inch

Exhaust Valve Lash (IN)

0 Inch

Grind Number

XR294HR-14

Idle Characteristics

Rough

Includes Assembly Lubricant

Yes

Share this page

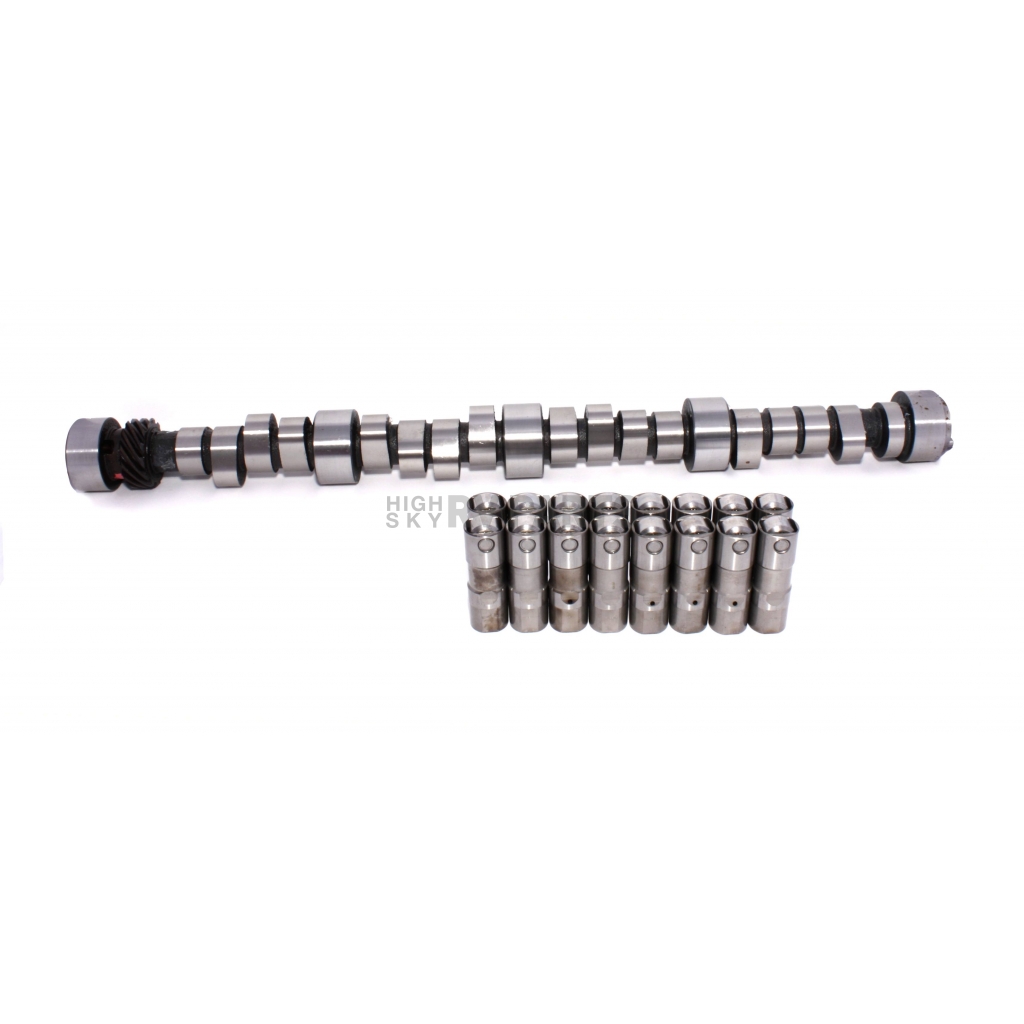

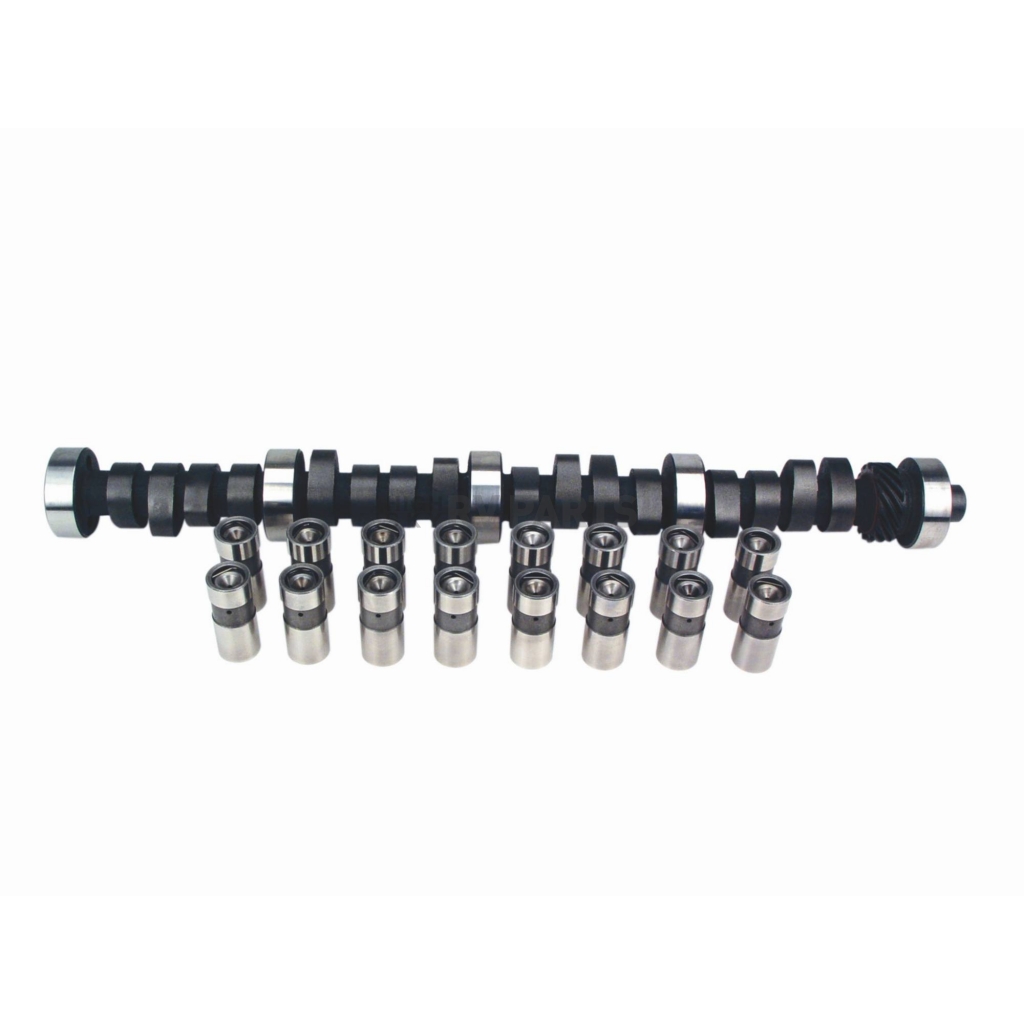

COMP Cams Camshaft And Lifter Kit

Camshaft And Lifter Kit; Xtreme Energy ™; For Use With Gen VI Big Block Chevy Engines; Hydraulic Roller; 2800-6400 RPM Range; 242 Degree Intake Duration @ 0.050 Inch Lift; 248 Degree Exhaust Duration @ 0.050 Inch Lift; 0.540 Inch Intake Valve Lift; 0.560 Inch Exhaust Valve Lift; 114 Degree Lobe Separation; With Camshaft/ Lifters/ Assembly Lube/ Instructions/ Decals

MPN: CL014268

COMP Cams® offers four levels of complete component matched cam kits that deliver unbeatable performance, durability and ease of installation. All cam kits are fully tested and manufactured to the strictest standards. Beyond the performance benefits of these “Power Engineered Systems”, they instill confidence in knowing that you are installing components that were designed specifically for your new performance camshaft. Ordering is easy. Upon selecting the proper Camshaft for your application, simply add the kit prefix (“K”, “SK”, “GK” or “CL”) in front of your cam part number.

Recommended Use: Mild Street Performance To Mild Race

Engine Compatibility: Chevy Gen IV LS Engines

Camshaft Type: Hydraulic Roller

RPM - Low: 2800

RPM - High: 6400

Advertised Exhaust Duration (DEG): 300 Degree

Advertised Intake Duration (DEG): 294 Degree

Exhaust Duration At 0.050 Lift (DEG): 248 Degree

Exhaust Lift (IN): 0.56 Inch

Exhaust Valve Lash (IN): 0 Inch

Idle Characteristics: Rough

Intake Duration Lift At 0.050 Lift (DEG): 242 Degree

Intake Lift (IN): 0.54 Inch

Intake Valve Lash (IN): 0 Inch

Lobe Separation Angle (DEG): 114 Degree

Rocker Arm Ratio: 1.72

Includes Lifters: Yes

Lifter Style: Hydraulic Roller

Computer Controlled Compatible: No

Includes Valve Springs: No

Includes Retainers: No

Includes Locks: No

Includes Valve Stem Seals: No

Includes Timing Chain And Gears: No

Includes Assembly Lubricant: Yes

Includes Pushrods: No

Includes Rocker Arms: No

Includes Gaskets: No

Grind Number: XR294HR-14

Features

Unbeatable Performance
Durability
Tested And Manufactured To The Strictest Standards
Kit Includes Camshaft, Assembly Lube, Instructions, Lifters, Decals
Ease Of Installation
Limited 1 Year Warranty

Specifications of COMP Cams Camshaft And Lifter Kit CL014268
Advertised Exhaust Duration (DEG)	300 Degree
Advertised Intake Duration (DEG)	294 Degree
Camshaft Type	Hydraulic Roller
Computer Controlled Compatible	No
Engine Compatibility	Chevy Gen IV LS Engines
Exhaust Duration At 0.050 Lift (DEG)	248 Degree
Exhaust Lift (IN)	0.56 Inch
Exhaust Valve Lash (IN)	0 Inch
Grind Number	XR294HR-14
Idle Characteristics	Rough
Includes Assembly Lubricant	Yes
Includes Gaskets	No
Includes Lifters	Yes
Includes Locks	No
Includes Pushrods	No
Includes Retainers	No
Includes Rocker Arms	No
Includes Timing Chain And Gears	No
Includes Valve Springs	No
Includes Valve Stem Seals	No
Intake Duration Lift At 0.050 Lift (DEG)	242 Degree
Intake Lift (IN)	0.54 Inch
Intake Valve Lash (IN)	0 Inch
Lifter Style	Hydraulic Roller
Lobe Separation Angle (DEG)	114 Degree
Recommended Use	Mild Street Performance To Mild Race
Rocker Arm Ratio	1.72
RPM - High	6400
RPM - Low	2800
