COMP Cams Camshaft And Lifter Kit CL014228

Name: COMP Cams Camshaft And Lifter Kit CL014228
Brand: COMP Cams
SKU: CL01-422-8
Price: 1002.99 USD
Availability: InStock

Authorized Dealer

Brand:

COMP Cams

0 reviews

Have a product question? Ask us
Part Number: CL01-422-8
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 08

Retail: $1,053.14

Price: $1,002.99

You Save: $50.15

Advertised Exhaust Duration (DEG)

294 Degree

Advertised Intake Duration (DEG)

288 Degree

Camshaft Type

Hydraulic Roller

Computer Controlled Compatible

Yes

Engine Compatibility

Chevy Gen IV LS Engines

Exhaust Duration At 0.050 Lift (DEG)

242 Degree

Exhaust Lift (IN)

0.539 Inch

Exhaust Valve Lash (IN)

0 Inch

Grind Number

XR288HR-14

Idle Characteristics

Rough

Includes Assembly Lubricant

Yes

Share this page

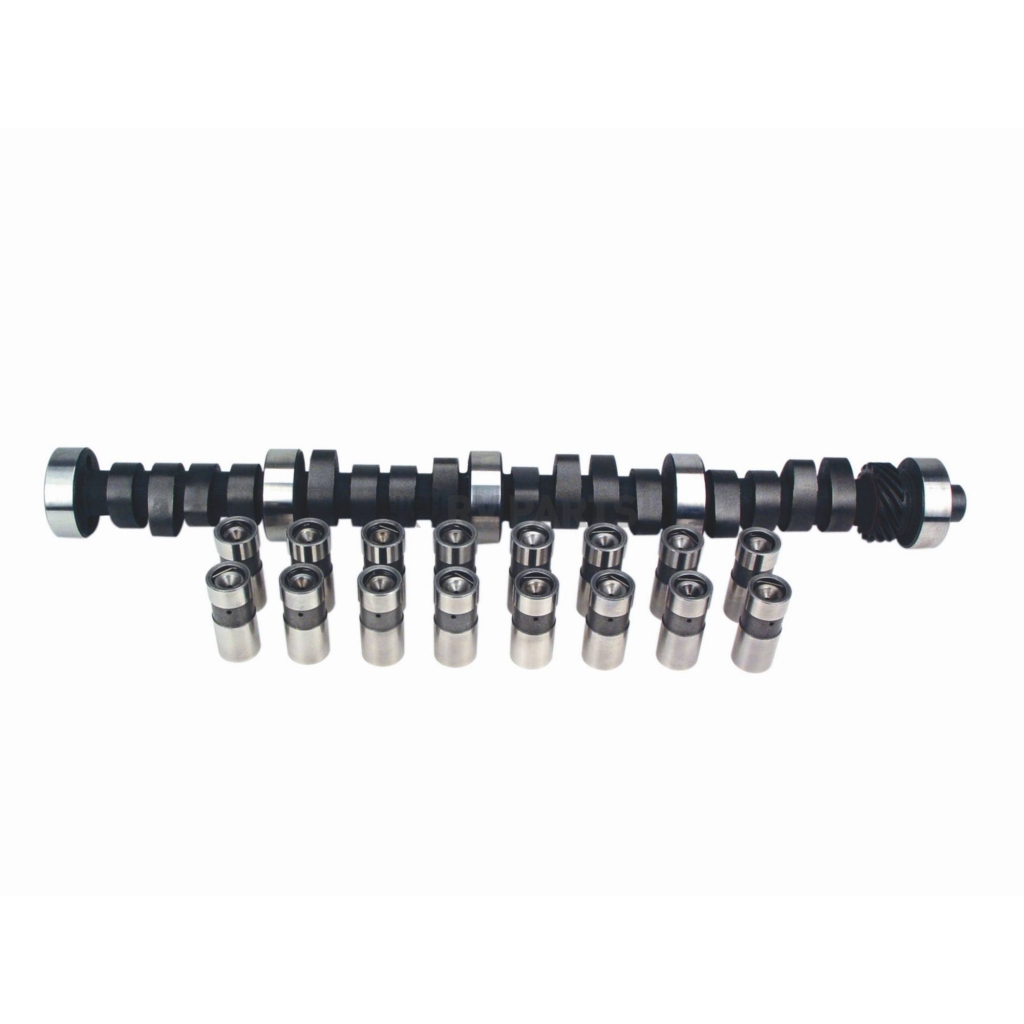

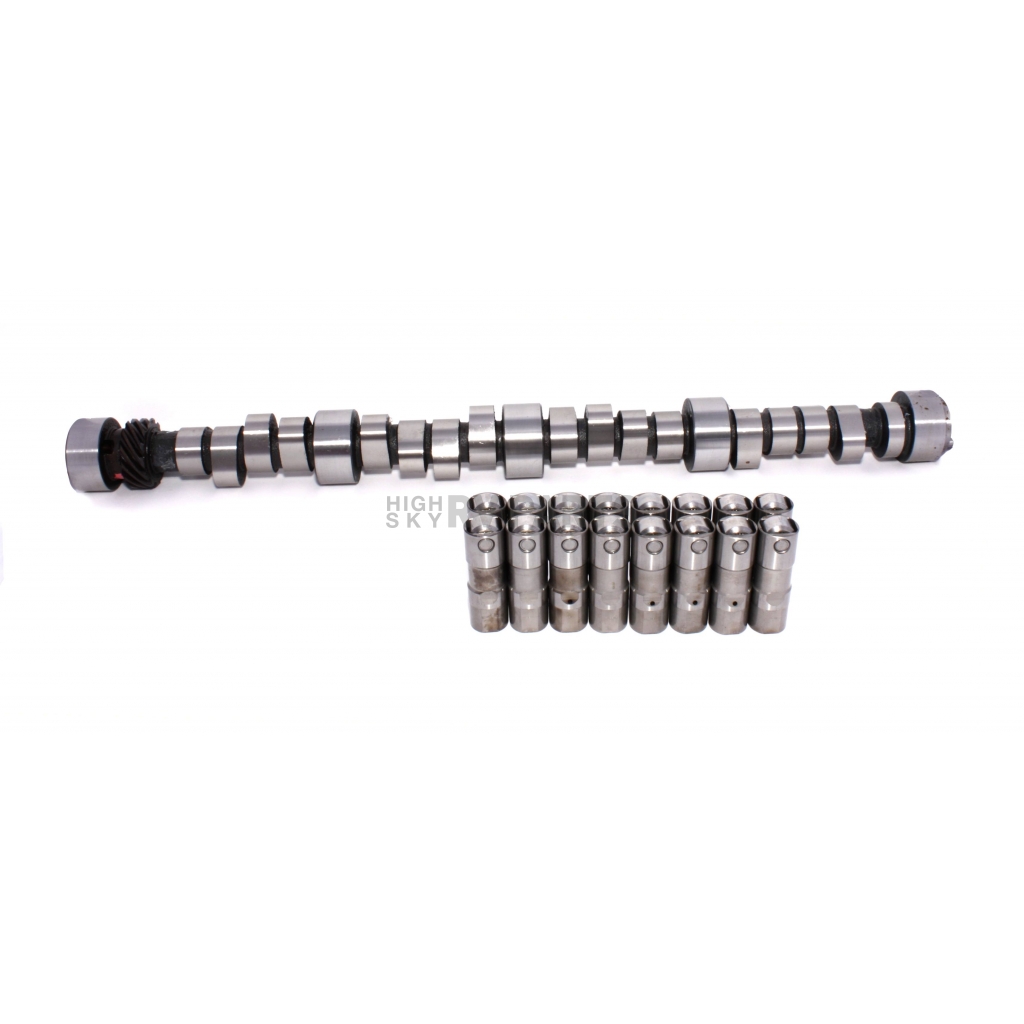

COMP Cams Camshaft And Lifter Kit

Camshaft And Lifter Kit; Xtreme Energy ™; For Use With Gen VI Big Block Chevy Engines; Computer Controlled Hydraulic Roller; 2200-6200 RPM Range; 236 Degree Intake Duration @ 0.050 Inch Lift; 242 Degree Exhaust Duration @ 0.050 Inch Lift; 0.520 Inch Intake Valve Lift; 0.539 Inch Exhaust Valve Lift; 114 Degree Lobe Separation; With Camshaft/ Lifters/ Assembly Lube/ Instructions/ Decals

MPN: CL014228

COMP Cams® offers four levels of complete component matched cam kits that deliver unbeatable performance, durability and ease of installation. All cam kits are fully tested and manufactured to the strictest standards. Beyond the performance benefits of these “Power Engineered Systems”, they instill confidence in knowing that you are installing components that were designed specifically for your new performance camshaft. Ordering is easy. Upon selecting the proper Camshaft for your application, simply add the kit prefix (“K”, “SK”, “GK” or “CL”) in front of your cam part number.

Recommended Use: Mild Street Performance To Mild Race

Engine Compatibility: Chevy Gen IV LS Engines

Camshaft Type: Hydraulic Roller

RPM - Low: 2200

RPM - High: 6200

Advertised Exhaust Duration (DEG): 294 Degree

Advertised Intake Duration (DEG): 288 Degree

Exhaust Duration At 0.050 Lift (DEG): 242 Degree

Exhaust Lift (IN): 0.539 Inch

Exhaust Valve Lash (IN): 0 Inch

Idle Characteristics: Rough

Intake Duration Lift At 0.050 Lift (DEG): 236 Degree

Intake Lift (IN): 0.52 Inch

Intake Valve Lash (IN): 0 Inch

Lobe Separation Angle (DEG): 114 Degree

Rocker Arm Ratio: 1.72

Includes Lifters: Yes

Lifter Style: Hydraulic Roller

Computer Controlled Compatible: Yes

Includes Valve Springs: No

Includes Retainers: No

Includes Locks: No

Includes Valve Stem Seals: No

Includes Timing Chain And Gears: No

Includes Assembly Lubricant: Yes

Includes Pushrods: No

Includes Rocker Arms: No

Includes Gaskets: No

Grind Number: XR288HR-14

Features

Unbeatable Performance
Durability
Tested And Manufactured To The Strictest Standards
Kit Includes Camshaft, Assembly Lube, Instructions, Lifters, Decals
Ease Of Installation
Limited 1 Year Warranty

Specifications of COMP Cams Camshaft And Lifter Kit CL014228
Advertised Exhaust Duration (DEG)	294 Degree
Advertised Intake Duration (DEG)	288 Degree
Camshaft Type	Hydraulic Roller
Computer Controlled Compatible	Yes
Engine Compatibility	Chevy Gen IV LS Engines
Exhaust Duration At 0.050 Lift (DEG)	242 Degree
Exhaust Lift (IN)	0.539 Inch
Exhaust Valve Lash (IN)	0 Inch
Grind Number	XR288HR-14
Idle Characteristics	Rough
Includes Assembly Lubricant	Yes
Includes Gaskets	No
Includes Lifters	Yes
Includes Locks	No
Includes Pushrods	No
Includes Retainers	No
Includes Rocker Arms	No
Includes Timing Chain And Gears	No
Includes Valve Springs	No
Includes Valve Stem Seals	No
Intake Duration Lift At 0.050 Lift (DEG)	236 Degree
Intake Lift (IN)	0.52 Inch
Intake Valve Lash (IN)	0 Inch
Lifter Style	Hydraulic Roller
Lobe Separation Angle (DEG)	114 Degree
Recommended Use	Mild Street Performance To Mild Race
Rocker Arm Ratio	1.72
RPM - High	6200
RPM - Low	2200
