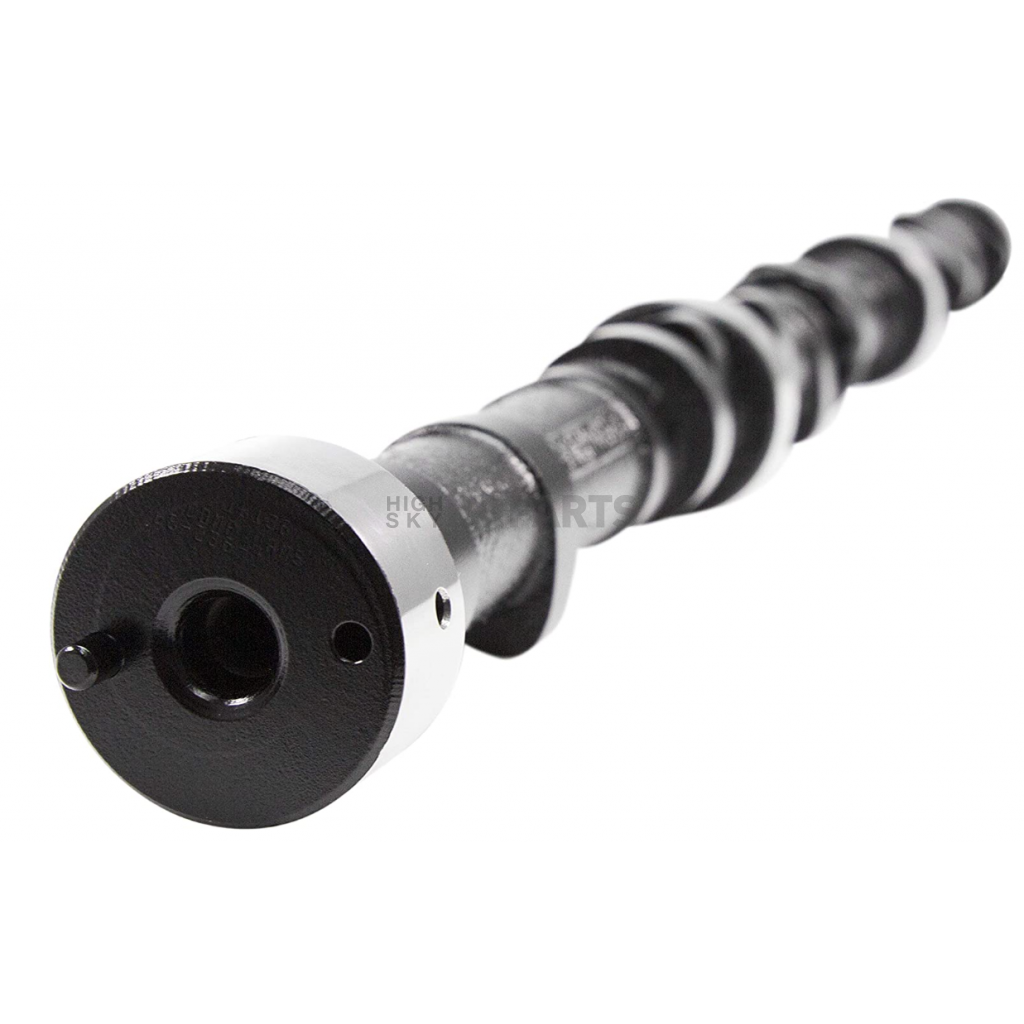

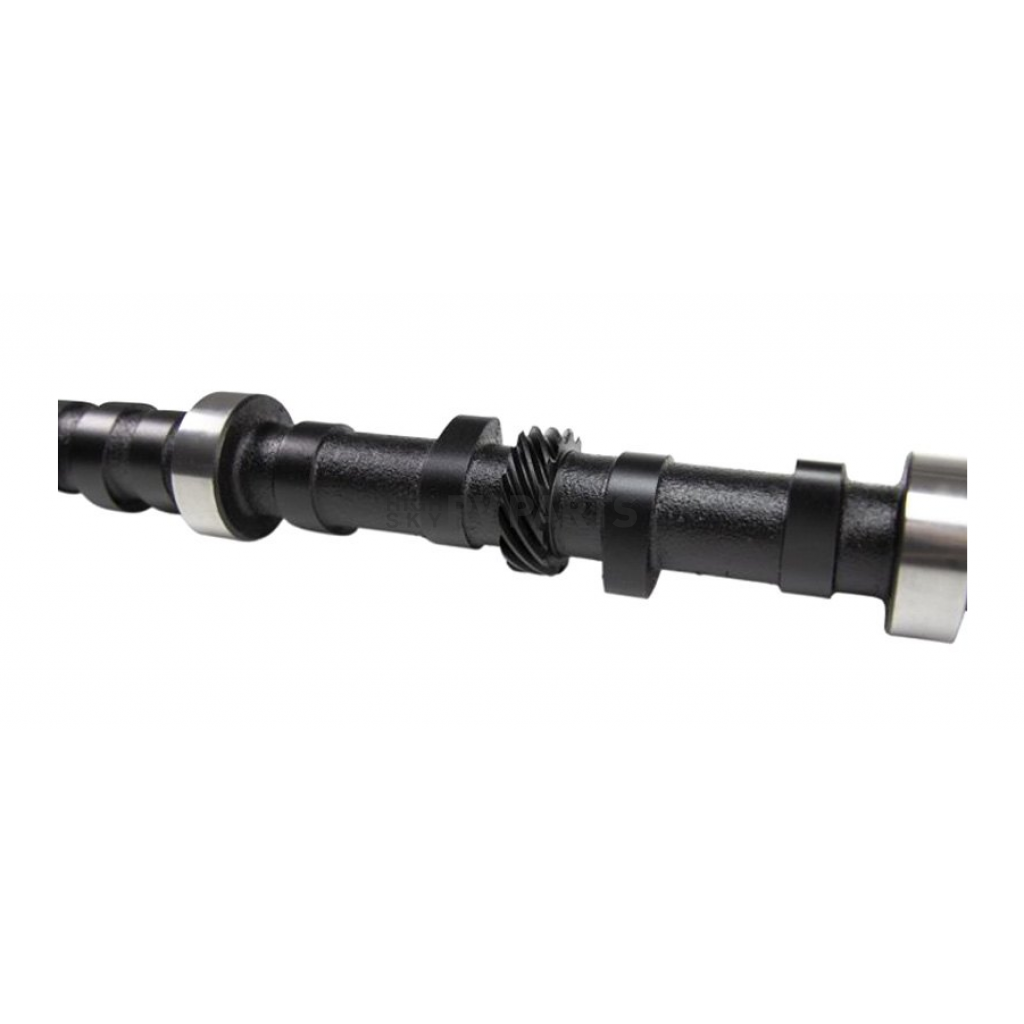

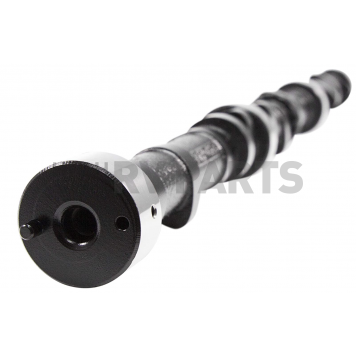

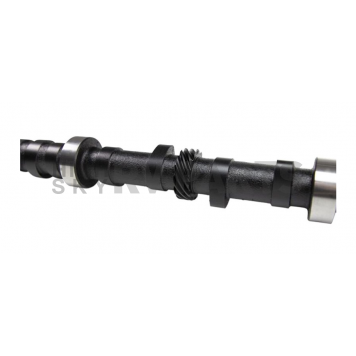

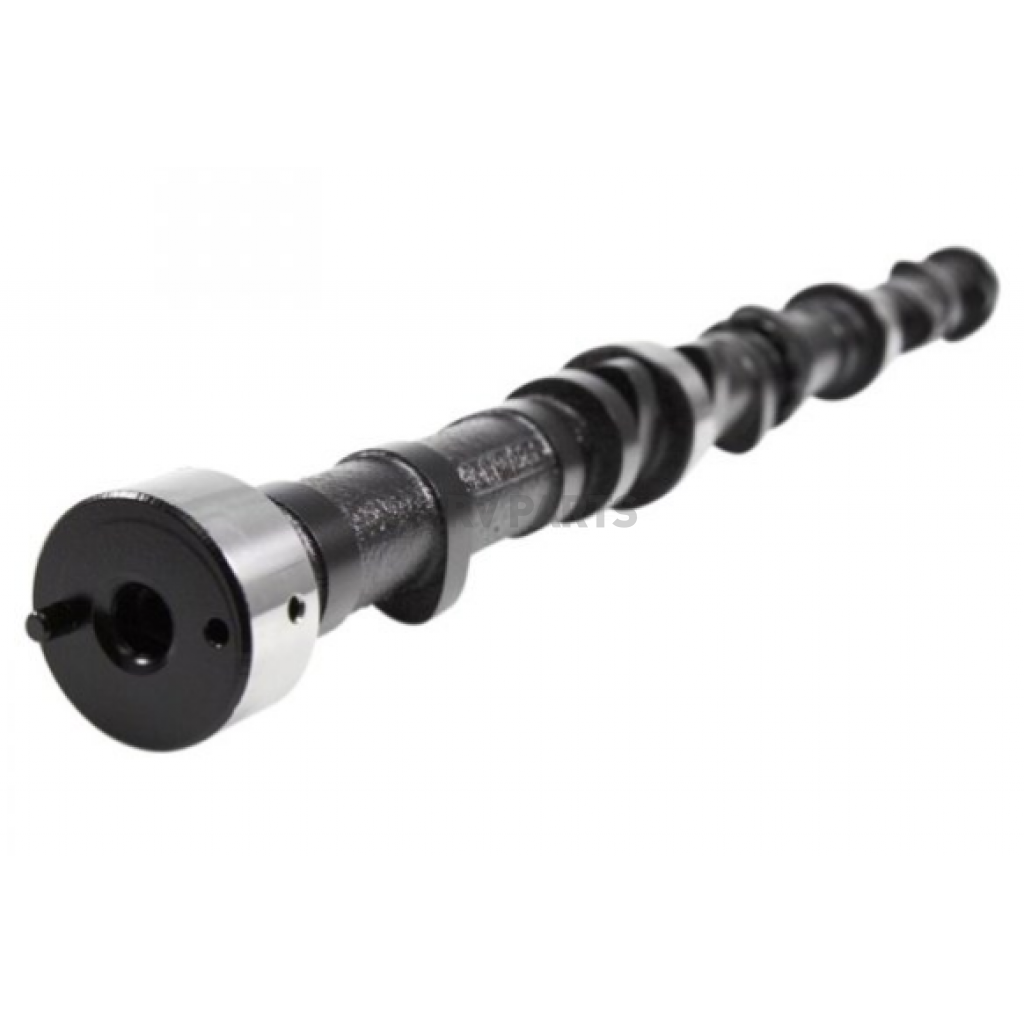

COMP Cams Camshaft 685015

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 68-501-5
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 20
Retail: $501.89
Price: $477.99
You Save: $23.90
Advertised Exhaust Duration (DEG)
246 Degree
Advertised Intake Duration (DEG)
242 Degree
Computer-Controlled Compatible
Yes
Engine Compatibility
Jeep 4.0L 199-258 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
201 Degree
Exhaust Valve Lift (IN)
0.45 Inch
Grind Number
X4242H8
Intake Duration At 0.050 Inch Lift (DEG)
197 Degree
Intake Valve Lift (IN)
0.45 Inch
Lobe Separation Angle (DEG)
108 Degree
Recommended Use
Off-Road
Share this page

COMP Cams Camshaft

Camshaft; Xtreme 4X4 ™; American Motors 4.0L/199-258 Cubic Inch; Hydraulic Flat Tappet; 700-5500 RPM Range; 197 Degree Intake Duration @ 0.050 Inch Lift; 201 Degree Exhaust Duration @ 0.050 Inch Lift; 0.450 Inch Intake And Exhaust Valve Lift; 108 Degree Lobe Separation

MPN: 685015

Engine Compatibility: Jeep 4.0L 199-258 Cubic Inch
Recommended Use: Off-Road
Type: Hydraulic Flat Tappet
RPM - Low: 700
RPM - High: 5500
Intake Duration At 0.050 Inch Lift (DEG): 197 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 201 Degree
Advertised Intake Duration (DEG): 242 Degree
Advertised Exhaust Duration (DEG): 246 Degree
Intake Valve Lift (IN): 0.45 Inch
Exhaust Valve Lift (IN): 0.45 Inch
Lobe Separation Angle (DEG): 108 Degree
Grind Number: X4242H8
Computer-Controlled Compatible: Yes

Features

  • Excellent Torque And Throttle Response
  • 700 To 5,500 RPM Operating Range
  • No Supplier Warranty
Specifications of COMP Cams Camshaft 685015
Advertised Exhaust Duration (DEG) 246 Degree
Advertised Intake Duration (DEG) 242 Degree
Computer-Controlled Compatible Yes
Engine Compatibility Jeep 4.0L 199-258 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 201 Degree
Exhaust Valve Lift (IN) 0.45 Inch
Grind Number X4242H8
Intake Duration At 0.050 Inch Lift (DEG) 197 Degree
Intake Valve Lift (IN) 0.45 Inch
Lobe Separation Angle (DEG) 108 Degree
Recommended Use Off-Road
RPM - High 5500
RPM - Low 700
Type Hydraulic Flat Tappet

1987 Jeep Cherokee
1988 Jeep Cherokee
1989 Jeep Cherokee
1990 Jeep Cherokee
1991 Jeep Cherokee
1992 Jeep Cherokee
1993 Jeep Cherokee
1994 Jeep Cherokee
1995 Jeep Cherokee
1996 Jeep Cherokee
1997 Jeep Cherokee
1998 Jeep Cherokee

1987 Jeep Comanche
1988 Jeep Comanche
1989 Jeep Comanche
1990 Jeep Comanche
1991 Jeep Comanche
1992 Jeep Comanche

1993 Jeep Grand Cherokee
1994 Jeep Grand Cherokee
1995 Jeep Grand Cherokee
1996 Jeep Grand Cherokee
1997 Jeep Grand Cherokee
1998 Jeep Grand Cherokee

1987 Jeep Wagoneer
1988 Jeep Wagoneer
1989 Jeep Wagoneer
1990 Jeep Wagoneer

1997 Jeep Wrangler TJ
1998 Jeep Wrangler TJ

1991 Jeep Wrangler YJ
1992 Jeep Wrangler YJ
1993 Jeep Wrangler YJ
1994 Jeep Wrangler YJ
1995 Jeep Wrangler YJ
