COMP Cams Camshaft 682394

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 68-239-4
  • Part Location: U.S.
  • Availability: Out Of Stock
Retail: $323.39
Price: $307.99
You Save: $15.40
Advertised Exhaust Duration (DEG)
270 Degree
Advertised Intake Duration (DEG)
262 Degree
Computer-Controlled Compatible
No
Engine Compatibility
AMC L6 199-258 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
226 Degree
Exhaust Valve Lift (IN)
0.512 Inch
Grind Number
X4262H
Intake Centerline Angle (DEG)
107 Degree
Intake Duration At 0.050 Inch Lift (DEG)
218 Degree
Intake Valve Lift (IN)
0.493 Inch
Lobe Separation Angle (DEG)
111 Degree
Share this page

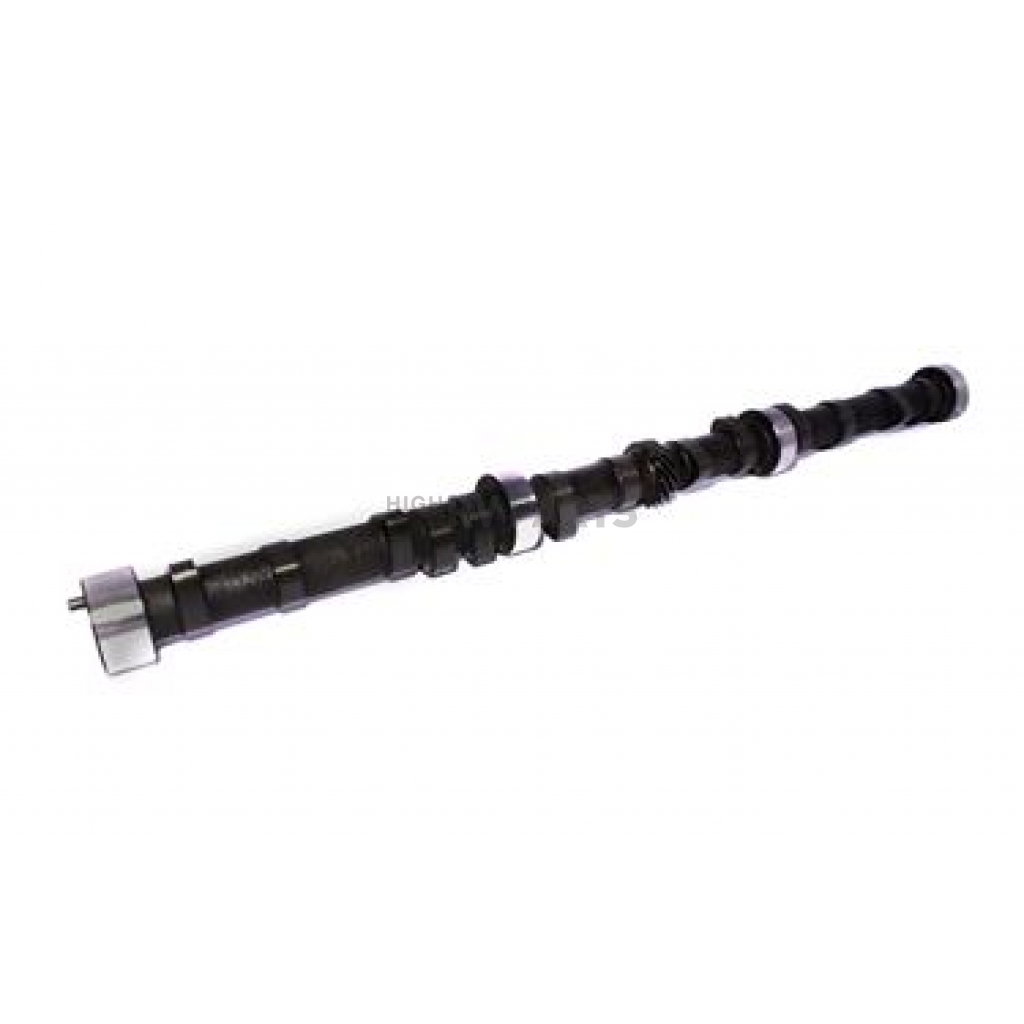

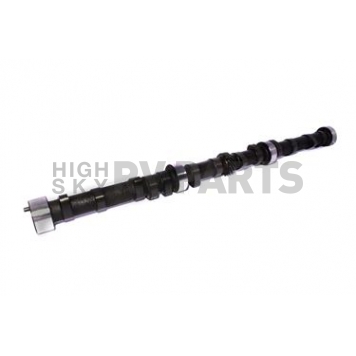

COMP Cams Camshaft

Camshaft; Xtreme 4X4 ™; American Motors 3.3L-4.2L/199-258 Cubic Inch; Hydraulic Flat Tappet; 1400-5700 RPM Range; 218 Degree Intake Duration @ 0.050 Inch Lift; 226 Degree Exhaust Duration @ 0.050 Inch Lift; 0.493 Inch Intake Valve Lift; 0.512 Inch Exhaust Valve Lift; 111 Degree Lobe Separation

MPN: 682394

Xtreme Energy Cams™ are designed to take advantage of the latest improvements in Valve train components and the newest developments in Camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased Engine vacuum. Can be used in any street or street/Strip application where both throttle response and top end Horsepower are desired. Because these Camshafts use aggressive lobe designs, it is imperative that Valve springs, locks, retainers, pushrods, lifters, Rocker Arms and other related components be matched to the camshaft.
Engine Compatibility: AMC L6 199-258 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Flat Tappet
RPM - Low: 1400
RPM - High: 5700
Intake Duration At 0.050 Inch Lift (DEG): 218 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 226 Degree
Advertised Intake Duration (DEG): 262 Degree
Advertised Exhaust Duration (DEG): 270 Degree
Intake Valve Lift (IN): 0.493 Inch
Exhaust Valve Lift (IN): 0.512 Inch
Lobe Separation Angle (DEG): 111 Degree
Intake Centerline Angle (DEG): 107 Degree
Grind Number: X4262H
Computer-Controlled Compatible: No

Features

  • Improved Throttle Response And Low And Mid Range RPM Horsepower
  • Designed For Use With Common Restrictive Factory Exhaust System Including OEM Exhaust Manifolds
  • Feature Latest Camshaft Technology In Lobe Design
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 682394
Advertised Exhaust Duration (DEG) 270 Degree
Advertised Intake Duration (DEG) 262 Degree
Computer-Controlled Compatible No
Engine Compatibility AMC L6 199-258 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 226 Degree
Exhaust Valve Lift (IN) 0.512 Inch
Grind Number X4262H
Intake Centerline Angle (DEG) 107 Degree
Intake Duration At 0.050 Inch Lift (DEG) 218 Degree
Intake Valve Lift (IN) 0.493 Inch
Lobe Separation Angle (DEG) 111 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 5700
RPM - Low 1400
Type Hydraulic Flat Tappet

1965 American Motors Ambassador
1966 American Motors Ambassador
1967 American Motors Ambassador
1968 American Motors Ambassador
1969 American Motors Ambassador
1970 American Motors Ambassador
1971 American Motors Ambassador

1964 American Motors American
1965 American Motors American
1966 American Motors American
1967 American Motors American
1968 American Motors American

1978 American Motors AMX
1979 American Motors AMX
1980 American Motors AMX

1961 American Motors Classic
1962 American Motors Classic

1964 American Motors Classic
1965 American Motors Classic
1966 American Motors Classic

1978 American Motors Concord
1979 American Motors Concord
1980 American Motors Concord
1981 American Motors Concord
1982 American Motors Concord
1983 American Motors Concord

1980 American Motors Eagle
1981 American Motors Eagle
1982 American Motors Eagle
1983 American Motors Eagle
1984 American Motors Eagle
1985 American Motors Eagle
1986 American Motors Eagle
1987 American Motors Eagle
1988 American Motors Eagle

1970 American Motors Gremlin
1971 American Motors Gremlin
1972 American Motors Gremlin
1973 American Motors Gremlin
1974 American Motors Gremlin
1975 American Motors Gremlin
1976 American Motors Gremlin
1977 American Motors Gremlin
1978 American Motors Gremlin

1970 American Motors Hornet
1971 American Motors Hornet
1972 American Motors Hornet
1973 American Motors Hornet
1974 American Motors Hornet
1975 American Motors Hornet
1976 American Motors Hornet
1977 American Motors Hornet

1968 American Motors Javelin
1969 American Motors Javelin
1970 American Motors Javelin
1971 American Motors Javelin
1972 American Motors Javelin
1973 American Motors Javelin
1974 American Motors Javelin

1965 American Motors Marlin
1966 American Motors Marlin
1967 American Motors Marlin

1971 American Motors Matador
1972 American Motors Matador
1973 American Motors Matador
1974 American Motors Matador
1975 American Motors Matador
1976 American Motors Matador
1977 American Motors Matador
1978 American Motors Matador

1975 American Motors Pacer
1976 American Motors Pacer
1977 American Motors Pacer
1978 American Motors Pacer
1979 American Motors Pacer
1980 American Motors Pacer

1969 American Motors Rambler

1958 American Motors Rebel
1959 American Motors Rebel
1960 American Motors Rebel
1961 American Motors Rebel

1967 American Motors Rebel
1968 American Motors Rebel
1969 American Motors Rebel
1970 American Motors Rebel

1979 American Motors Spirit
1980 American Motors Spirit
1981 American Motors Spirit
1982 American Motors Spirit
1983 American Motors Spirit

1950 Chrysler Newport
1951 Chrysler Newport

1952 Chrysler Town & Country
