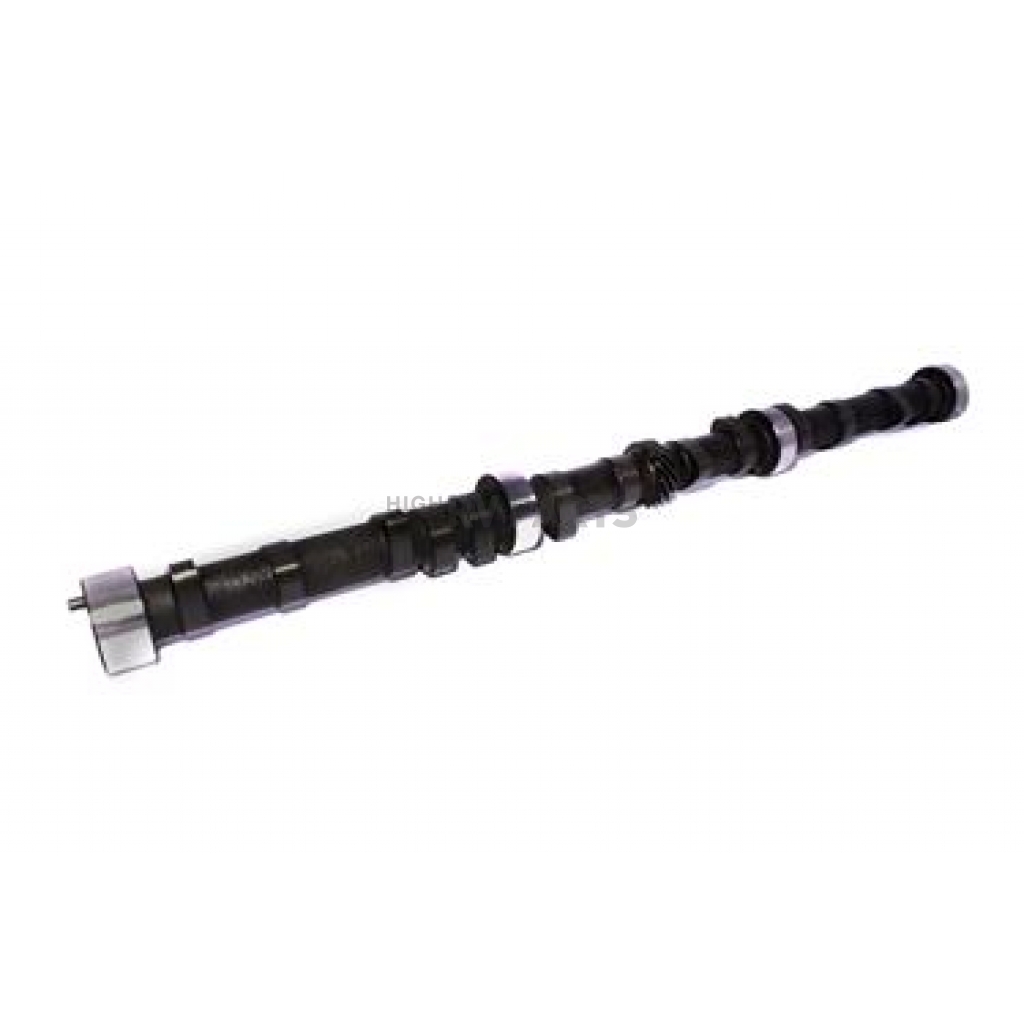

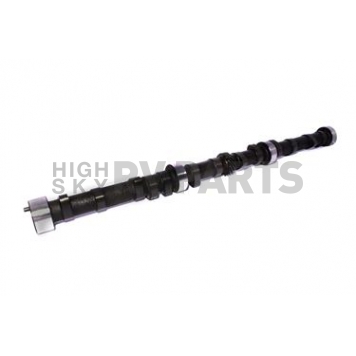

COMP Cams Camshaft 682324

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 68-232-4
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 07
Retail: $384.29
Price: $365.99
You Save: $18.30
Advertised Exhaust Duration (DEG)
256 Degree
Advertised Intake Duration (DEG)
250 Degree
Computer-Controlled Compatible
No
Engine Compatibility
AMC L6 199-258 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
212 Degree
Exhaust Valve Lift (IN)
0.476 Inch
Grind Number
X4250H-13
Intake Centerline Angle (DEG)
110 Degree
Intake Duration At 0.050 Inch Lift (DEG)
206 Degree
Intake Valve Lift (IN)
0.46 Inch
Lobe Separation Angle (DEG)
113 Degree
Share this page

COMP Cams Camshaft

Camshaft; Xtreme 4X4 ™; American Motors 3.3L-4.2L/199-258 Cubic Inch; Hydraulic Flat Tappet; 800-4800 RPM Range; 206 Degree Intake Duration @ 0.050 Inch Lift; 212 Degree Exhaust Duration @ 0.050 Inch Lift; 0.460 Inch Intake Valve Lift; 0.476 Inch Exhaust Valve Lift; 113 Degree Lobe Separation; Requires Timing Gear Set Depending On Application Only If Listed

MPN: 682324

Xtreme Energy Cams™ are designed to take advantage of the latest improvements in Valve train components and the newest developments in Camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased Engine vacuum. Can be used in any street or street/Strip application where both throttle response and top end Horsepower are desired. Because these Camshafts use aggressive lobe designs, it is imperative that Valve springs, locks, retainers, pushrods, lifters, Rocker Arms and other related components be matched to the camshaft.
Engine Compatibility: AMC L6 199-258 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Flat Tappet
RPM - Low: 800
RPM - High: 4800
Intake Duration At 0.050 Inch Lift (DEG): 206 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 212 Degree
Advertised Intake Duration (DEG): 250 Degree
Advertised Exhaust Duration (DEG): 256 Degree
Intake Valve Lift (IN): 0.46 Inch
Exhaust Valve Lift (IN): 0.476 Inch
Lobe Separation Angle (DEG): 113 Degree
Intake Centerline Angle (DEG): 110 Degree
Grind Number: X4250H-13
Computer-Controlled Compatible: No

Features

  • Their Aggressive Lobe Design Produces Better Throttle Response And Top End Horsepower Than Other Cams With The Same Duration
  • Also Deliver Increased Engine Vacuum
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 682324
Advertised Exhaust Duration (DEG) 256 Degree
Advertised Intake Duration (DEG) 250 Degree
Computer-Controlled Compatible No
Engine Compatibility AMC L6 199-258 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 212 Degree
Exhaust Valve Lift (IN) 0.476 Inch
Grind Number X4250H-13
Intake Centerline Angle (DEG) 110 Degree
Intake Duration At 0.050 Inch Lift (DEG) 206 Degree
Intake Valve Lift (IN) 0.46 Inch
Lobe Separation Angle (DEG) 113 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 4800
RPM - Low 800
Type Hydraulic Flat Tappet

1987 Jeep Cherokee
1988 Jeep Cherokee
1989 Jeep Cherokee
1990 Jeep Cherokee
1991 Jeep Cherokee
1992 Jeep Cherokee
1993 Jeep Cherokee
1994 Jeep Cherokee
1995 Jeep Cherokee
1996 Jeep Cherokee
1997 Jeep Cherokee

1987 Jeep Comanche
1988 Jeep Comanche
1989 Jeep Comanche
1990 Jeep Comanche
1991 Jeep Comanche
1992 Jeep Comanche

1993 Jeep Grand Cherokee
1994 Jeep Grand Cherokee
1995 Jeep Grand Cherokee
1996 Jeep Grand Cherokee
1997 Jeep Grand Cherokee

1987 Jeep Wagoneer
1988 Jeep Wagoneer
1989 Jeep Wagoneer
1990 Jeep Wagoneer

1997 Jeep Wrangler TJ

1991 Jeep Wrangler YJ
1992 Jeep Wrangler YJ
1993 Jeep Wrangler YJ
1994 Jeep Wrangler YJ
1995 Jeep Wrangler YJ
