COMP Cams Camshaft 681154

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 68-115-4
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 21
Retail: $280.34
Price: $266.99
You Save: $13.35
Advertised Exhaust Duration (DEG)
248 Degree
Advertised Intake Duration (DEG)
240 Degree
Computer-Controlled Compatible
No
Engine Compatibility
AMC L6 199-258 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
200 Degree
Exhaust Valve Lift (IN)
0.416 Inch
Grind Number
240H
Intake Centerline Angle (DEG)
108 Degree
Intake Duration At 0.050 Inch Lift (DEG)
192 Degree
Intake Valve Lift (IN)
0.416 Inch
Lobe Separation Angle (DEG)
108 Degree
Share this page

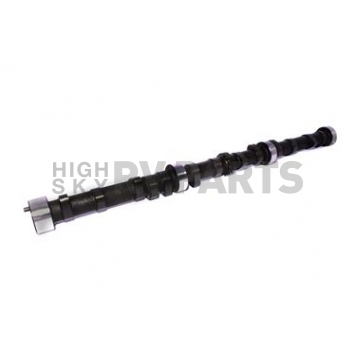

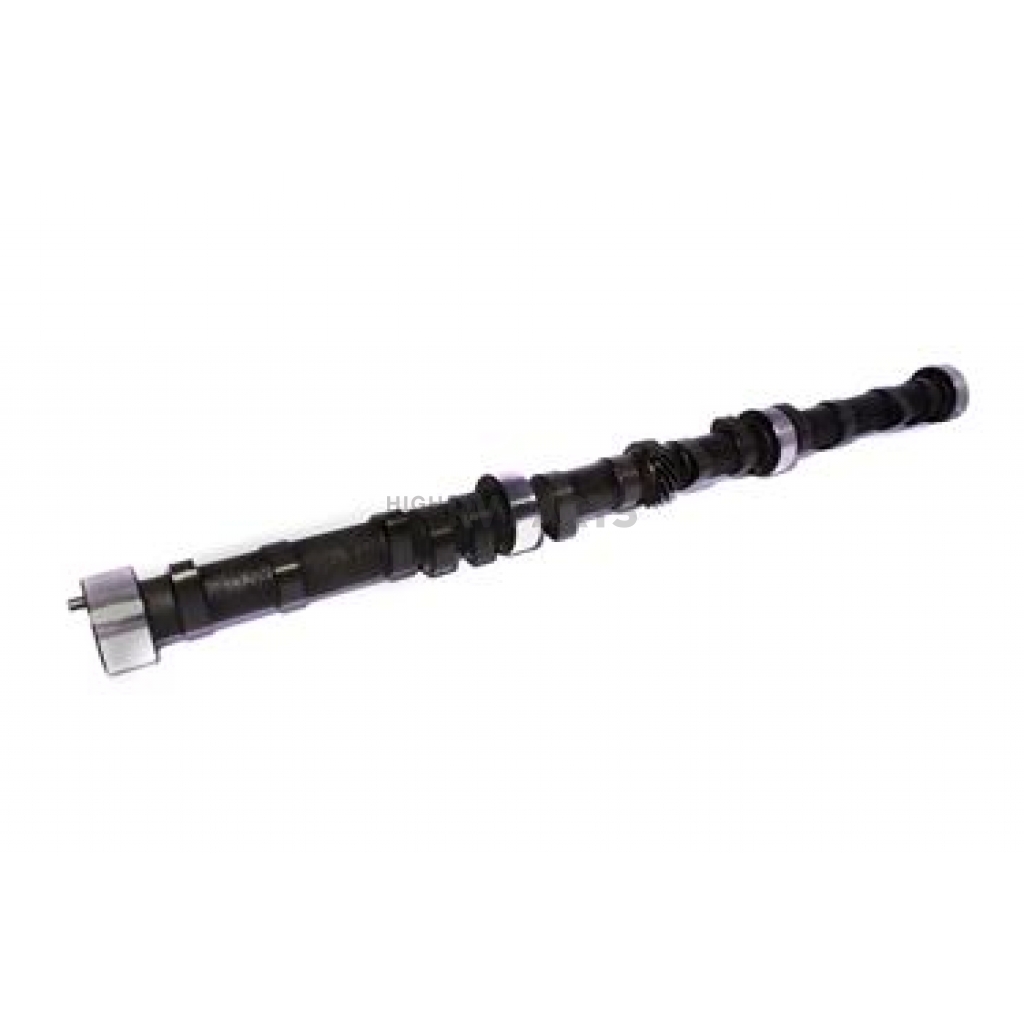

COMP Cams Camshaft

Camshaft; High Energy ™; American Motors 3.3L-4.2L/199-258 Cubic Inch; Hydraulic Flat Tappet; 800-4000 RPM Range; 192 Degree Intake Duration @ 0.050 Inch Lift; 200 Degree Exhaust Duration @ 0.050 Inch Lift; 0.416 Inch Intake Valve Lift; 0.416 Inch Exhaust Valve Lift; 108 Degree Lobe Separation

MPN: 681154

These high torque Camshafts are designed for street applications with lower compression ratios. They can be used with most stock components including intake manifolds, exhaust manifolds and carburetors. High Energy Cams™ are designed to improve your engine's efficiency through its unique lobe characteristics. When installed in the correct application, High Energy Cams™ will usually produce better gas mileage and power. COMP Cams(R) has matched Valve springs to go with each of the cams in the High Energy™ series to ensure peak performance.
Engine Compatibility: AMC L6 199-258 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Flat Tappet
RPM - Low: 800
RPM - High: 4000
Intake Duration At 0.050 Inch Lift (DEG): 192 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 200 Degree
Advertised Intake Duration (DEG): 240 Degree
Advertised Exhaust Duration (DEG): 248 Degree
Intake Valve Lift (IN): 0.416 Inch
Exhaust Valve Lift (IN): 0.416 Inch
Lobe Separation Angle (DEG): 108 Degree
Intake Centerline Angle (DEG): 108 Degree
Grind Number: 240H
Computer-Controlled Compatible: No

Features

  • Work Well With Mainly Stock Components Like Rockers, Manifolds, Heads, Compression, Converters, Gears, Etc.
  • Good Blend Of Efficiency And Performance
  • Perfect Choice For Performance Rebuilds
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 681154
Advertised Exhaust Duration (DEG) 248 Degree
Advertised Intake Duration (DEG) 240 Degree
Computer-Controlled Compatible No
Engine Compatibility AMC L6 199-258 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 200 Degree
Exhaust Valve Lift (IN) 0.416 Inch
Grind Number 240H
Intake Centerline Angle (DEG) 108 Degree
Intake Duration At 0.050 Inch Lift (DEG) 192 Degree
Intake Valve Lift (IN) 0.416 Inch
Lobe Separation Angle (DEG) 108 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 4000
RPM - Low 800
Type Hydraulic Flat Tappet

1965 American Motors Ambassador
1966 American Motors Ambassador
1967 American Motors Ambassador
1968 American Motors Ambassador
1969 American Motors Ambassador
1970 American Motors Ambassador
1971 American Motors Ambassador

1964 American Motors American
1965 American Motors American
1966 American Motors American
1967 American Motors American
1968 American Motors American

1978 American Motors AMX
1979 American Motors AMX
1980 American Motors AMX

1961 American Motors Classic
1962 American Motors Classic

1964 American Motors Classic
1965 American Motors Classic
1966 American Motors Classic

1978 American Motors Concord
1979 American Motors Concord
1980 American Motors Concord
1981 American Motors Concord
1982 American Motors Concord
1983 American Motors Concord

1980 American Motors Eagle
1981 American Motors Eagle
1982 American Motors Eagle
1983 American Motors Eagle
1984 American Motors Eagle
1985 American Motors Eagle
1986 American Motors Eagle
1987 American Motors Eagle
1988 American Motors Eagle

1970 American Motors Gremlin
1971 American Motors Gremlin
1972 American Motors Gremlin
1973 American Motors Gremlin
1974 American Motors Gremlin
1975 American Motors Gremlin
1976 American Motors Gremlin
1977 American Motors Gremlin
1978 American Motors Gremlin

1970 American Motors Hornet
1971 American Motors Hornet
1972 American Motors Hornet
1973 American Motors Hornet
1974 American Motors Hornet
1975 American Motors Hornet
1976 American Motors Hornet
1977 American Motors Hornet

1968 American Motors Javelin
1969 American Motors Javelin
1970 American Motors Javelin
1971 American Motors Javelin
1972 American Motors Javelin
1973 American Motors Javelin
1974 American Motors Javelin

1965 American Motors Marlin
1966 American Motors Marlin
1967 American Motors Marlin

1971 American Motors Matador
1972 American Motors Matador
1973 American Motors Matador
1974 American Motors Matador
1975 American Motors Matador
1976 American Motors Matador
1977 American Motors Matador
1978 American Motors Matador

1975 American Motors Pacer
1976 American Motors Pacer
1977 American Motors Pacer
1978 American Motors Pacer
1979 American Motors Pacer
1980 American Motors Pacer

1969 American Motors Rambler

1958 American Motors Rebel
1959 American Motors Rebel
1960 American Motors Rebel
1961 American Motors Rebel

1967 American Motors Rebel
1968 American Motors Rebel
1969 American Motors Rebel
1970 American Motors Rebel

1979 American Motors Spirit
1980 American Motors Spirit
1981 American Motors Spirit
1982 American Motors Spirit
1983 American Motors Spirit

1950 Chrysler Newport
1951 Chrysler Newport

1952 Chrysler Town & Country
