COMP Cams Camshaft 564108

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 56-410-8
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 21
Retail: $708.74
Price: $674.99
You Save: $33.75
Advertised Exhaust Duration (DEG)
260 Degree
Advertised Intake Duration (DEG)
260 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Chevy 90 Degree V6 4.3L 262 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
206 Degree
Exhaust Valve Lift (IN)
1/2 Inch
Grind Number
260HR
Intake Centerline Angle (DEG)
106 Degree
Intake Duration At 0.050 Inch Lift (DEG)
206 Degree
Intake Valve Lift (IN)
1/2 Inch
Lobe Separation Angle (DEG)
110 Degree
Share this page

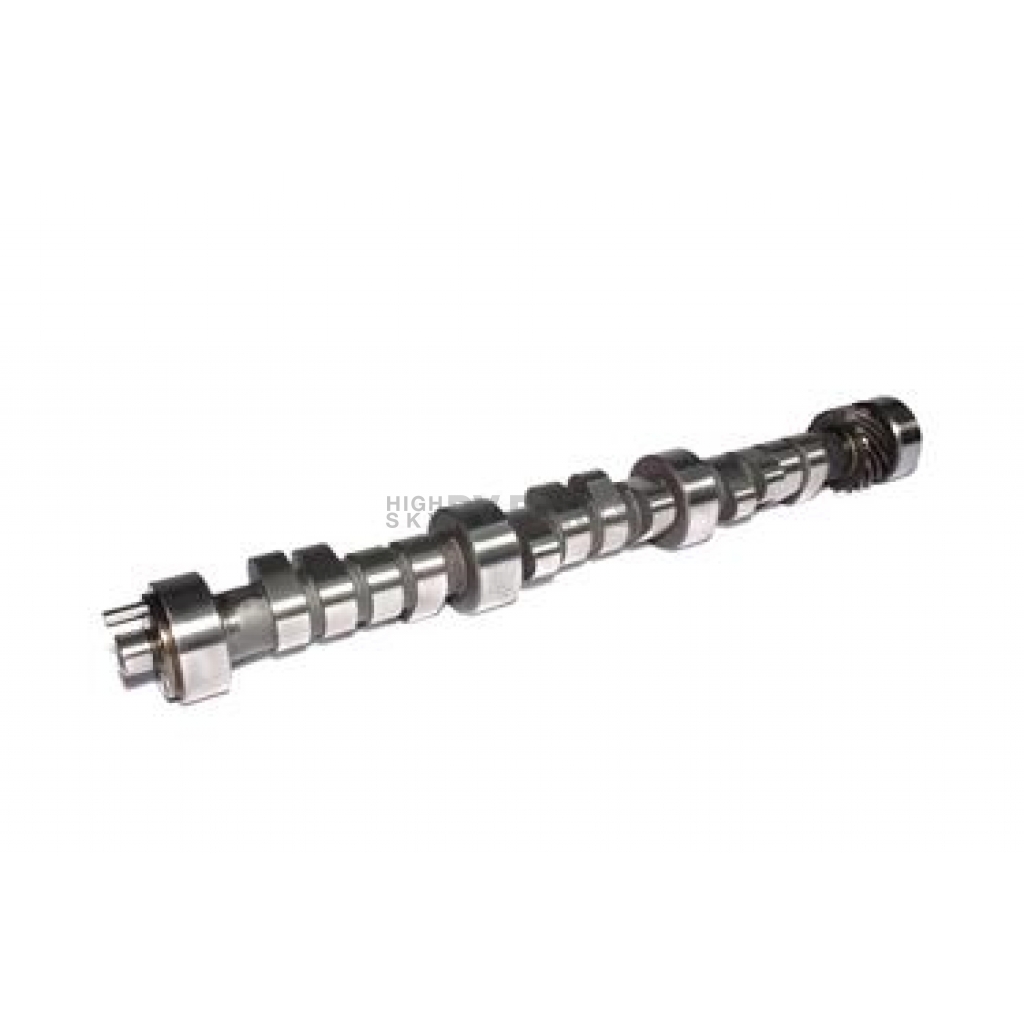

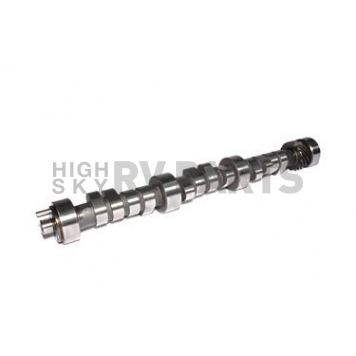

COMP Cams Camshaft

Camshaft; Magnum; Chevy 90 Degree 4.3L/262 Cubic Inch V6; Hydraulic Roller; 1200-4500 RPM Range; 206 Degree Intake Duration @ 0.050 Inch Lift; 206 Degree Exhaust Duration @ 0.050 Inch Lift; 0.500 Inch Intake Valve Lift; 0.500 Inch Exhaust Valve Lift; 110 Degree Lobe Separation

MPN: 564108

Magnum Camshafts are specifically designed for racing or high performance street applications by Engine builders looking for more power and that Pro Street sound. In addition, Engine idle characteristics will change significantly due to the increased duration and overlap specifications of the camshaft. Magnum cams are high performance components. Using a Magnum 280 Camshaft can net as much as 100 additional peak Engine Horsepower. Magnum 292 and 305 Camshafts can generate even more power but require piston to Valve clearance checks and the installation of a higher performing torque converter for automatic transmission equipped vehicles. Magnum Camshafts may work with new stock lifters, however, we recommend that you use COMP Cams® high performance lifters due to their higher quality and specifically designed bleed rate.
Engine Compatibility: Chevy 90 Degree V6 4.3L 262 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Roller
RPM - Low: 1200
RPM - High: 4500
Intake Duration At 0.050 Inch Lift (DEG): 206 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 206 Degree
Advertised Intake Duration (DEG): 260 Degree
Advertised Exhaust Duration (DEG): 260 Degree
Intake Valve Lift (IN): 1/2 Inch
Exhaust Valve Lift (IN): 1/2 Inch
Lobe Separation Angle (DEG): 110 Degree
Intake Centerline Angle (DEG): 106 Degree
Grind Number: 260HR
Computer-Controlled Compatible: No

Features

  • Great High RPM Power
  • Easy On Valve Train Parts
  • Specifically Designed For Racing Or High Performance Street Applications By Engine Builders Looking For More Power And That Pro Street Sound
  • Using A Magnum 280 Camshaft Can Net As Much As 100 Additional Peak Engine Horsepower
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 564108
Advertised Exhaust Duration (DEG) 260 Degree
Advertised Intake Duration (DEG) 260 Degree
Computer-Controlled Compatible No
Engine Compatibility Chevy 90 Degree V6 4.3L 262 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 206 Degree
Exhaust Valve Lift (IN) 1/2 Inch
Grind Number 260HR
Intake Centerline Angle (DEG) 106 Degree
Intake Duration At 0.050 Inch Lift (DEG) 206 Degree
Intake Valve Lift (IN) 1/2 Inch
Lobe Separation Angle (DEG) 110 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 4500
RPM - Low 1200
Type Hydraulic Roller
