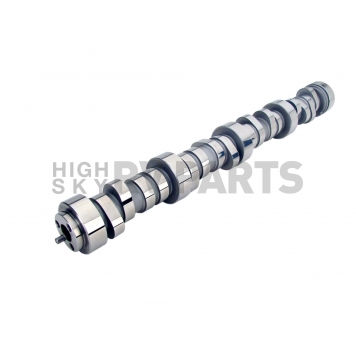

COMP Cams Camshaft 5452511

Name: COMP Cams Camshaft 5452511
Brand: COMP Cams
SKU: 54-525-11
Price: 672.99 USD
Availability: InStock

Authorized Dealer

Brand:

COMP Cams

0 reviews

Have a product question? Ask us
Part Number: 54-525-11
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 21

Retail: $706.64

Price: $672.99

You Save: $33.65

Advertised Exhaust Duration (DEG)

258 Degree

Advertised Intake Duration (DEG)

246 Degree

Computer-Controlled Compatible

Engine Compatibility

GMC Gen III LS Engines

Exhaust Duration At 0.050 Inch Lift (DEG)

206 Degree

Exhaust Valve Lift (IN)

0.493 Inch

Grind Number

TPX 246HR-17

Intake Duration At 0.050 Inch Lift (DEG)

194 Degree

Intake Valve Lift (IN)

1/2 Inch

Lobe Separation Angle (DEG)

117 Degree

Recommended Use

Mild Street Performance To Mild Race

Share this page

COMP Cams Camshaft

Camshaft; Tri-Power Xtreme ™; GM LS Gen III/IV Three-Bolt; Hydraulic Roller; 800-5800 RPM Range; 194 Degree Intake Duration @ 0.050 Inch Lift; 206 Degree Exhaust Duration @ 0.050 Inch Lift; 0.500 Inch Intake Valve Lift; 0.493 Inch Exhaust Valve Lift; 117 Degree Lobe Separation

MPN: 5452511

Engine Compatibility: GMC Gen III LS Engines

Recommended Use: Mild Street Performance To Mild Race

Type: Hydraulic Roller

RPM - Low: 800

RPM - High: 5800

Intake Duration At 0.050 Inch Lift (DEG): 194 Degree

Exhaust Duration At 0.050 Inch Lift (DEG): 206 Degree

Advertised Intake Duration (DEG): 246 Degree

Advertised Exhaust Duration (DEG): 258 Degree

Intake Valve Lift (IN): 1/2 Inch

Exhaust Valve Lift (IN): 0.493 Inch

Lobe Separation Angle (DEG): 117 Degree

Grind Number: TPX 246HR-17

Computer-Controlled Compatible: No

Features

Three Different Camshafts Offered For Each Engine Platform
Camshaft Designs Are Targeted To Improve Horsepower, Torque Or Fuel Efficiency
By Decreasing Pumping Losses, Efficiency And Performance Are Enhanced, Regardless Of Camshaft Selected
Limited 1 Year Warranty

Specifications of COMP Cams Camshaft 5452511
Advertised Exhaust Duration (DEG)	258 Degree
Advertised Intake Duration (DEG)	246 Degree
Computer-Controlled Compatible	No
Engine Compatibility	GMC Gen III LS Engines
Exhaust Duration At 0.050 Inch Lift (DEG)	206 Degree
Exhaust Valve Lift (IN)	0.493 Inch
Grind Number	TPX 246HR-17
Intake Duration At 0.050 Inch Lift (DEG)	194 Degree
Intake Valve Lift (IN)	1/2 Inch
Lobe Separation Angle (DEG)	117 Degree
Recommended Use	Mild Street Performance To Mild Race
RPM - High	5800
RPM - Low	800
Type	Hydraulic Roller
