COMP Cams Camshaft 5445511

Name: COMP Cams Camshaft 5445511
Brand: COMP Cams
SKU: 54-455-11
Price: 672.99 USD
Availability: InStock

Authorized Dealer

Brand:

COMP Cams

0 reviews

Have a product question? Ask us
Part Number: 54-455-11
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 17

Retail: $706.64

Price: $672.99

You Save: $33.65

Advertised Exhaust Duration (DEG)

273 Degree

Advertised Intake Duration (DEG)

265 Degree

Computer-Controlled Compatible

Engine Compatibility

GMC Gen III LS Engines

Exhaust Duration At 0.050 Inch Lift (DEG)

233 Degree

Exhaust Valve Lift (IN)

0.61 Inch

Grind Number

265LR HR12

Intake Centerline Angle (DEG)

107 Degree

Intake Duration At 0.050 Inch Lift (DEG)

215 Degree

Intake Valve Lift (IN)

0.604 Inch

Lobe Separation Angle (DEG)

112 Degree

Share this page

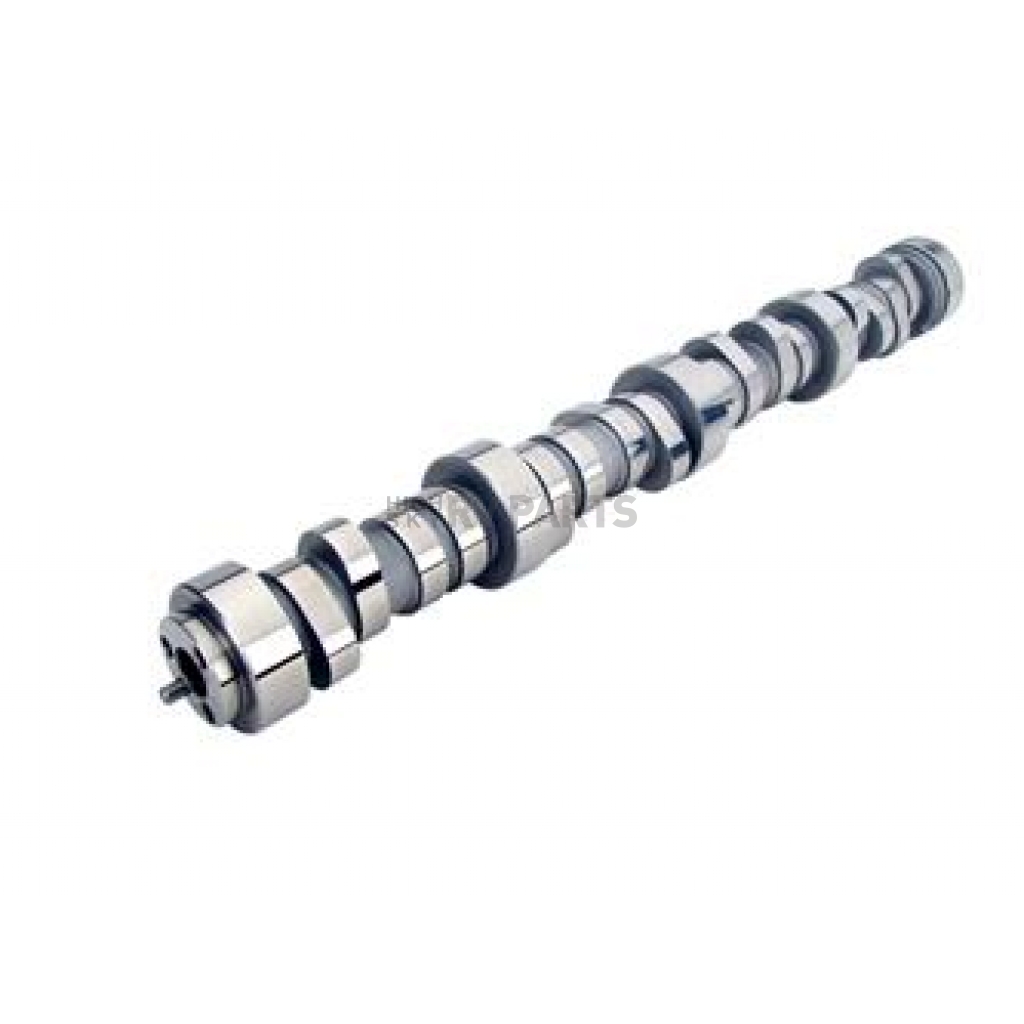

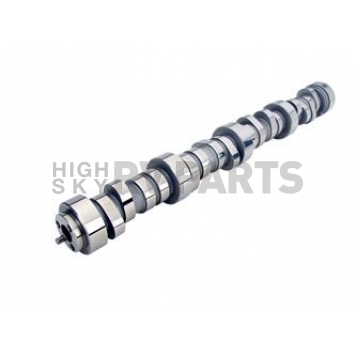

COMP Cams Camshaft

Camshaft; LSR ™; GM LS Gen III/IV Three-Bolt; Hydraulic Roller; 1300-6500 RPM Range; 215 Degree Intake Duration @ 0.050 Inch Lift; 233 Degree Exhaust Duration @ 0.050 Inch Lift; 0.604 Inch Intake Valve Lift; 0.610 Inch Exhaust Valve Lift; 112 Degree Lobe Separation

MPN: 5445511

Frequently used in today’s OEM factory Engines and mild to moderately aggressive performance engines, hydraulic roller cams use lifters equipped with a roller wheel that tracks along the Camshaft lobe, reducing wear and friction and enabling faster lobe ramp rates than flat tappet Cams. These quiet operation lifters feature the same internal design as hydraulic flat tappet lifters with internal cavities and pistons but do not rotate within the lifter bore. Suited for typical street or moderate race Engine speeds, the lifters are pre loaded and do not require a lash setting. Most OEM hydraulic roller Camshafts are limited to 6200 RPM and performance aftermarket systems to approximately 6800 RPM. Hydraulic roller lifters require an appropriately selected Valve Spring to maintain control and avoid lifter float at higher Engine RPM. Hydraulic roller lifters can be re used with multiple Camshafts, however they are more costly than flat tappet lifters.

Engine Compatibility: GMC Gen III LS Engines

Recommended Use: Mild Street Performance To Mild Race

Type: Hydraulic Roller

RPM - Low: 1300

RPM - High: 6500

Intake Duration At 0.050 Inch Lift (DEG): 215 Degree

Exhaust Duration At 0.050 Inch Lift (DEG): 233 Degree

Advertised Intake Duration (DEG): 265 Degree

Advertised Exhaust Duration (DEG): 273 Degree

Intake Valve Lift (IN): 0.604 Inch

Exhaust Valve Lift (IN): 0.61 Inch

Lobe Separation Angle (DEG): 112 Degree

Intake Centerline Angle (DEG): 107 Degree

Grind Number: 265LR HR12

Computer-Controlled Compatible: No

Features

Aggressive Roller Profiles
Reduced Friction
Low Maintenance
Reduced Valve Train Noise
Limited 1 Year Warranty

Specifications of COMP Cams Camshaft 5445511
Advertised Exhaust Duration (DEG)	273 Degree
Advertised Intake Duration (DEG)	265 Degree
Computer-Controlled Compatible	No
Engine Compatibility	GMC Gen III LS Engines
Exhaust Duration At 0.050 Inch Lift (DEG)	233 Degree
Exhaust Valve Lift (IN)	0.61 Inch
Grind Number	265LR HR12
Intake Centerline Angle (DEG)	107 Degree
Intake Duration At 0.050 Inch Lift (DEG)	215 Degree
Intake Valve Lift (IN)	0.604 Inch
Lobe Separation Angle (DEG)	112 Degree
Recommended Use	Mild Street Performance To Mild Race
RPM - High	6500
RPM - Low	1300
Type	Hydraulic Roller
