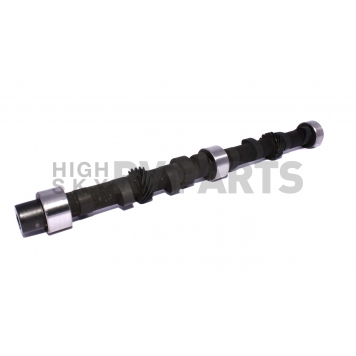

COMP Cams Camshaft 525005

Name: COMP Cams Camshaft 525005
Brand: COMP Cams
SKU: 52-500-5
Price: 408.99 USD
Availability: InStock

Authorized Dealer

Brand:

COMP Cams

0 reviews

Have a product question? Ask us
Part Number: 52-500-5
Part Location: U.S.
Availability: 10 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by April 18

Retail: $429.44

Price: $408.99

You Save: $20.45

Advertised Exhaust Duration (DEG)

272 Degree

Advertised Intake Duration (DEG)

272 Degree

Computer-Controlled Compatible

Engine Compatibility

Pontiac L4 2.5L 151 Cubic Inch

Exhaust Duration At 0.050 Inch Lift (DEG)

242 Degree

Exhaust Valve Lift (IN)

0.595 Inch

Grind Number

272TL-5

Intake Centerline Angle (DEG)

105 Degree

Intake Duration At 0.050 Inch Lift (DEG)

242 Degree

Intake Valve Lift (IN)

0.595 Inch

Lobe Separation Angle (DEG)

105 Degree

Share this page

COMP Cams Camshaft

Camshaft; Hi-Tech ™; Pontiac 2.5L Iron Duke; Mechanical Flat Tappet; 3000-6000 RPM Range; 242 Degree Intake Duration @ 0.050 Inch Lift; 242 Degree Exhaust Duration @ 0.050 Inch Lift; 0.595 Inch Intake Valve Lift; 0.595 Inch Exhaust Valve Lift; 105 Degree Lobe Separation

MPN: 525005

The original race Engine lifter, solid (also referred to as mechanical) flat tappet Camshafts feature more aggressive street performance or racing profiles and are capable of higher Engine RPM than hydraulic flat tappet Camshafts. As with the hydraulic flat tappet camshaft, the flat appearing lifter bottom follows the contours of the Camshaft to operate the Valve train components at the appropriate time, rotating within the lifter bore in a similar fashion to the hydraulic flat tappet lifter. The solid lifter does not have the internal cavity and piston found with the hydraulic lifter and does not expand or contract with Engine temperature. Because of this feature, the solid lifter requires an initial cold Valve lash setting and then adjustment after the Engine has reached operating temperature (hot lash setting) to deliver the Engines top performance potential. Solid flat tappet lifters also feature a signature performance “ticking” sound, particularly when cold, that many performance fans like.

Engine Compatibility: Pontiac L4 2.5L 151 Cubic Inch

Recommended Use: Moderate Street Performance To Serious Race

Type: Mechanical Flat Tappet

RPM - Low: 3000

RPM - High: 6000

Intake Duration At 0.050 Inch Lift (DEG): 242 Degree

Exhaust Duration At 0.050 Inch Lift (DEG): 242 Degree

Advertised Intake Duration (DEG): 272 Degree

Advertised Exhaust Duration (DEG): 272 Degree

Intake Valve Lift (IN): 0.595 Inch

Exhaust Valve Lift (IN): 0.595 Inch

Lobe Separation Angle (DEG): 105 Degree

Intake Centerline Angle (DEG): 105 Degree

Grind Number: 272TL-5

Computer-Controlled Compatible: No

Features

Increased Engine RPM
Increased Profile Aggressiveness
Limited 1 Year Warranty

Specifications of COMP Cams Camshaft 525005
Advertised Exhaust Duration (DEG)	272 Degree
Advertised Intake Duration (DEG)	272 Degree
Computer-Controlled Compatible	No
Engine Compatibility	Pontiac L4 2.5L 151 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)	242 Degree
Exhaust Valve Lift (IN)	0.595 Inch
Grind Number	272TL-5
Intake Centerline Angle (DEG)	105 Degree
Intake Duration At 0.050 Inch Lift (DEG)	242 Degree
Intake Valve Lift (IN)	0.595 Inch
Lobe Separation Angle (DEG)	105 Degree
Recommended Use	Moderate Street Performance To Serious Race
RPM - High	6000
RPM - Low	3000
Type	Mechanical Flat Tappet
