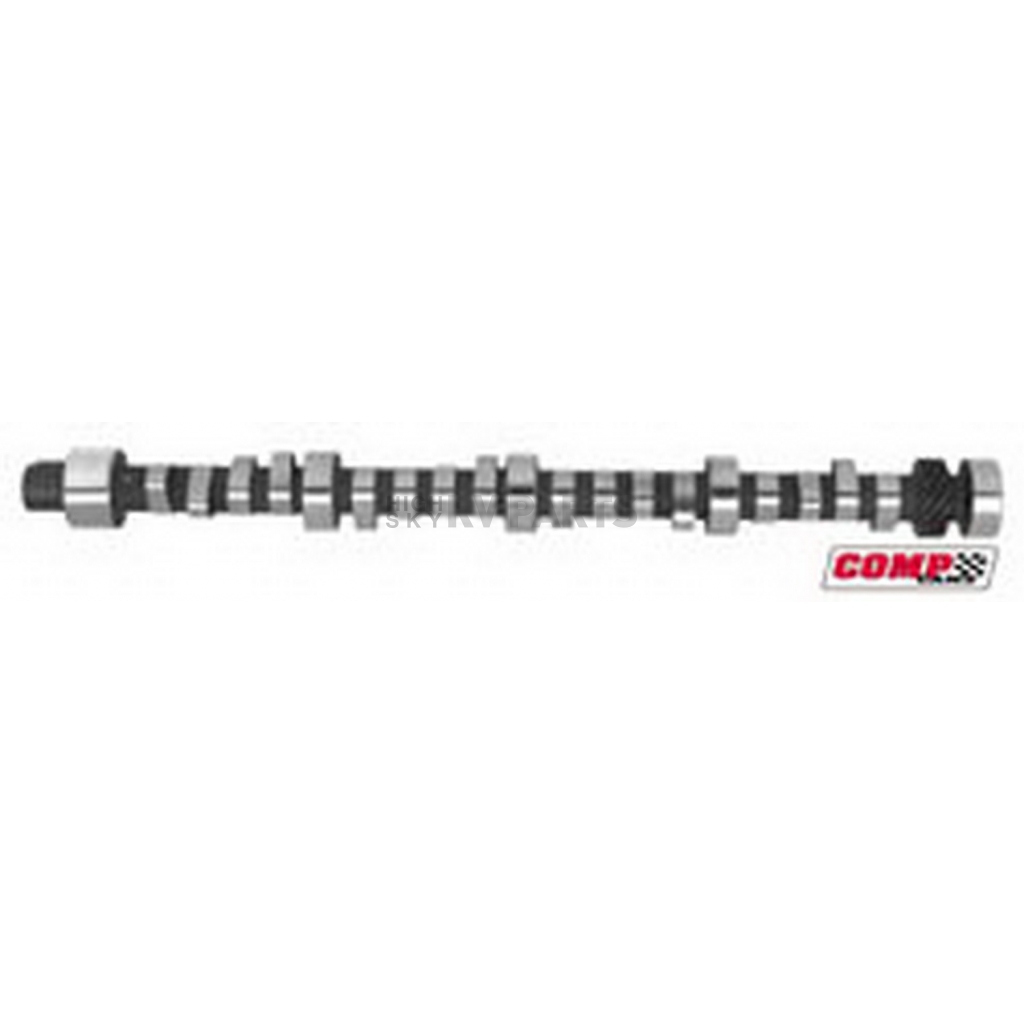

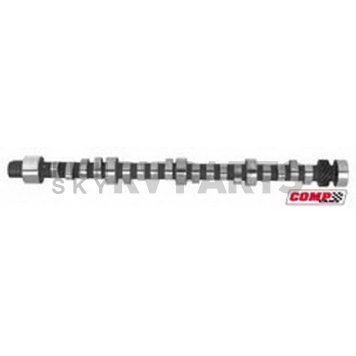

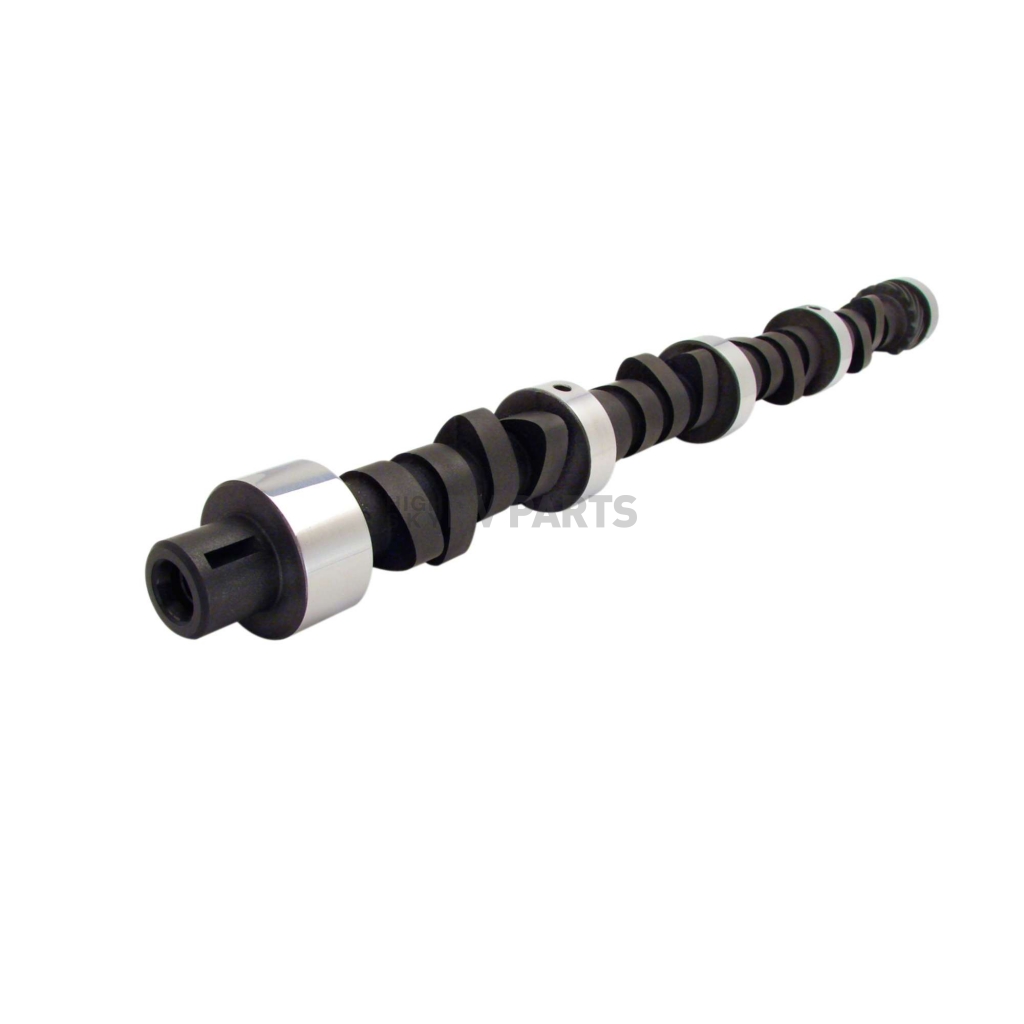

COMP Cams Camshaft 512293

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 51-229-3
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 23
Retail: $365.39
Price: $347.99
You Save: $17.40
Advertised Exhaust Duration (DEG)
252 Degree
Advertised Intake Duration (DEG)
252 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Pontiac V8 265-455 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
206 Degree
Exhaust Valve Lift (IN)
0.425 Inch
Grind Number
252H
Intake Centerline Angle (DEG)
106 Degree
Intake Duration At 0.050 Inch Lift (DEG)
206 Degree
Intake Valve Lift (IN)
0.425 Inch
Lobe Separation Angle (DEG)
110 Degree
Share this page

COMP Cams Camshaft

Camshaft; High Energy ™; Pontiac 4.3L-7.5L/265-455 Cubic Inch; Hydraulic Flat Tappet; 800-4800 RPM Range; 206 Degree Intake Duration @ 0.050 Inch Lift; 206 Degree Exhaust Duration @ 0.050 Inch Lift; 0.425 Inch Intake Valve Lift; 0.425 Inch Exhaust Valve Lift; 110 Degree Lobe Separation

MPN: 512293

These high torque Camshafts are designed for street applications with lower compression ratios. They can be used with most stock components including intake manifolds, exhaust manifolds and carburetors. High Energy Cams™ are designed to improve your engine's efficiency through its unique lobe characteristics. When installed in the correct application, High Energy Cams™ will usually produce better gas mileage and power. COMP Cams(R) has matched Valve springs to go with each of the cams in the High Energy™ series to ensure peak performance.
Engine Compatibility: Pontiac V8 265-455 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Flat Tappet
RPM - Low: 800
RPM - High: 4800
Intake Duration At 0.050 Inch Lift (DEG): 206 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 206 Degree
Advertised Intake Duration (DEG): 252 Degree
Advertised Exhaust Duration (DEG): 252 Degree
Intake Valve Lift (IN): 0.425 Inch
Exhaust Valve Lift (IN): 0.425 Inch
Lobe Separation Angle (DEG): 110 Degree
Intake Centerline Angle (DEG): 106 Degree
Grind Number: 252H
Computer-Controlled Compatible: No

Features

  • Work Well With Mainly Stock Components Like Rockers, Manifolds, Heads, Compression, Converters, Gears, Etc.
  • Good Blend Of Efficiency And Performance
  • Perfect Choice For Performance Rebuilds
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 512293
Advertised Exhaust Duration (DEG) 252 Degree
Advertised Intake Duration (DEG) 252 Degree
Computer-Controlled Compatible No
Engine Compatibility Pontiac V8 265-455 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 206 Degree
Exhaust Valve Lift (IN) 0.425 Inch
Grind Number 252H
Intake Centerline Angle (DEG) 106 Degree
Intake Duration At 0.050 Inch Lift (DEG) 206 Degree
Intake Valve Lift (IN) 0.425 Inch
Lobe Separation Angle (DEG) 110 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 4800
RPM - Low 800
Type Hydraulic Flat Tappet
