COMP Cams Camshaft 357768

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 35-776-8
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 23
Retail: $708.74
Price: $674.99
You Save: $33.75
Advertised Exhaust Duration (DEG)
314 Degree
Advertised Intake Duration (DEG)
304 Degree
Computer-Controlled Compatible
Yes
Engine Compatibility
Ford Small Block V8 5.0L 302 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
258 Degree
Exhaust Valve Lift (IN)
0.608 Inch
Grind Number
XFI248HR-14
Intake Centerline Angle (DEG)
110 Degree
Intake Duration At 0.050 Inch Lift (DEG)
248 Degree
Intake Valve Lift (IN)
0.608 Inch
Lobe Separation Angle (DEG)
114 Degree
Share this page

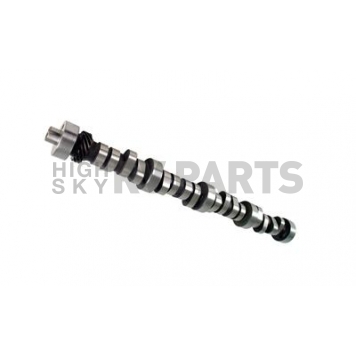

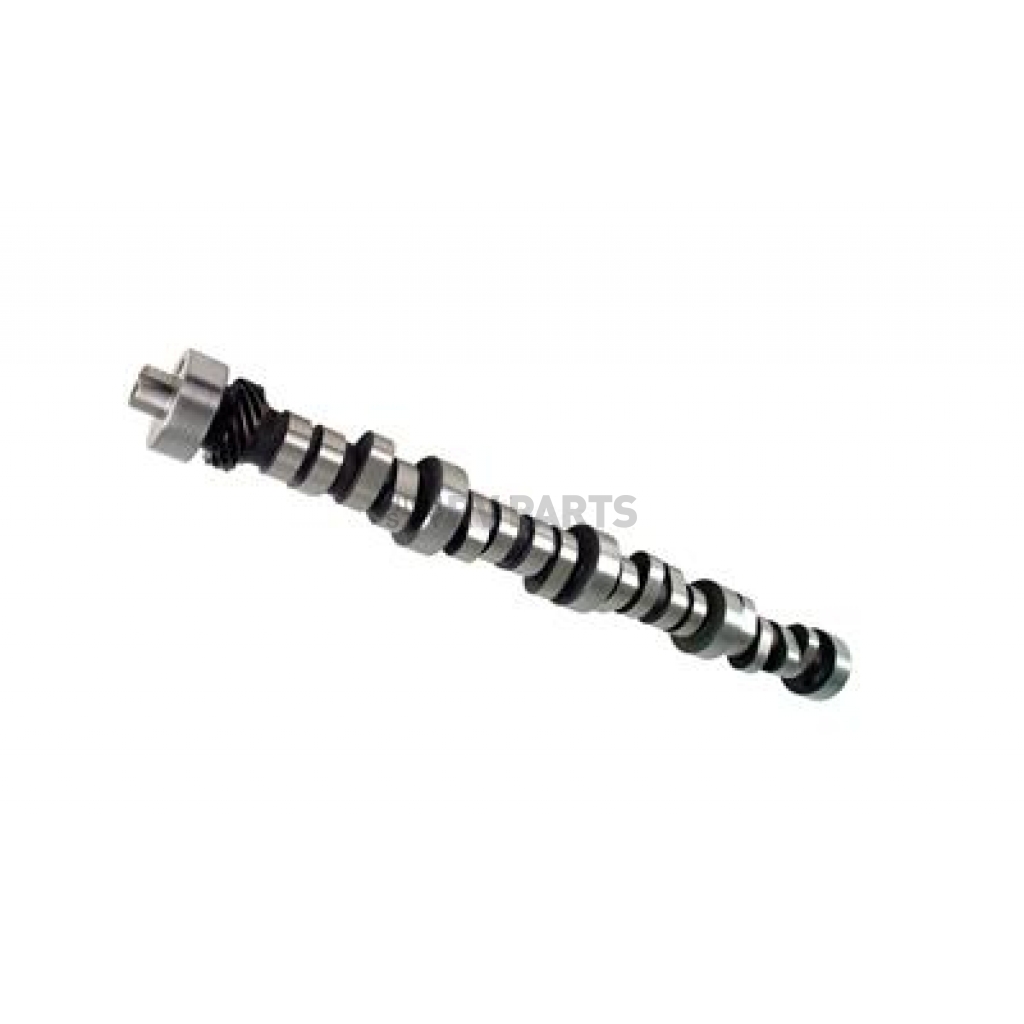

COMP Cams Camshaft

Camshaft; XFI ™; Ford Windsor Small Block 5.0L/302 Cubic Inch; Computer Controlled Hydraulic Roller; 3200-6500 RPM Range; 248 Degree Intake Duration @ 0.050 Inch Lift; 258 Degree Exhaust Duration @ 0.050 Inch Lift; 0.608 Inch Intake Valve Lift; 0.608 Inch Exhaust Valve Lift; 114 Degree Lobe Separation

MPN: 357768

COMP Cams(R) has built a reputation for hearing the requests of its customers and delivering high performance Valve train products that exceed those expectations. COMP Cams(R) is proud to announce they have done it again with their new XFI™ Camshafts for Ford 5.0 Liter stroker EFI Engines. The new Camshafts have been specifically designed and optimized for those enthusiasts that demand maximum performance from this unique fuel injected combination.
Engine Compatibility: Ford Small Block V8 5.0L 302 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Roller
RPM - Low: 3200
RPM - High: 6500
Intake Duration At 0.050 Inch Lift (DEG): 248 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 258 Degree
Advertised Intake Duration (DEG): 304 Degree
Advertised Exhaust Duration (DEG): 314 Degree
Intake Valve Lift (IN): 0.608 Inch
Exhaust Valve Lift (IN): 0.608 Inch
Lobe Separation Angle (DEG): 114 Degree
Intake Centerline Angle (DEG): 110 Degree
Grind Number: XFI248HR-14
Computer-Controlled Compatible: Yes

Features

  • Newest And Quickest Lobe Profiles In The Xtreme Family And Provide A Terrific Increase In Performance
  • Feature Wider Lobe Separation Without Loss Of Responsiveness
  • Work Well With Aftermarket Cylinder Heads And Feature High Lift
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 357768
Advertised Exhaust Duration (DEG) 314 Degree
Advertised Intake Duration (DEG) 304 Degree
Computer-Controlled Compatible Yes
Engine Compatibility Ford Small Block V8 5.0L 302 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 258 Degree
Exhaust Valve Lift (IN) 0.608 Inch
Grind Number XFI248HR-14
Intake Centerline Angle (DEG) 110 Degree
Intake Duration At 0.050 Inch Lift (DEG) 248 Degree
Intake Valve Lift (IN) 0.608 Inch
Lobe Separation Angle (DEG) 114 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 6500
RPM - Low 3200
Type Hydraulic Roller

1900 Ford Small Block 221-351W
