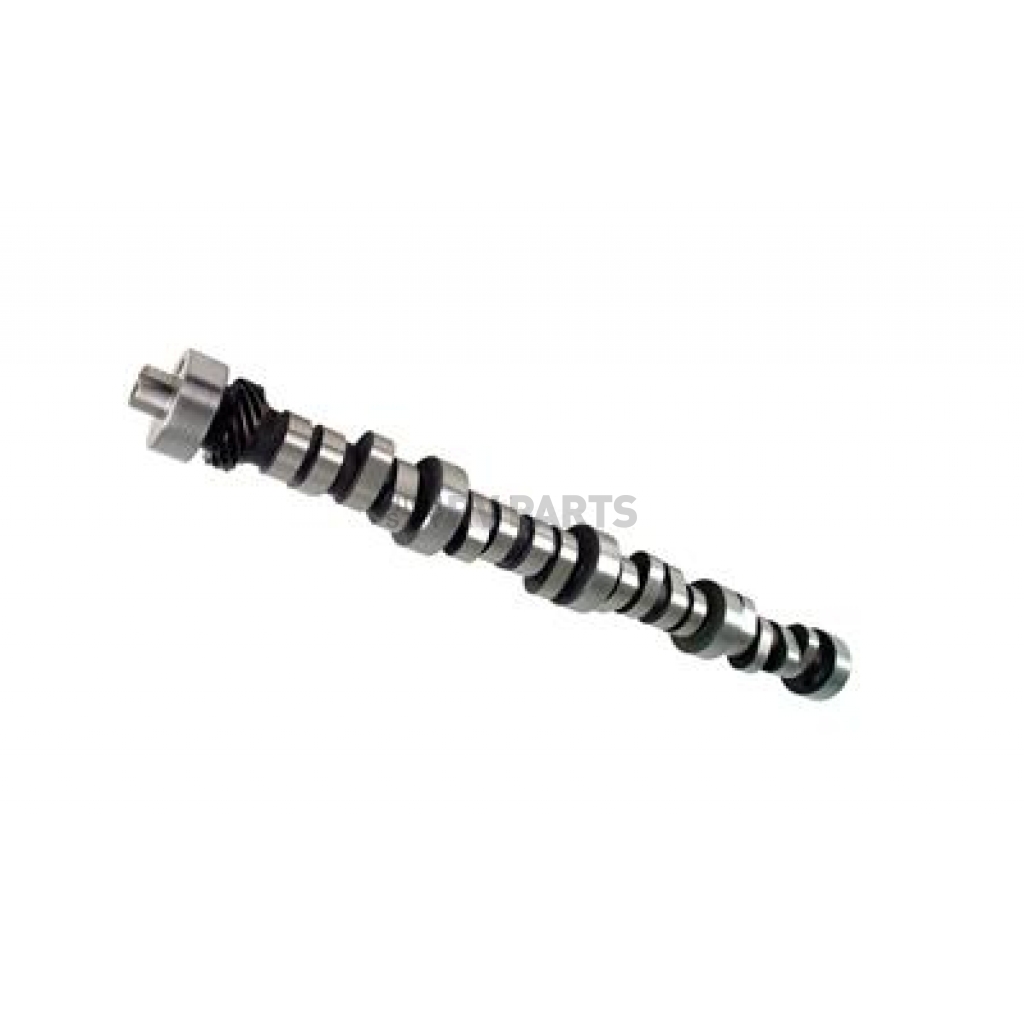

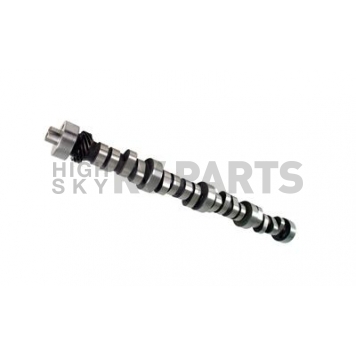

COMP Cams Camshaft 353028

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 35-302-8
  • Part Location: U.S.
  • Availability: 1 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 10
Retail: $505.04
Price: $480.99
You Save: $24.05
Advertised Exhaust Duration (DEG)
284 Degree
Advertised Intake Duration (DEG)
281 Degree
Computer-Controlled Compatible
Yes
Engine Compatibility
Ford Small Block V8 5.0L 302 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
224 Degree
Exhaust Valve Lift (IN)
0.533 Inch
Grind Number
281HR
Intake Centerline Angle (DEG)
108 Degree
Intake Duration At 0.050 Inch Lift (DEG)
220 Degree
Intake Valve Lift (IN)
0.512 Inch
Lobe Separation Angle (DEG)
112 Degree
Share this page

COMP Cams Camshaft

Camshaft; Magnum; Ford Windsor Small Block 5.0L/302 Cubic Inch; Computer Controlled Hydraulic Roller; 2000-5500 RPM Range; 220 Degree Intake Duration @ 0.050 Inch Lift; 224 Degree Exhaust Duration @ 0.050 Inch Lift; 0.512 Inch Intake Valve Lift; 0.533 Inch Exhaust Valve Lift; 112 Degree Lobe Separation

MPN: 353028

Magnum Camshafts are specifically designed for racing or high performance street applications by Engine builders looking for more power and that Pro Street sound. In addition, Engine idle characteristics will change significantly due to the increased duration and overlap specifications of the camshaft. Magnum cams are high performance components. Using a Magnum 280 Camshaft can net as much as 100 additional peak Engine Horsepower. Magnum 292 and 305 Camshafts can generate even more power but require piston to Valve clearance checks and the installation of a higher performing torque converter for automatic transmission equipped vehicles. Magnum Camshafts may work with new stock lifters, however, we recommend that you use COMP Cams® high performance lifters due to their higher quality and specifically designed bleed rate.
Engine Compatibility: Ford Small Block V8 5.0L 302 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Roller
RPM - Low: 2000
RPM - High: 5500
Intake Duration At 0.050 Inch Lift (DEG): 220 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 224 Degree
Advertised Intake Duration (DEG): 281 Degree
Advertised Exhaust Duration (DEG): 284 Degree
Intake Valve Lift (IN): 0.512 Inch
Exhaust Valve Lift (IN): 0.533 Inch
Lobe Separation Angle (DEG): 112 Degree
Intake Centerline Angle (DEG): 108 Degree
Grind Number: 281HR
Computer-Controlled Compatible: Yes

Features

  • Specifically Designed For Racing Or High Performance Street Applications By Engine Builders Looking For More Power And That Pro Street Sound
  • Using A Magnum 280 Camshaft Can Net As Much As 100 Additional Peak Engine Horsepower
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 353028
Advertised Exhaust Duration (DEG) 284 Degree
Advertised Intake Duration (DEG) 281 Degree
Computer-Controlled Compatible Yes
Engine Compatibility Ford Small Block V8 5.0L 302 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 224 Degree
Exhaust Valve Lift (IN) 0.533 Inch
Grind Number 281HR
Intake Centerline Angle (DEG) 108 Degree
Intake Duration At 0.050 Inch Lift (DEG) 220 Degree
Intake Valve Lift (IN) 0.512 Inch
Lobe Separation Angle (DEG) 112 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 5500
RPM - Low 2000
Type Hydraulic Roller
