COMP Cams Camshaft 347719

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 34-771-9
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 21
Retail: $685.64
Price: $652.99
You Save: $32.65
Advertised Exhaust Duration (DEG)
286 Degree
Advertised Intake Duration (DEG)
280 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Ford Big Block V8 429-460 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
248 Degree
Exhaust Valve Lift (IN)
0.664 Inch
Grind Number
XR280R-10
Intake Centerline Angle (DEG)
106 Degree
Intake Duration At 0.050 Inch Lift (DEG)
242 Degree
Intake Valve Lift (IN)
0.657 Inch
Lobe Separation Angle (DEG)
110 Degree
Share this page

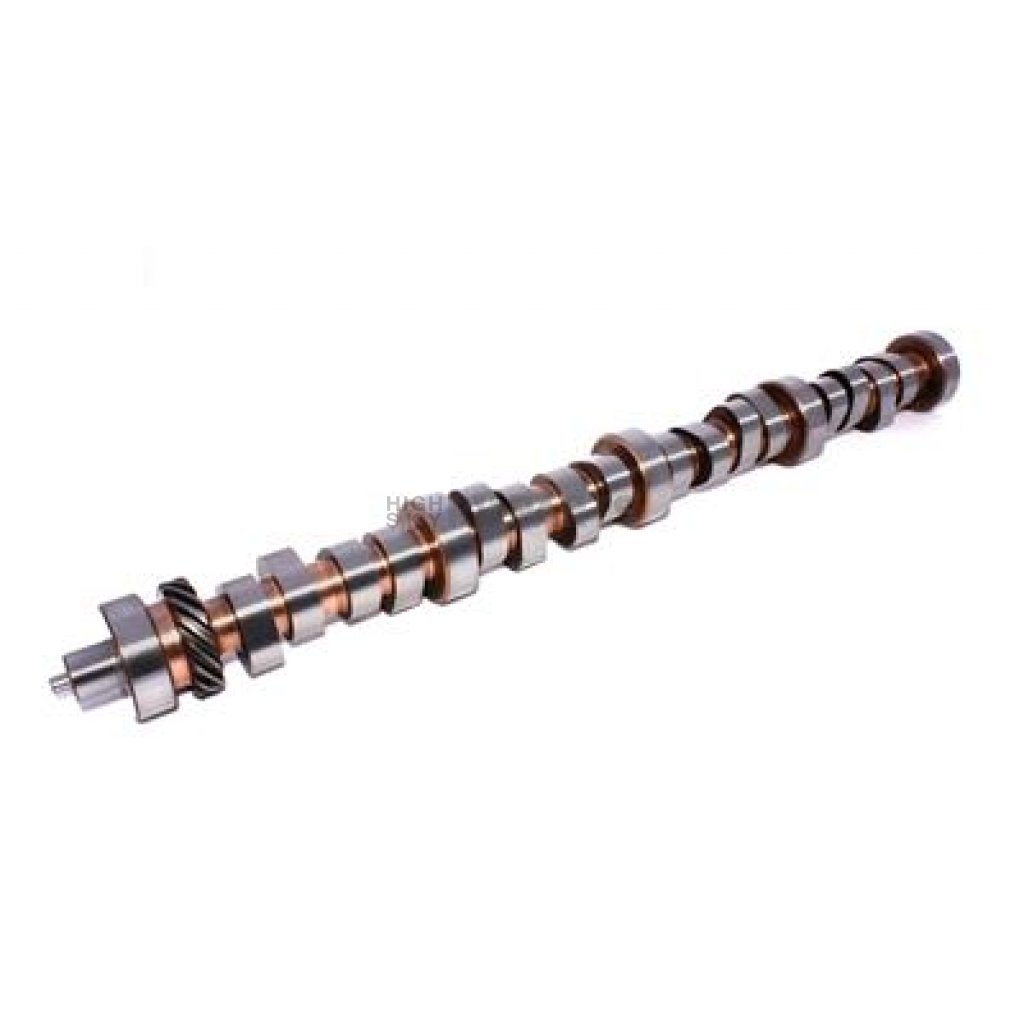

COMP Cams Camshaft

Camshaft; Xtreme Energy ™; Ford Big Block 7.0L-7.5L/429-460 Cubic Inch; Mechanical Roller; 2500-6500 RPM Range; 242 Degree Intake Duration @ 0.050 Inch Lift; 248 Degree Exhaust Duration @ 0.050 Inch Lift; 0.657 Inch Intake Valve Lift; 0.664 Inch Exhaust Valve Lift; 110 Degree Lobe Separation

MPN: 347719

Xtreme Energy Cams™ are designed to take advantage of the latest improvements in Valve train components and the newest developments in Camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased Engine vacuum. Can be used in any street or street/Strip application where both throttle response and top end Horsepower are desired. Because these Camshafts use aggressive lobe designs, it is imperative that Valve springs, locks, retainers, pushrods, lifters, Rocker Arms and other related components be matched to the camshaft.
Engine Compatibility: Ford Big Block V8 429-460 Cubic Inch
Recommended Use: Serious Street Performance To All-Out Racing
Type: Mechanical Roller
RPM - Low: 2500
RPM - High: 6500
Intake Duration At 0.050 Inch Lift (DEG): 242 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 248 Degree
Advertised Intake Duration (DEG): 280 Degree
Advertised Exhaust Duration (DEG): 286 Degree
Intake Valve Lift (IN): 0.657 Inch
Exhaust Valve Lift (IN): 0.664 Inch
Lobe Separation Angle (DEG): 110 Degree
Intake Centerline Angle (DEG): 106 Degree
Grind Number: XR280R-10
Computer-Controlled Compatible: No

Features

  • Quicker Opening Lobe Profiles Deliver Increased Responsiveness And More Area Under The Lift Curve
  • More Vacuum Allows A Step Up In Duration For Greater Performance
  • Excellent All Around Performance In Street Carbureted Applications
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 347719
Advertised Exhaust Duration (DEG) 286 Degree
Advertised Intake Duration (DEG) 280 Degree
Computer-Controlled Compatible No
Engine Compatibility Ford Big Block V8 429-460 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 248 Degree
Exhaust Valve Lift (IN) 0.664 Inch
Grind Number XR280R-10
Intake Centerline Angle (DEG) 106 Degree
Intake Duration At 0.050 Inch Lift (DEG) 242 Degree
Intake Valve Lift (IN) 0.657 Inch
Lobe Separation Angle (DEG) 110 Degree
Recommended Use Serious Street Performance To All-Out Racing
RPM - High 6500
RPM - Low 2500
Type Mechanical Roller
