COMP Cams Camshaft 344329

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 34-432-9
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 02
Retail: $716.09
Price: $681.99
You Save: $34.10
Advertised Exhaust Duration (DEG)
288 Degree
Advertised Intake Duration (DEG)
282 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Ford Big Block V8 429-460 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
236 Degree
Exhaust Valve Lift (IN)
0.532 Inch
Grind Number
XR280HR
Intake Centerline Angle (DEG)
106 Degree
Intake Duration At 0.050 Inch Lift (DEG)
230 Degree
Intake Valve Lift (IN)
0.521 Inch
Lobe Separation Angle (DEG)
110 Degree
Share this page

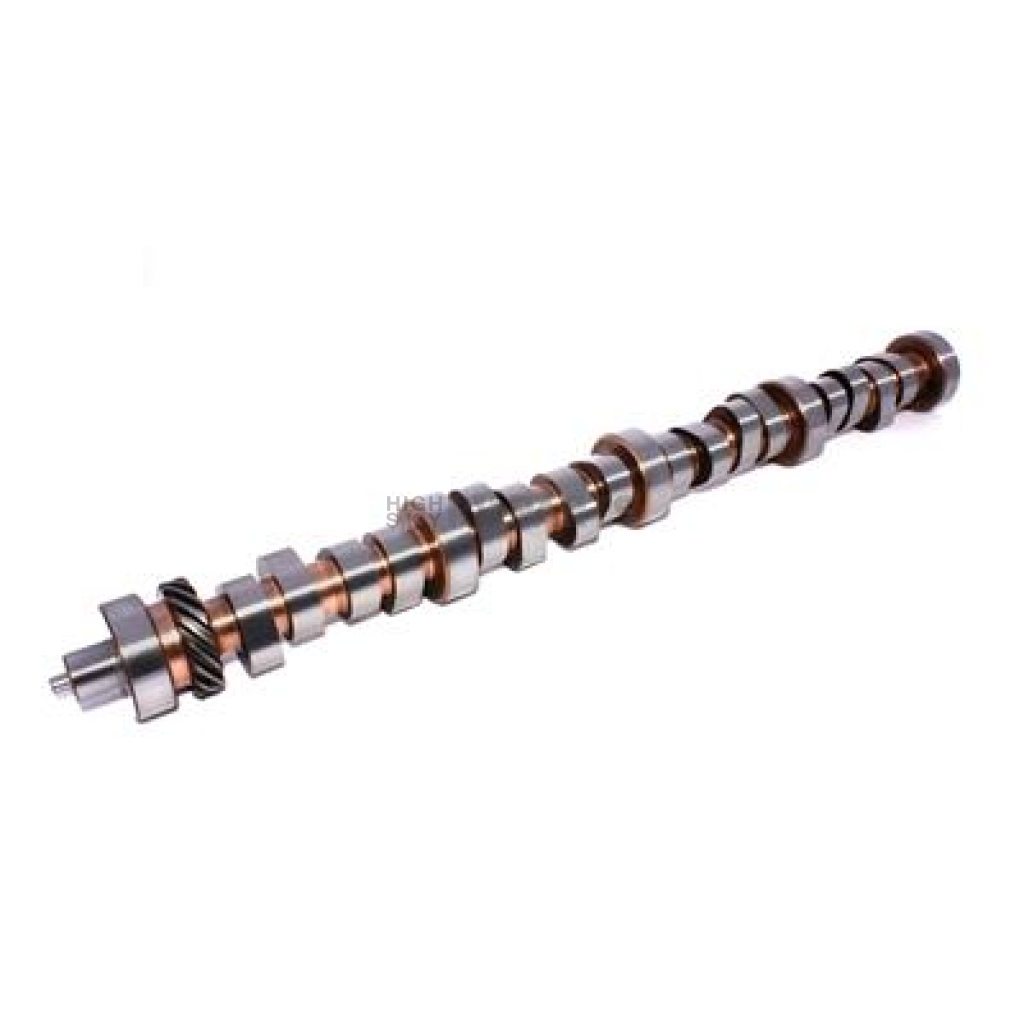

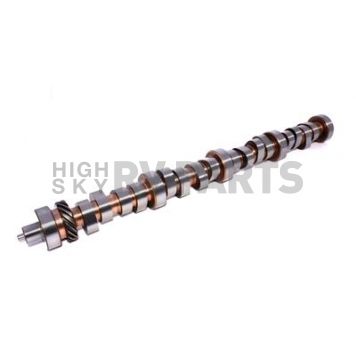

COMP Cams Camshaft

Camshaft; Xtreme Energy ™; Ford Big Block 7.0L-7.5L/429-460 Cubic Inch; Retro-Fit Hydraulic Roller; 2200-5800 RPM Range; 230 Degree Intake Duration @ 0.050 Inch Lift; 236 Degree Exhaust Duration @ 0.050 Inch Lift; 0.521 Inch Intake Valve Lift; 0.532 Inch Exhaust Valve Lift; 110 Degree Lobe Separation

MPN: 344329

Xtreme Energy Cams™ are designed to take advantage of the latest improvements in Valve train components and the newest developments in Camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased Engine vacuum. Can be used in any street or street/Strip application where both throttle response and top end Horsepower are desired. Because these Camshafts use aggressive lobe designs, it is imperative that Valve springs, locks, retainers, pushrods, lifters, Rocker Arms and other related components be matched to the camshaft.
Engine Compatibility: Ford Big Block V8 429-460 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Retro-Fit Hydraulic Roller
RPM - Low: 2200
RPM - High: 5800
Intake Duration At 0.050 Inch Lift (DEG): 230 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 236 Degree
Advertised Intake Duration (DEG): 282 Degree
Advertised Exhaust Duration (DEG): 288 Degree
Intake Valve Lift (IN): 0.521 Inch
Exhaust Valve Lift (IN): 0.532 Inch
Lobe Separation Angle (DEG): 110 Degree
Intake Centerline Angle (DEG): 106 Degree
Grind Number: XR280HR
Computer-Controlled Compatible: No

Features

  • Quicker Opening Lobe Profiles Deliver Increased Responsiveness And More Area Under The Lift Curve
  • More Vacuum Allows A Step Up In Duration For Greater Performance
  • Excellent All Around Performance In Street Carbureted Applications
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 344329
Advertised Exhaust Duration (DEG) 288 Degree
Advertised Intake Duration (DEG) 282 Degree
Computer-Controlled Compatible No
Engine Compatibility Ford Big Block V8 429-460 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 236 Degree
Exhaust Valve Lift (IN) 0.532 Inch
Grind Number XR280HR
Intake Centerline Angle (DEG) 106 Degree
Intake Duration At 0.050 Inch Lift (DEG) 230 Degree
Intake Valve Lift (IN) 0.521 Inch
Lobe Separation Angle (DEG) 110 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 5800
RPM - Low 2200
Type Retro-Fit Hydraulic Roller

1900 Ford 352-428 FE

1900 Ford 429-460

1969 Ford Country Sedan
1970 Ford Country Sedan
1971 Ford Country Sedan
1972 Ford Country Sedan
1973 Ford Country Sedan
1974 Ford Country Sedan

1969 Ford Country Squire
1970 Ford Country Squire
1971 Ford Country Squire
1972 Ford Country Squire
1973 Ford Country Squire
1974 Ford Country Squire

1969 Ford Custom
1970 Ford Custom
1971 Ford Custom
1972 Ford Custom

1969 Ford Custom 500
1970 Ford Custom 500
1971 Ford Custom 500
1972 Ford Custom 500
1973 Ford Custom 500
1974 Ford Custom 500
1975 Ford Custom 500
1976 Ford Custom 500

1978 Ford E-100 Econoline

1975 Ford E-250 Econoline
1976 Ford E-250 Econoline
1977 Ford E-250 Econoline
1978 Ford E-250 Econoline
1979 Ford E-250 Econoline
1980 Ford E-250 Econoline

1975 Ford E-250 Econoline Club Wagon
1976 Ford E-250 Econoline Club Wagon
1977 Ford E-250 Econoline Club Wagon
1978 Ford E-250 Econoline Club Wagon
1979 Ford E-250 Econoline Club Wagon
1980 Ford E-250 Econoline Club Wagon
1981 Ford E-250 Econoline Club Wagon
1982 Ford E-250 Econoline Club Wagon
1983 Ford E-250 Econoline Club Wagon
1984 Ford E-250 Econoline Club Wagon
1985 Ford E-250 Econoline Club Wagon
1986 Ford E-250 Econoline Club Wagon
1987 Ford E-250 Econoline Club Wagon
1988 Ford E-250 Econoline Club Wagon
1989 Ford E-250 Econoline Club Wagon
1990 Ford E-250 Econoline Club Wagon
1991 Ford E-250 Econoline Club Wagon

1975 Ford E-350 Econoline
1976 Ford E-350 Econoline
1977 Ford E-350 Econoline
1978 Ford E-350 Econoline
1979 Ford E-350 Econoline
1980 Ford E-350 Econoline
1981 Ford E-350 Econoline
1982 Ford E-350 Econoline
1983 Ford E-350 Econoline
1984 Ford E-350 Econoline
1985 Ford E-350 Econoline
1986 Ford E-350 Econoline
1987 Ford E-350 Econoline
1988 Ford E-350 Econoline
1989 Ford E-350 Econoline
1990 Ford E-350 Econoline
1991 Ford E-350 Econoline
1992 Ford E-350 Econoline
1993 Ford E-350 Econoline
1994 Ford E-350 Econoline
1995 Ford E-350 Econoline

1977 Ford E-350 Econoline Club Wagon
1978 Ford E-350 Econoline Club Wagon
1979 Ford E-350 Econoline Club Wagon
1980 Ford E-350 Econoline Club Wagon
1981 Ford E-350 Econoline Club Wagon
1982 Ford E-350 Econoline Club Wagon
1983 Ford E-350 Econoline Club Wagon
1984 Ford E-350 Econoline Club Wagon
1985 Ford E-350 Econoline Club Wagon
1986 Ford E-350 Econoline Club Wagon
1987 Ford E-350 Econoline Club Wagon
1988 Ford E-350 Econoline Club Wagon
1989 Ford E-350 Econoline Club Wagon
1990 Ford E-350 Econoline Club Wagon
1991 Ford E-350 Econoline Club Wagon
1992 Ford E-350 Econoline Club Wagon
1993 Ford E-350 Econoline Club Wagon
1994 Ford E-350 Econoline Club Wagon
1995 Ford E-350 Econoline Club Wagon

1975 Ford Elite
1976 Ford Elite

1988 Ford F Super Duty
1989 Ford F Super Duty
1990 Ford F Super Duty
1991 Ford F Super Duty
1992 Ford F Super Duty
1993 Ford F Super Duty
1994 Ford F Super Duty
1995 Ford F Super Duty
