COMP Cams Camshaft 332504

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 33-250-4
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 22
Retail: $384.29
Price: $365.99
You Save: $18.30
Advertised Exhaust Duration (DEG)
296 Degree
Advertised Intake Duration (DEG)
284 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Ford Big Block V8 352-428 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
246 Degree
Exhaust Valve Lift (IN)
0.588 Inch
Grind Number
XE284H
Intake Centerline Angle (DEG)
106 Degree
Intake Duration At 0.050 Inch Lift (DEG)
240 Degree
Intake Valve Lift (IN)
0.584 Inch
Lobe Separation Angle (DEG)
110 Degree
Share this page

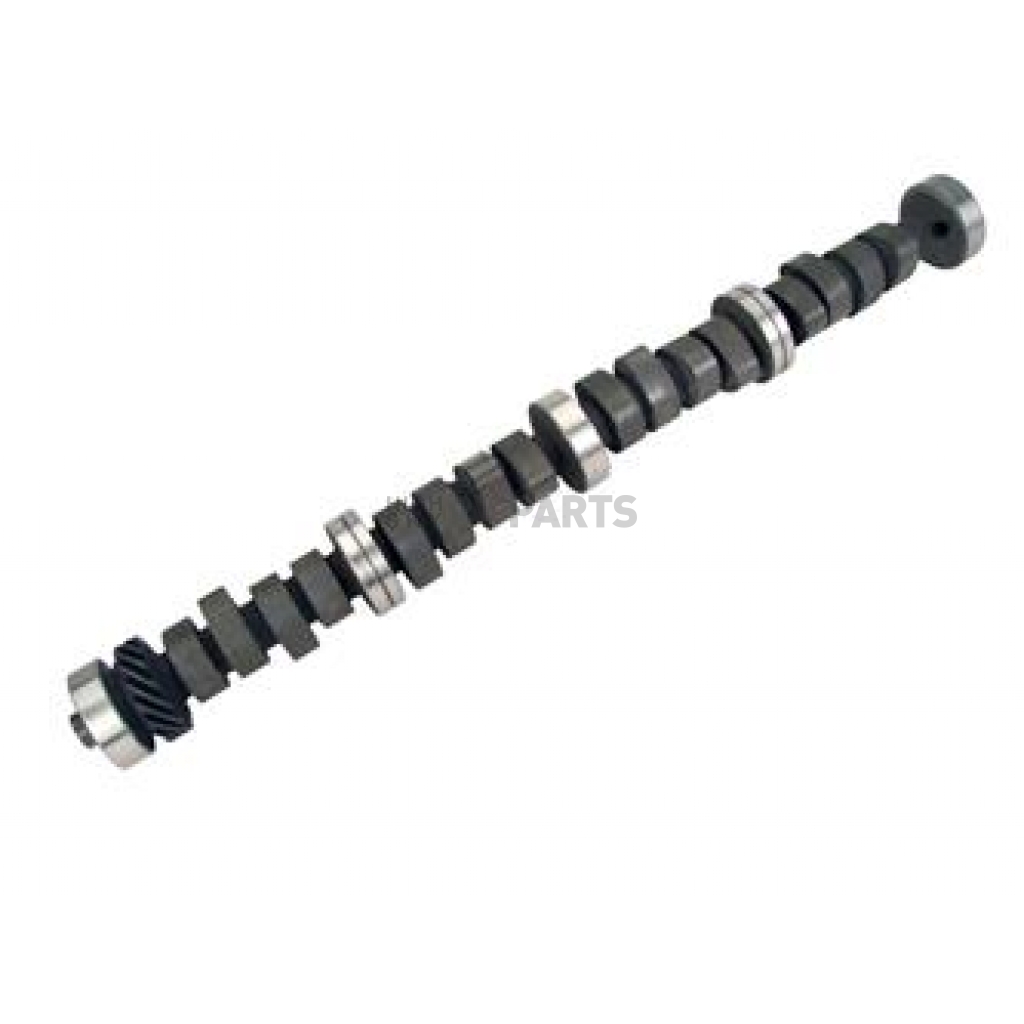

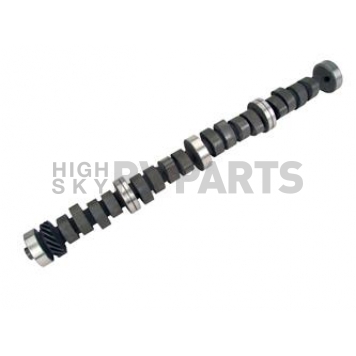

COMP Cams Camshaft

Camshaft; Xtreme Energy ™; Ford FE Big Block 5.8L-7.0L/352-428 Cubic Inch; Hydraulic Flat Tappet; 2300-6500 RPM Range; 240 Degree Intake Duration @ 0.050 Inch Lift; 246 Degree Exhaust Duration @ 0.050 Inch Lift; 0.584 Inch Intake Valve Lift; 0.588 Inch Exhaust Valve Lift; 110 Degree Lobe Separation

MPN: 332504

Xtreme Energy Cams™ are designed to take advantage of the latest improvements in Valve train components and the newest developments in Camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased Engine vacuum. Can be used in any street or street/Strip application where both throttle response and top end Horsepower are desired. Because these Camshafts use aggressive lobe designs, it is imperative that Valve springs, locks, retainers, pushrods, lifters, Rocker Arms and other related components be matched to the camshaft.
Engine Compatibility: Ford Big Block V8 352-428 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Flat Tappet
RPM - Low: 2300
RPM - High: 6500
Intake Duration At 0.050 Inch Lift (DEG): 240 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 246 Degree
Advertised Intake Duration (DEG): 284 Degree
Advertised Exhaust Duration (DEG): 296 Degree
Intake Valve Lift (IN): 0.584 Inch
Exhaust Valve Lift (IN): 0.588 Inch
Lobe Separation Angle (DEG): 110 Degree
Intake Centerline Angle (DEG): 106 Degree
Grind Number: XE284H
Computer-Controlled Compatible: No

Features

  • Quicker Opening Lobe Profiles Deliver Increased Responsiveness And More Area Under The Lift Curve
  • More Vacuum Allows A Step Up In Duration For Greater Performance
  • Excellent All Around Performance In Street Carbureted Applications
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 332504
Advertised Exhaust Duration (DEG) 296 Degree
Advertised Intake Duration (DEG) 284 Degree
Computer-Controlled Compatible No
Engine Compatibility Ford Big Block V8 352-428 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 246 Degree
Exhaust Valve Lift (IN) 0.588 Inch
Grind Number XE284H
Intake Centerline Angle (DEG) 106 Degree
Intake Duration At 0.050 Inch Lift (DEG) 240 Degree
Intake Valve Lift (IN) 0.584 Inch
Lobe Separation Angle (DEG) 110 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 6500
RPM - Low 2300
Type Hydraulic Flat Tappet
