COMP Cams Camshaft 207429

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 20-742-9
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 22
Retail: $685.64
Price: $652.99
You Save: $32.65
Advertised Exhaust Duration (DEG)
280 Degree
Advertised Intake Duration (DEG)
274 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Chrysler Small Block V8 273-360 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
242 Degree
Exhaust Valve Lift (IN)
0.57 Inch
Grind Number
XR274R
Intake Centerline Angle (DEG)
106 Degree
Intake Duration At 0.050 Inch Lift (DEG)
236 Degree
Intake Valve Lift (IN)
0.564 Inch
Lobe Separation Angle (DEG)
110 Degree
Share this page

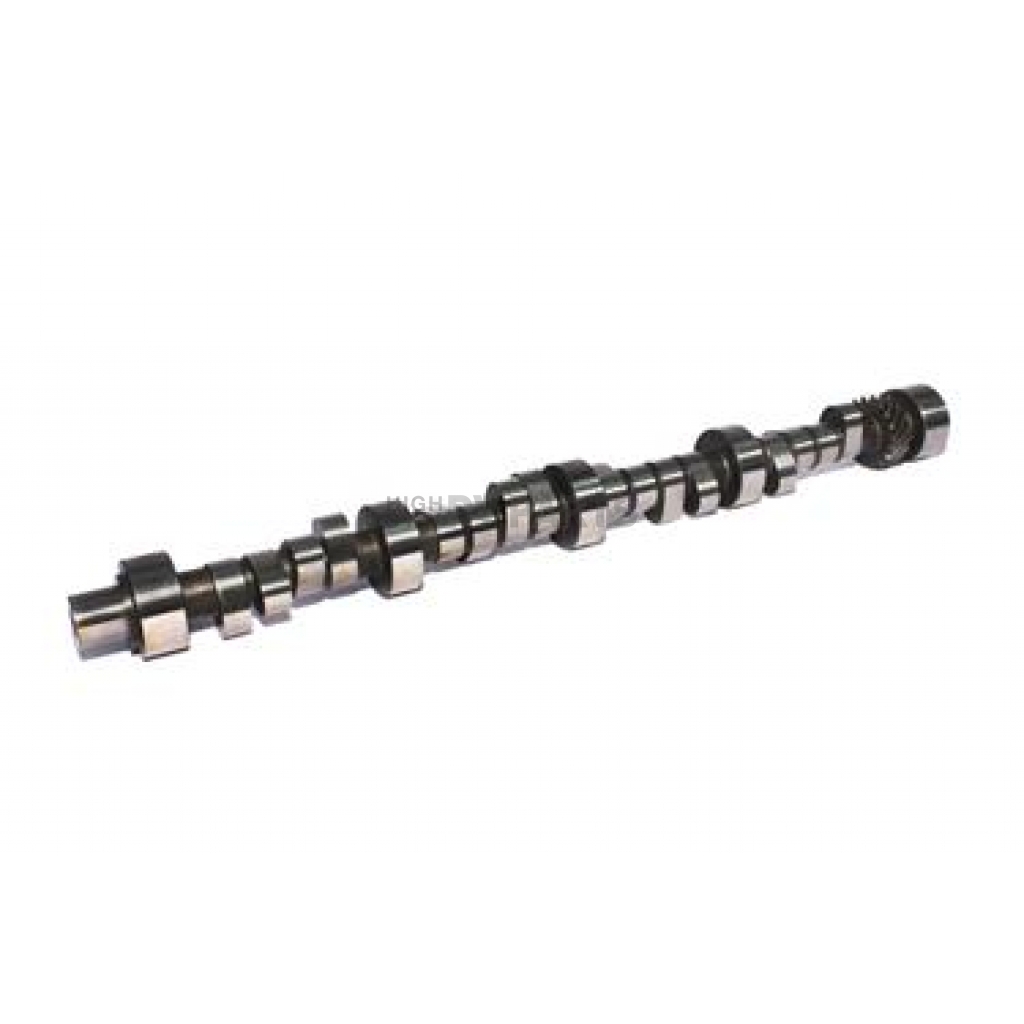

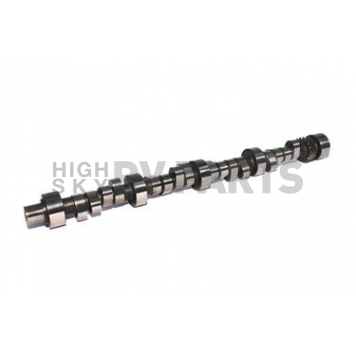

COMP Cams Camshaft

Camshaft; Xtreme Energy ™; Chrysler 4.5L-5.9L/273-360 Cubic Inch; Mechanical Roller; 2200-6300 RPM Range; 236 Degree Intake Duration @ 0.050 Inch Lift; 242 Degree Exhaust Duration @ 0.050 Inch Lift; 0.564 Inch Intake Valve Lift; 0.570 Inch Exhaust Valve Lift; 110 Degree Lobe Separation

MPN: 207429

Xtreme Energy Cams™ are designed to take advantage of the latest improvements in Valve train components and the newest developments in Camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased Engine vacuum. Can be used in any street or street/Strip application where both throttle response and top end Horsepower are desired. Because these Camshafts use aggressive lobe designs, it is imperative that Valve springs, locks, retainers, pushrods, lifters, Rocker Arms and other related components be matched to the camshaft.
Engine Compatibility: Chrysler Small Block V8 273-360 Cubic Inch
Recommended Use: Serious Street Performance To All-Out Racing
Type: Mechanical Roller
RPM - Low: 2200
RPM - High: 6300
Intake Duration At 0.050 Inch Lift (DEG): 236 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 242 Degree
Advertised Intake Duration (DEG): 274 Degree
Advertised Exhaust Duration (DEG): 280 Degree
Intake Valve Lift (IN): 0.564 Inch
Exhaust Valve Lift (IN): 0.57 Inch
Lobe Separation Angle (DEG): 110 Degree
Intake Centerline Angle (DEG): 106 Degree
Grind Number: XR274R
Computer-Controlled Compatible: No

Features

  • Quicker Opening Lobe Profiles Deliver Increased Responsiveness And More Area Under The Lift Curve
  • More Vacuum Allows A Step Up In Duration For Greater Performance
  • Excellent All Around Performance In Street Carbureted Applications
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 207429
Advertised Exhaust Duration (DEG) 280 Degree
Advertised Intake Duration (DEG) 274 Degree
Computer-Controlled Compatible No
Engine Compatibility Chrysler Small Block V8 273-360 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 242 Degree
Exhaust Valve Lift (IN) 0.57 Inch
Grind Number XR274R
Intake Centerline Angle (DEG) 106 Degree
Intake Duration At 0.050 Inch Lift (DEG) 236 Degree
Intake Valve Lift (IN) 0.564 Inch
Lobe Separation Angle (DEG) 110 Degree
Recommended Use Serious Street Performance To All-Out Racing
RPM - High 6300
RPM - Low 2200
Type Mechanical Roller

1900 Chrysler 273-360 LA
