COMP Cams Camshaft 207409
Advertised Exhaust Duration (DEG)
292 Degree
Advertised Intake Duration (DEG)
286 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Chrysler Small Block V8 273-360 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
254 Degree
Exhaust Valve Lift (IN)
0.582 Inch
Grind Number
XR286R
Intake Centerline Angle (DEG)
106 Degree
Intake Duration At 0.050 Inch Lift (DEG)
248 Degree
Intake Valve Lift (IN)
0.576 Inch
Lobe Separation Angle (DEG)
110 Degree
Share this page

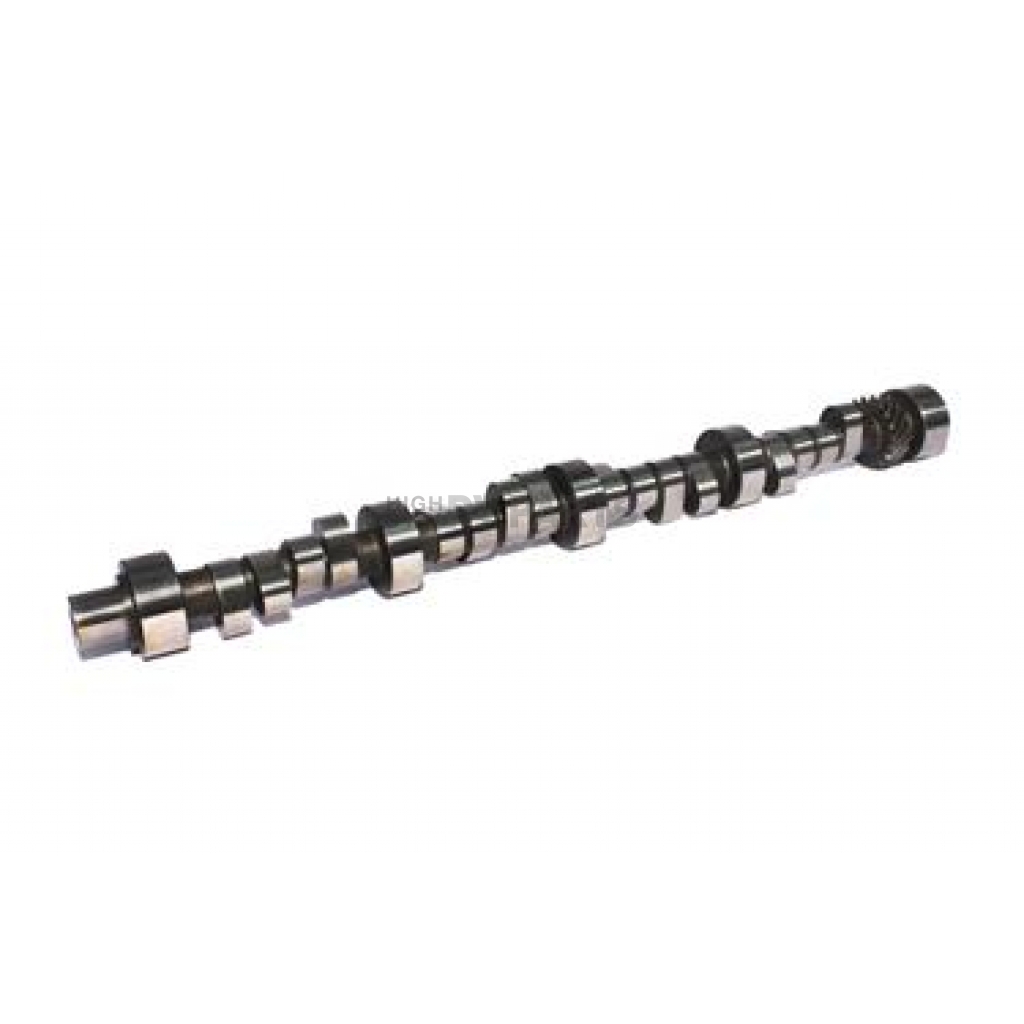

COMP Cams Camshaft
Camshaft; Xtreme Energy ™; Chrysler 4.5L-5.9L/273-360 Cubic Inch; Mechanical Roller; 2800-6800 RPM Range; 248 Degree Intake Duration @ 0.050 Inch Lift; 254 Degree Exhaust Duration @ 0.050 Inch Lift; 0.576 Inch Intake Valve Lift; 0.582 Inch Exhaust Valve Lift; 110 Degree Lobe Separation
MPN: 207409
Xtreme Energy Cams™ are designed to take advantage of the latest improvements in Valve train components and the newest developments in Camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased Engine vacuum. Can be used in any street or street/Strip application where both throttle response and top end Horsepower are desired. Because these Camshafts use aggressive lobe designs, it is imperative that Valve springs, locks, retainers, pushrods, lifters, Rocker Arms and other related components be matched to the camshaft.
Engine Compatibility: Chrysler Small Block V8 273-360 Cubic Inch
Recommended Use: Serious Street Performance To All-Out Racing
Type: Mechanical Roller
RPM - Low: 2800
RPM - High: 6800
Intake Duration At 0.050 Inch Lift (DEG): 248 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 254 Degree
Advertised Intake Duration (DEG): 286 Degree
Advertised Exhaust Duration (DEG): 292 Degree
Intake Valve Lift (IN): 0.576 Inch
Exhaust Valve Lift (IN): 0.582 Inch
Lobe Separation Angle (DEG): 110 Degree
Intake Centerline Angle (DEG): 106 Degree
Grind Number: XR286R
Computer-Controlled Compatible: No
Features
- Quicker Opening Lobe Profiles Deliver Increased Responsiveness And More Area Under The Lift Curve
- More Vacuum Allows A Step Up In Duration For Greater Performance
- Excellent All Around Performance In Street Carbureted Applications
- Limited 1 Year Warranty
| Specifications of COMP Cams Camshaft 207409 | |
| Advertised Exhaust Duration (DEG) | 292 Degree |
| Advertised Intake Duration (DEG) | 286 Degree |
| Computer-Controlled Compatible | No |
| Engine Compatibility | Chrysler Small Block V8 273-360 Cubic Inch |
| Exhaust Duration At 0.050 Inch Lift (DEG) | 254 Degree |
| Exhaust Valve Lift (IN) | 0.582 Inch |
| Grind Number | XR286R |
| Intake Centerline Angle (DEG) | 106 Degree |
| Intake Duration At 0.050 Inch Lift (DEG) | 248 Degree |
| Intake Valve Lift (IN) | 0.576 Inch |
| Lobe Separation Angle (DEG) | 110 Degree |
| Recommended Use | Serious Street Performance To All-Out Racing |
| RPM - High | 6800 |
| RPM - Low | 2800 |
| Type | Mechanical Roller |
1900 Chrysler 273-360 LA
