COMP Cams Camshaft 207169
Advertised Exhaust Duration (DEG)
321 Degree
Advertised Intake Duration (DEG)
314 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Chrysler Small Block V8 273-360 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
288 Degree
Exhaust Valve Lift (IN)
0.664 Inch
Grind Number
314R-10
Intake Centerline Angle (DEG)
110 Degree
Intake Duration At 0.050 Inch Lift (DEG)
281 Degree
Intake Valve Lift (IN)
0.661 Inch
Lobe Separation Angle (DEG)
110 Degree
Share this page

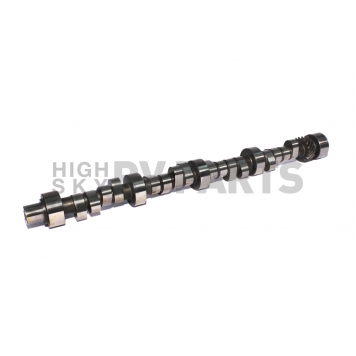

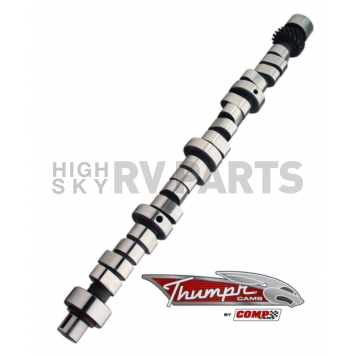

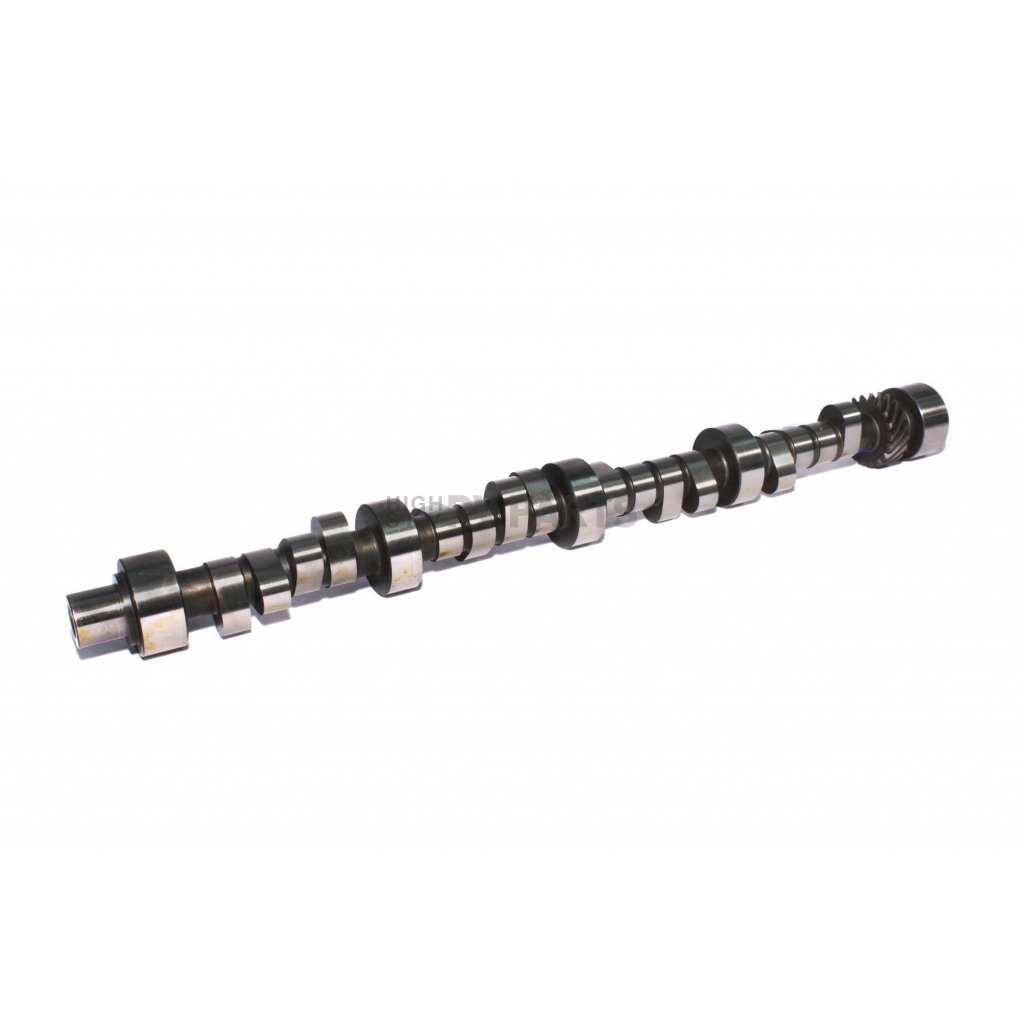

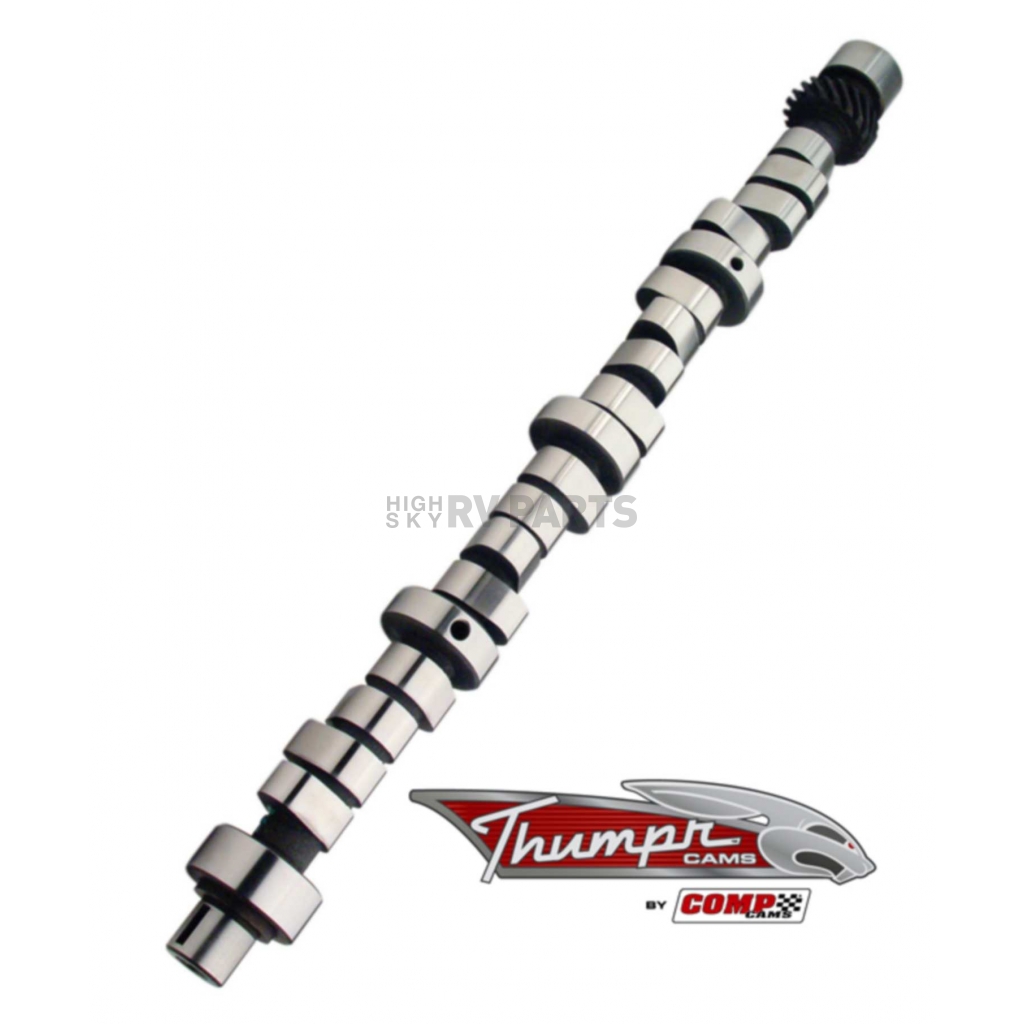

COMP Cams Camshaft
Camshaft; Drag Race; Chrysler 4.5L-5.9L/273-360 Cubic Inch; Mechanical Roller; 5500-8000 RPM Range; 281 Degree Intake Duration @ 0.050 Inch Lift; 288 Degree Exhaust Duration @ 0.050 Inch Lift; 0.661 Inch Intake Valve Lift; 0.664 Inch Exhaust Valve Lift; 110 Degree Lobe Separation
MPN: 207169
The highest of all performance level camshafts; solid rollers are designed for both high performance street through all-out racing applications. They feature the most aggressive Camshaft lobe profiles and withstand the highest Valve Spring pressures. As with their solid flat tappet Camshaft cousins, they are noisier than hydraulic Camshaft systems, particularly when cold, yet they deliver more performance and throttle response, especially when adjusted to “Tight” lash settings of 0.010 Inch To 0.012 Inch. The solid roller Camshaft also uses roller lifters that do not include an adjustment for Valve train component expansion due to internal Engine heat and requires regular lash adjustment service to deliver top performance. Solid roller lifters can be re used, however they are more costly than flat tappet lifters.
Engine Compatibility: Chrysler Small Block V8 273-360 Cubic Inch
Recommended Use: Serious Street Performance To All-Out Racing
Type: Mechanical Roller
RPM - Low: 5500
RPM - High: 8000
Intake Duration At 0.050 Inch Lift (DEG): 281 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 288 Degree
Advertised Intake Duration (DEG): 314 Degree
Advertised Exhaust Duration (DEG): 321 Degree
Intake Valve Lift (IN): 0.661 Inch
Exhaust Valve Lift (IN): 0.664 Inch
Lobe Separation Angle (DEG): 110 Degree
Intake Centerline Angle (DEG): 110 Degree
Grind Number: 314R-10
Computer-Controlled Compatible: No
Features
- Maximum Performance
- Reduced Friction
- Most Aggressive Profiles
- Limited 1 Year Warranty
| Specifications of COMP Cams Camshaft 207169 | |
| Advertised Exhaust Duration (DEG) | 321 Degree |
| Advertised Intake Duration (DEG) | 314 Degree |
| Computer-Controlled Compatible | No |
| Engine Compatibility | Chrysler Small Block V8 273-360 Cubic Inch |
| Exhaust Duration At 0.050 Inch Lift (DEG) | 288 Degree |
| Exhaust Valve Lift (IN) | 0.664 Inch |
| Grind Number | 314R-10 |
| Intake Centerline Angle (DEG) | 110 Degree |
| Intake Duration At 0.050 Inch Lift (DEG) | 281 Degree |
| Intake Valve Lift (IN) | 0.661 Inch |
| Lobe Separation Angle (DEG) | 110 Degree |
| Recommended Use | Serious Street Performance To All-Out Racing |
| RPM - High | 8000 |
| RPM - Low | 5500 |
| Type | Mechanical Roller |
1900 Chrysler 273-360 LA
