COMP Cams Camshaft 206289

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 20-628-9
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 08
Retail: $685.64
Price: $652.99
You Save: $32.65
Advertised Exhaust Duration (DEG)
262 Degree
Advertised Intake Duration (DEG)
254 Degree
Computer-Controlled Compatible
Yes
Engine Compatibility
Chrysler Small Block V8 273-360 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
206 Degree
Exhaust Valve Lift (IN)
0.45 Inch
Grind Number
254HR-12
Intake Centerline Angle (DEG)
108 Degree
Intake Duration At 0.050 Inch Lift (DEG)
199 Degree
Intake Valve Lift (IN)
0.45 Inch
Lobe Separation Angle (DEG)
112 Degree
Share this page

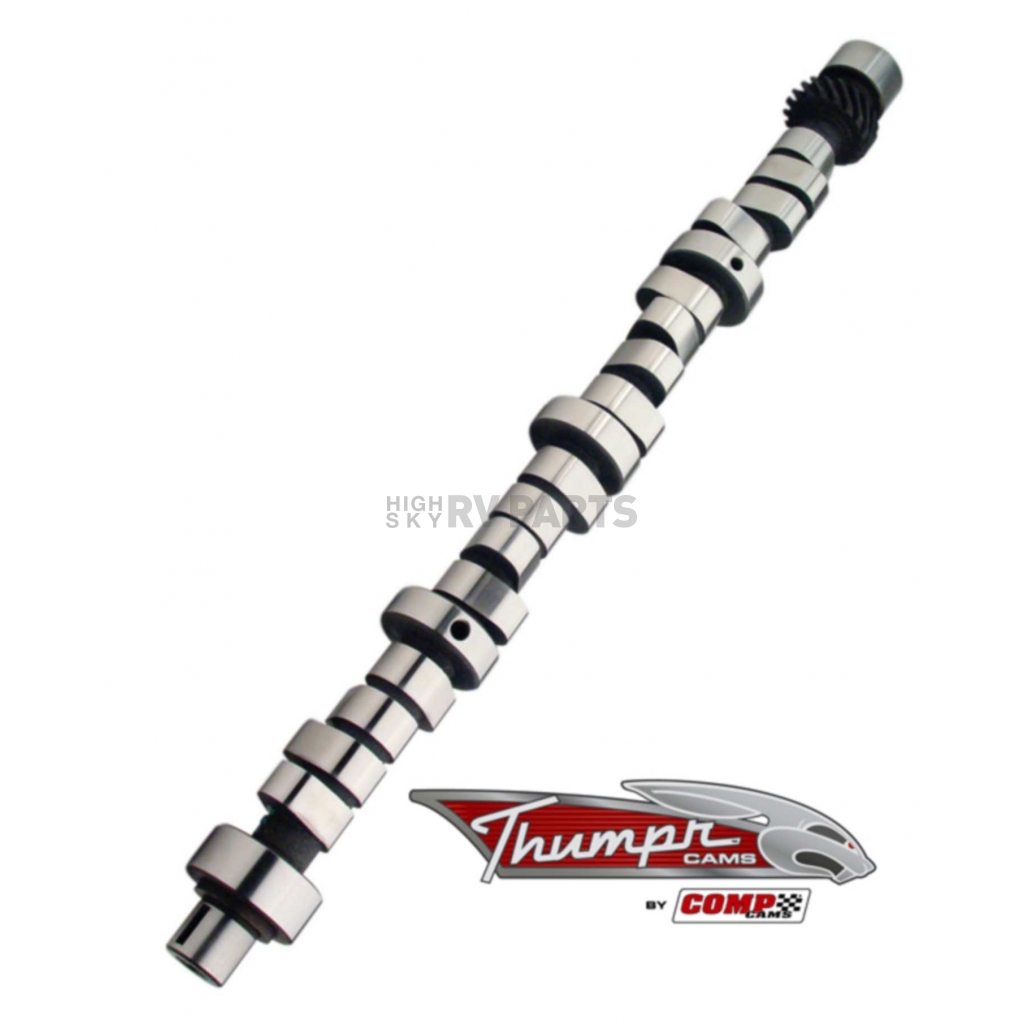

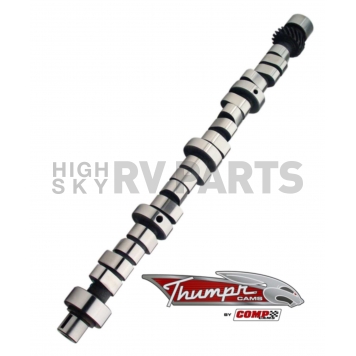

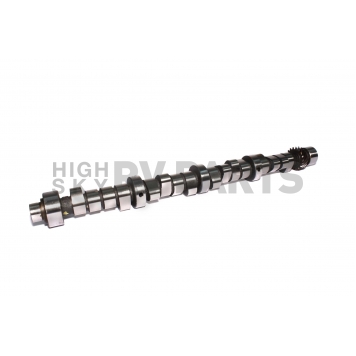

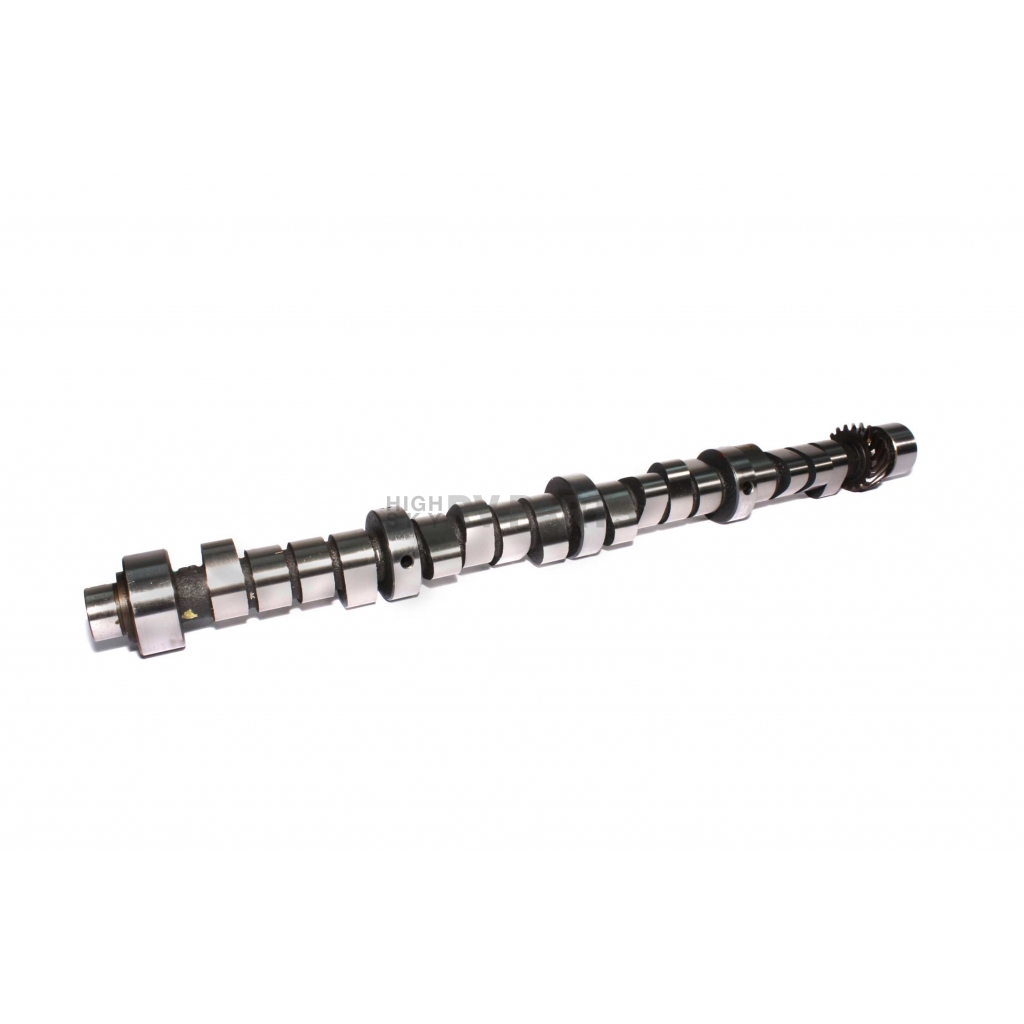

COMP Cams Camshaft

Camshaft; Computer Controlled; For Use With Chrysler 4.5L-5.9L/273-360 Cubic Inch; Hydraulic Roller; 700-4800 RPM Range; 199 Degree Intake Duration @ 0.050 Inch Lift; 206 Degree Exhaust Duration @ 0.050 Inch Lift; 0.450 Inch Intake Valve Lift; 0.450 Inch Exhaust Valve Lift; 112 Degree Lobe Separation

MPN: 206289

For more than three decades, the COMP Cams® mission has never changed: produce the highest performing products possible, provide superior customer service and lead the industry in technological development. By selecting a COMP Cams® product you can have confidence in knowing that we spend thousands of Hours and millions of dollars working with individuals, race teams and companies to ensure that our products provide superior performance and reliability.
Engine Compatibility: Chrysler Small Block V8 273-360 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Roller
RPM - Low: 700
RPM - High: 4800
Intake Duration At 0.050 Inch Lift (DEG): 199 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 206 Degree
Advertised Intake Duration (DEG): 254 Degree
Advertised Exhaust Duration (DEG): 262 Degree
Intake Valve Lift (IN): 0.45 Inch
Exhaust Valve Lift (IN): 0.45 Inch
Lobe Separation Angle (DEG): 112 Degree
Intake Centerline Angle (DEG): 108 Degree
Grind Number: 254HR-12
Computer-Controlled Compatible: Yes

Features

  • Replacement Camshafts For OEM EFI Engines
  • Wide Variety Of Camshaft Sizes Available For Significant Power Gains
  • Available For Electronic Fuel Injected, Throttle Body Injected And Tuned Port Injected Engines
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 206289
Advertised Exhaust Duration (DEG) 262 Degree
Advertised Intake Duration (DEG) 254 Degree
Computer-Controlled Compatible Yes
Engine Compatibility Chrysler Small Block V8 273-360 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 206 Degree
Exhaust Valve Lift (IN) 0.45 Inch
Grind Number 254HR-12
Intake Centerline Angle (DEG) 108 Degree
Intake Duration At 0.050 Inch Lift (DEG) 199 Degree
Intake Valve Lift (IN) 0.45 Inch
Lobe Separation Angle (DEG) 112 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 4800
RPM - Low 700
Type Hydraulic Roller

1900 Chrysler 273-360 LA
