COMP Cams Camshaft 1633015

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 163-301-5
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 21
Retail: $507.14
Price: $482.99
You Save: $24.15
Advertised Exhaust Duration (DEG)
258 Degree
Advertised Intake Duration (DEG)
250 Degree
Engine Compatibility
American Motors 4.0L/199-258 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
213 Degree
Exhaust Valve Lift (IN)
0.507 Inch
Grind Number
J4.0 X4 250L-13
Intake Duration At 0.050 Inch Lift (DEG)
205 Degree
Intake Valve Lift (IN)
0.488 Inch
Lobe Separation Angle (DEG)
113 Degree
RPM - High
5500
RPM - Low
900
Share this page

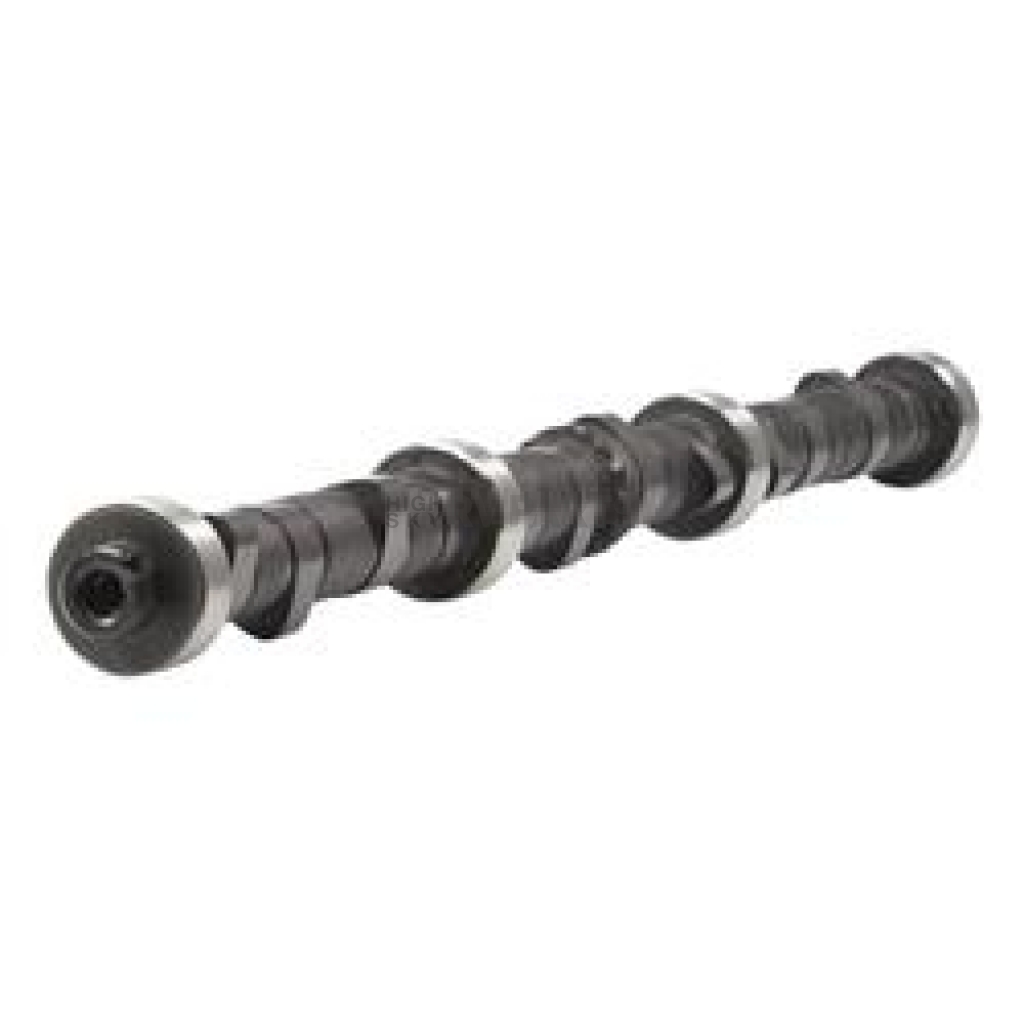

COMP Cams Camshaft

Camshaft; Xtreme 4X4 ™; American Motors 4.0L/199-258 Cubic Inch; Hydraulic Flat Tappet; 900-5500 RPM Range; 205 Degree Intake Duration @ 0.050 Inch Lift; 213 Degree Exhaust Duration @ 0.050 Inch Lift; 0.488 Inch Intake Valve Lift; 0.507 Exhaust Valve Lift; 113 Degree Lobe Separation

MPN: 1633015

The Xtreme 4x4 205/213 Hydraulic Cam for Jeep 4.0L 1999-06 engines offers excellent torque and throttle response and is ideal for use with Edelbrock aluminum heads in EFI applications.
Engine Compatibility: American Motors 4.0L/199-258 Cubic Inch
Type: Hydraulic Flat Tappet
RPM - Low: 900
RPM - High: 5500
Intake Duration At 0.050 Inch Lift (DEG): 205 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 213 Degree
Advertised Intake Duration (DEG): 250 Degree
Advertised Exhaust Duration (DEG): 258 Degree
Intake Valve Lift (IN): 0.488 Inch
Exhaust Valve Lift (IN): 0.507 Inch
Lobe Separation Angle (DEG): 113 Degree
Grind Number: J4.0 X4 250L-13

Features

  • Excellent Torque And Throttle Response
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 1633015
Advertised Exhaust Duration (DEG) 258 Degree
Advertised Intake Duration (DEG) 250 Degree
Engine Compatibility American Motors 4.0L/199-258 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 213 Degree
Exhaust Valve Lift (IN) 0.507 Inch
Grind Number J4.0 X4 250L-13
Intake Duration At 0.050 Inch Lift (DEG) 205 Degree
Intake Valve Lift (IN) 0.488 Inch
Lobe Separation Angle (DEG) 113 Degree
RPM - High 5500
RPM - Low 900
Type Hydraulic Flat Tappet

1999 Jeep Cherokee
2000 Jeep Cherokee
2001 Jeep Cherokee

1999 Jeep Grand Cherokee
2000 Jeep Grand Cherokee
2001 Jeep Grand Cherokee
2002 Jeep Grand Cherokee
2003 Jeep Grand Cherokee
2004 Jeep Grand Cherokee

1999 Jeep Wrangler TJ
2000 Jeep Wrangler TJ
2001 Jeep Wrangler TJ
2002 Jeep Wrangler TJ
2003 Jeep Wrangler TJ
2004 Jeep Wrangler TJ
2005 Jeep Wrangler TJ
2006 Jeep Wrangler TJ
