COMP Cams Camshaft 129209

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 12-920-9
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 09
Retail: $705.59
Price: $671.99
You Save: $33.60
Advertised Exhaust Duration (DEG)
300 Degree
Advertised Intake Duration (DEG)
288 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Chevy Small Block V8 262-400 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
264 Degree
Exhaust Valve Lift (IN)
0.63 Inch
Grind Number
288BR-6
Intake Centerline Angle (DEG)
106 Degree
Intake Duration At 0.050 Inch Lift (DEG)
260 Degree
Intake Valve Lift (IN)
0.66 Inch
Lobe Separation Angle (DEG)
106 Degree
Share this page

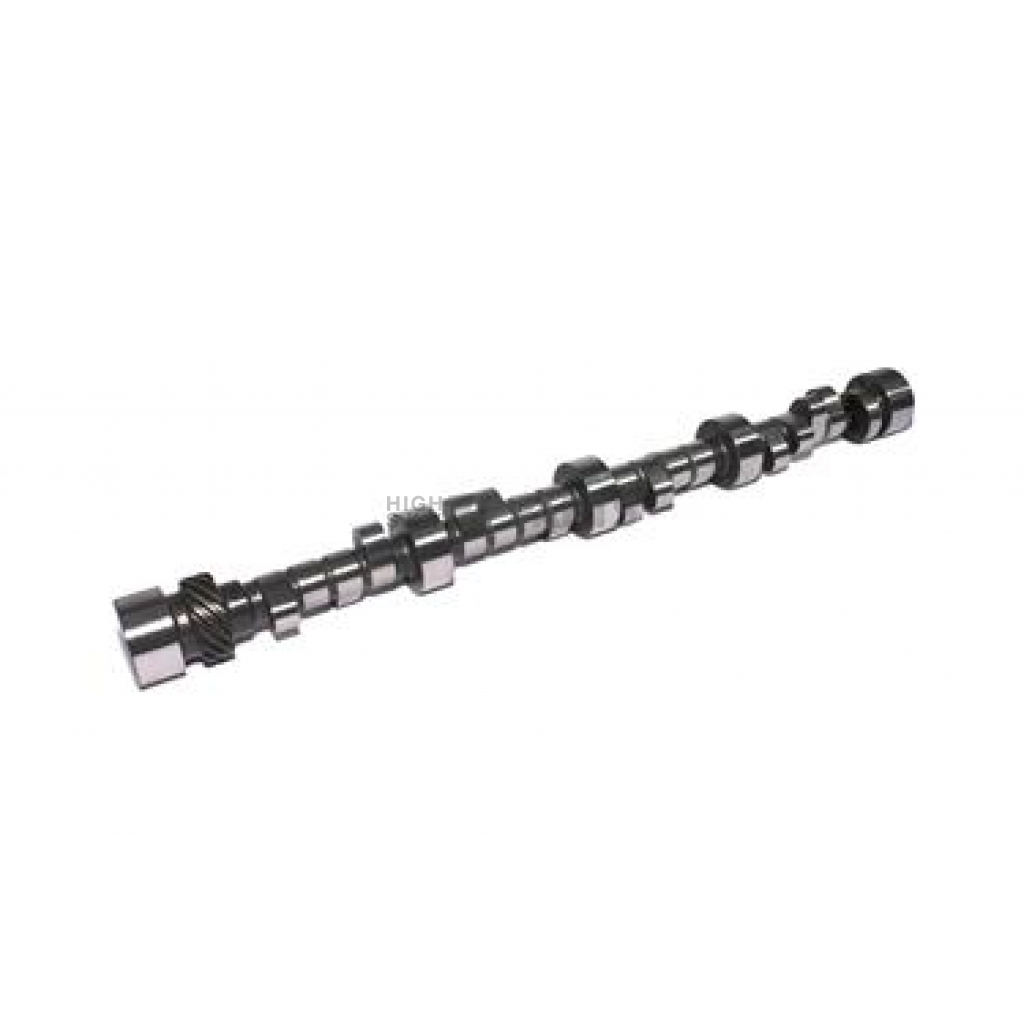

COMP Cams Camshaft

Camshaft; Oval Track; Chevy Small Block 4.3L-6.6L/262-400 Cubic Inch; 0.900 Base Circle Solid Roller Cam; 3800-7000 RPM Range; 260 Degree Intake Duration @ 0.050 Inch Lift; 264 Degree Exhaust Duration @ 0.050 Inch Lift; 0.660 Inch Intake Valve Lift; 0.630 Inch Exhaust Valve Lift; 106 Degree Lobe Separation

MPN: 129209

The highest of all performance level camshafts; solid rollers are designed for both high performance street through all-out racing applications. They feature the most aggressive Camshaft lobe profiles and withstand the highest Valve Spring pressures. As with their solid flat tappet Camshaft cousins, they are noisier than hydraulic Camshaft systems, particularly when cold, yet they deliver more performance and throttle response, especially when adjusted to “Tight” lash settings of 0.010 Inch To 0.012 Inch. The solid roller Camshaft also uses roller lifters that do not include an adjustment for Valve train component expansion due to internal Engine heat and requires regular lash adjustment service to deliver top performance. Solid roller lifters can be re used, however they are more costly than flat tappet lifters.
Engine Compatibility: Chevy Small Block V8 262-400 Cubic Inch
Recommended Use: Serious Street Performance To All-Out Racing
Type: Circle Solid Roller
RPM - Low: 3800
RPM - High: 7000
Intake Duration At 0.050 Inch Lift (DEG): 260 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 264 Degree
Advertised Intake Duration (DEG): 288 Degree
Advertised Exhaust Duration (DEG): 300 Degree
Intake Valve Lift (IN): 0.66 Inch
Exhaust Valve Lift (IN): 0.63 Inch
Lobe Separation Angle (DEG): 106 Degree
Intake Centerline Angle (DEG): 106 Degree
Grind Number: 288BR-6
Computer-Controlled Compatible: No

Features

  • Maximum Performance
  • Reduced Friction
  • Most Aggressive Profiles
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 129209
Advertised Exhaust Duration (DEG) 300 Degree
Advertised Intake Duration (DEG) 288 Degree
Computer-Controlled Compatible No
Engine Compatibility Chevy Small Block V8 262-400 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 264 Degree
Exhaust Valve Lift (IN) 0.63 Inch
Grind Number 288BR-6
Intake Centerline Angle (DEG) 106 Degree
Intake Duration At 0.050 Inch Lift (DEG) 260 Degree
Intake Valve Lift (IN) 0.66 Inch
Lobe Separation Angle (DEG) 106 Degree
Recommended Use Serious Street Performance To All-Out Racing
RPM - High 7000
RPM - Low 3800
Type Circle Solid Roller

1900 Chevrolet Small Block 1955-1986

1900 Chevrolet Small Block 1987-1998 (OE Roller)
