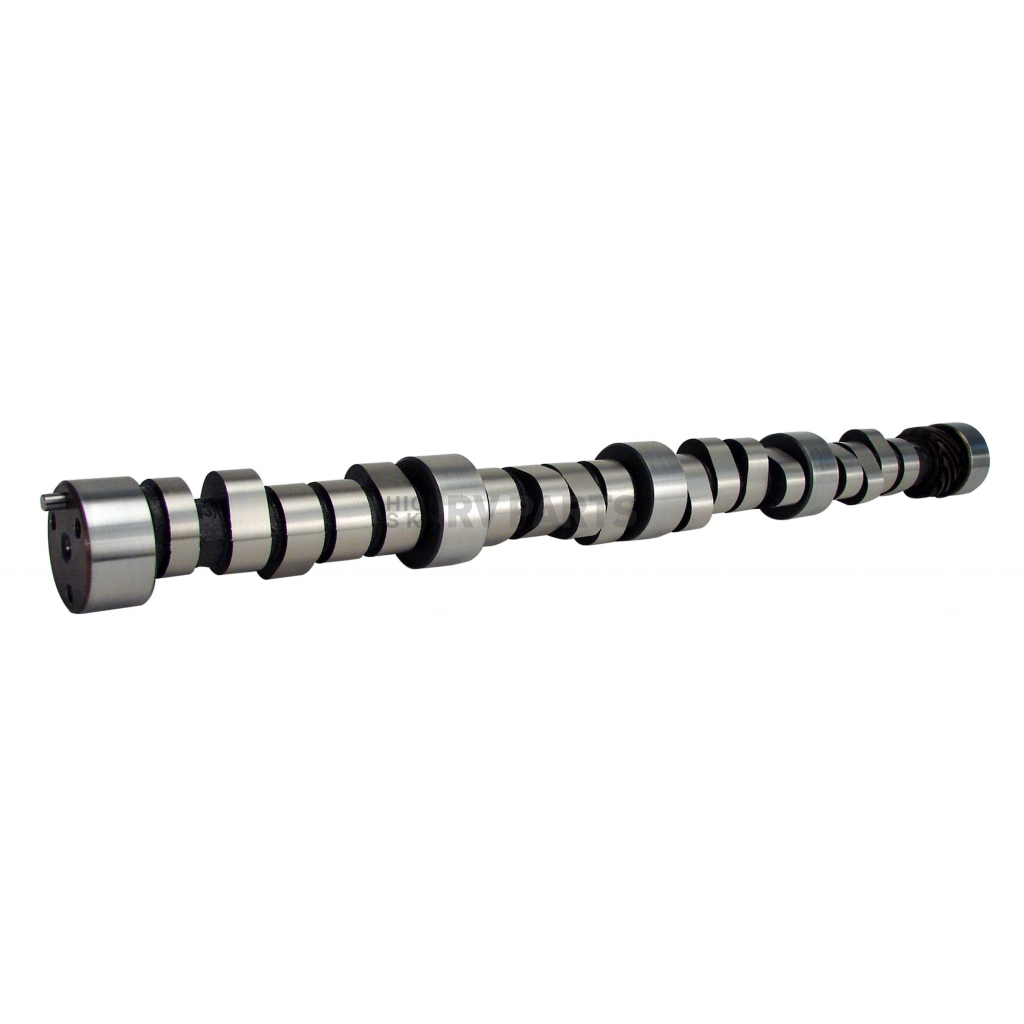

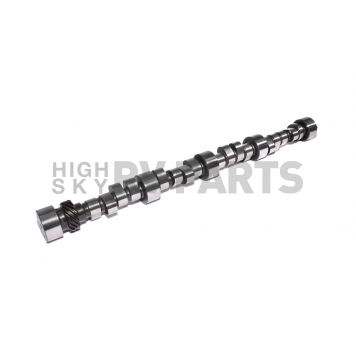

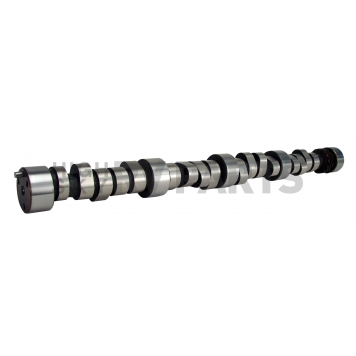

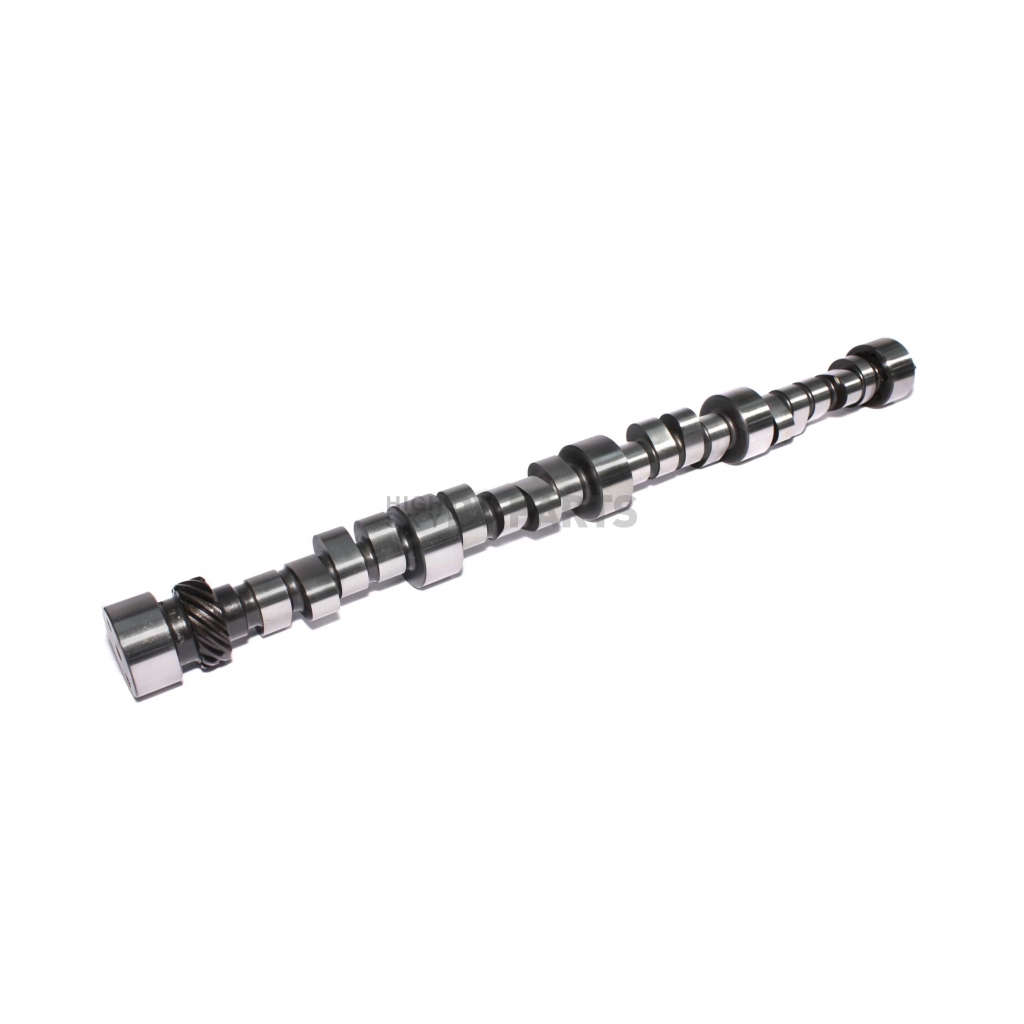

COMP Cams Camshaft 118269

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 11-826-9
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $552.29
Price: $525.99
You Save: $26.30
Advertised Exhaust Duration (DEG)
346 Degree
Advertised Intake Duration (DEG)
326 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Chevy Big Block V8 396-454 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
310 Degree
Exhaust Valve Lift (IN)
0.758 Inch
Grind Number
326R-14
Intake Centerline Angle (DEG)
114 Degree
Intake Duration At 0.050 Inch Lift (DEG)
286 Degree
Intake Valve Lift (IN)
0.812 Inch
Lobe Separation Angle (DEG)
114 Degree
Share this page

COMP Cams Camshaft

Camshaft; Drag Race; Chevy Big Block 6.5L-7.4L/396-454 Cubic Inch; Mechanical Roller; 5500-8000 RPM Range; 286 Degree Intake Duration @ 0.050 Inch Lift; 310 Degree Exhaust Duration @ 0.050 Inch Lift; 0.812 Inch Intake Valve Lift; 0.758 Inch Exhaust Valve Lift; 114 Degree Lobe Separation

MPN: 118269

The highest of all performance level camshafts; solid rollers are designed for both high performance street through all-out racing applications. They feature the most aggressive Camshaft lobe profiles and withstand the highest Valve Spring pressures. As with their solid flat tappet Camshaft cousins, they are noisier than hydraulic Camshaft systems, particularly when cold, yet they deliver more performance and throttle response, especially when adjusted to “Tight” lash settings of 0.010 Inch To 0.012 Inch. The solid roller Camshaft also uses roller lifters that do not include an adjustment for Valve train component expansion due to internal Engine heat and requires regular lash adjustment service to deliver top performance. Solid roller lifters can be re used, however they are more costly than flat tappet lifters.
Engine Compatibility: Chevy Big Block V8 396-454 Cubic Inch
Recommended Use: Serious Street Performance To All-Out Racing
Type: Mechanical Roller
RPM - Low: 5500
RPM - High: 8000
Intake Duration At 0.050 Inch Lift (DEG): 286 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 310 Degree
Advertised Intake Duration (DEG): 326 Degree
Advertised Exhaust Duration (DEG): 346 Degree
Intake Valve Lift (IN): 0.812 Inch
Exhaust Valve Lift (IN): 0.758 Inch
Lobe Separation Angle (DEG): 114 Degree
Intake Centerline Angle (DEG): 114 Degree
Grind Number: 326R-14
Computer-Controlled Compatible: No

Features

  • Maximum Performance
  • Reduced Friction
  • Most Aggressive Profiles
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 118269
Advertised Exhaust Duration (DEG) 346 Degree
Advertised Intake Duration (DEG) 326 Degree
Computer-Controlled Compatible No
Engine Compatibility Chevy Big Block V8 396-454 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 310 Degree
Exhaust Valve Lift (IN) 0.758 Inch
Grind Number 326R-14
Intake Centerline Angle (DEG) 114 Degree
Intake Duration At 0.050 Inch Lift (DEG) 286 Degree
Intake Valve Lift (IN) 0.812 Inch
Lobe Separation Angle (DEG) 114 Degree
Recommended Use Serious Street Performance To All-Out Racing
RPM - High 8000
RPM - Low 5500
Type Mechanical Roller

1900 Chevrolet Big Block 1965-1990 Gen IV
