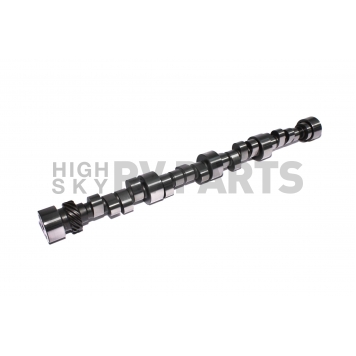

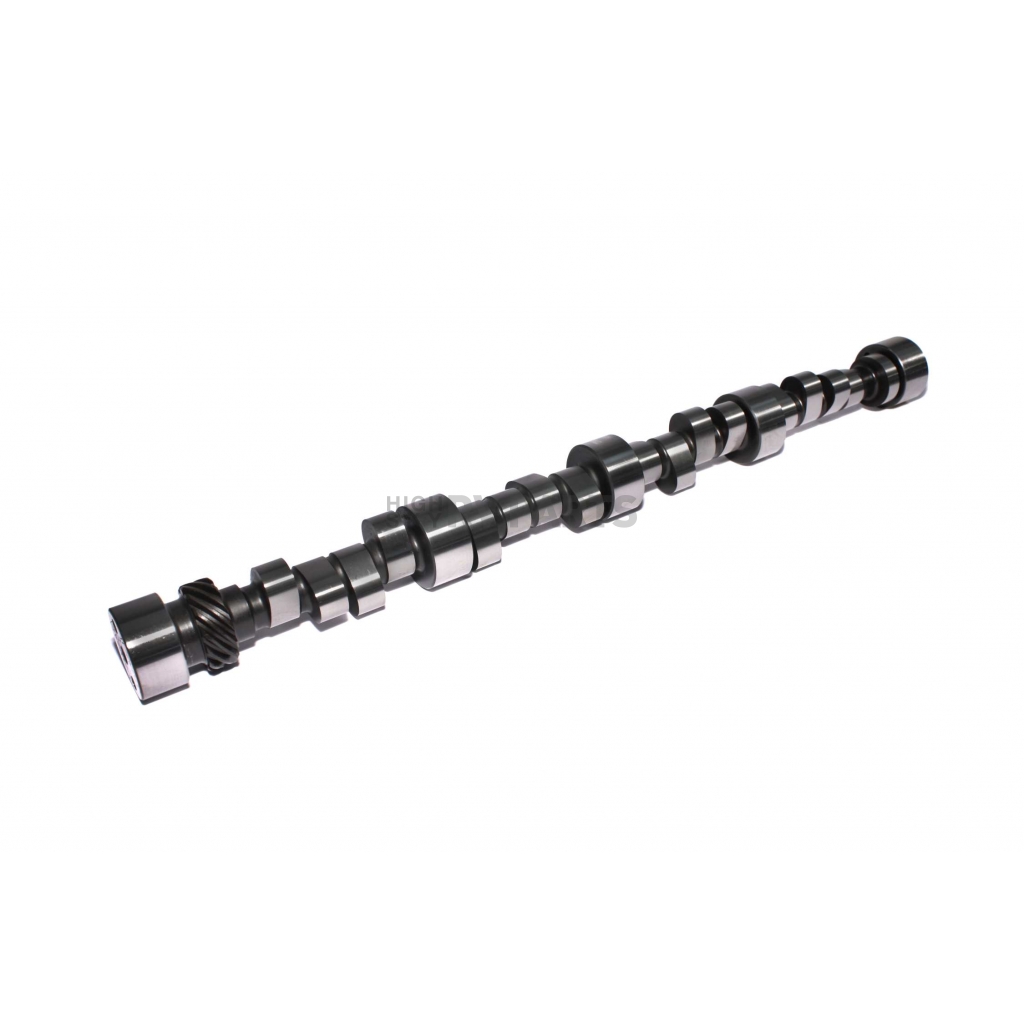

COMP Cams Camshaft 1174814

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 11-748-14
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 14
Retail: $787.49
Price: $749.99
You Save: $37.50
Advertised Exhaust Duration (DEG)
319 Degree
Advertised Intake Duration (DEG)
312 Degree
Computer-Controlled Compatible
No
Engine Compatibility
Chevy Big Block V8 396-454 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
280 Degree
Exhaust Valve Lift (IN)
0.68 Inch
Grind Number
47S 312R10
Intake Centerline Angle (DEG)
110 Degree
Intake Duration At 0.050 Inch Lift (DEG)
278 Degree
Intake Valve Lift (IN)
0.714 Inch
Lobe Separation Angle (DEG)
110 Degree
Share this page

COMP Cams Camshaft

Camshaft; Drag Race; Chevy Big Block 6.5L-7.4L/396-454 Cubic Inch; Mechanical Roller; 4800-7400 RPM Range; 278 Degree Intake Duration @ 0.050 Inch Lift; 280 Degree Exhaust Duration @ 0.050 Inch Lift; 0.714 Inch Intake Valve Lift; 0.680 Inch Exhaust Valve Lift; 110 Degree Lobe Separation

MPN: 1174814

For more than three decades, the COMP Cams® mission has never changed: produce the highest performing products possible, provide superior customer service and lead the industry in technological development. By selecting a COMP Cams® product you can have confidence in knowing that we spend thousands of Hours and millions of dollars working with individuals, race teams and companies to ensure that our products provide superior performance and reliability.
Engine Compatibility: Chevy Big Block V8 396-454 Cubic Inch
Recommended Use: Serious Street Performance To All-Out Racing
Type: Mechanical Roller
RPM - Low: 4800
RPM - High: 7400
Intake Duration At 0.050 Inch Lift (DEG): 278 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 280 Degree
Advertised Intake Duration (DEG): 312 Degree
Advertised Exhaust Duration (DEG): 319 Degree
Intake Valve Lift (IN): 0.714 Inch
Exhaust Valve Lift (IN): 0.68 Inch
Lobe Separation Angle (DEG): 110 Degree
Intake Centerline Angle (DEG): 110 Degree
Grind Number: 47S 312R10
Computer-Controlled Compatible: No

Features

  • Good Bracket, Good Heads 12:1 Compression 4500 To 5000 Stall
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 1174814
Advertised Exhaust Duration (DEG) 319 Degree
Advertised Intake Duration (DEG) 312 Degree
Computer-Controlled Compatible No
Engine Compatibility Chevy Big Block V8 396-454 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 280 Degree
Exhaust Valve Lift (IN) 0.68 Inch
Grind Number 47S 312R10
Intake Centerline Angle (DEG) 110 Degree
Intake Duration At 0.050 Inch Lift (DEG) 278 Degree
Intake Valve Lift (IN) 0.714 Inch
Lobe Separation Angle (DEG) 110 Degree
Recommended Use Serious Street Performance To All-Out Racing
RPM - High 7400
RPM - Low 4800
Type Mechanical Roller
