COMP Cams Camshaft 102125

Authorized Dealer
Brand: COMP Cams COMP Cams
0 reviews
  • Have a product question? Ask us
  • Part Number: 10-212-5
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by May 30
Retail: $440.99
Price: $419.99
You Save: $21.00
Advertised Exhaust Duration (DEG)
312 Degree
Advertised Intake Duration (DEG)
312 Degree
Computer-Controlled Compatible
No
Engine Compatibility
AMC V8 290-401 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG)
260 Degree
Exhaust Valve Lift (IN)
0.565 Inch
Grind Number
312H-8
Intake Centerline Angle (DEG)
108 Degree
Intake Duration At 0.050 Inch Lift (DEG)
260 Degree
Intake Valve Lift (IN)
0.565 Inch
Lobe Separation Angle (DEG)
108 Degree
Share this page

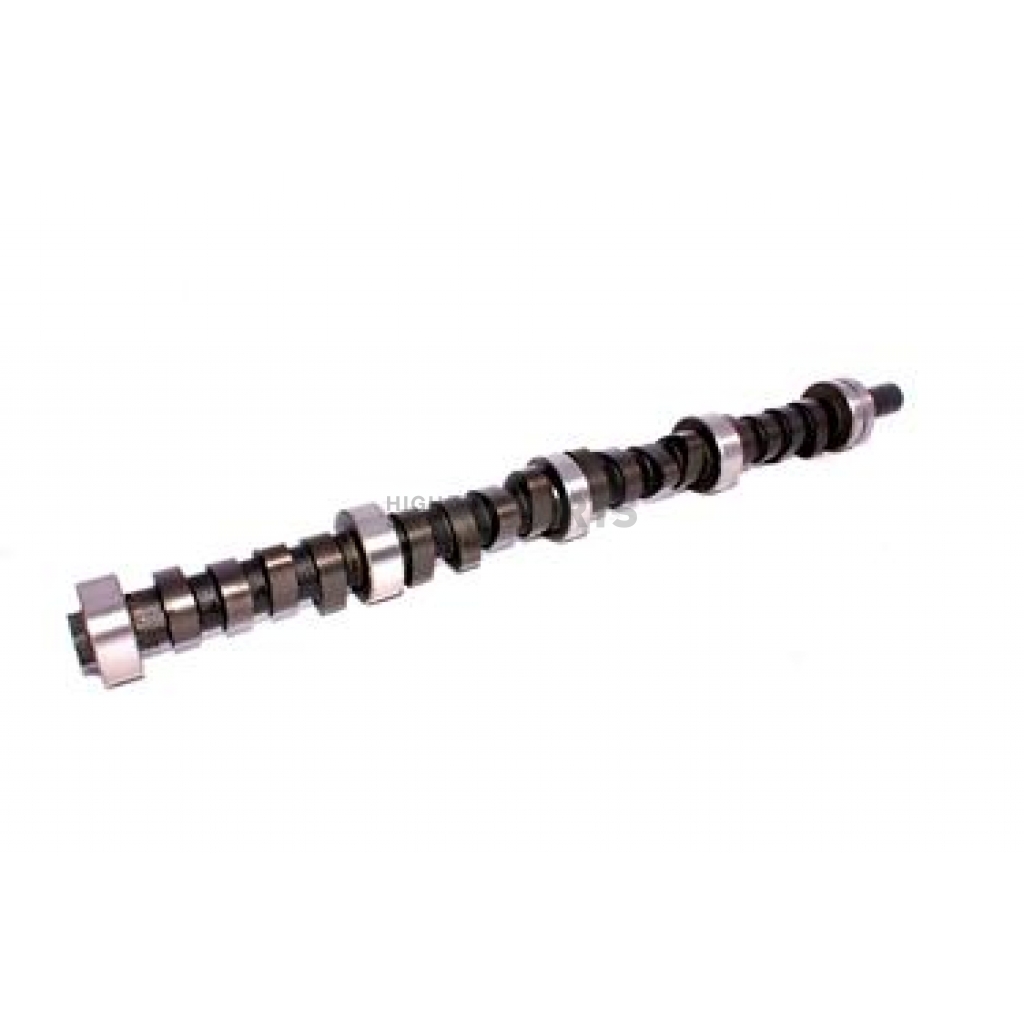

COMP Cams Camshaft

Camshaft; AMC 4.8L-6.6L/290-401 Cubic Inch; Hydraulic Flat Tappet; 3500-7000 RPM Range; 260 Degree Intake Duration @ 0.050 Inch Lift; 260 Degree Exhaust Duration @ 0.050 Inch Lift; 0.565 Inch Intake Valve Lift; 0.565 Inch Exhaust Valve Lift; 108 Degree Lobe Separation

MPN: 102125

A popular street Camshaft used with original overhead Valve OEM engines, the hydraulic flat tappet cam is commonly used up to mildly aggressive performance profiles. The flat tappet lifter has a flat appearing base (this surface is actually slightly crowned) that rides on the cam lobe face, rotating slowly within the lifter bore to promote proper oiling. Internally, the lifter features a cavity that fills with oil and a piston that is depressed by the pushrod (and Valve spring). This “Hydraulic Chamber” provides a cushion of fluid to soften the impact on the Valve Train, creating room for expansion as the Engine reaches operating temperature. Hydraulic flat tappet Camshafts deliver quiet operation at street to mild racing Engine speeds. The biggest advantage to hydraulic flat tappet lifters is that they do not require constant maintenance to ensure proper Valve lash. Hydraulic flat tappet camshafts/Lifters are pre loaded at initial start-up and require little, if any, maintenance from that point forward. Flat tappet lifters can only be used once per Camshaft and must be replaced due to wear patterns created by the direct contact of the cam with the lifter base.
Engine Compatibility: AMC V8 290-401 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Flat Tappet
RPM - Low: 3500
RPM - High: 7000
Intake Duration At 0.050 Inch Lift (DEG): 260 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 260 Degree
Advertised Intake Duration (DEG): 312 Degree
Advertised Exhaust Duration (DEG): 312 Degree
Intake Valve Lift (IN): 0.565 Inch
Exhaust Valve Lift (IN): 0.565 Inch
Lobe Separation Angle (DEG): 108 Degree
Intake Centerline Angle (DEG): 108 Degree
Grind Number: 312H-8
Computer-Controlled Compatible: No

Features

  • Minimal Maintenance
  • Little Or No Valve Train Noise
  • Economical Cost
  • Limited 1 Year Warranty
Specifications of COMP Cams Camshaft 102125
Advertised Exhaust Duration (DEG) 312 Degree
Advertised Intake Duration (DEG) 312 Degree
Computer-Controlled Compatible No
Engine Compatibility AMC V8 290-401 Cubic Inch
Exhaust Duration At 0.050 Inch Lift (DEG) 260 Degree
Exhaust Valve Lift (IN) 0.565 Inch
Grind Number 312H-8
Intake Centerline Angle (DEG) 108 Degree
Intake Duration At 0.050 Inch Lift (DEG) 260 Degree
Intake Valve Lift (IN) 0.565 Inch
Lobe Separation Angle (DEG) 108 Degree
Recommended Use Mild Street Performance To Mild Race
RPM - High 7000
RPM - Low 3500
Type Hydraulic Flat Tappet

1900 American Motors 290-401

1966 American Motors Ambassador
1967 American Motors Ambassador
1968 American Motors Ambassador
1969 American Motors Ambassador
1970 American Motors Ambassador
1971 American Motors Ambassador
1972 American Motors Ambassador
1973 American Motors Ambassador
1974 American Motors Ambassador

1966 American Motors American
1967 American Motors American
1968 American Motors American

1968 American Motors AMX
1969 American Motors AMX
1970 American Motors AMX

1978 American Motors AMX
1979 American Motors AMX

1966 American Motors Classic

1978 American Motors Concord
1979 American Motors Concord

1972 American Motors Gremlin
1973 American Motors Gremlin
1974 American Motors Gremlin
1975 American Motors Gremlin
1976 American Motors Gremlin

1970 American Motors Hornet
1971 American Motors Hornet
1972 American Motors Hornet
1973 American Motors Hornet
1974 American Motors Hornet
1975 American Motors Hornet
1976 American Motors Hornet
1977 American Motors Hornet

1968 American Motors Javelin
1969 American Motors Javelin
1970 American Motors Javelin
1971 American Motors Javelin
1972 American Motors Javelin
1973 American Motors Javelin
1974 American Motors Javelin

1966 American Motors Marlin
1967 American Motors Marlin

1971 American Motors Matador
1972 American Motors Matador
1973 American Motors Matador
1974 American Motors Matador
1975 American Motors Matador
1976 American Motors Matador
1977 American Motors Matador
1978 American Motors Matador

1978 American Motors Pacer
1979 American Motors Pacer

1969 American Motors Rambler

1966 American Motors Rebel
1967 American Motors Rebel
1968 American Motors Rebel
1969 American Motors Rebel
1970 American Motors Rebel

1966 American Motors Rogue

1979 American Motors Spirit

1974 Bricklin SV-1

1974 International 100

1972 International 1010
1973 International 1010

1966 International 1100A

1973 International 1110

1966 International 1200A

1973 International 1210

1974 International 200

1969 International M1400

1974 Jeep Cherokee
1975 Jeep Cherokee
1976 Jeep Cherokee
1977 Jeep Cherokee
1978 Jeep Cherokee
1979 Jeep Cherokee
1980 Jeep Cherokee
1981 Jeep Cherokee
1982 Jeep Cherokee
1983 Jeep Cherokee

1971 Jeep CJ5
1972 Jeep CJ5
1973 Jeep CJ5
1974 Jeep CJ5
1975 Jeep CJ5
1976 Jeep CJ5
1977 Jeep CJ5
1978 Jeep CJ5
1979 Jeep CJ5
1980 Jeep CJ5
1981 Jeep CJ5

1971 Jeep CJ6
1972 Jeep CJ6
1973 Jeep CJ6
1974 Jeep CJ6
1975 Jeep CJ6

1976 Jeep CJ7
1977 Jeep CJ7
1978 Jeep CJ7
1979 Jeep CJ7
1980 Jeep CJ7
1981 Jeep CJ7

1972 Jeep Commando
1973 Jeep Commando

1966 Jeep Gladiator
1967 Jeep Gladiator
1968 Jeep Gladiator
1969 Jeep Gladiator

1984 Jeep Grand Wagoneer
1985 Jeep Grand Wagoneer
1986 Jeep Grand Wagoneer
1987 Jeep Grand Wagoneer
1988 Jeep Grand Wagoneer
1989 Jeep Grand Wagoneer
1990 Jeep Grand Wagoneer
1991 Jeep Grand Wagoneer

1966 Jeep J-100
1967 Jeep J-100
1968 Jeep J-100

1971 Jeep J-100
1972 Jeep J-100
1973 Jeep J-100

1966 Jeep J-2500
1967 Jeep J-2500
1968 Jeep J-2500
1969 Jeep J-2500
1970 Jeep J-2500
1971 Jeep J-2500
1972 Jeep J-2500
1973 Jeep J-2500

1966 Jeep J-2600
1967 Jeep J-2600
1968 Jeep J-2600
1969 Jeep J-2600
1970 Jeep J-2600
1971 Jeep J-2600
1972 Jeep J-2600
1973 Jeep J-2600

1966 Jeep J-2700
1967 Jeep J-2700
1968 Jeep J-2700
1969 Jeep J-2700
1970 Jeep J-2700

1966 Jeep J-2800
1967 Jeep J-2800
1968 Jeep J-2800

1966 Jeep J-3500
1967 Jeep J-3500
1968 Jeep J-3500
1969 Jeep J-3500
1970 Jeep J-3500

1966 Jeep J-3600
1967 Jeep J-3600
1968 Jeep J-3600
1969 Jeep J-3600
1970 Jeep J-3600

1966 Jeep J-3700
1967 Jeep J-3700
1968 Jeep J-3700
1969 Jeep J-3700
1970 Jeep J-3700

1966 Jeep J-3800
1967 Jeep J-3800
1968 Jeep J-3800
1969 Jeep J-3800
1970 Jeep J-3800
1971 Jeep J-3800

1970 Jeep J-4500
1971 Jeep J-4500
1972 Jeep J-4500
1973 Jeep J-4500

1970 Jeep J-4600
1971 Jeep J-4600
1972 Jeep J-4600
1973 Jeep J-4600

1970 Jeep J-4700
1971 Jeep J-4700
1972 Jeep J-4700
1973 Jeep J-4700

1970 Jeep J-4800
1971 Jeep J-4800
1972 Jeep J-4800
1973 Jeep J-4800

1974 Jeep J10
1975 Jeep J10
1976 Jeep J10
1977 Jeep J10
1978 Jeep J10
1979 Jeep J10
1980 Jeep J10
1981 Jeep J10
1982 Jeep J10
1983 Jeep J10
1984 Jeep J10
1985 Jeep J10
1986 Jeep J10
1987 Jeep J10
1988 Jeep J10

1974 Jeep J20
1975 Jeep J20
1976 Jeep J20
1977 Jeep J20
1978 Jeep J20
1979 Jeep J20
1980 Jeep J20
1981 Jeep J20
1982 Jeep J20
1983 Jeep J20
1984 Jeep J20
1985 Jeep J20
1986 Jeep J20
1987 Jeep J20
1988 Jeep J20

1966 Jeep Wagoneer
1967 Jeep Wagoneer
1968 Jeep Wagoneer

1972 Jeep Wagoneer
1973 Jeep Wagoneer
1974 Jeep Wagoneer
1975 Jeep Wagoneer
1976 Jeep Wagoneer
1977 Jeep Wagoneer
1978 Jeep Wagoneer
1979 Jeep Wagoneer
1980 Jeep Wagoneer
1981 Jeep Wagoneer
1982 Jeep Wagoneer
1983 Jeep Wagoneer
